Features

JBL’s exclusive neodymium magnet Differential Drive® woofer
For high-power capacity and light weight

3 x 2408J Annular Ring Diaphragm HF drivers
The 2408 represents the latest in JBL Professional compression driver design

Constant Curvature waveguide
For unprecedented array coherence

Integral rigging hardware
For simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

Array Configuration Selector
Permits “array shading” in passive mode

Durable construction
VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.
Frequently Bought Together
Specs & Downloads
Item# VRX932LA-1
Description
12" Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures. Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means of the Array Configuration Selector (ACS), a feature that provides amplitude shading when the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely interchangeable and can be used together. When operated in passive mode, frequency response characteristics are exactly the same and both can be used in the same array.
General Specifications
- Power Rating (W, Continuous)
- 800
- Power Rating (W, Peak)
- 3200
- Frequency Range Hz (-10 dB)
- 57 - 20,000
- Frequency Response Hz (±3 dB)
- 75 - 20,000
- Sensitivity (dB SPL 1w/1m)
- 95
- Nominal Impedance (ohms)
- 8
- Maximum SPL (peak dB)
- 130
Dimensions
- Height (in)
- 13.75
- Depth (in)
- 15
- Width (in)
- 23.5
- Weight (lbs)
- 46
- Height (mm)
- 349
- Width (mm)
- 597
- Depth (mm)
- 381
- Weight (kg)
- 21
Design
- Enclosure
- 18 mm, 11-ply birch plywood
- Suspension / Mounting

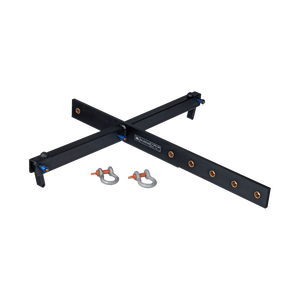

- Optional VRX932LA-AF line array frame kit
- Finish
- Black DuraFlex™ finish
- Grille
- Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Features
- Dual-angle pole-mount socket
- Yes
- M10 suspension points
- Yes
- JBL professional tunings and presents available
- Yes
