Features

JBL’s exclusive neodymium magnet Differential Drive® woofer
For high-power capacity and light weight

Constant Curvature waveguide
For unprecedented array coherence

Integral rigging hardware
For simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

Dual angle pole socket for aiming flexibility
One or two speakers may be mounted to a 35 mm pole or tripod stand

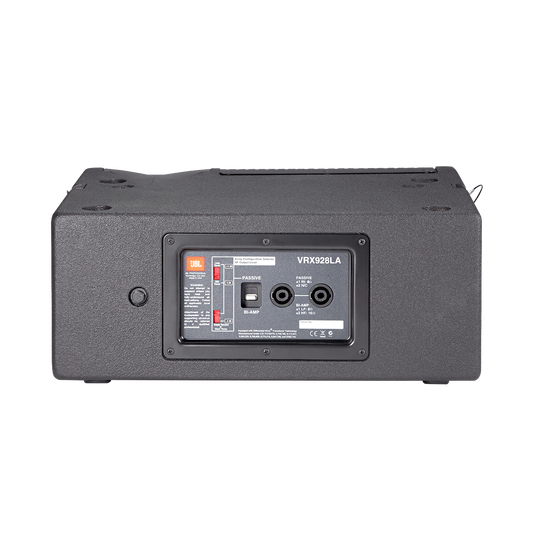

Array Configuration Selector
Permits “array shading” in passive mode

Durable construction
VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.
Frequently Bought Together
Specs & Downloads
Item# VRX928LA
Description

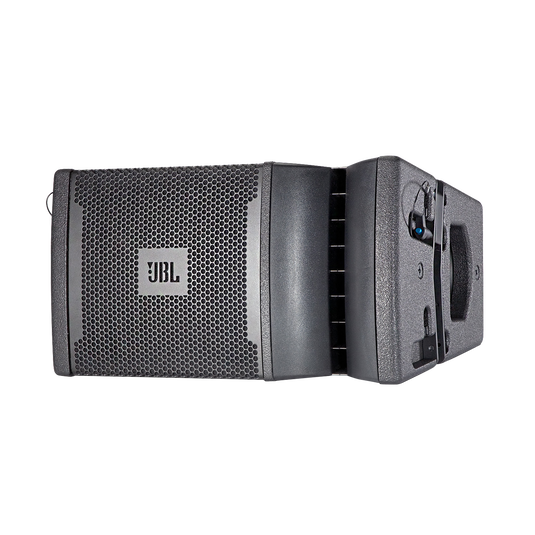

8" Two-Way Line Array Loudspeaker System
The VRX928LA – the smaller version of the VRX932LA is a light-weight, compact, 8", two-way line-array speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays. The VRX928LA offers all the same features as the VRX932LA. As with the VRX932LA, the Array Configuration Selector (ACS) makes it possible to distribute the sound more evenly over the entire audience area, by reducing the output near the stage and increasing it for the far to reach rear areas.
General Specifications
- Power Rating (W, Continuous)
- 400
- Power Rating (W, Peak)
- 1600
- Frequency Range Hz (-10 dB)
- 70 - 20,000
- Frequency Response Hz (±3 dB)
- 87 - 19,000
- Sensitivity (dB SPL 1w/1m)
- 90
- Nominal Impedance (ohms)
- 8
- Maximum SPL (peak dB)
- 122
Dimensions
- Height (in)
- 9.1
- Depth (in)
- 10.5
- Width (in)
- 16.5
- Weight (lbs)
- 28
- Height (mm)
- 230
- Width (mm)
- 419
- Depth (mm)
- 267
- Weight (kg)
- 12.7
Features
- Dual-angle pole-mount socket
- Yes
- M10 suspension points
- Yes
- JBL professional tunings and presents available
- Yes
