5.25-inch, 2-way On-wall Loudspeaker

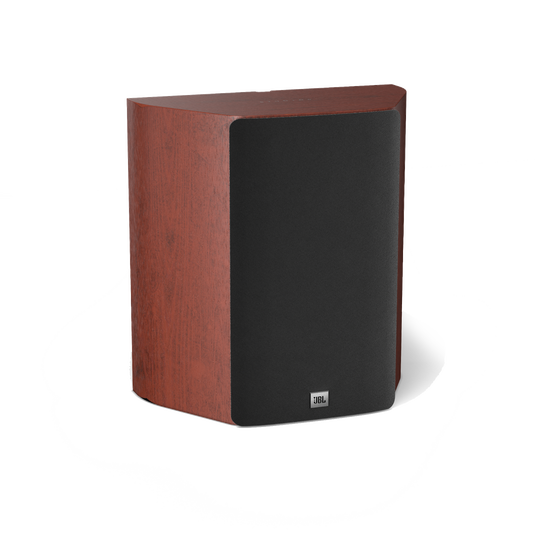

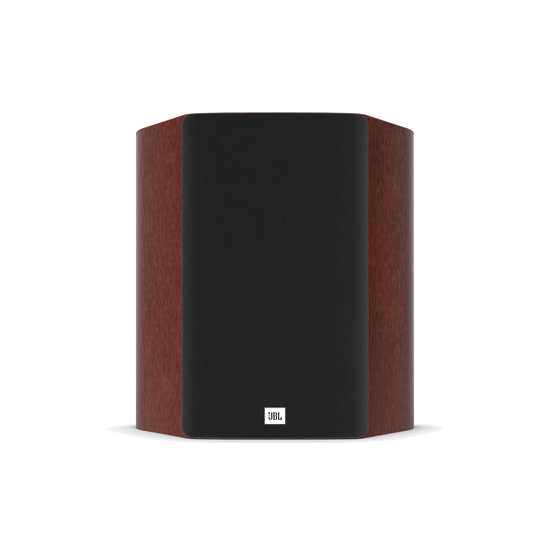

The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Find a Dealer

Studio 610

0.0 (0)
Write a review
  • Top-graded PolyPlass cones
  • High-quality sounding compression drivers
  • New, appealing form factor
  • High-definition imaging Waveguide with high-frequency compression driver
Please click PERSONALIZE to get started or select a design
Back to top
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.

Cancel

Your zip code edit

This item is currently not available.

shipping
Free Shipping
returns
Free Returns
support
Lifetime Support
Studio 610
0.0 (0)
Write a review
Studio 610 Top-graded PolyPlass cones - Image

Top-graded PolyPlass cones

Studio 610 High-quality sounding compression drivers - Image

High-quality sounding compression drivers

Studio 610 New, appealing form factor - Image

New, appealing form factor

Features

Studio 610 High-definition imaging Waveguide with high-frequency compression driver - Image

High-definition imaging Waveguide with high-frequency compression driver

Specs & Downloads

Item# JBLS610W

Description

Studio 610

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

Single 5.25", 2-way compression driver wall mountable surround loudspeaker

5.25" (133mm) PolyPlas Low-Frequency Woofer

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver

Recommended Amplifier Power
Max 100W
Frequency Response
65Hz – 40kHz
Sensitivity
84dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
2.4 kHz
Enclosure Type
Sealed Enclosure
Dimensions (W x D x H)
250 x 135 x 300mm
