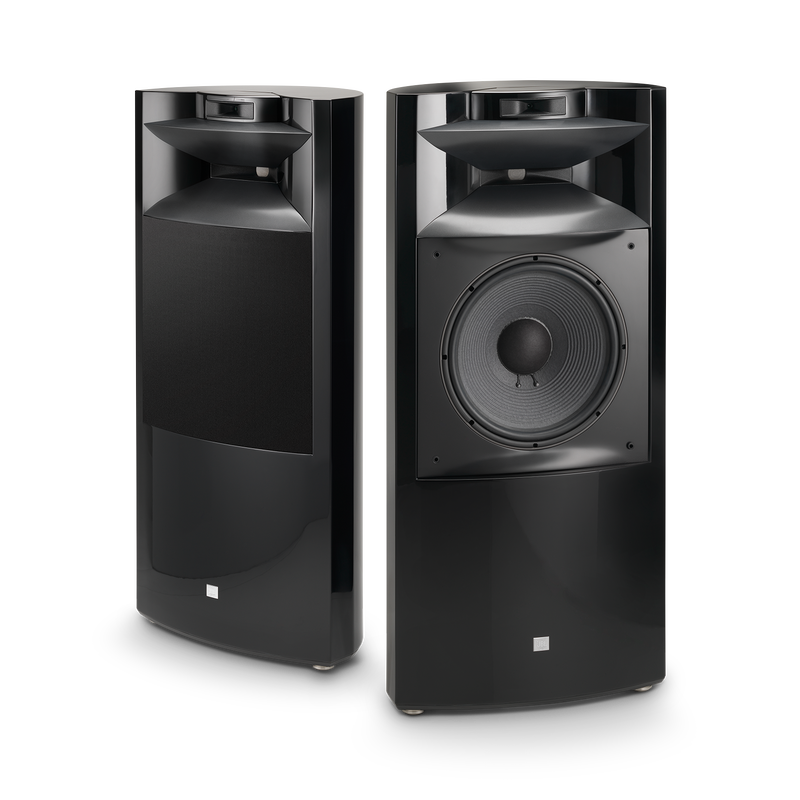

Project K2 S9900

4-inch (100mm) magnesium diaphragm compression driver mated to a patented Bi-Radial horn.

1-inch (25mm) pure-beryllium diaphragm ultra high-frequency driver.

15-inch (380-millimeter) pure-pulp cone woofer.

Features

Project K2 S9900 Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic). - Image

Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic).

Project K2 S9900 High-frequency and Ultra High-frequency level attenuators. - Image

High-frequency and Ultra High-frequency level attenuators.

Project K2 S9900 Separate LF and HF crossover networks. - Image

Separate LF and HF crossover networks.

Project K2 S9900 Separate low-frequency and high-frequency rear-input terminals. - Image

Separate low-frequency and high-frequency rear-input terminals.

Specs & Downloads

Item# K2S9900BG

Description

Project K2 S9900

Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today, is the latest expression in technology that is deeply rooted in more than 75 years of tradition. Like the Paragon and Hartsfield, the K2 S9900 was built around compression driver technology and addressed a more refined stereo image than was previously considered technically feasible. The K2 S9900 also incorporates key design elements from the Project Everest. Despite its 21st century power and sophistication, Project K2 S9900 is a synthesis of tradition and technology.

General Specifications

Type
Floor-Standing Speakers
Finish
Cherry
Width (in)
22

Audio Specifications

Maximum Recommended Amplifier Power
500
Frequency Response
(-6dB) 48Hz-50kHz
Nominal Impedance
8 Ohms 7 ohms minimum at 100Hz, 4ohms minimum at 40kHz
Sensitivity (2.83V@1m)
(2.83V@1m) 93dB
Crossover Frequencies
900Hz (24dB/octave) 15kHz (24dB/octave, high-pass only)

Speaker Specifications

Low-Frequency Transducer
15" (380mm) Pulp-cone woofer (1500AL-1)
High-Frequncy Transducer
4" (100mm) Magnesium compression driver (476Mg)

Dimensions

Height (mm)
1200
Height (in)
47-5/16
Weight (kg)
82.7
Weight (lb)
182
Width (mm)
560
Depth (mm)
350
Depth (in)
13-13/16
