JBL S4700

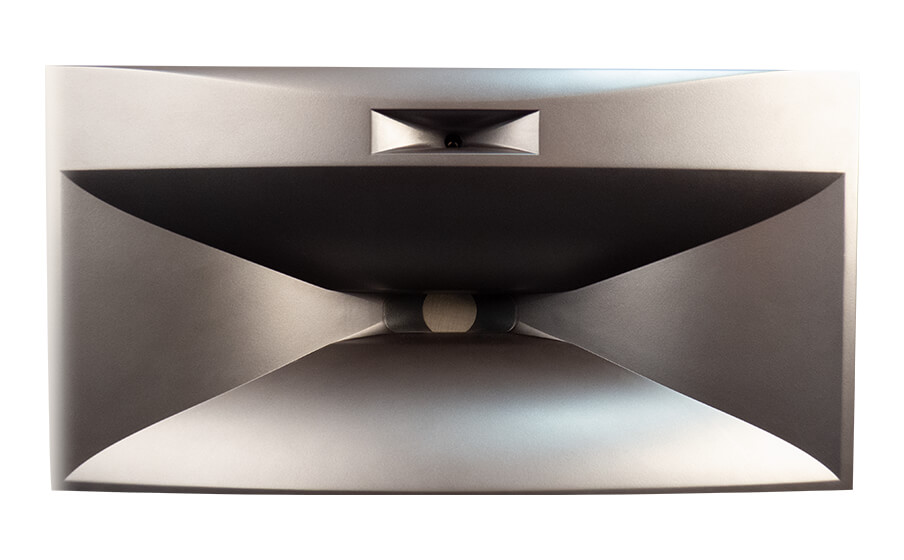

1.75-inch (45mm) Titanium diaphragm compression driver mated to a patented Bi-Radial horn.

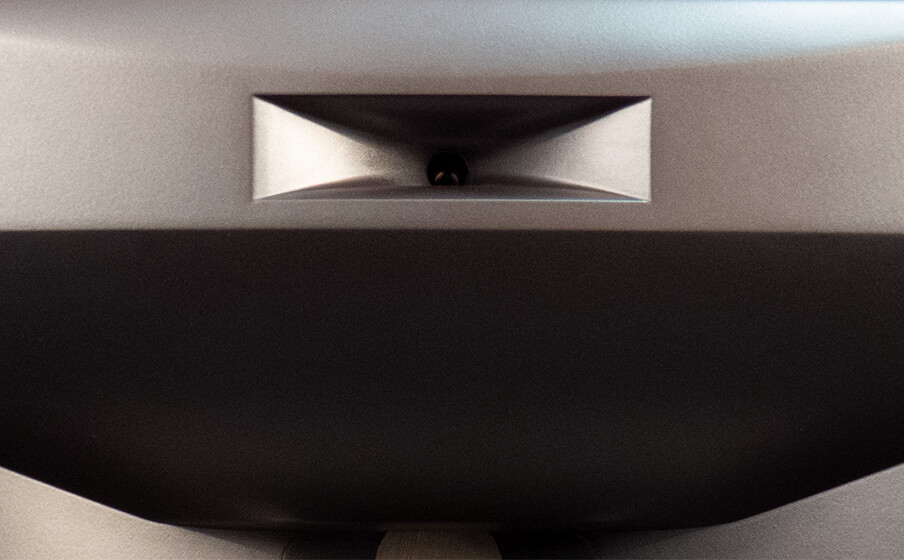

0.75-inch (19mm) Titanium diaphragm ultra high-frequency driver.

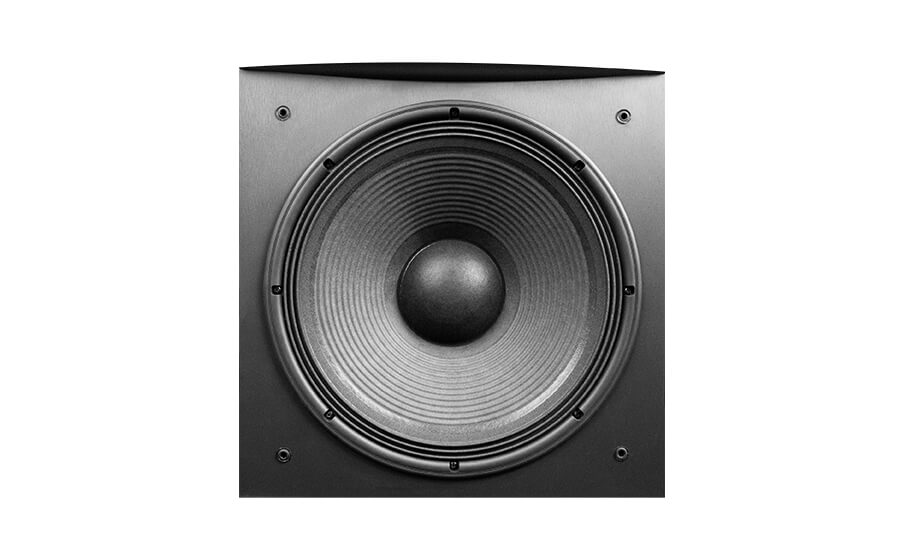

15-inch (380mm) pure-pulp cone woofer.

Features

JBL S4700 Furniture-grade cherry wood veneer enclosure. - Image

Furniture-grade cherry wood veneer enclosure.

JBL S4700 Advanced crossover network. - Image

Advanced crossover network.

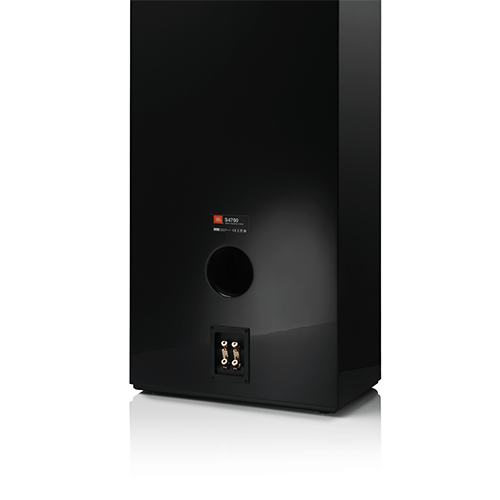

JBL S4700 Separate low-frequency and high-frequency rear-input terminals. - Image

Separate low-frequency and high-frequency rear-input terminals.

Specs & Downloads

Item# S4700

Description

JBL S4700

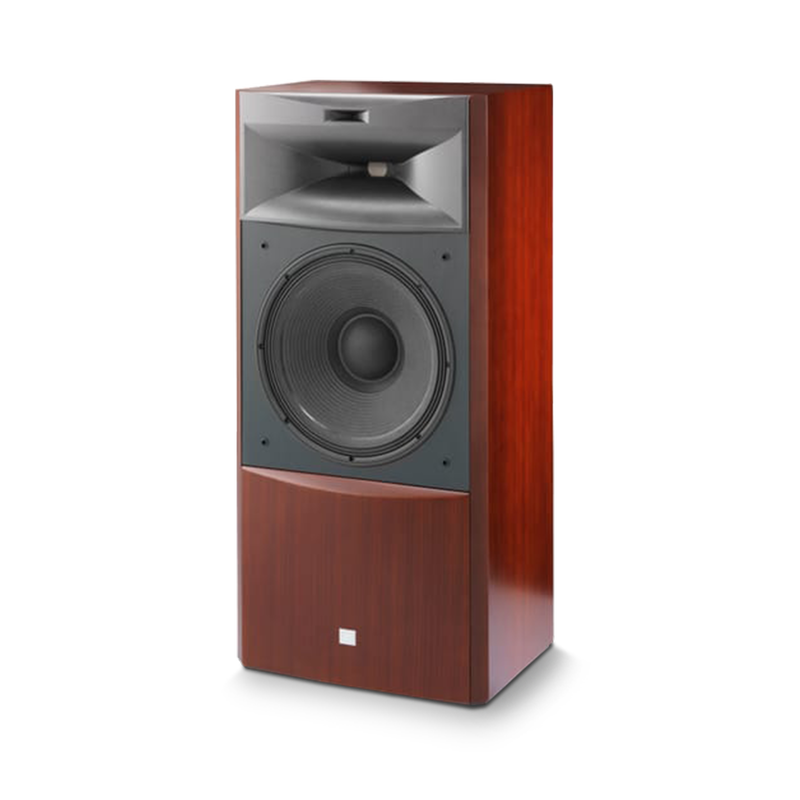

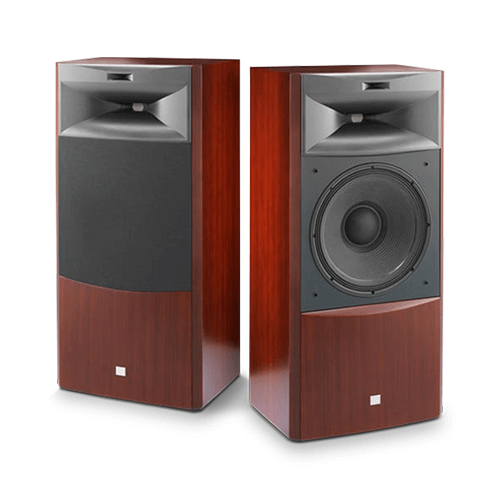

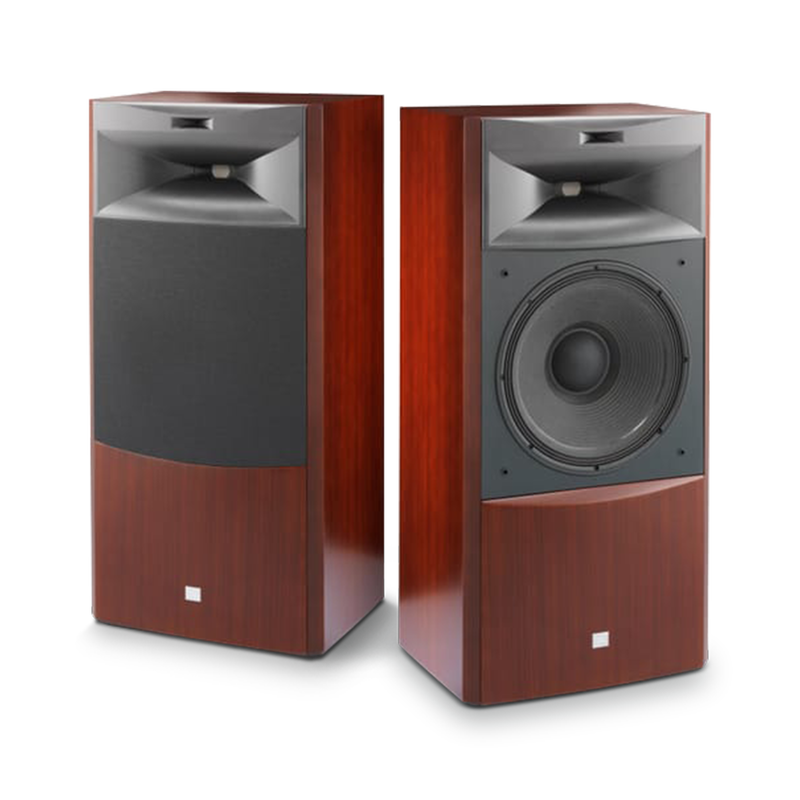

The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today. At its foundation, the S4700 uses a cast-frame 15-inch (380mm) woofer, a 1.75-inch (45mm) titanium compression driver and a 0.75-inch (20mm) titanium compression driver for lifelike dynamics and startling realism.

General Specifications

Description
3-way Floorstanding Loudspeaker
Frequency Response
38Hz - 40kHz (-6db)
Power Handling
300W RMS
Sensitivity (2.83V @ 1m)
94dB
Nominal Impedance
6 Ohms
Crossover Frequencies
80Hz, 12kHz
Dimensions (H x W x D)
42.1" x 19.7" x 14.6" (106.8 x 50.0 x 37.1cm)
Net Weight
120 lb (54.5kg)
