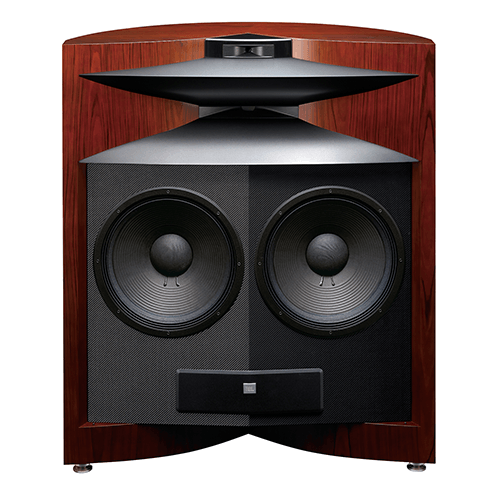

Project Everest DD67000

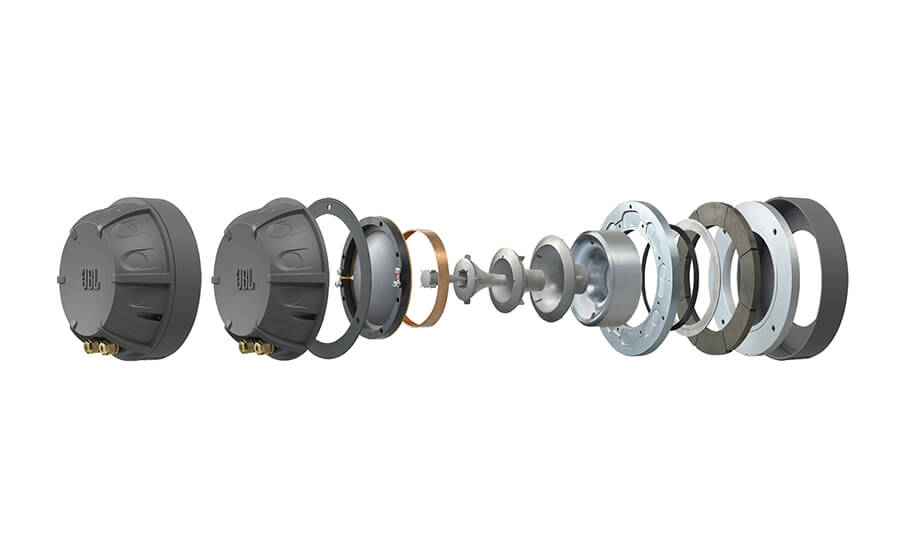

4-inch (100mm) pure beryllium diaphragm compression driver mated to a patented Bi-Radial horn.

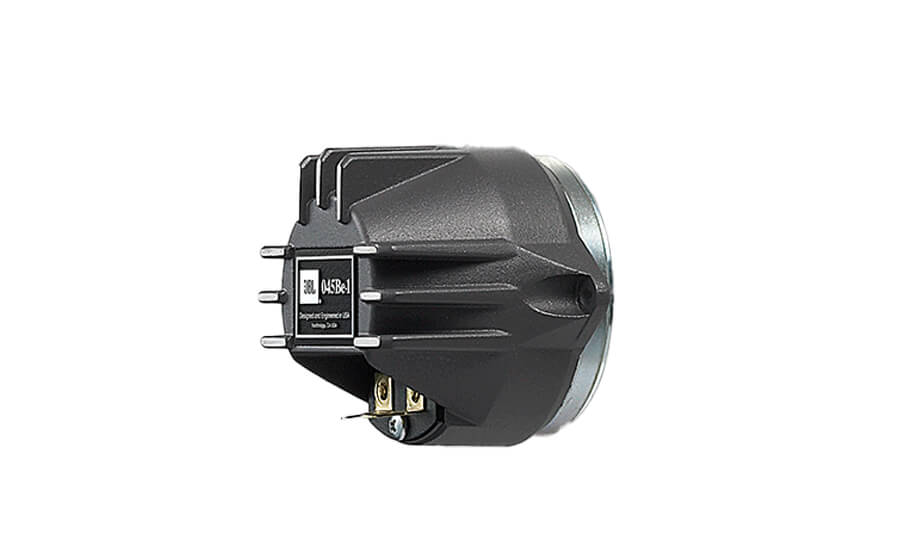

1-inch (25mm) pure-beryllium diaphragm ultra high-frequency driver.

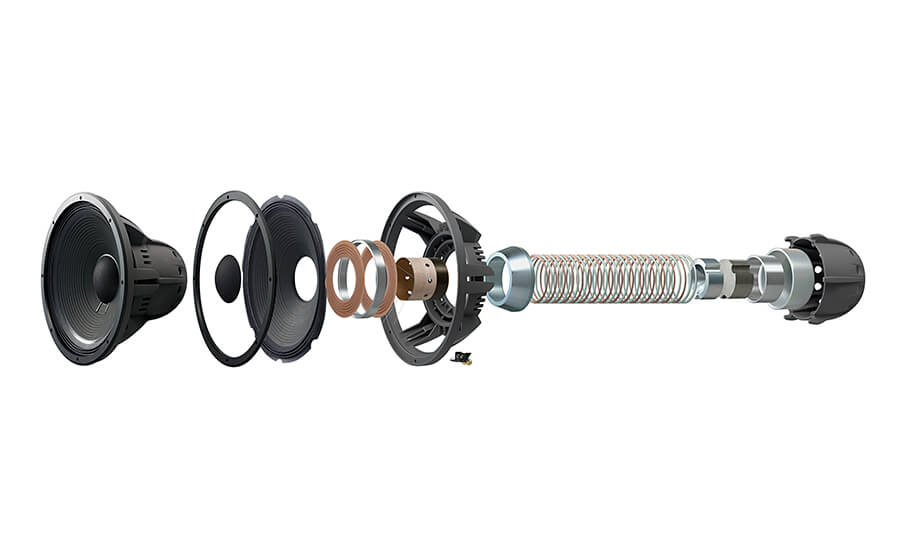

Dual 15-inch (380-millimeter) three-layer (pure-pulp layers over and under a foam-injection core) sandwich cone woofers.

Features

Project Everest DD67000 Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic). - Image

Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic).

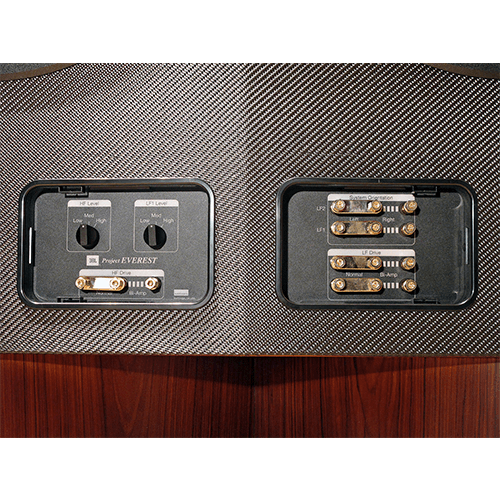

Project Everest DD67000 Front-mounted control of low- and high-frequency levels. - Image

Front-mounted control of low- and high-frequency levels.

Project Everest DD67000 Separate LF and HF crossover networks. - Image

Separate LF and HF crossover networks.

Project Everest DD67000 Separate low-frequency and high-frequency rear-input terminals. - Image

Separate low-frequency and high-frequency rear-input terminals.

Specs & Downloads

Item# DD67000RW

Description

Project Everest DD67000

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, and using the most advanced technologies and best components available, Project Everest DD67000 is one of the most sophisticated and sought-after speaker system available at any price. This three-way speaker features dual 15-inch (380mm) three-layer sandwich cone woofers, a 4-inch (100mm) pure beryllium compression driver and a 1-inch (25mm) pure-beryllium ultra high-frequency driver for a superlative listening experience.

General Specifications

Frequency Response
29Hz – 60kHz (half space); 45Hz – 60kHz (anechoic)
Recommended Amplifier Power
500 watts
Sensitivity (2.83V @ 1m)
96dB
Nominal Impedance
8 ohms; 5.0 ohms @ 80Hz; 3.0 ohms @ 40kHz
Crossover Frequencies (Hz)
150Hz (LF1 6dB/octave) 850Hz (LF2 24dB/octave) 20kHz (UHF 24dB/octave)
Ultrahigh-frequency Drive Components
1″ (25mm) pure-beryllium compression driver
High-frequency Drive Components
4″ (100mm) pure-beryllium compression driver
Low-frequency Drive Components
Dual 15″ (380mm) three-layer, pure-pulp sandwich/foam core cone woofer
Height
43.7” (110.9 cm)
Width
38” (96.5 cm)
Depth
18.5” (47 cm)
Weight
313 lb (142.1 kg)
