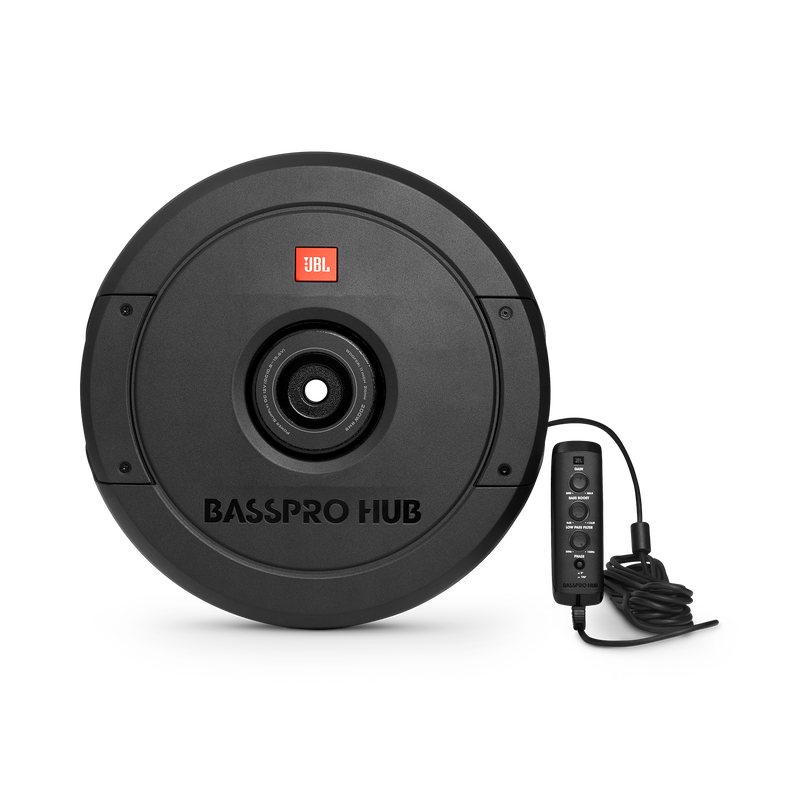

JBL BassPro Hub
$499.95
4.8 (5)
Write a review
JBL BassPro Hub Fiberglass Woofer Cone with Rubber Surround - Image

Fiberglass Woofer Cone with Rubber Surround

The 11" (279mm) woofer cone is engineered to deliver fast and tight, deep bass with low distortion and unwanted second and third order anomalies.

JBL BassPro Hub Built-in Class D 200W RMS amplifier - Image

Built-in Class D 200W RMS amplifier

The JBL subwoofer system’s built-in amplifier is optimized to work as a system with the woofer. Its Class D design runs cooler and draws less current from your vehicles electrical system making it the perfect concealed subwoofer solution.

Features

JBL BassPro Hub Wired Remote With User Interface Controls - Image

Wired Remote With User Interface Controls

Gain control adjusts the volume level right from the drivers seat. Phase switch changes the input phase to inverted or noninverted. (This can sometimes be helpful for troubleshooting.) Crossover frequency control adjusts the crossover frequency to any point between 50Hz and 150Hz. Bass EQ control provides 12dB of boost.

JBL BassPro Hub Line-level Inputs and Speaker-level Inputs - Image

Line-level Inputs and Speaker-level Inputs

The JBL BassPro Hub has line level inputs and speaker inputs that allow you to connect it to any car audio system making it a great upgrade to your factory system or the bass foundation of the aftermarket system of your dreams.

JBL BassPro Hub Harman Standard Reliability Testing - Image

Harman Standard Reliability Testing

JBL speakers have to undergo a testing process that would destroy lesser speakers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.

JBL BassPro Hub JBL at an Affordable Price - Image

JBL at an Affordable Price

This is JBL—the legendary speaker and sound company that has excited audio enthusiasts for over seventy years. There's nothing better than riding with JBL.

Specs & Downloads

Item# JBLBASSPROHUBAM

Description

JBL's BassPro Hub Subwoofer Rattles Your Rear View Mirror

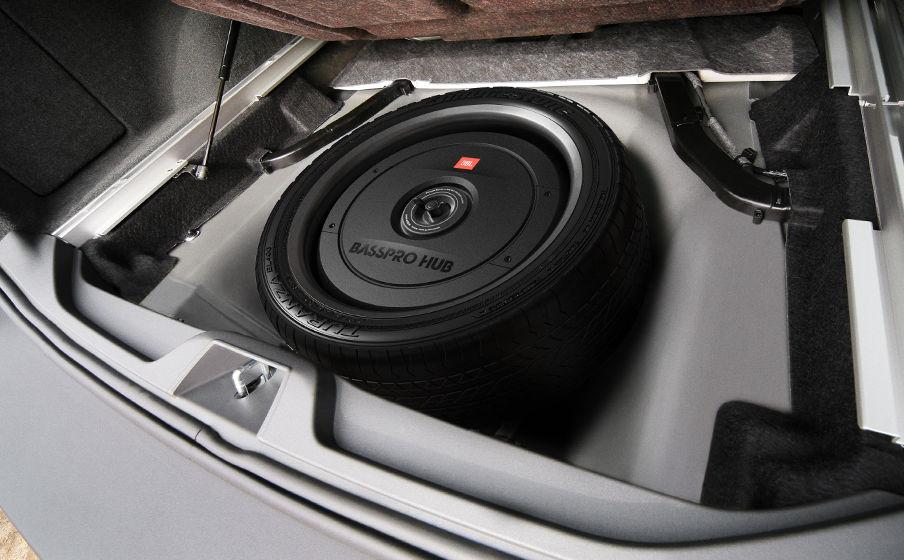

The new JBL BassPro Hub subwoofer delivers show & shine performance without crowding your passengers or sacrificing cargo area. This all-in-one powered subwoofer system fits into the hub of your spare tire for a super easy installation and out of sight sound solution. The built-in Class D amp delivers 200W RMS and is designed to work with the BassPro Hub subwoofer and enclosure as a system. The 11" (279mm) feather-light fiberglass woofer cone with rubber surround delivers the signature kick and punch of JBL bass. And with over temperature protection (OTP) and over current protection (OCP) you can count on reliability at peak volume levels. The included remote control enables adjustment of crossover point, gain, phase—and a bass boost of 12dB when you're in the mood and on the move. Whether you're cruising or competing, the JBL BassPro leaves the competition behind without missing a beat.

General Specifications

Amplifier Power
200W RMS (2 ohms)
Frequency Response
30Hz – 150Hz
Fuse
30A
Maximum Current Draw
30A
Quiescent Current Draw
<1.2A
Crossover Frequency
50Hz – 150Hz
Crossover Slope
24dB/Octave
Bass Boost
0 - 12dB Variable @ Fix 50 Hz
Line level input sensitivity
0.2 V - 4V
Speaker level input sensitivity
0.5V - 10V
Dimensions (D x H)
14-3/16” x 6-1/2”(D360mm x H165mm)

Documents & Downloads

Reviews and Q&A

Customer Reviews

Rated 5 out of 5 by from A first I am actually an installer. I had a client come in with one of these and I was highly curious about how it would perform. In 15 years of installing professionally I have never see an all-in-one hideaway solution that I would even call mediocre. This product changed that. Very impressive, enough so that I will be purchasing one for my daily driver. The only issue is that the included bolt down hardware will not work in all vehicles, so there may be the need for a little creativity. In comparison to everything else about this product, that is a very small downside.
Date published: 2019-06-03
Rated 5 out of 5 by from Does the job! Very well indeed Lovely unit. Shakes the car. Does not take space. Lots of options with the supplied controller.
Date published: 2019-03-05
Rated 4 out of 5 by from Great sound - innovative design I have the Bass Pro Hub in the trunk of a Toyota Avalon and the sound is authoritive with the right amount of punch to satisfy. I control the sub from my car stereo subwoofer interface and was disappointed to learn that you couldn't run the Bass Pro Hub without the wired remote control (that I don't use and didn't install in the passenger cabin). Now I have a ton of wiring in my trunk hoping the install would be cleaner. Can't have everything.
Date published: 2020-02-09
Rated 5 out of 5 by from Awesome product with awesome punches! I bought this JBL Basspro Hub and installed in my 2016 Ford Fiesta ST. I had to buy new set of thread rod and nuts to hold down the Hub because the one that came with package didn't fit my thread. Other than that, I installed them with my friend and I was surprised by amount of bass it can produce! It's definitely one of my best investment! JBL did it again to live it up to its Legendary!
Date published: 2019-11-15
  • y_2023, m_3, d_26, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_jblbassprohub, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_jbl
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product

Product Q&A

If using the high level input, do you still need a remote turn on wire? I want to use my factory stereo and just tap into the existing speakers.

Asked by: Buzman
You do not need to hook-up a remote when using high-level speaker inputs. The sub's amp will automatically turn on when it senses signal from the speakers.
Answered by: Wheat
Date published: 2022-12-04

Would this fit in the spare (mini spare type) of a 2003 Miata?

Asked by: codymc
Unfortunately, we can't verify if the BassPro Hub would fit your 2003 Miata, though if the location where you plan to put it is 11&quot; in diameter, then it should fit in theory; otherwise, you may need to do a custom install.
Answered by: Steven M
Date published: 2021-06-06

Why does your fitment guide say it will not fit my 2018 chevy malibu? Is it because it does not have a spare. It has the room just a tire repair kit.

Asked by: Darrin
Our JBL Bass Pro Hub has dimensions of 14-3/16&rdquo; x 6-1/2&rdquo; (D x H). It should fit with any 15&quot; spare tire. You'll have to measure the inside of your spare tire hub to see if the sub will fit or not. For more product recommendations, please reach out to our Audio Specialists. https://bit.ly/2T0zVT8
Answered by: Rhae
Date published: 2021-06-06

Can I add a second pro bass hub and control from a single remote. Is a there a remote jumper cable? Power and speaker all could spliced in and should work. Need remote jumper cable&nbsp;

Asked by: Frank p
It's not possible to use a single remote to control more than one of our JBL BassPro Hub. We do not have a remote jumper cable.
Answered by: Customer Support
Date published: 2022-09-10

does the remote controller need to remain plugged in for the subwoofer to operate?

Asked by: EricP
Yes, the remote controller of our JBL BassPro Hub needs to be plugged in for it to work. You may want to visit our website to get more information about this product. https://bit.ly/3vniocj
Answered by: Customer Support
Date published: 2022-02-26

Saw on crutchfield that this sub has an auto turn on feature when it detects speaker level inputs. Is this true? Meaning that a remote turn on (via splicing into a certain wire or using a fuse that only has power when the car is on) is not necessary?

Asked by: Hypergram
When the speaker level inputs are used, the system can automatically turn on and off by sensing the voltage on the speaker's input. Note: The auto turn-on feature does not operate when the preamp level inputs are used.
Answered by: Chastine
Date published: 2021-06-06

I have 16&rsquo; Fiesta St and it has a full size 15&rdquo; spare wheel. The diameter inside my spare wheel is 14 3/8 inches. Will this fit in my spare tire?

Asked by: Hahaha31234
Yes. JBL BASSPro Hub has a diameter of 14-3/16 inches and a depth of 6.5 inches, which makes it smaller than the spare wheel dimensions of your Ford Fiesta.
Answered by: Rhae
Date published: 2021-06-06

Would this sub fit in a 2016 chevy trax spare wheel? and would this one sub compare to two 12 in kicker -150 rms subs

Asked by: subway1999
This product does not fit your vehicle. Our JBL Bass Pro Hub has dimensions of 14-3/16&rdquo; x 6-1/2&rdquo; (D x H). It should fit with any 15&quot; spare tire. You'll have to measure the inside of your spare tire hub to see if the sub will fit or not.
Answered by: Chastine
Date published: 2021-06-06
