Dual 8-inch 2.5-way Floorstanding Loudspeaker

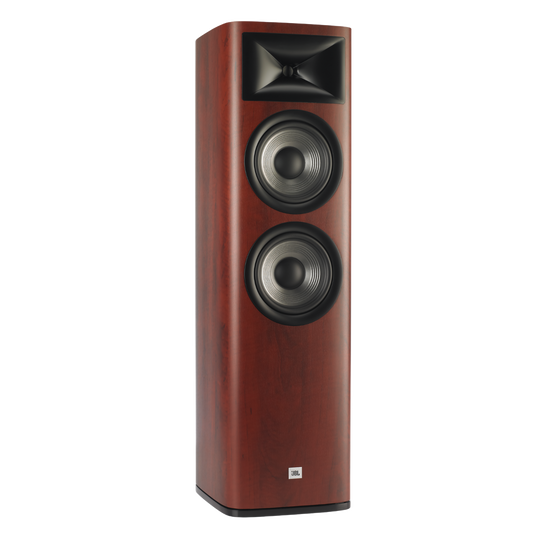

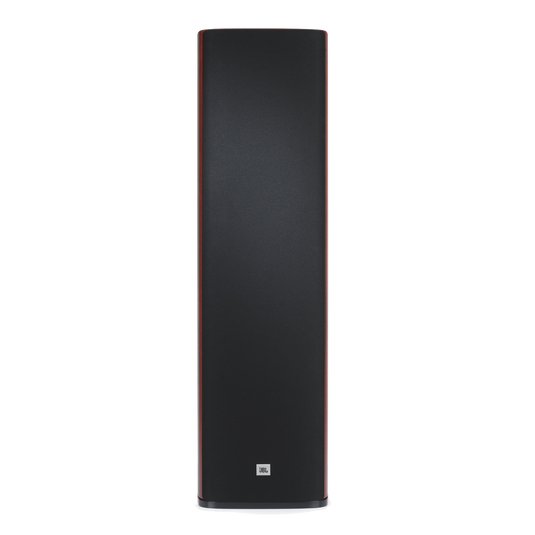

The JBL Studio 690 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Studio 690

  • Top-graded PolyPlass cones
  • High-quality sounding compression drivers
  • New, appealing form factor
  • High-definition imaging Waveguide with high-frequency compression driver
Please click PERSONALIZE to get started or select a design
Back to top
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.

Cancel

Your zip code edit

In stock

shipping
Free Shipping

Exclusions Apply
returns
Free Return Shipping

Learn More
support
Lifetime Support
Studio 690
Studio 690 Top-graded PolyPlass cones - Image

Top-graded PolyPlass cones

Studio 690 High-quality sounding compression drivers - Image

High-quality sounding compression drivers

Studio 690 New, appealing form factor - Image

New, appealing form factor

Features

Studio 690 High-definition imaging Waveguide with high-frequency compression driver - Image

High-definition imaging Waveguide with high-frequency compression driver

Specs & Downloads

Item# JBLS690W

Description

Studio 690

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

Dual 8", 2.5-way compression driver floor standing loudspeaker

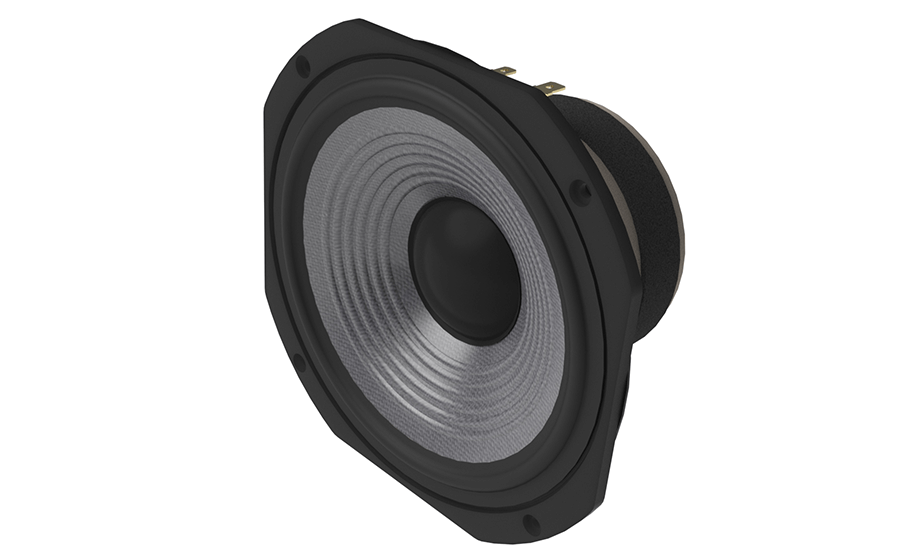

Dual 8" (203mm) PolyPlas Low-Frequency Woofer

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver

Recommended Amplifier Power
Max 250W
Frequency Response
36Hz – 40kHz
Sensitivity
90dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
600 Hz, 1.7 kHz
Enclosure Type

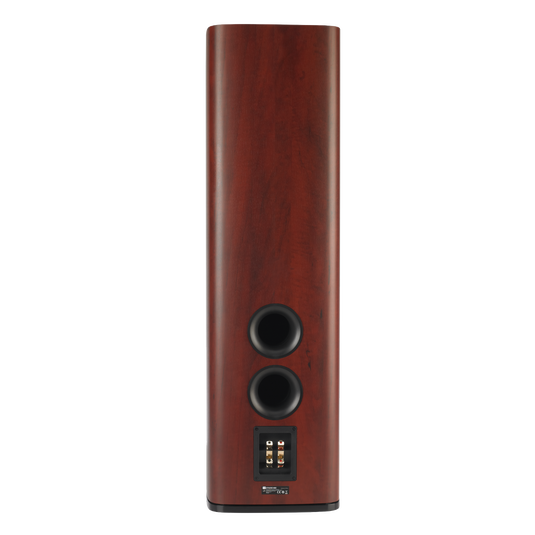

Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
300 x 350 x 1058mm

What's in The Box?

  • 1 x JBL Studio 690 Floor Standing Loudspeaker
  • 1 x Owner’s Manual
  • 1 x Warranty Card
  • 4 x Carpet Spikes
  • 4 x Feet Pads
