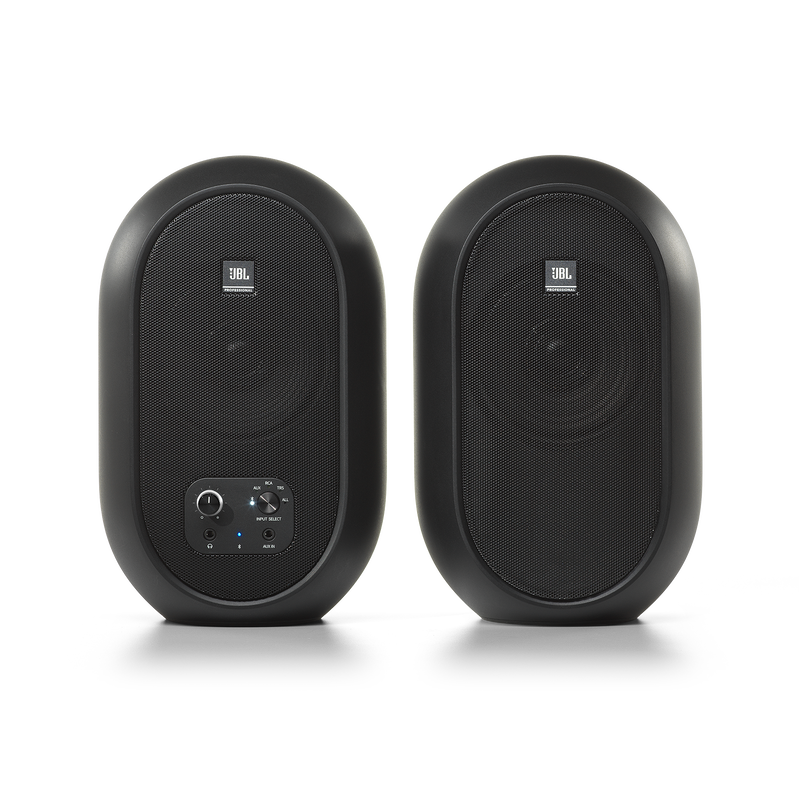

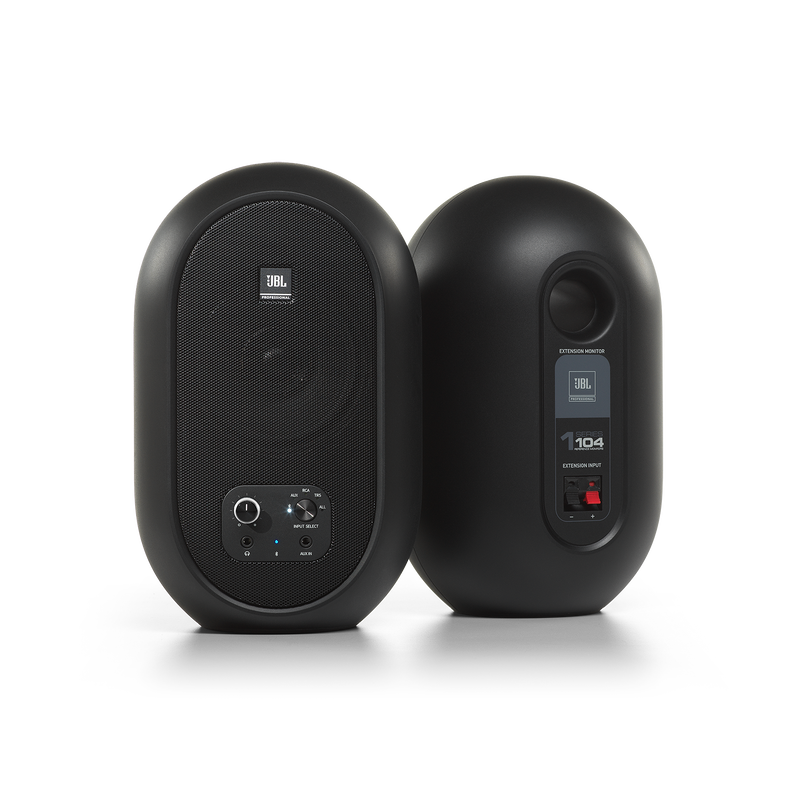

JBL 104-BT (Pair)
$199.00

Coaxial driver design

With 4.5-inch (118 mm) LF driver and .75-inch (19 mm) soft-dome HF driver

Integrated 60-watt Class D power amplifier

Distributes 30 watts to each speaker

Acoustically optimized

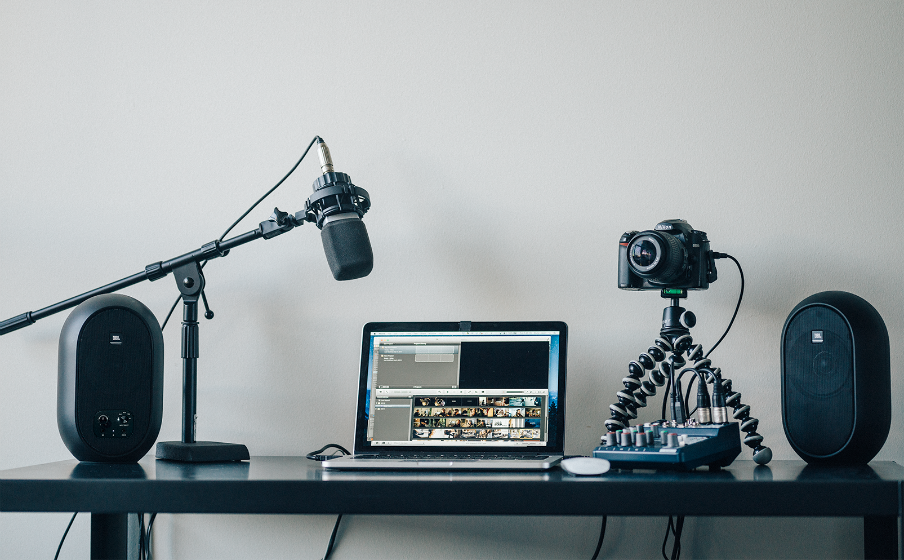

For desktop placement

Features

JBL 104-BT (Pair) Three sets of inputs and built-in Bluetooth - Image

Three sets of inputs and built-in Bluetooth

Allow connection with professional equipment, personal music players and consumer products

JBL 104-BT (Pair) Smart features - Image

Smart features

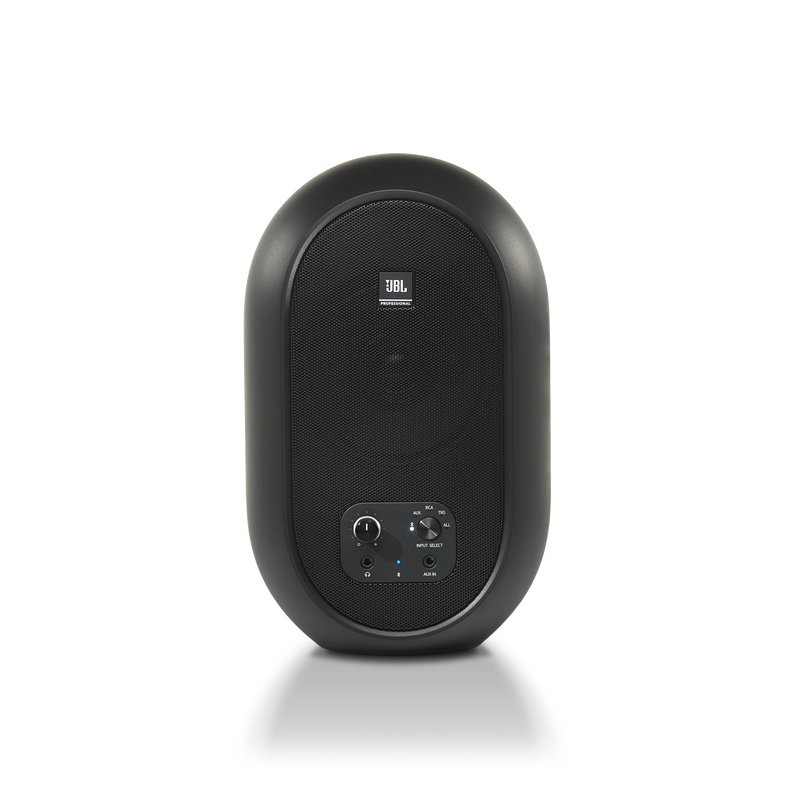

Include front-panel volume control, input selection and headphone jack with automatic speaker mute

What the Pro’s are Saying

Wired:

Wired:

“A superb-value monitor set that won’t clutter the desktop, these reference-quality speakers will highlight why it was worth spending the money on a decent recording microphone, pulling out the detail that will elevate your content.”

CinemaSound:

CinemaSound:

“If you need a trustworthy speaker system which must have a small footprint, you’re just not going to do better than the 104s. They deliver more than they should.”

Music Connection:

Music Connection:

“A solid choice for nearly any use in any room when you are looking for great sound in small, stylish desktop speaker”

American Songwriter:

American Songwriter:

“Much more sophisticated than any other desktop monitor I have ever used…small enough to fit into a tight desktop space yet still deliver a powerful and excellent sound.”

Guitar Player:

Guitar Player:

“The 1 Series 104 monitors sounded excellent across the board, delivering nicely detailed highs and impressive low end for their size”

Red Dot Winner 2020

Red Dot Winner 2020

Specs & Downloads

Item# 104SET-BT-US

Description

Legendary Sound - No Strings Attached

JBL 104-BT compact reference monitors with Bluetooth, the newest models in the 1 Series line, draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sound in their class. They’re perfect for recording musicians, producers, podcasters and vloggers, as well as professional audio engineers seeking an accurate portable reference with Bluetooth streaming. JBL 104-BT Reference Monitors combine a powerful coaxial 4.5-inch (118 mm) low-frequency driver and .75-inch (19 mm) soft-dome tweeter, potent integrated 60-watt amplification and an innovative acoustic design to reproduce honest sound with exceptional imaging and crisp detail. Bluetooth streaming lets you check mixes over Bluetooth to make sure they sound great in every listening scenario. Both the black 104-BT and white 104-BTW versions are sleek, elegant designs and compact form factors, making stunning statements in any studio while conserving valuable work space. Creative professionals, music lovers and anyone who wants the flexibility to stream both wired and wireless sound into high-quality studio monitors can count on JBL 104-BT to provide an accurate, reliable sonic reference and a truly enjoyable listening experience.

Device Compatibility

Bluetooth

General Specifications

Bluetooth Version
5.0
Low Frequency Transducer
4.5 in (118 mm)
High Frequency Transducer
0.75 in (19 mm), soft dome
Crossover
1725 Hz, 1st order
Power Amp
60 W (30 W each speaker), Class D
Sensitivity
87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)
Maximum Continuous SPL
89 dB
System Peak SPL
102 dB (pink noise, 12 dB crest factor)
Maximum SPL, Momentary Peak
104 dB
Maximum Peak Input Level (-10 dBV / +4 dBu):
+6 dBV / +20.3 dBu
Frequency Range (-3 dB SPL)
88 Hz – 20 kHz
Frequency Range (-10 dB SPL)
60 Hz – 20 kHz
System Rated Impedance
8 Ω
Minimum Impedance
7.8 Ω @ 260 Hz
Cabinet Tuning Frequency
72 Hz
System Distortion Criteria
<10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria
<0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio
75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
Coverage (Horizontal x Vertical)
120º x 60º
Acoustic Test Specification
ATS# 1000340443

Dimensions

Height
9.72 in (247 mm)
Width
6.02 in (153 mm)
Depth
4.88 in (124 mm)
Net Weight
Primary Monitor = 4.54 lb (2.06 kg); Secondary Monitor = 3.81 lb (1.73 kg)

Design

Enclosure Type
Ported
Enclosure Material
ABS with metal grille
Enclosure Finish
Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW)

Audio Output

System Output Type
1/8" stereo headphone with auto speaker mute

Audio Input

System Input Type

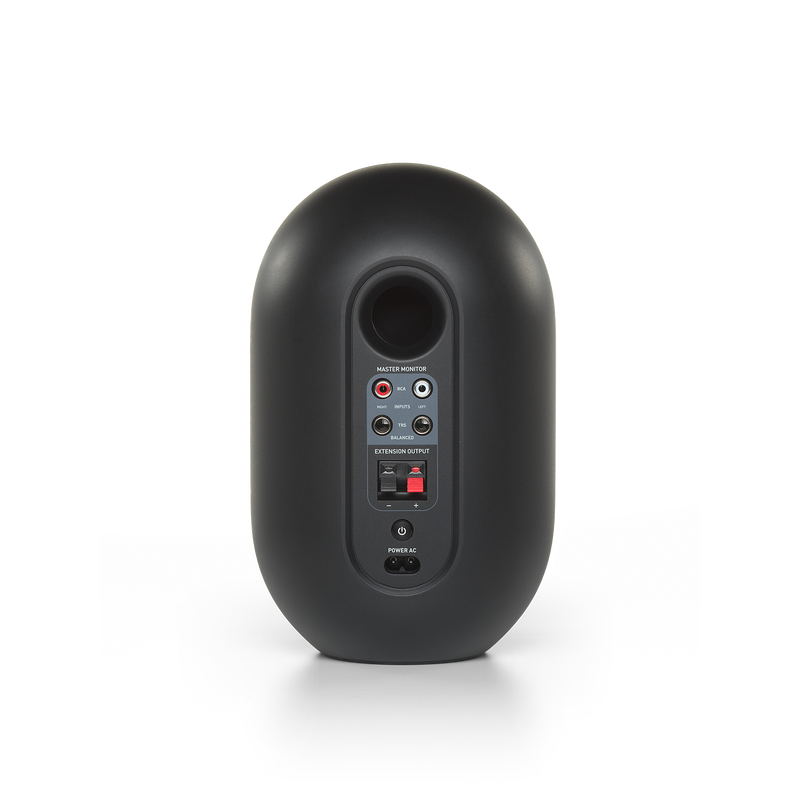

Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced
Input Selection Options
Bluetooth, Aux, RCA, TRS, All

Powering Interface

System Power Handling
30 W x 2 @ 100 hours, IEC/SMS
System Polarity
EIA
AC Input Voltage
100 – 240 VAC (± 10%), 50/60 Hz
Current Draw
85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC
3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC
80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC
0.34 / 0.46

What's in The Box?

  • 1 x 104-BT Master Monitor

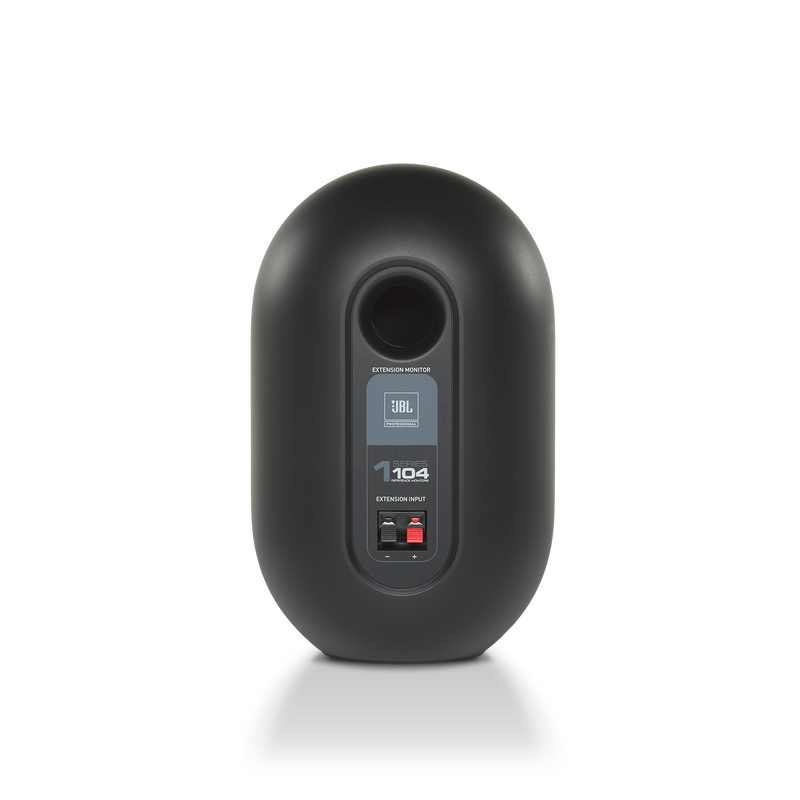

  • 1 x 104-BT Extension Monitor
  • 1 x Extension monitor speaker wire (2-conductor, 2 meters)
  • 1 x 3.5 mm to RCA audio cable
  • 1 x Regional power cable
  • 1 x Quick setup guide
