JBL SRX910LA Array Fame
$1,050.00

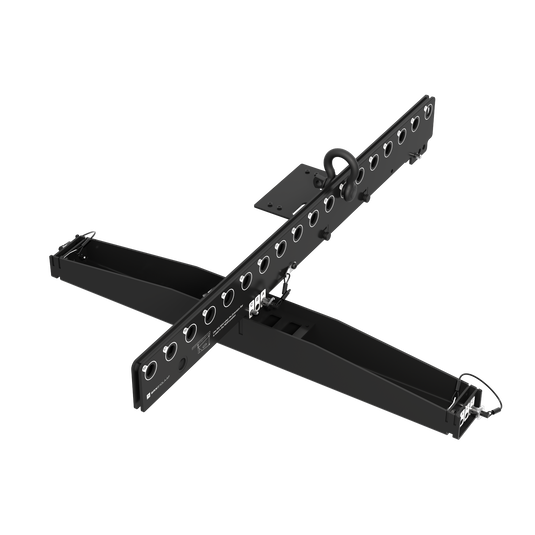

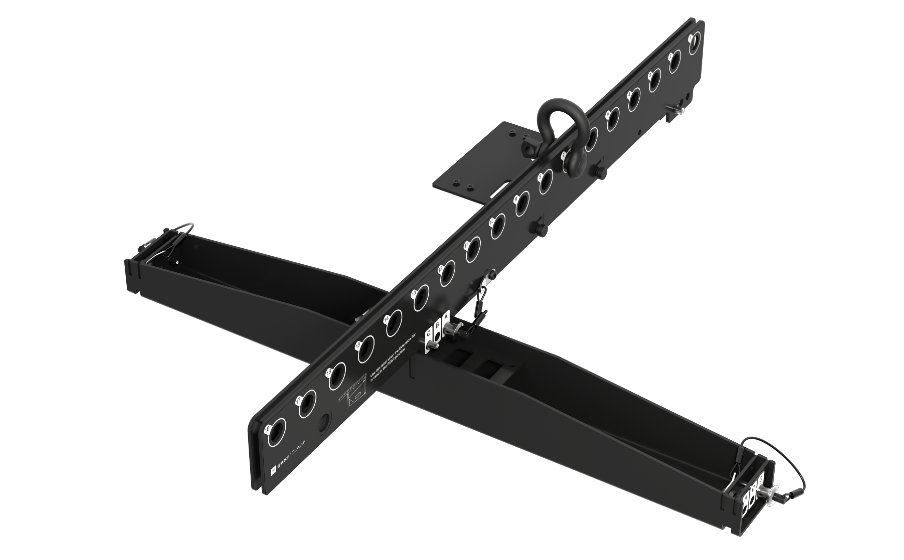

JBL SRX910LA Array Fame Compact and Lightweight Design - Image

Compact and Lightweight Design

Specifically created for suspending SRX910LA arrays

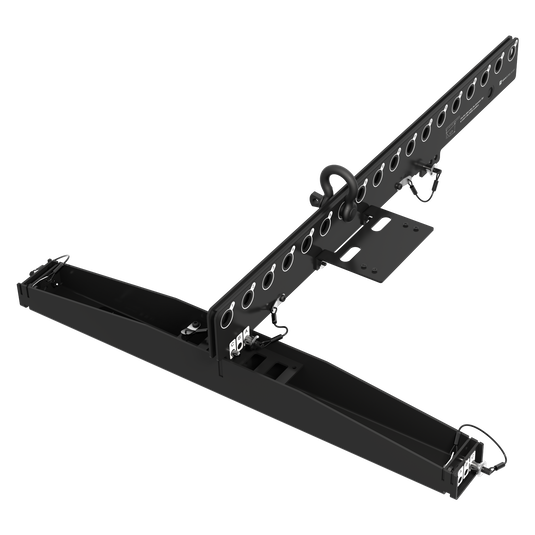

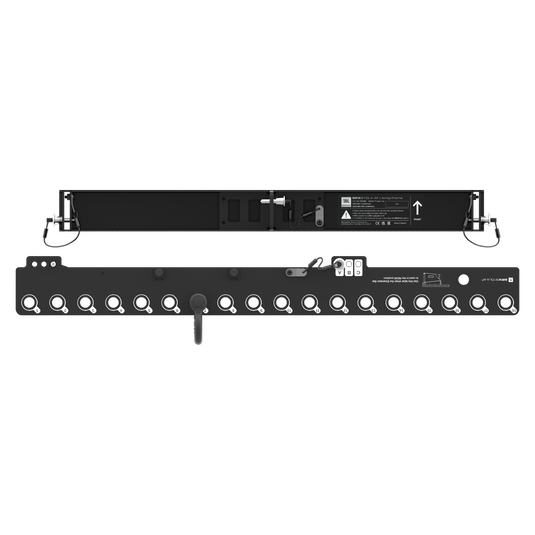

JBL SRX910LA Array Fame Two-part Collapsible Design - Image

Two-part Collapsible Design

Enables precision placement and easy transport & storage

JBL SRX910LA Array Fame Support for Third-party Laser Inclinometers - Image

Support for Third-party Laser Inclinometers

Using the included laser attachment bracket

Features

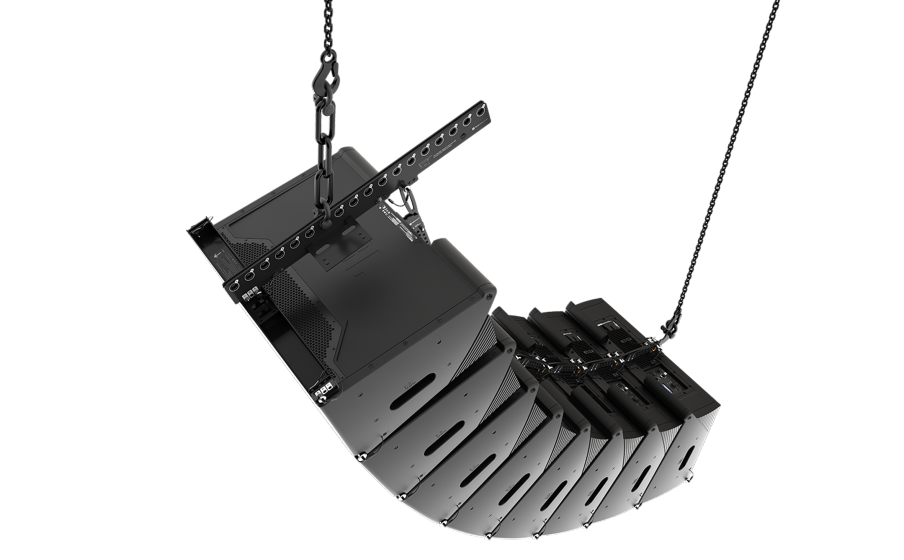

JBL SRX910LA Array Fame Fly Up To 16 SRX910LA Speakers - Image

Fly Up To 16 SRX910LA Speakers

With this simple, sturdy array frame

Specs & Downloads

Item# JBL-P3235MX-LS

Description

Array Frame for SRX910LA

The SRX910LA AF is a lightweight and compact array frame for suspending SRX910LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX910LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed easy for storage. For more information about the array frame and use cases, refer to the SRX900 Series Rigging Manual.

General Specifications

Construction
High-grade steel with anti-corrosion coating
Finish
Black powder coat
Compatible Shackle Size
1/2-inch
Compatible Lasers
TEQ-SAS, RECLINE
Mechanical Safe Limit
(14) SRX910LA
Mechanical Maximum Limit
(16) SRX910LA

What's in The Box?

  • 1 x Spreader Bar
  • 1 x Extension Bar
  • 1 x 1/2-inch Shackle
  • 1 x Laser Bracket and hardware
