JBL SRX906LA
$2,199.00
JBL SRX906LA Best-in-Class Performance - Image

Best-in-Class Performance

JBL transducer technology delivers class-leading sonic performance and superior dynamic range

JBL SRX906LA Innovative Acoustic Design - Image

Innovative Acoustic Design

Innovative two-way design integrates LF and HF components onto a single unified horn for seamless horizontal coverage

JBL SRX906LA Powered Solution - Image

Powered Solution

Onboard Class-D amplification and DSP provide optimum performance and consistency anywhere in the world

Features

JBL SRX906LA Complete System - Image

Complete System

The SRX900 Series is a complete solution featuring full-range products, subwoofers, accessories, and software

JBL SRX906LA Versatile Rigging System - Image

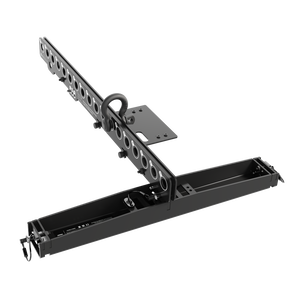

Versatile Rigging System

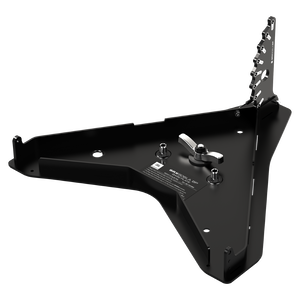

Provides flexibility to pole mount, ground stack, or fly the SRX900 series

JBL SRX906LA Built-in DSP - Image

Built-in DSP

Includes 24 user-adjustable filters, 2,000 ms of delay, and advanced features like Array Size Compensation and FIR-based Throw Distance Correction filters

JBL SRX906LA JBL transducers and a New Acoustic Design - Image

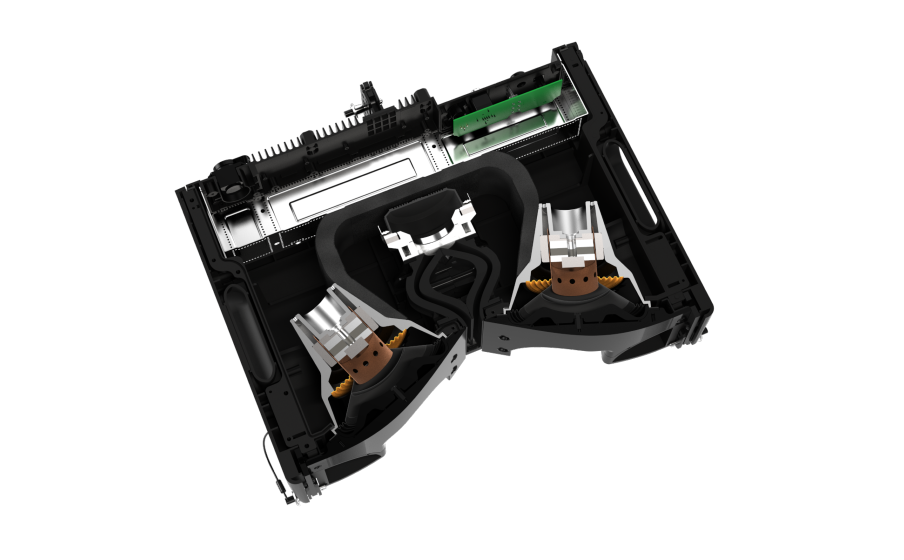

JBL transducers and a New Acoustic Design

Provide excellent sound fidelity and best-in-class maximum SPL

JBL SRX906LA Computer-optimized Enclosure - Image

Computer-optimized Enclosure

Made out of composite material and offers excellent performance while remaining compact and lightweight

JBL SRX906LA New, Full-featured Software Package - Image

New, Full-featured Software Package

Gives users control of the system on various platforms, including Windows, macOS, and iPad OS

JBL SRX906LA Dual Ethernet Ports - Image

Dual Ethernet Ports

With Neutrik etherCON connectors supports HARMAN HControl Ethernet

JBL SRX906LA LevelMax Limiting - Image

LevelMax Limiting

Uses sophisticated excursion-control algorithms to protect transducers

JBL SRX906LA Rear-panel LCD - Image

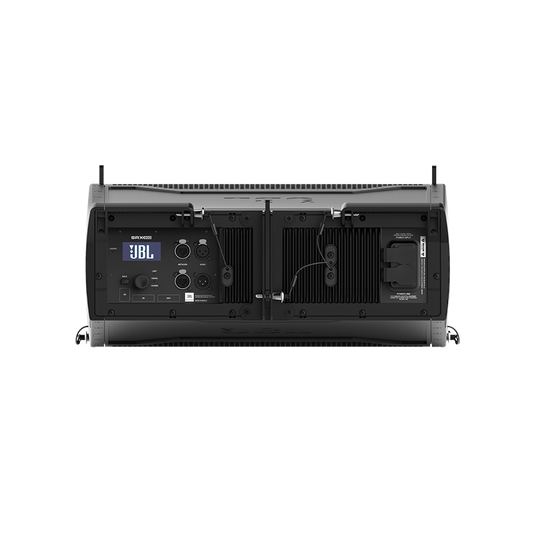

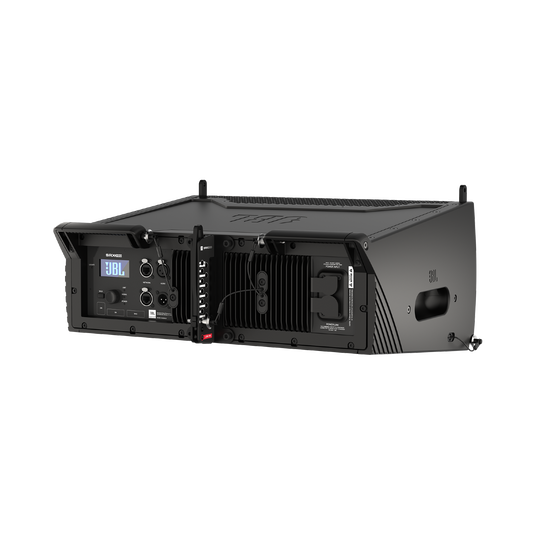

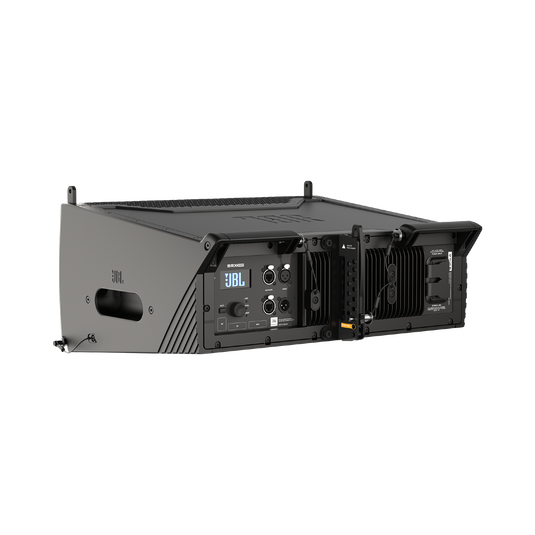

Rear-panel LCD

Provides complete access to control features

Frequently Bought Together

Specs & Downloads

Item# JBL-P3230MX-LS

Description

Affordable Line Arrays for Serious Pros

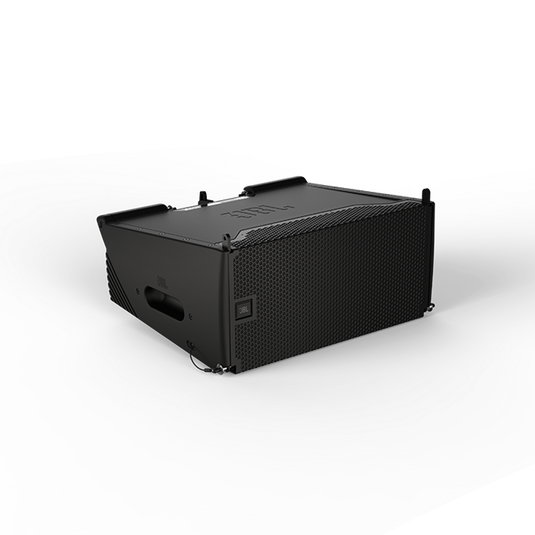

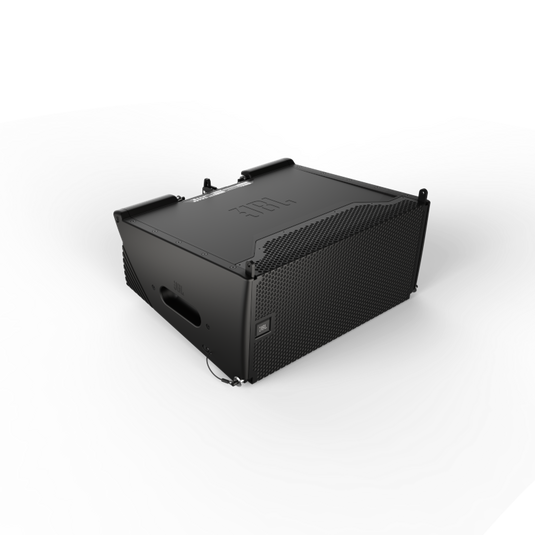

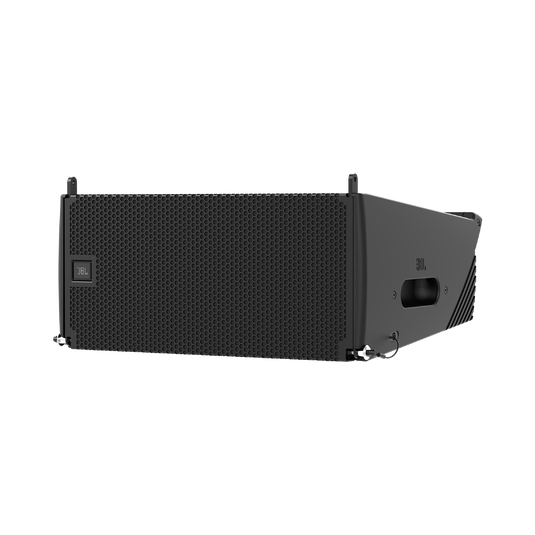

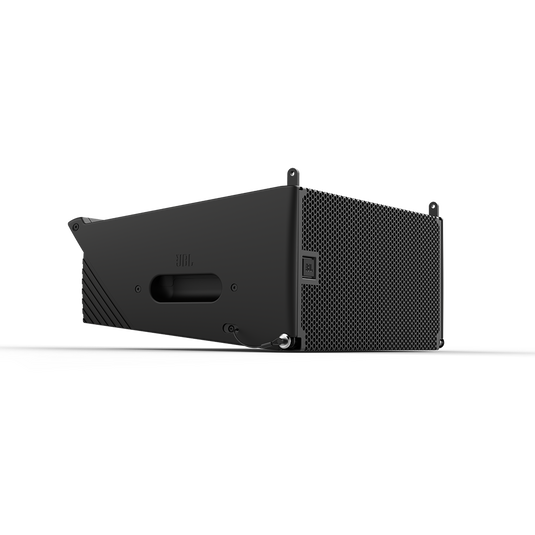

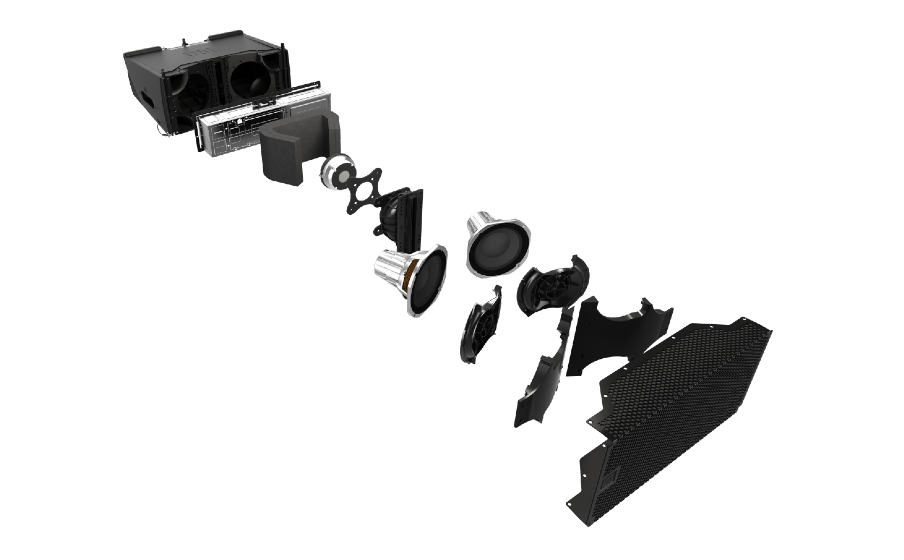

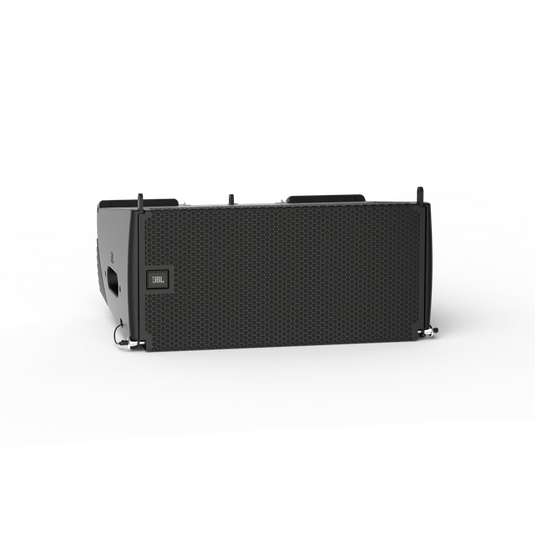

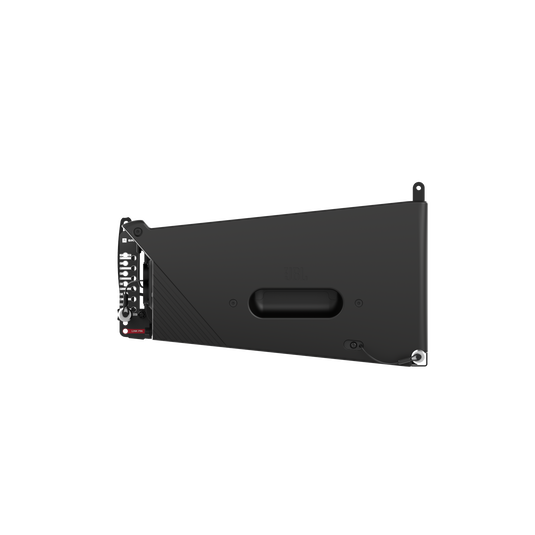

The SRX906LA is a compact, two-way, active line array element that can cover a variety of small to midsize applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world. JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 6.5-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight. An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

General Specifications

Power Rating (W, Continuous)
600
Power Rating (W, Peak)
800
Frequency Range Hz (-10 dB)
63 - 17000
Maximum SPL (peak dB)
134
Coverage Pattern (Nominal)
120°

Dimensions

Width (in)
19.9
Weight (lbs)
37
Width (mm)
507
Height (in)
9.5
Height (mm)
243
Weight (kg)
16.8
Depth (in)
16.5
Depth (mm)
420

Features

Transducer Differential Drive JBL
Yes

What's in The Box?

  • 1 x SRX906LA
  • 1 x Neutrik NAC3FX-W-TOP
  • 1 x Neutrik NAC3MX-W-TOP

Documents & Downloads

Reviews and Q&A

Customer Reviews

Product Q&A

How many boxes can you power off one 20A circuit?

Asked by: bob272727bob
Our JBL SRX906LA is handled by our Professional Division. Please contact them for assistance: email: hprotechsupportusa@harman.com. You may also reach us at our website at https://pro.harman.com/service
Answered by: Customer Support
Date published: 2023-08-11

With the rc1 rain cover on the amp and signal cables is the srx water proof. Do I have to tarp them in the rain?

Asked by: DerekSWP
Thanks for reaching out. To better assist you with our JBL SRX906LA, you may send an email to Harman Pro Department at HProTechSupportUSA@harman.com
Answered by: Customer Support
Date published: 2023-06-11
