JBL SRX900LA Pull Back Accessory
$100.00
0.0 (0)
Write a review

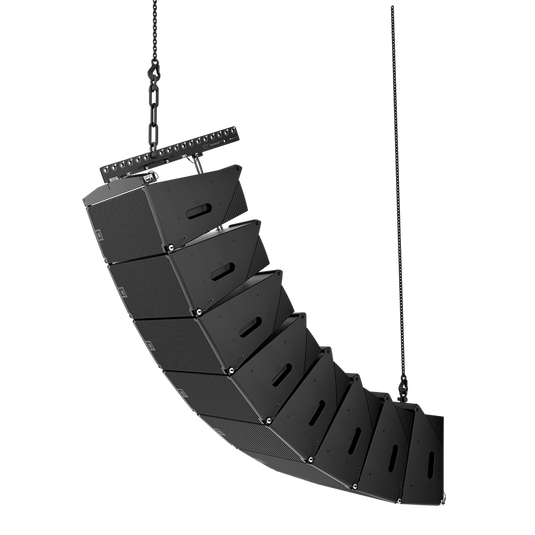

JBL SRX900LA Pull Back Accessory Versatile Pull-back Accessory - Image

Versatile Pull-back Accessory

Helps precisely and safely position and aim arrays

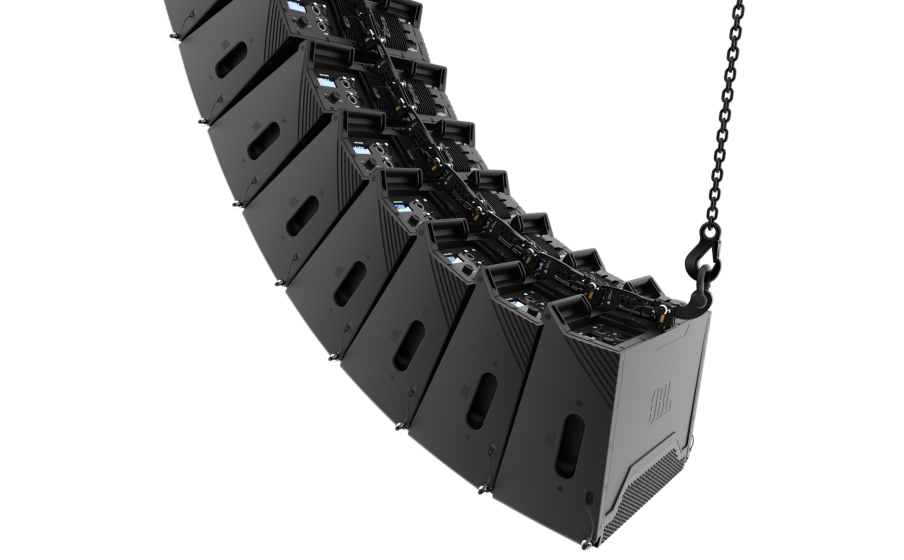

JBL SRX900LA Pull Back Accessory Strong, Lightweight Design - Image

Strong, Lightweight Design

Can support the weight of up to 16 SRX906LA or 16 SRX910LA enclosures (depending on array geometry)

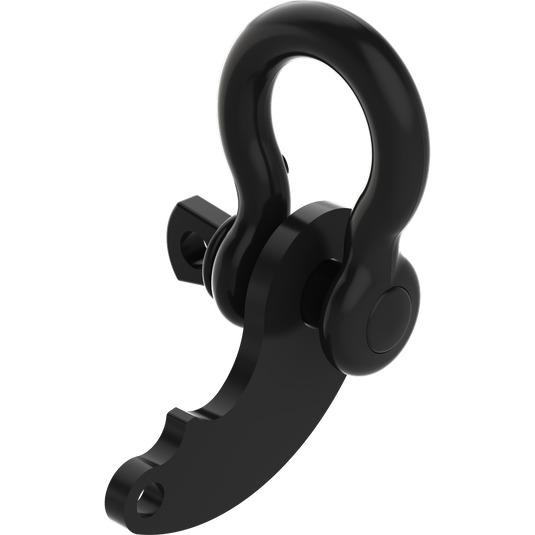

JBL SRX900LA Pull Back Accessory Included 1/2-inch Shackle - Image

Included 1/2-inch Shackle

Can be attached directly to the bracket

Features

Specs & Downloads

Item# JBL-P3240MX-LS

Description

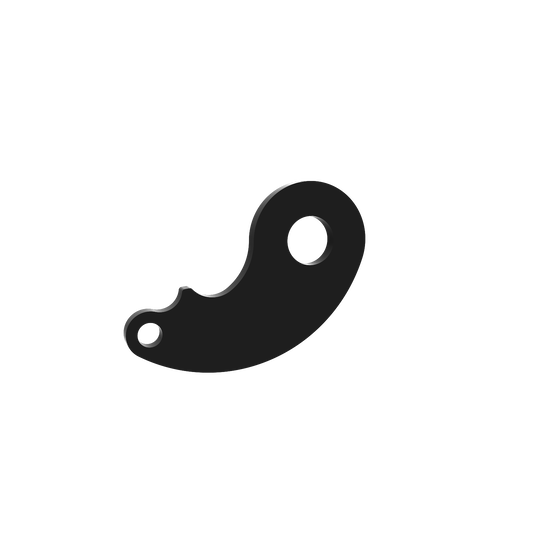

Pull-Back Accessory for SRX900 Line Arrays

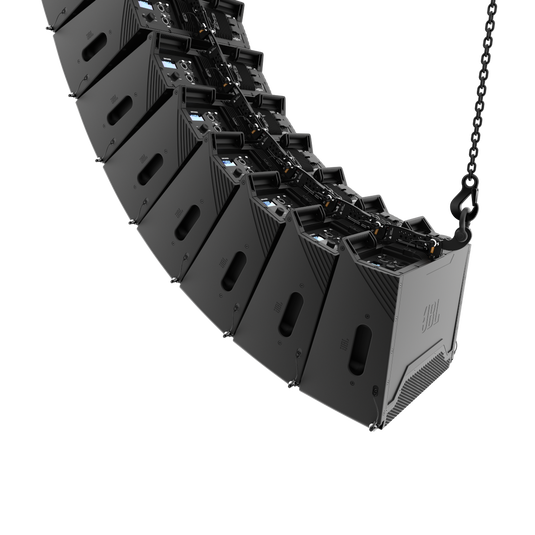

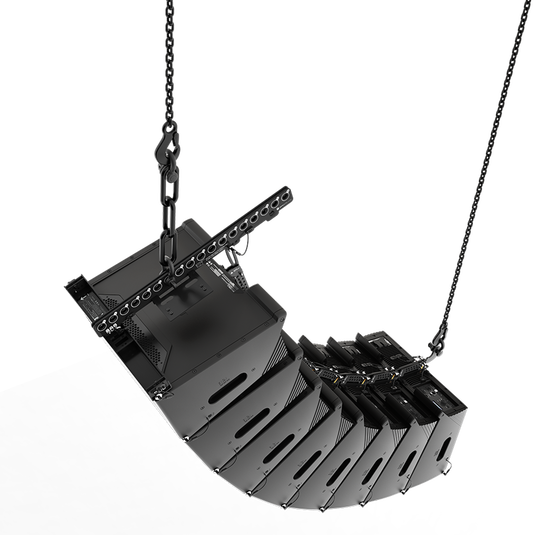

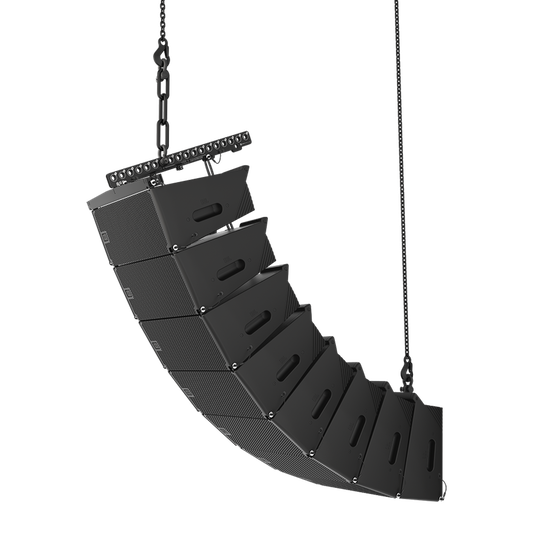

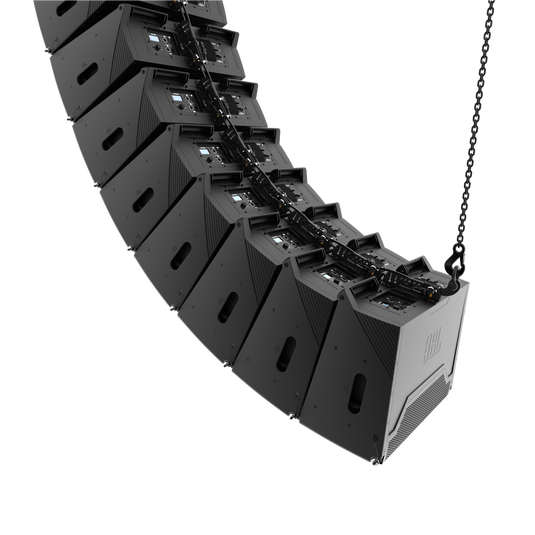

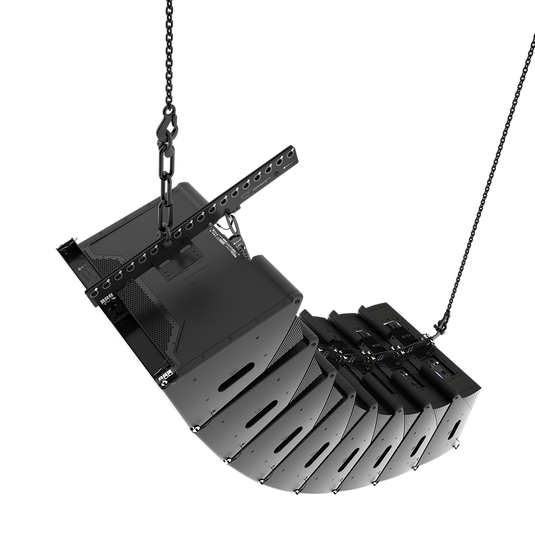

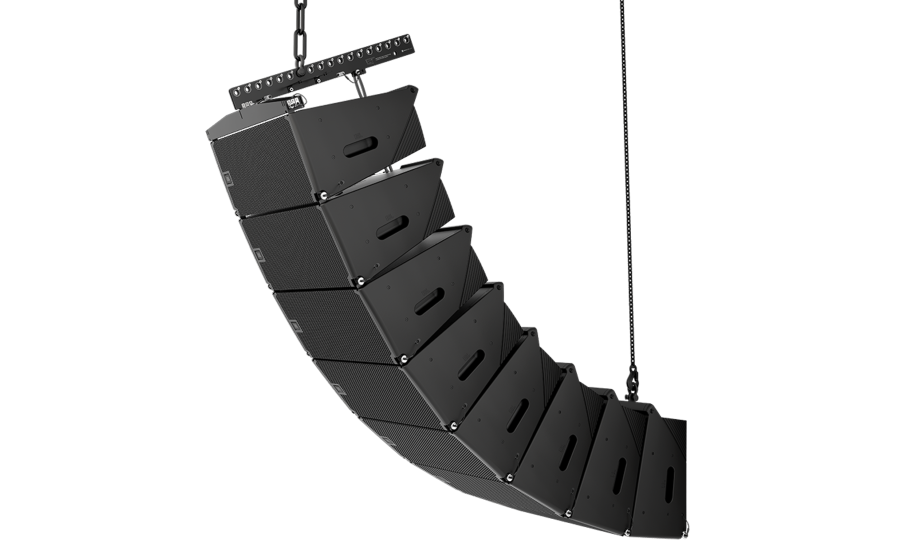

The SRX906LA PB accessory is a lightweight pull-back bracket that can be used to implement pull-back of SRX906LA or SRX910LA arrays. The SRX906LA PB attaches to the bottom cabinet of an array and connects to a rear center suspension point to allow for more downtilt than would otherwise be possible using an SRX900 Series array frame alone. JBL’s Line Array Calculator 3 software application is used to calculate the required downtilt angle. The SRX906LA PB can support the weight of up to 16 SRX906LA or 16 SRX910LA enclosures (depending on array geometry) and a 1/2-inch shackle (included) can be attached directly to the bracket. For more information about the suspension bar and use cases, refer to the SRX900 Series Rigging Manual.

General Specifications

Construction
High-grade steel with anti-corrosion coating
Finish
Black powder coat
Compatible Shackle Size
1/2-inch
Mechanical Safe Limit
9) SRX906LA
Mechanical Maximum Limit
(16) SRX906LA

Dimensions

Height
64 mm (2.5 in)
WIdth
6 mm (0.2 in)
Depth
84 mm (3.3 in)
Net Weight
0.1 kg (0.25 lbs)
Shipping Weight
0.4 kg (1 lbs)

Documents & Downloads
