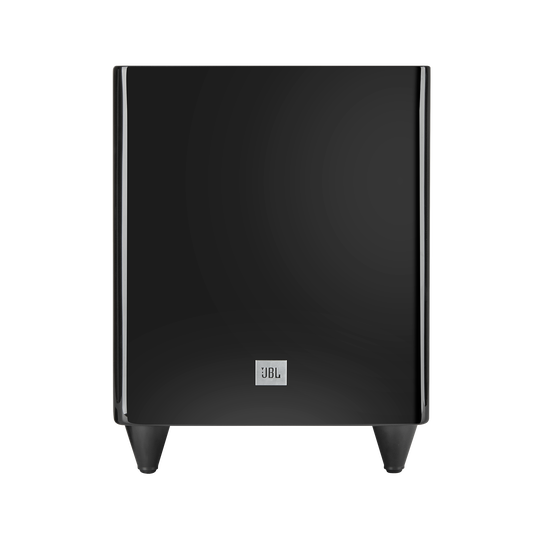

 Front - 1605x1605.png?sw=535&sh=535)

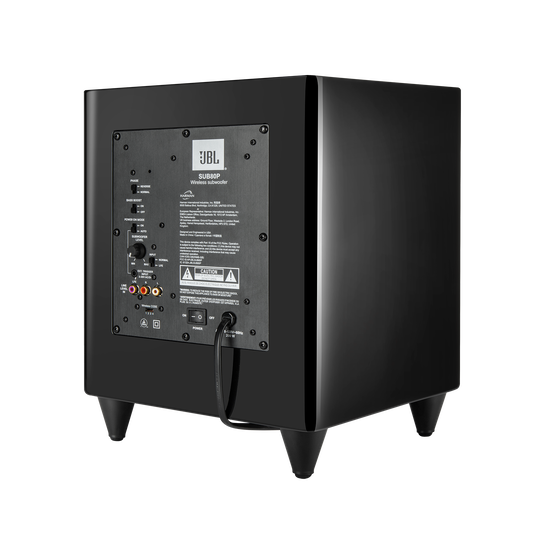

 RearAngled - 1605x1605.png?sw=535&sh=535)

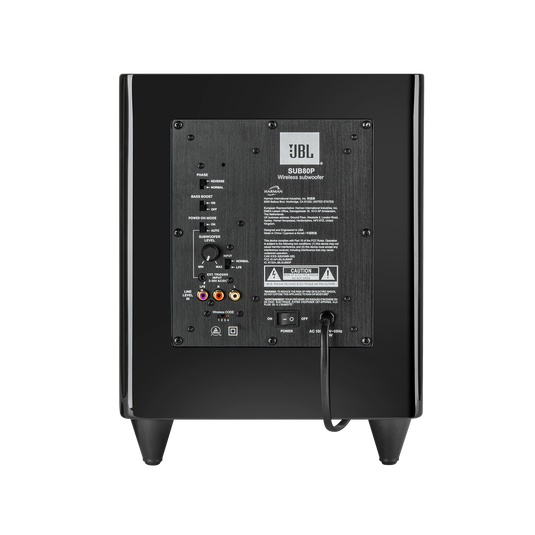

 Rear - 1605x1605.png?sw=535&sh=535)

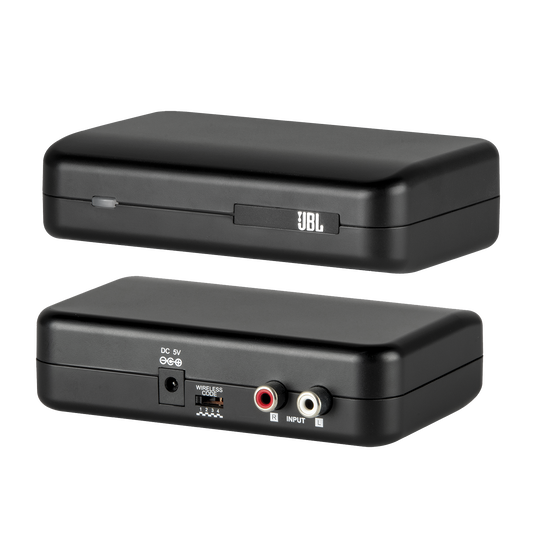

 Transmitter Front and Rear - 1605x1605.png?sw=535&sh=535)

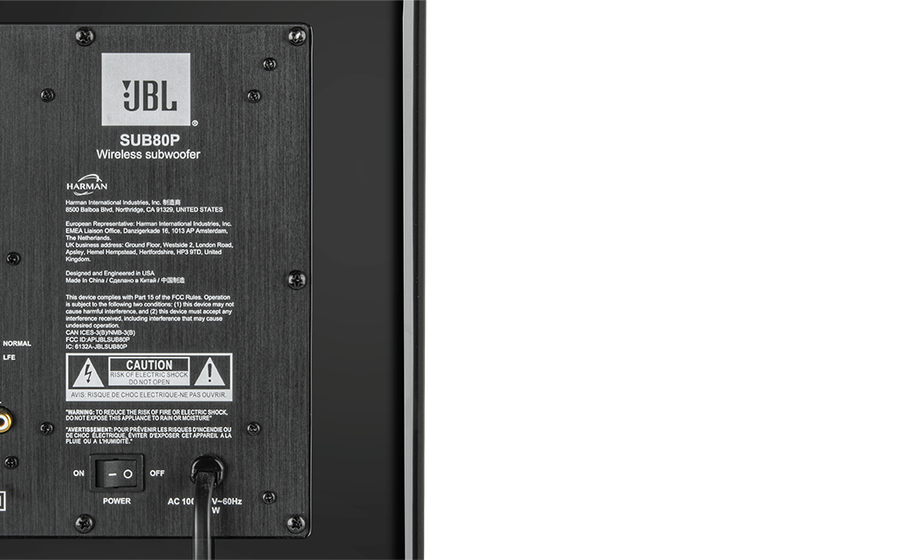

Powerful Built-in Amplifier: 200W (continuous), 400W (peak)

Included Wireless Transmitter allows for easy subwoofer placement

Subwoofer Level Control
Features

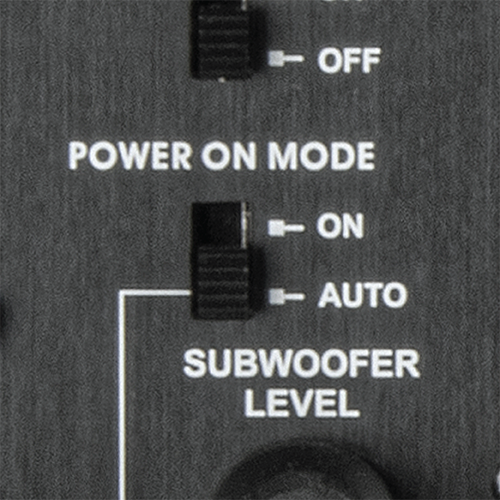

Auto / On / Trigger Power Modes

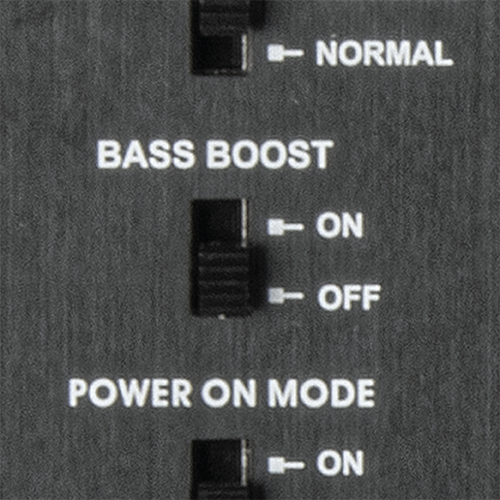

Bass Boost and Phase Control
Specs & Downloads
Item# JBLSUB80PBLKAM
Description
SUB80P Powered Subwoofer
The SUB80P features an 8-inch down-firing fiber-composite cone woofer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the JBL name. The SUB80P comes in a high-gloss black finish for a stylish and elegant appearance. With the included wireless transmitter and space-efficient design the SUB80P can be placed anywhere in the room without having to run cables. Add a SUB80P to your existing speakers to create a stereo or multi-channel home theater system with impactful bass and unprecedented affordability.
General Specifications
- Low-frequency Transducer
- 8" (200mm) down-firing fiber-composite cone
- Amplifier Power
- 200 watts (continuous), 400 watts (peak)
- Frequency Response
- 45Hz - 200Hz (-6dB)
- Controls
- Volume, phase, bass boost
- Connections
- LFE (RCA-type); left and right line-level (RCA-type)
- Enclosure type
- Sealed
- External Trigger Input Voltage
- 3-30 volts, AC or DC
- Subwoofer Power requirement
- 120V, 60Hz (USA); 220V -240V, 50/60Hz (EU)
- Subwoofer Power consumption
- <0.5W (standby); 243W (maximum, 120V); 261W (maximum, 230V)
- Subwoofer Dimensions (H x W x D)
- 13.9in (353mm) x 10.5in (267mm) x 10.5in (267mm)
- Subwoofer Weight
- 19.8lb (9kg)
- Wireless Transmitter Power Requirement
- 100-240V AC, 50/60Hz
- Wireless Transmitter Power Consumption
- <0.5W
- Wireless Transmitter Range
- 32 to 82ft (10 to 25m) Line of Sight
- Wireless Transmitter Dimensions (H x W x D)
- 1.4in (35mm) x 5in (127mm) x 3.5in (89mm)
- Wireless Transmitter Weight
- 0.26lb (117g)
- Frequency Range
- 2403 - 2478mHz
- Max Transmitting Power
- 1dBm
- Operating Temperature
- 0 - 50°C
- Shipping Carton Dimensions (L x W x D)
- 14.1in (357mm) x 14.1in (357mm) x 17.1in (435mm)
- Shipping Carton Weight (Kg)
- 21.4lbs (10.62Kg)
