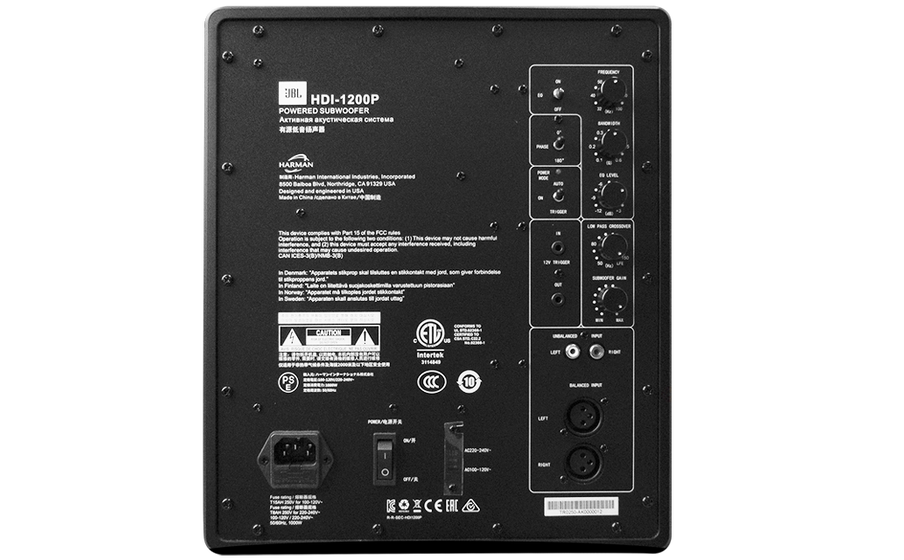

Advanced 1,000 Watt RMS amplifier.

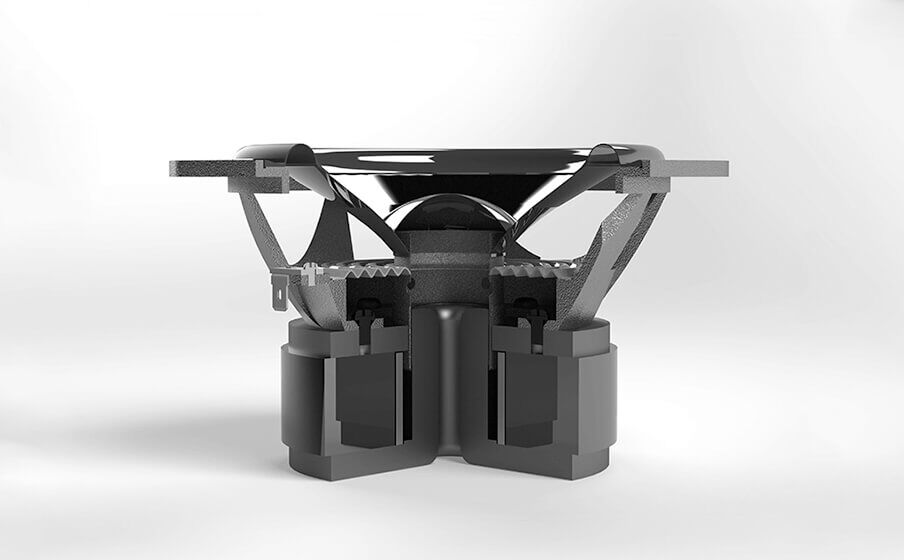

12-inch (300mm) Poly-plas™ cast-frame subwoofer.

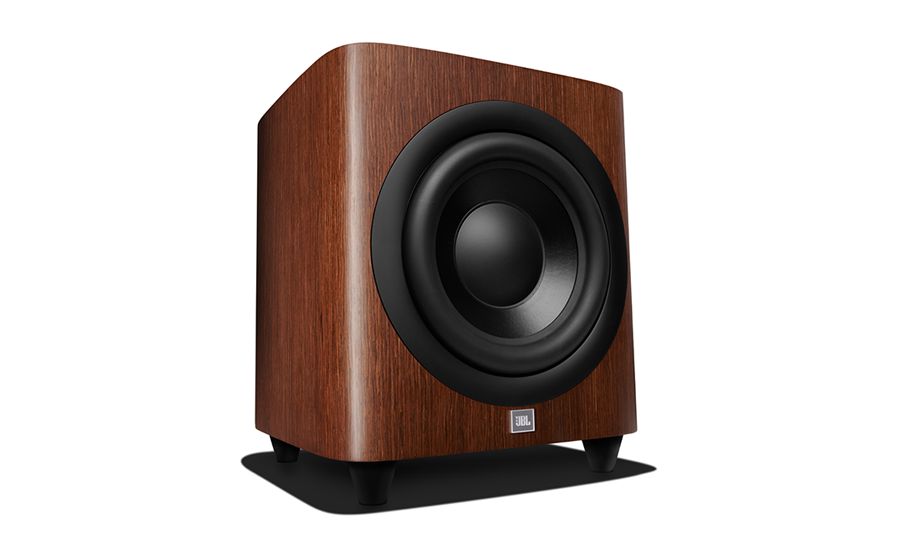

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
Features

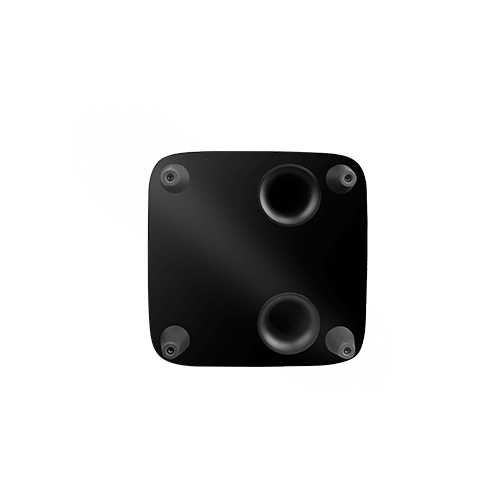

Dual down-firing, computer-optimized flared ports.

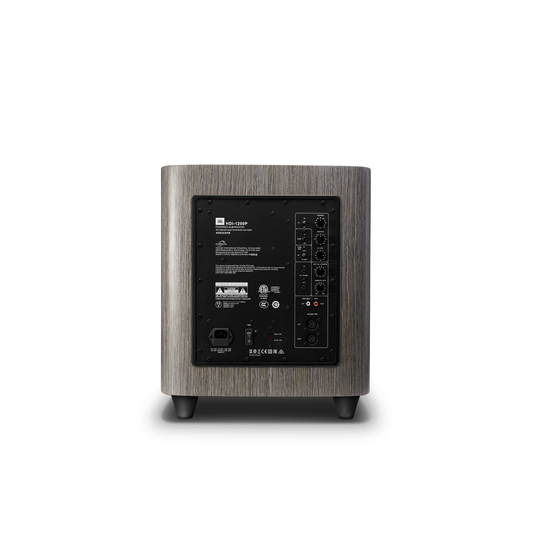

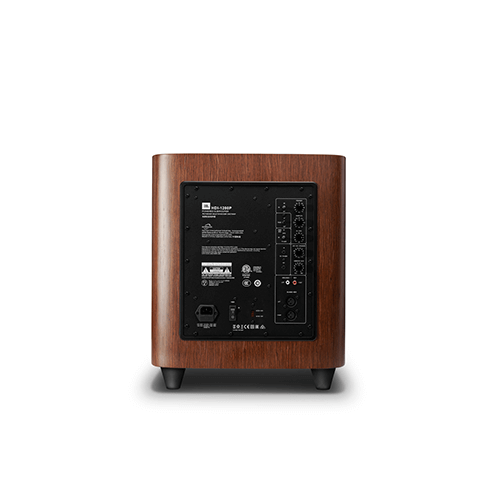

Compliment of controls.

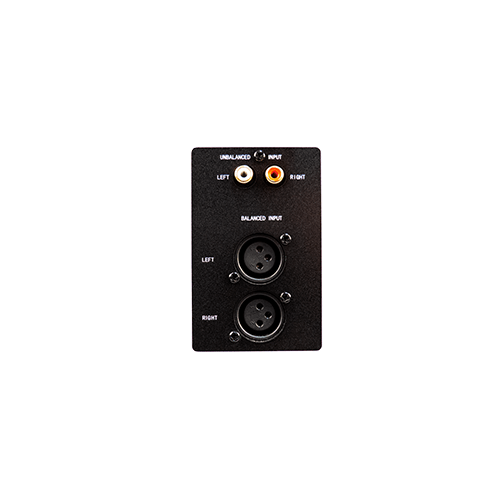

RCA or XLR line-level inputs.

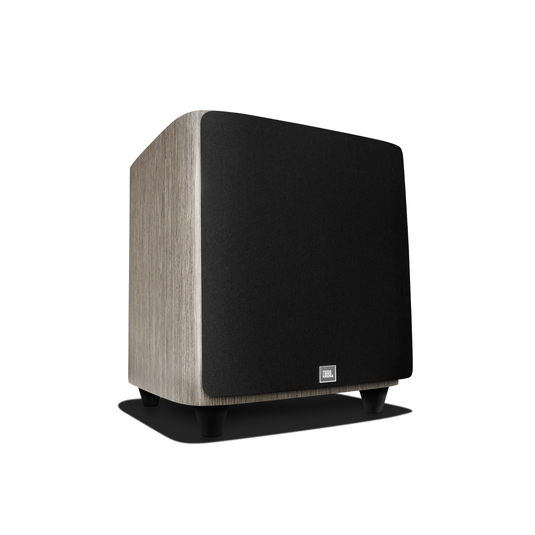

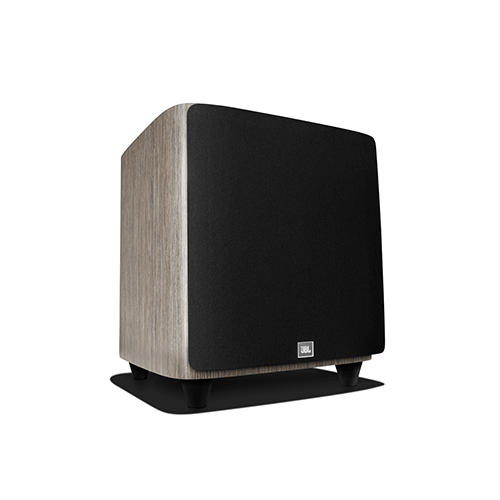

Black cloth, magnetically attached grille.
Specs & Downloads
Item# JBLHDI1200PGROAM
Description
HDI-1200P

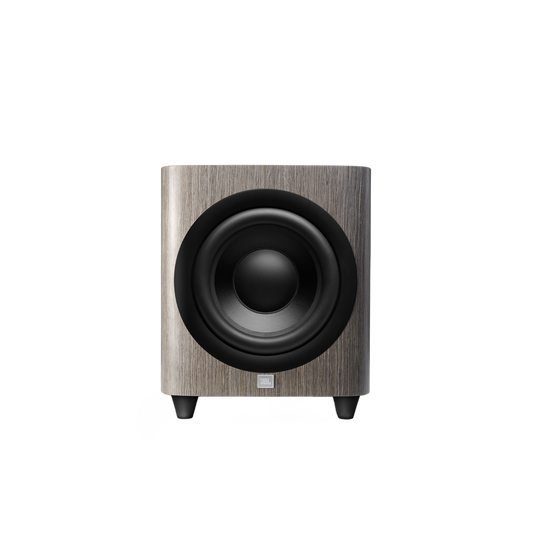

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system. This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction.
General Specifications
- Low Frequency Driver
- 12” (300mm) black Poly-plas™, cast-frame woofer
- Recommended Amplifier Power
- 1000W rms
- Crossover Frequency
- 50Hz – 150Hz (variable) 24dB/octave
- Frequency Response
- 28Hz – 150Hz (-6dB)
- Enclosure Type
- Bass-reflex design with down-firing ports
- Power Requirements
- 100V – 240V 50/60Hz
- Power Consumption (idle/max)
- <0.5W (standby)
- Power Consumption (idle/max)
- 1180W/7.7A(max-230Vac)
- Power Consumption (idle/max)
- 1230W/12.87A(max-120Vac)
- Power Consumption (idle/max)
- 1190W/15.97A(max-100Vac)
- Dimensions (H x W x D)
- 16.95 x 16.3 x 17.77” (430.5 x 414 x 451.3mm)
- Net Weight
- 70.8 lbs (31.79kg)
