Dolby Atmos® and MultiBeam™ Surround sound

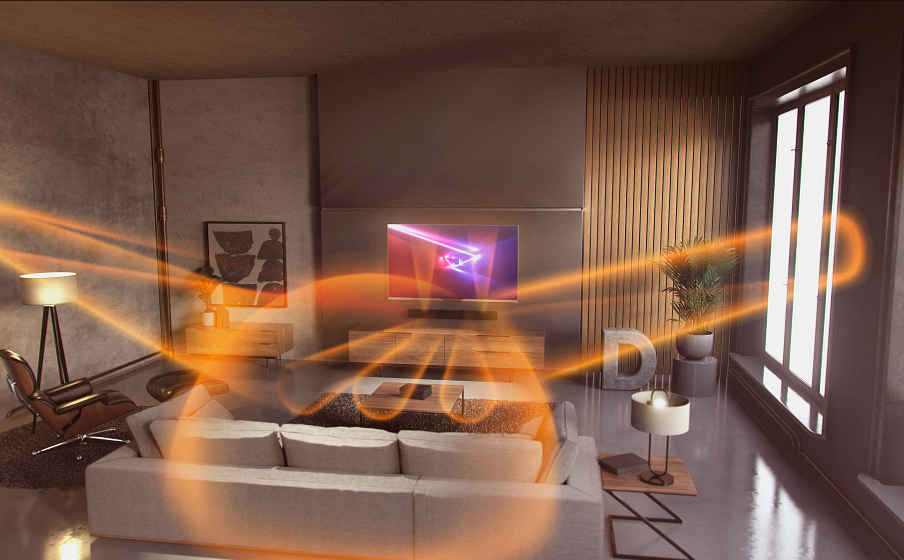

Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Virtual Dolby Atmos® gives you an immersive and exciting 3D sound experience, while JBL MultiBeam™ technology creates a wide soundstage by projecting incredible sound to every corner of the room, so you’ll hear every detail from your favorite music, movies, TV series and games without the need for multiple speakers. Enjoy movies or games with a whole new dimension.

Punchy bass without the need for a separate subwoofer
Your home cinematic experience is enhanced and intensified with deep, punchy bass, thanks to four passive radiators built-in.

Chromecast built-in™, AirPlay and Alexa Multi-Room Music (MRM)
With AirPlay, Alexa Multi-Room Music and Chromecast built-in, you can stream all your favorite online content in amazing sound quality, with a simple finger tap.

Ultra HD 4K Pass-through with Dolby Vision™
Dolby Vision is a High-Dynamic Range (HDR) 4k video format that is growing in popularity and can be found in a growing number of 4k HD Blu-ray players, as well as several popular streaming services. Coupled with our 4k pass through you will enjoy pristine audio quality to match your video.
Features

HDMI eARC
With HDMI eARC, you can enjoy higher-quality audio, including Virtual Dolby Atmos® on your JBL Bar 5.0. You can easily and conveniently connect your Dolby Atmos player to either the TV or soundbar.

Automatic MultiBeam™ Calibration
Calibrate the soundbar with the best surround sound audio effect based on your own room design and layout.

Multi-room possibilities
Thanks to Chromecast built-in™ and Alexa Multi-Room-Music you can create a multi-room setup, allowing to listen to the same music in every room or different music in each room.

Bluetooth wireless streaming
Not in the mood for a film or game? No problem. With the compact JBL Bar 5.0 MultiBeam soundbar, you can also enjoy wireless music streaming via Bluetooth from your phone or tablet.

Works with voice control
Already having a device with Google Assistant, Alexa voice control or Siri? Simply connect them with the soundbar and start streaming your music with a simple voice command.
Specs & Downloads
Item# JBLBAR50MBBLKAM
Description
Experience 3D Spacious Surround Sound at Home

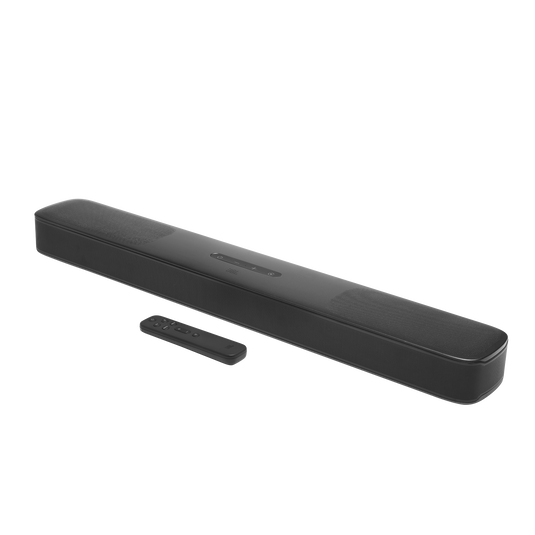

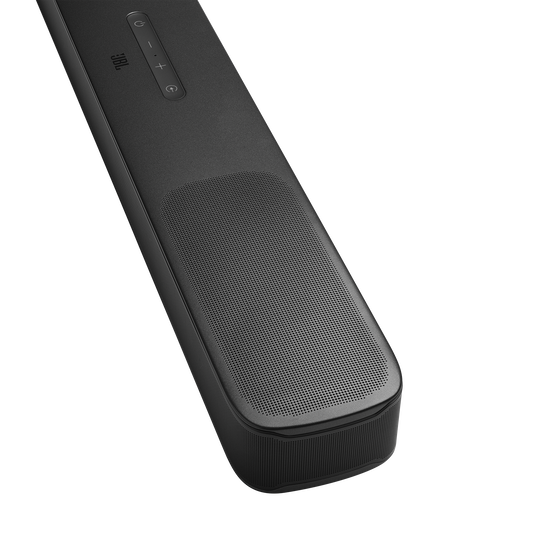

Make your viewing or gaming experience more immersive than ever before with the winning combination of JBL Multibeam™ technology and Virtual Dolby Atmos®. Feel the sound all around as you're thrown into the action with deep bass performance without the need for an extra subwoofer. It features Chromecast built-in™, AirPlay and Alexa Multi-Room Music (MRM) for incredibly easy music streaming and multi-room possibilities. Bluetooth lets you enjoy music from your smartphone or tablet too. The sleek design of the JBL Bar 5.0 MultiBeam, with its grille pattern and metallic finishing, fits any home decor. It's compact and simple to use, can be controlled using your existing TV remote or by using the included intuitively designed remote control.
General Specifications
- Total speaker power output
- 250 W
- Soundbar output power (Max. @THD 1%)
- 5 x 50 W
- Transducer
- 5 x 48mm x 80mm racetrack drivers + 4 x 3 inches(75mm) Passive Radiators
- Power supply
- 100 - 240V AC, ~ 50/60Hz
Audio Specifications
- Max SPL
- 92 dBA
- Frequency Response
- 50Hz - 20KHz
- MP3 Codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 (USA only), Dolby Atmos, PCM
1 Optical, Bluetooth, Chromecast, AirPlay 2, Alexa MRM, USB
Dimensions
- Dimensions (W x H x D)
- 709x 58x 101mm, 27.9x 2.3x 3.9"
- Weight
- 2.8kg
Control and Connection Specifications
- Type A, USB rating
- 5V DC, 0.5A
- USB Port
- (*USB playback is available in US version. For other versions, USB is for Service only.)
- Bluetooth® version
- 4.2
- Bluetooth® profile
- A2DP 1.2, AVRCP 1.5
- Bluetooth® transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth® transmitter power
- <10 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- <20dBm
- 5G Wi-Fi transmitter frequency range
- 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power
- <23dBm (EIRP)
What's in The Box?
- 1x Soundbar
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- 1x HDMI cable
- 2 x L-shape Wall-mount bracket with screws
- Quick start guide
- Warranty card
- Safety sheet

Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
I would like to place the sound bar in an enclosed shelf on our tv stand. The shelf is open in the front but is only about 4 or 5 inches high. Will that work or does the soundboard have to be placed on an open vertical surface?
does it have alexa voice ? and does it support usb playback ?
The manual and website for this soundbar refers to "Amazon Music" but doesn't mention other Alexa Skills. Is there a limit so that it only works with Amazon Music Skill, or will other Alexa Skills work, like say, the BBC Sounds skill?
It’s paired and says done but no change in sound
I have an Android phone. Would you please provide a link to the current / best JBL software to interact with my JBL Multibeam
Will the JBL Multi-beam 5.0 be available with a subwoofer at some point? I know the 5.1 is option, but that model is not capable of Dolby Atmos.
Does this soundbar have a night mode type setting than reduces loud sound effects?
Hi, I am following guide (TV x 3 seconds then volume (-) once) to adjust bass but not responding, am I doing something wrong please? Bar 5.0 Multibeam purchased today 22/11/2022
