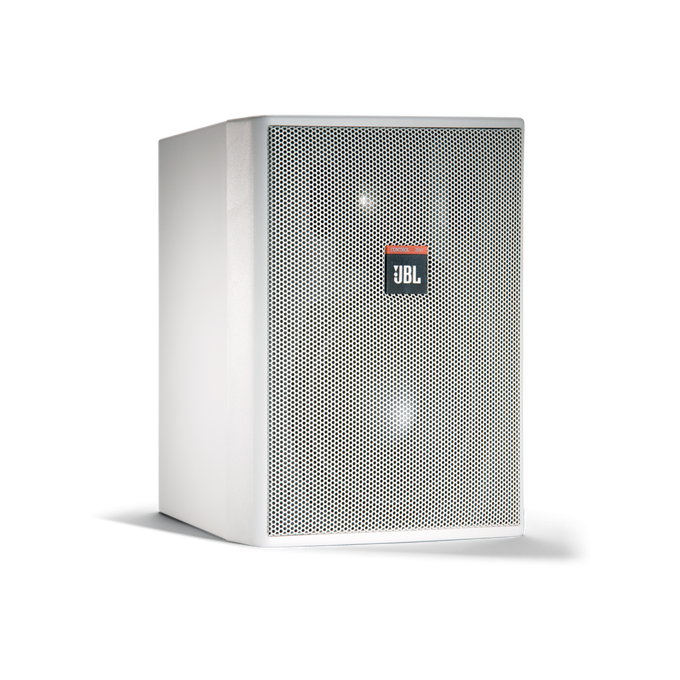

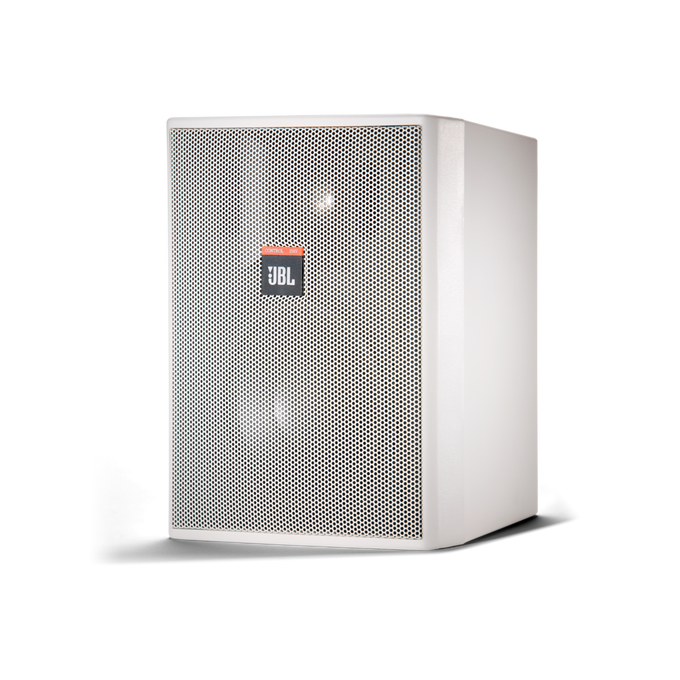

JBL Control 25AV (B-Stock)
$153.30 Price reduced from $219.00 to Save 30%

Extremely smooth high fidelity performance

A deep cabinet, high power components and complex network achieves extremely smooth high fidelity performance from a compact 2-way loudspeaker

Magnetic shielding

Allows use of the speaker in close proximity to video monitors

Top-quality transformer, with reduced saturation

Allows use on either 70 volt or 100 volt distributed speaker lines, with similar performance fidelity

Features

Specs & Downloads

Item# CONTROL 25AV-B

Description

Shielded Indoor/Outdoor Monitor Speaker

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area. Magnetic shielding allows use of the speaker in close proximity to video monitors. The top-quality transformer, with reduced saturation, allows use on either 70 volt or 100 volt distributed speaker lines, with similar performance fidelity. In the bypass position, the high 8 impedance allows use of more speakers on a loudspeaker line. The unique, global patent pending InvisiBall ® mounting method is simple to install, aims easily, and provides a high degree of theft deterrence. The cabinet accepts a variety of paints to match any décor. Weather resistance is maximized by a stainless steel grille, which is paintable. Coating the woofer in polypropylene and terminating its circumference in JBL’s WeatherEdgeTM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection. JBL’s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound. The Control 25AV can be used full range or low frequencies can be further augmented with the addition of one of the Control Contractor subwoofer models.

General Specifications

Frequency Range
70 Hz - 23 kHz (-10 dB)
Power Capacity
200 W Continuous Program Power ; 100 W Continuous Pink Noise
Transformer Taps 70V
60 W, 30 W, 15 W, 7.5 W
Transformer Taps 100V
60 W, 30 W, 15 W
Nominal Sensitivity
87 dB SPL, 1 W @ 1 m (3.3 ft)
Midrange (±1.5 dB, typical)
130 Hz - 14 kHz
Nominal Coverage
100° x 100°
Maximum SPL @ 1m
113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
Directivity Factor (Q)
4.9 dB, averaged 500 Hz to 4 kHz
Directivity Index (DI)
6.9 dB, averaged 500 Hz to 4 kHz
Nominal Impedance
8 ohms
Minimum Impedance
6.7 ohms at 230 Hz
Crossover Network
Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
Low Frequency
130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency
20 mm (.75 in) titanium coated PEI
Overload Protection
Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Environmental
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Terminations
Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency Rating
Transformer is listed per UL1876
Rotation
Against wall on InvisiBall Base - 37° vertical 44° horizontal ; On bracket - 44° all directions
Included Accessories
1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench

Dimensions

Height
236 mm (9.3 in)
Width
186 mm (7.4 in)
Depth
159 mm (6.3 in)
Net Weight (ea)
4.0 kg (9 lb)
Shipping Weight (ea)
9.0 kg (20 lb) per pair

Design

Enclosure Material
High Impact polystyrene
Grille
Painted stainless steel, black or white to match cabinet, paintable
