Features
25 – 80 watts suggested amplifier power range
JBL engineers designed the SP6II in-wall loudspeaker to produce accurate, enveloping sound from an AVR (audio/video receiver) or amplifier capable of delivering up to 80 watts of power.
6-1/2" (165mm) titanium-laminate cone for enhanced bass response
Realistic reproduction of music requires clean, undistorted low frequencies. JBL SP6II in-wall loudspeakers feature a 6-1/2-inch (165-millimeter) titanium-laminate cone that offers great stiffness for low distortion. Rubber surrounds ensure durability, while extended polepieces produce deep, powerful bass with little distortion. The result is enveloping, satisfying audio reproduction from the bottom up.
Detailed high-frequency sound reproduction
The SP6II’s thin but rigid 1-inch (25-millimeter) titanium-laminate tweeter delivers accurate, clear high-frequency response, even at elevated volume levels. The tweeter’s swivel-mount means that you can direct high frequencies exactly where you want them.
Elliptical Oblate Spheroidal™ (EOS) waveguide for “sit-anywhere” sound
Forget about “sweet spots.” With proprietary JBL Elliptical Oblate Spheroidal (EOS) waveguide technology, your whole room becomes a perfect listening position. Originally designed for JBL Professional LSR studio monitors, the SP6II in-wall loudspeaker’s EOS waveguide distributes sound evenly throughout your playback area.
Low profile and easy installation
With a mounting depth of just 3-7/8 inches (98 millimeters) and a weight of only 5 pounds (2.3 kilograms), the lightweight, space-saving JBL SP6II loudspeakers offer maximum installation flexibility. A cutting template and integrated dog-ear brackets accommodate retrofit applications, while rough-in frames are available for new construction.
Paintable grille and frame
The SP6II in-wall loudspeakers offer outstanding performance, but that doesn’t mean that they have to stand out in a room. You can paint the frames and grilles so that the loudspeakers match your wall décor. You’ll hardly notice your SP6IIs – until you turn them on.
Specs & Downloads

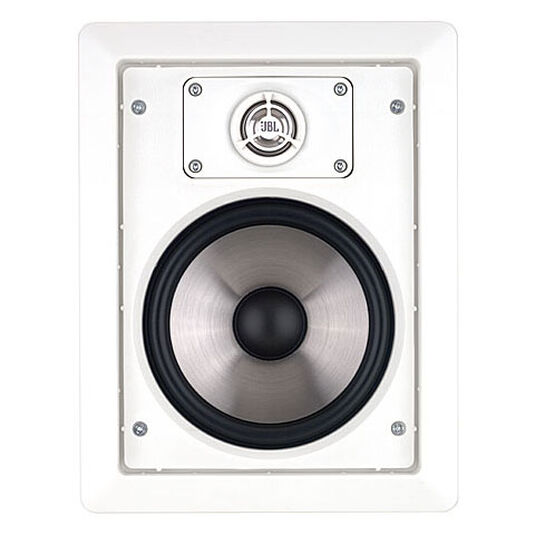

Item# SP6II
Description
Engineered to excel.
A pair of JBL® SP6II in-wall loudspeakers offers any home true JBL-quality sound without taking up valuable floor or shelf space. Movies sound more enveloping within your home theater, and your favorite music comes alive throughout the house. The SP6II’s 6-1/2-inch (165-millimeter) titanium-laminate low-frequency woofer delivers exceptional bass, while a swivel-mounted, titanium-laminate tweeter produces accurate, clear high-frequency output. Proprietary Elliptical Oblate Spheroidal™ (EOS) waveguide technology and 80 watts of peak power handling ensure that the SP6II in-wall loudspeakers distribute sound evenly and smoothly throughout your listening area. The SP6II’s shallow mounting depth increases your installation options. And the SP6II’s paintable frame and grille let the in-wall loudspeakers blend into any room décor.
General Specifications
- Series
- SoundPoint Series
Audio Specifications
- Crossover Frequencies
- 2.8kHz
- Sensitivity
- (2.83V@1m) 88dB
- Nominal Impedance
- 8 ohms
- Frequency Response
- (-10dB) 38Hz – 20kHz
Dimensions
- Plate Width
- 8-1/2" (216mm)
- Plate Height
- 11" (279mm)
- Mounting Cutout Width
- 7-1/8" (181mm)
- Mounting Cutout Height
- 9-11/16" (246mm)
- Mounting Depth
- 3-7/8" (98mm)
- Weight
- 5lb (2.3kg)
Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
In the specs on the 6 inch a mid-range transducer is listed as 80. Eighty what? and where is it?
Can SP 6II speakers be used as in ceiling as Atmos speakers
What gauge speaker wire should be used?
Looks like Studio 235c and Studio 225c center speakers are discontinued. What are the other center speaker options that go well with these ones. I am looking for 5.1 surround. I recently purchased your SUB100PWH and these inwalls for surround.
Are these speakers bluetooth ready?
Can I use this wall speaker for my pc?
Can these speakers be connected directly to a TV for surround sound or do you need a receiver?
What would be a good center speaker to compliment these?
