SP6CSII Refurbished

Features

null

25 – 100 watts suggested amplifier power range

JBL engineers designed the SP6CSII in-ceiling loudspeaker to produce impressive, two-channel stereo sound from an AVR (audio/video receiver) or amplifier capable of delivering up to 100 watts of power.

null

6-1/2" (165mm) titanium-laminate cone for enhanced bass response

Realistic reproduction of music requires clean, undistorted low frequencies. The JBL SP6CSII in-ceiling loudspeaker features a 6-1/2-inch (165-millimeter) titanium-laminate woofer cone that offers greater stiffness for reduced distortion. Rubber surrounds improve durability, while extended polepieces produce deep, powerful bass with less distortion. The result is enveloping, satisfying audio reproduction that is engineered from the bottom up.

null

Detailed high-frequency sound reproduction

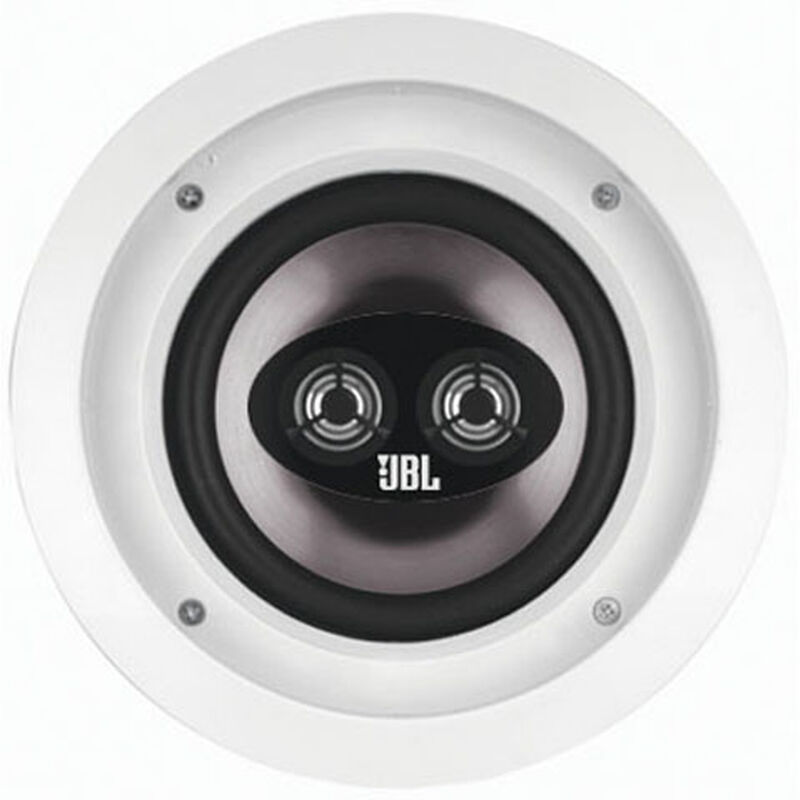

The SP6CSII in-ceiling loudspeaker’s pair of thin but rigid 1-inch (25-millimeter) titanium-laminate tweeters delivers accurate, clear high-frequency response, even at elevated volume levels. Tweeter swivel-mounts mean that you can direct high frequencies exactly where you want them.

null

Elliptical Oblate Spheroidal (EOS) waveguide for “sit-anywhere” sound

Forget about “sweet spots.” With proprietary JBL Elliptical Oblate Spheroidal (EOS) waveguide technology, your whole room becomes a perfect listening position. Originally designed for JBL Professional LSR studio monitors, the SP6CSII in-ceiling loudspeaker’s EOS waveguide distributes sound evenly throughout the playback area.

null

Low profile and easy installation

With a mounting depth of just 4-1/4" (108 millimeters) and weighing only 4 pounds (1.8 kilograms), the lightweight, space-saving SP6CSII in-ceiling loudspeaker offers maximum installation flexibility. A cutting template and integrated dog-ear brackets accommodate retrofit applications, while rough-in frames are available for new construction.

null

Paintable grille and frame

The JBL SP6CSII in-ceiling loudspeakers offer outstanding performance, but that doesn’t mean that they have to stand out in a room. You can paint the frames and grilles so that the loudspeakers match your ceiling color and decor. You’ll hardly notice the SP6CSIIs – until you turn them on.

Specs & Downloads

Item# SP6CSII

Description

A versatile space-saver that goes above and beyond.

It’s another audio achievement in the easy-to-install SoundPoint® Series. Paint the baffle and grille to match your walls, and the JBL® SP6CSII is virtually unnoticeable – until you switch it on. Dual titanium-laminate tweeters deliver crystalline high frequencies. A proprietary Elliptical Oblate Spheroidal™ (EOS) waveguide distributes sound smoothly with no small “sweet spot.” Low-frequency transducers deliver the high power handling and tight, deep bass JBL® speakers are known for. One loudspeaker reproduces two channels, so you can use one for each room in a distributed-audio system. Want to upgrade your 5.1-channel home theatre to 7.1 without more holes in your ceiling? Here’s your answer.

General Specifications

Series
SoundPoint Series

Audio Specifications

Nominal Impedance
8 ohms
Maximum Recommended Amplifier Power
100 total (50 WPC)
Crossover Frequencies
2.6kHz
Sensitivity
(2.83V@1m) 88dB both channels driven
Frequency Response
(-10dB) 40Hz – 20kHz

Speaker Specifications

High-Frequency Transducer
Dual 3/4" titanium-laminate domes,
Low-Frequency Transducer
6-1/2" titanium-laminate cone w/rubber surround

Dimensions

Mounting Depth (mm)
108
External Width (mm)
233
Mounting Depth (in)
4-1/4
External Width (in)
9-3/16
Weight (kg)
1.8
Weight (lb)
4
