Arena 8IW Refurbished

Arena 8IW Refurbished

8-Inch In-Wall Loudspeaker

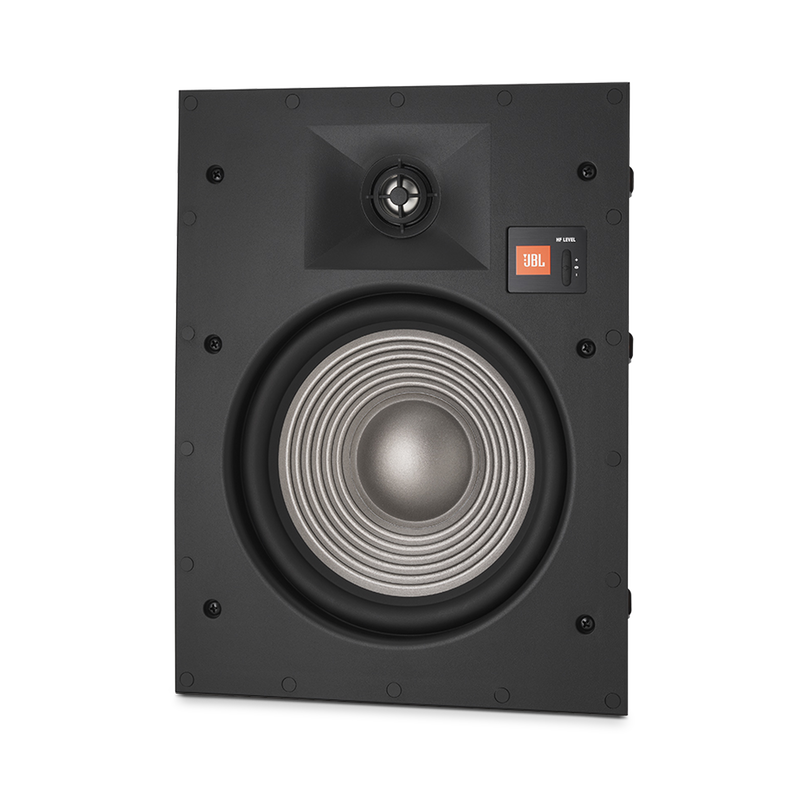

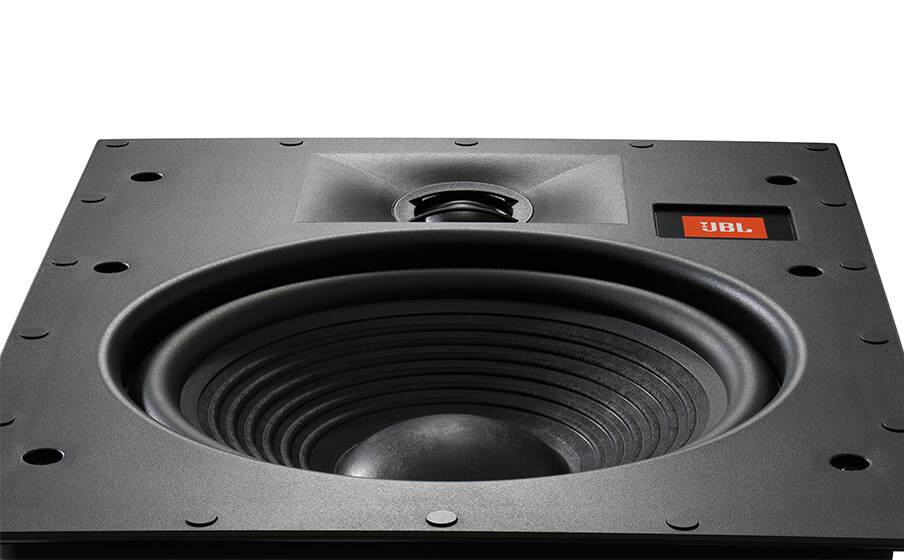

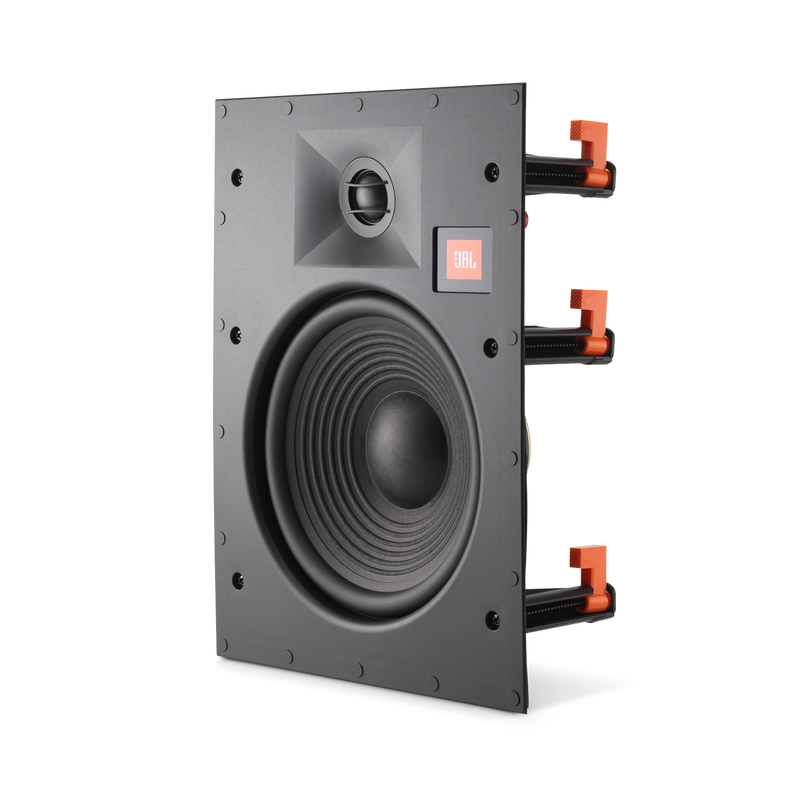

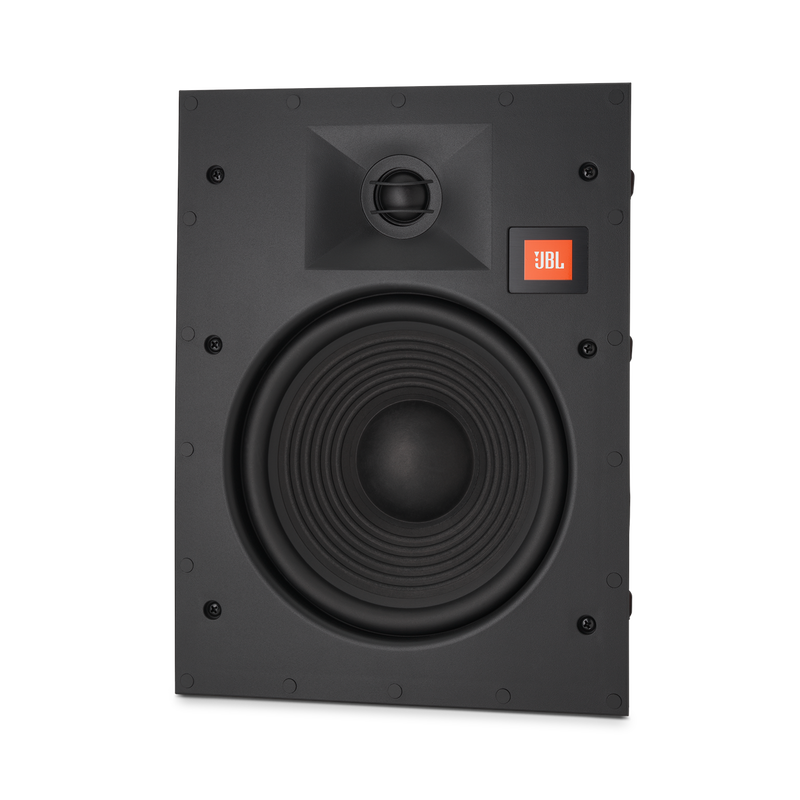

The JBL Arena 8IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. An 8-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.

Find a Dealer
  • Sound Inspired by JBL's lengendary M2 Master Reference Monitor

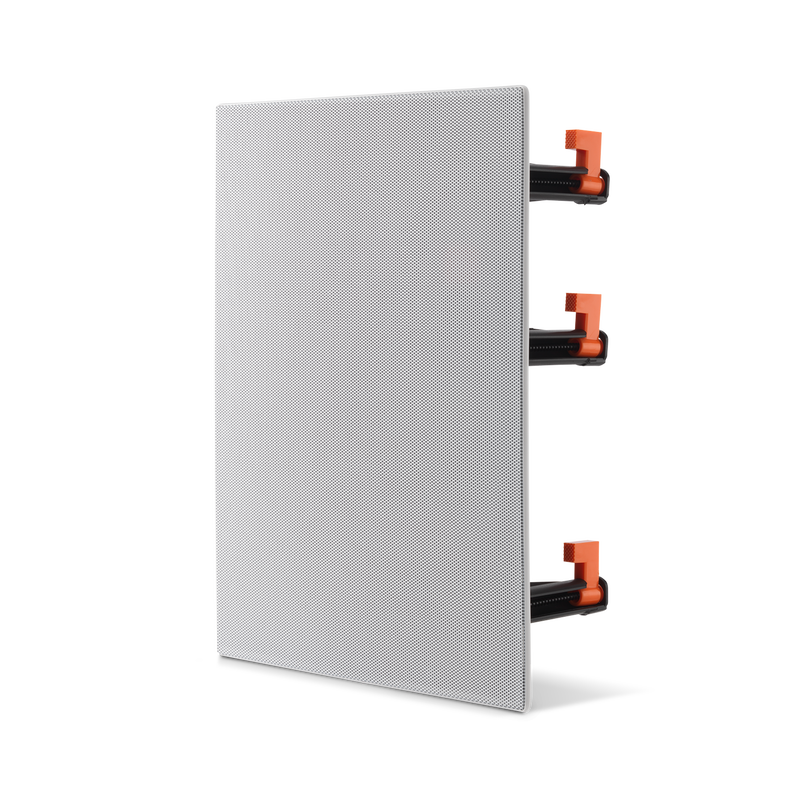

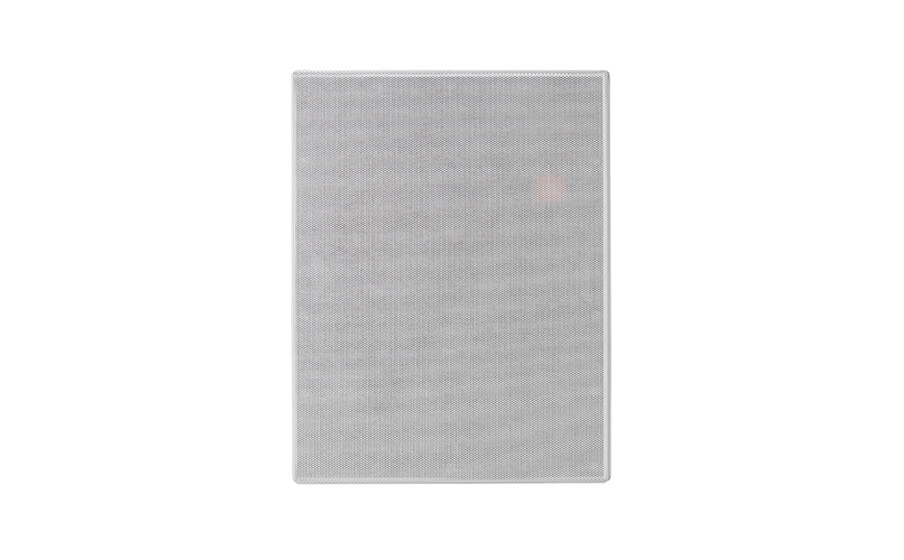

  • Paintable, nearly invisible zero-bezel magnetic grill

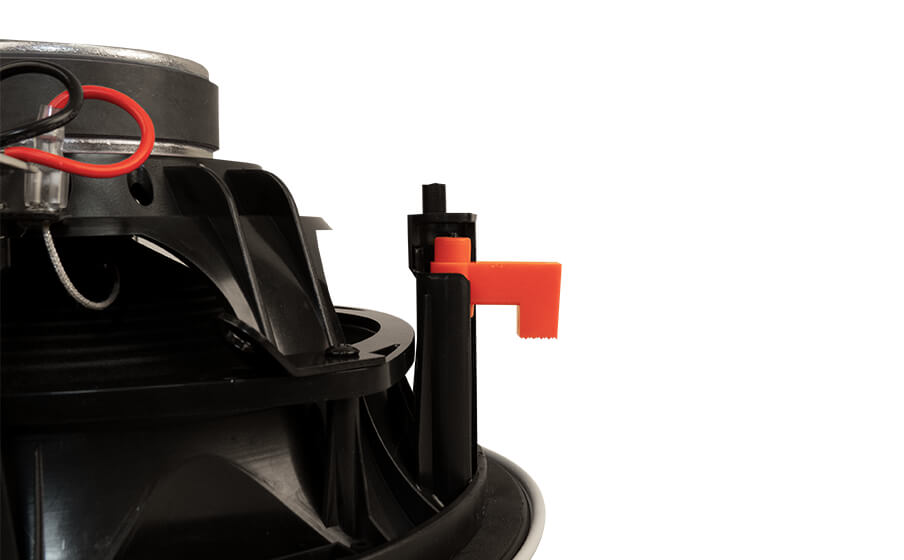

  • Superior XL-2 installation bracket
Please click PERSONALIZE to get started or select a design
Back to top
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.

Cancel

Your zip code edit

This item is currently not available.

shipping
Free Shipping
returns
Free Returns
support
Lifetime Support
Arena 8IW Refurbished
$259.95

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

Paintable, nearly invisible zero-bezel magnetic grill

Superior XL-2 installation bracket

Features

Specs & Downloads

Item# ARENA8IWAM

Description

Arena 8IW

The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.

General Specifications

Mounting Depth
3-13/16" (97mm)
Compatible Wall Material Thickness
0.5" – 2.0" (130mm – 250mm)
Shipping Units of Measure
Each
Warranty
5 Years
Pre-Construction Bracket Part number
PCK8
Back Box Part Number
FBB8

Audio Specifications

Impedance
8 ohms
Recommended Amplifier Power
100W
Frequency Response
30Hz - 20kHz

Loudspeaker Sensitivity:88dB 2.83V @ 1m

Low Frequency Driver Size and Material
8" (203mm) Polycellulose Woofer
High Frequency Driver Size and Material
1" (25mm) Silk-Dome Tweeter

Dimensions

Cutout Dimensions
(H x W)
Grille Finished Dimensions
(H x W)

Documents & Downloads

Owners Manual (Multilingual) JBL Passive Speaker Warranty Card Spec Sheet (English)
