8-Inch In-Wall Loudspeaker

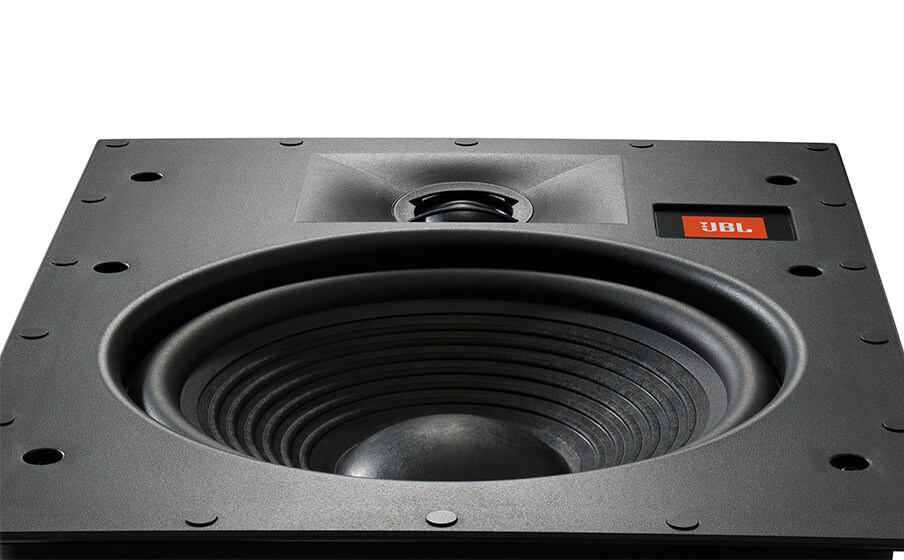

The JBL Arena 8IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. An 8-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.

Find a Dealer
Arena 8IW
each
  • Sound Inspired by JBL's lengendary M2 Master Reference Monitor

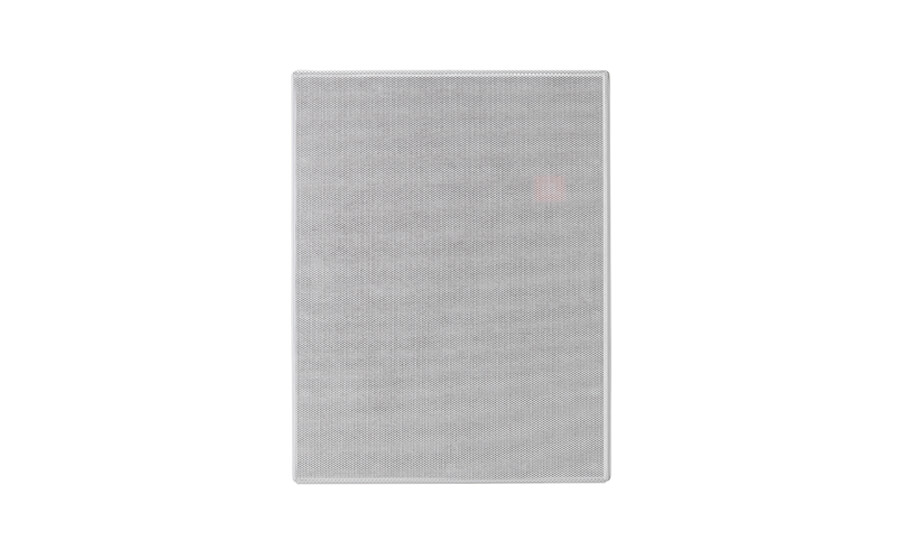

  • Paintable, nearly invisible zero-bezel magnetic grill
  • Superior XL-2 installation bracket
Please click PERSONALIZE to get started or select a design

This item is currently not available.

CHECK SHIPPING TIME OR PICKUP AVAILABILITY

  • Shipping
Cancel

Your zip code edit

Cancel
Your zip code edit
Nearest Store
Best Buy undefined
null, null, null
null

Location selection available at check out.
shipping
Free Shipping

Exclusions Apply
returns
Free Return Shipping

Learn More
support
Lifetime Support
  • SOLD OUT
Arena 8IW - Black - Hero image number null
Arena 8IW - Black - Front image number null
Arena 8IW - Black - Back image number null
Arena 8IW - Black - Detailshot 1 image number null
Arena 8IW - Black - Detailshot 2 image number null
Arena 8IW
each
Arena 8IW Sound Inspired by JBLs lengendary M2 Master Reference Monitor - Image

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

Arena 8IW Paintable, nearly invisible zero-bezel magnetic grill - Image

Paintable, nearly invisible zero-bezel magnetic grill

Arena 8IW Superior XL-2 installation bracket - Image

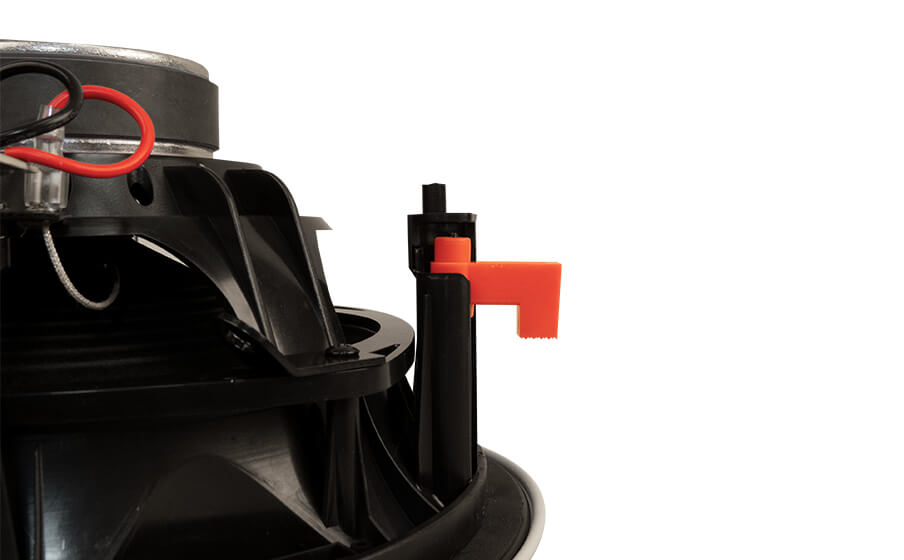

Superior XL-2 installation bracket

Features

Dealer Locator

Dealer Locator

JBL Specialty Audio can be purchased through authorized dealer with the experience and expertise to help you find the right products for your home audio needs.

Learn More

Specs & Downloads

Item# ARENA8IWAM

Description

Arena 8IW

The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.

General Specifications

Mounting Depth
3-13/16" (97mm)
Compatible Wall Material Thickness
0.5" – 2.0" (130mm – 250mm)
Shipping Units of Measure
Each
Warranty
5 Years
Pre-Construction Bracket Part number
PCK8
Back Box Part Number
FBB8

Audio Specifications

Impedance
8 ohms
Recommended Amplifier Power
100W
Frequency Response
30Hz - 20kHz

Loudspeaker Sensitivity:88dB 2.83V @ 1m

Low Frequency Driver Size and Material
8" (203mm) Polycellulose Woofer
High Frequency Driver Size and Material
1" (25mm) Silk-Dome Tweeter

Dimensions

Cutout Dimensions
(H x W)
Grille Finished Dimensions
(H x W)

What's in The Box?

  • Main Unit
  • Magnetic Grill
  • Owners Manual
  • Printed Mounting Template
  • Warranty Card

Documents & Downloads

Owners Manual (Multilingual) JBL Passive Speaker Warranty Card Spec Sheet (English)
