Built-in Wi-Fi
For wireless control of your system from anywhere in the venue

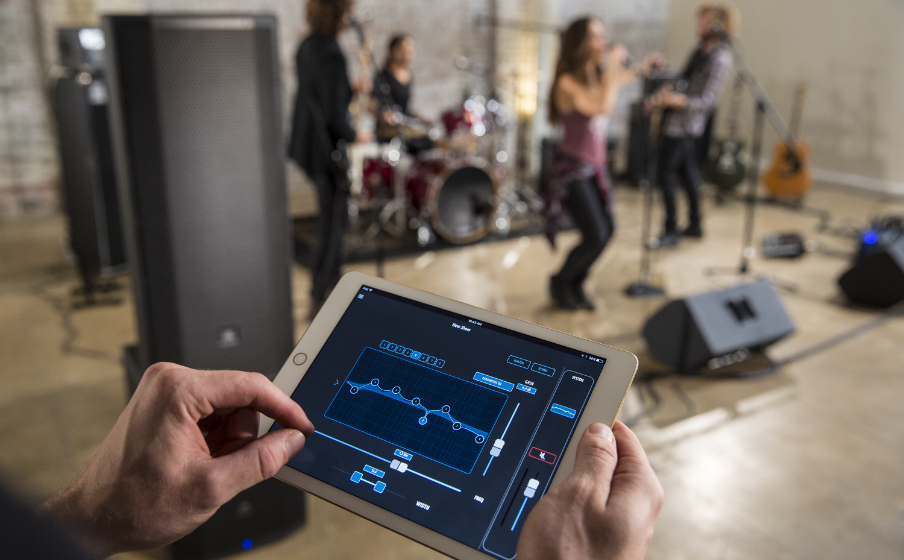

Free PRX Connect mobile app for iOS and Android
Provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

Class-leading 1500-watt amplifier
Delivers ample power to fill your venue
Features

JBL Differential Drive® transducers
For higher SPL in a lightweight design

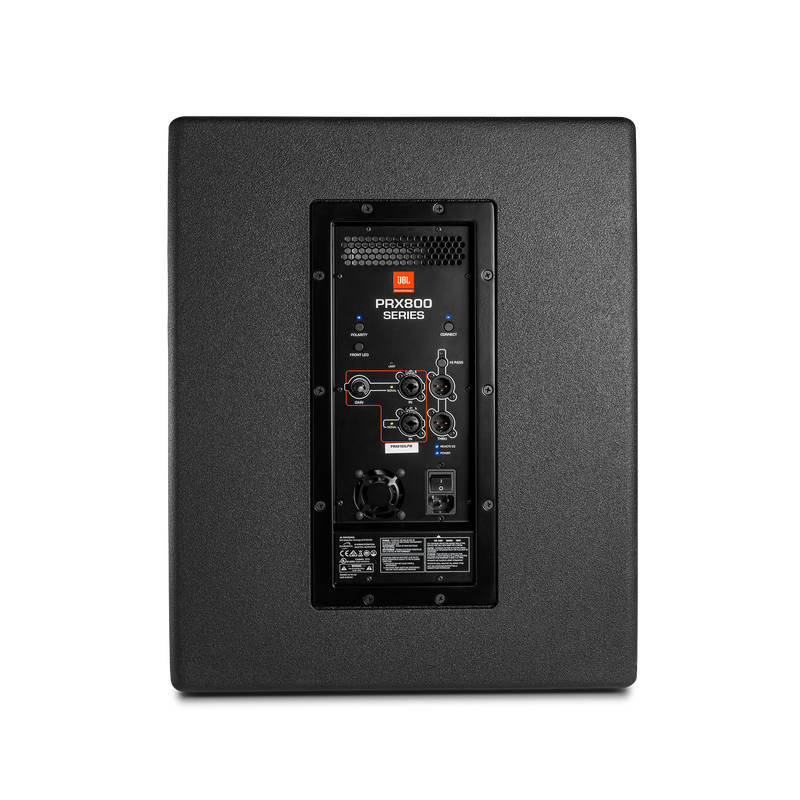

Crown-designed input panel
With XLR, 1/4”, and RCA inputs, plus XLR loop-through

Durable construction
Wooden cabinets, tour-proven DuraFlex™ finish, and dent-resistant cloth-backed 16-gauge grilles

Universal power supply
For worldwide compatibility

Demanding 100-hour test regimen
Ensures reliable performance

Intelligent variable-speed fan
Activates only when needed to reduce noise

Scalable system
Integrates with other JBL portable powered PA's
Specs & Downloads
Item# PRX815XLFW
Description
Loudest-in-class Sound Reinforcement System with easy Wi-Fi Control

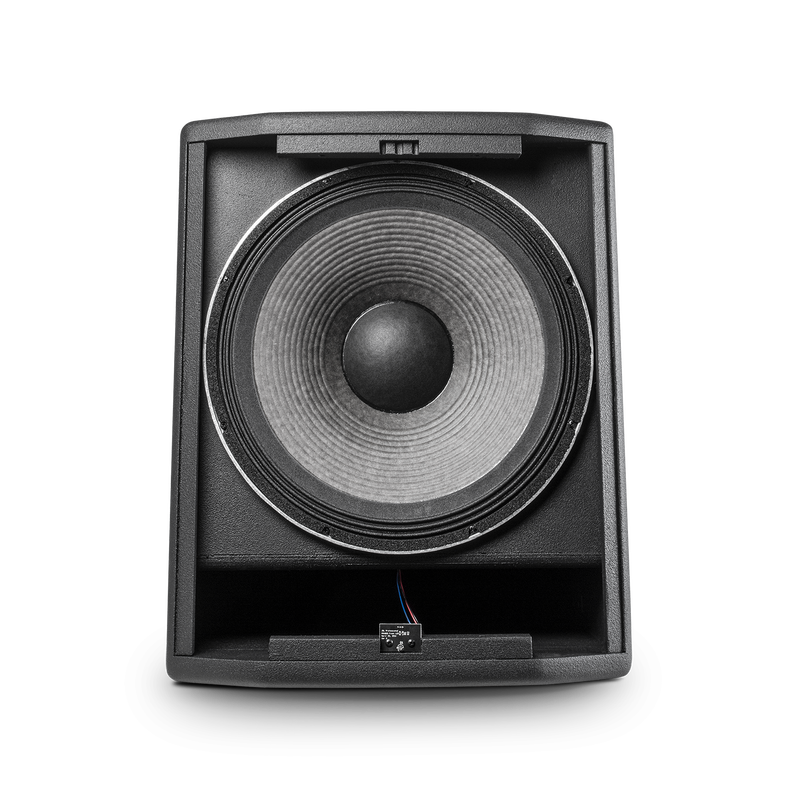

The JBL PRX815XLF is a self-powered extended low-frequency subwoofer system designed and engineered to provide sub bass frequencies with accuracy and power. Featuring a JBL 15-inch woofer powered by a 1500-watt class-D amplifier, PRX815XLF delivers incredible output in a lightweight and compact form factor. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. With the integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer-mounted speaker poles. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.
General Specifications
- Power Rating (W, Continuous)
- 750
- Power Rating (W, Peak)
- 1500
- Frequency Response Hz (±3 dB)
- 40 - 91
- Maximum SPL (peak dB)
- 131
Dimensions
- Height (in)
- 21.6
- Depth (in)
- 22.5
- Width (in)
- 17.5
- Weight (lbs)
- 56.0
- Height (mm)
- 548.0
- Width (mm)
- 446.0
- Depth (mm)
- 572.0
- Weight (kg)
- 25.4
Design
- Finish
- Obsidian DuraFlex™ finish
Features
- Single-angle top pole-mount socket
- Yes
- Built-in Wi-Fi
- Yes
- Mobile app available for iOS and Android
- Yes
