- SOLD OUT


Features

Integral rigging hardware
For simple connection of VRX932LA line-arrays and optional array frame

18 inch, 2268H Differential Drive® woofer
For extended low-frequency output

Large port area
For reduced distortion

20 mm threaded pole socket
For solid, secure satellite speaker mounting

Durable construction
VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.
Specs & Downloads
Item# VRX918S-WH-Z
Description

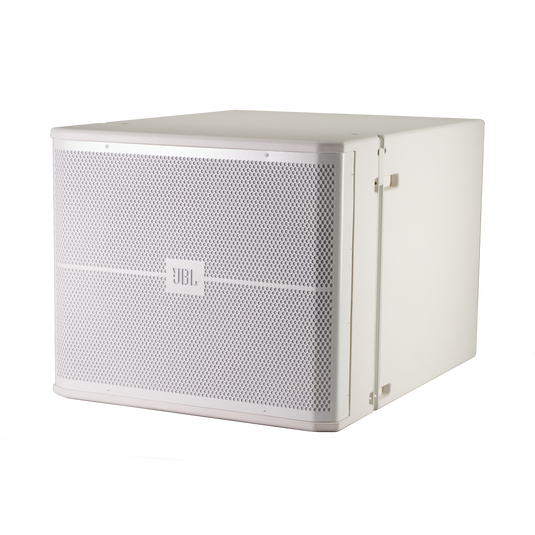

18" High Power Flying Subwoofer
For applications requiring the sonic and practical advantages of integrating the subwoofers into the flying array JBL offers the VRX918S and the VRX915S, two compact, high power, suspendable subwoofer systems using 15 inch and 18 inch Differential Drive® woofers in front loaded vented enclosures. A powered 18 inch option, VRX918SP is also available. The VRX918S was designed specifically for use in arrays with the VRX932LA, as the VRX915S complements perfectly the VRX928LA. Both subwoofers are equipped with a top-mounted, threaded, M20 socket that can receive the optional SS4-BK adjustable pole.
General Specifications
- Power Rating
- 800 W / 1600 W / 3200 W
- Frequency Range
- 31 Hz – 220 Hz
- Frequency Response
- 34 Hz – 220 Hz
- Recommended Crossover Frequencies
- 80 Hz, 24 dB / octave HPF ; 80 Hz, 24 dB / octave LPF
- System Maximum SPL
- 130 dB SPL peak
- System Sensitivity
- 95 dB SPL
- LF Driver
- 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
- Nominal Impedance
- 8 ohms
- Active Tunings
- Tunings available at www.jblpro.com
- Input Connectors
- Neutrik® Speakon® NL-4 (x2)
Dimensions
- Height
- 20.0 in (508 mm)
- Width
- 23.5 in (597 mm)
- Depth
- 29.5 in (749 mm)
- Net Weight
- 81 lb (37 kg)
