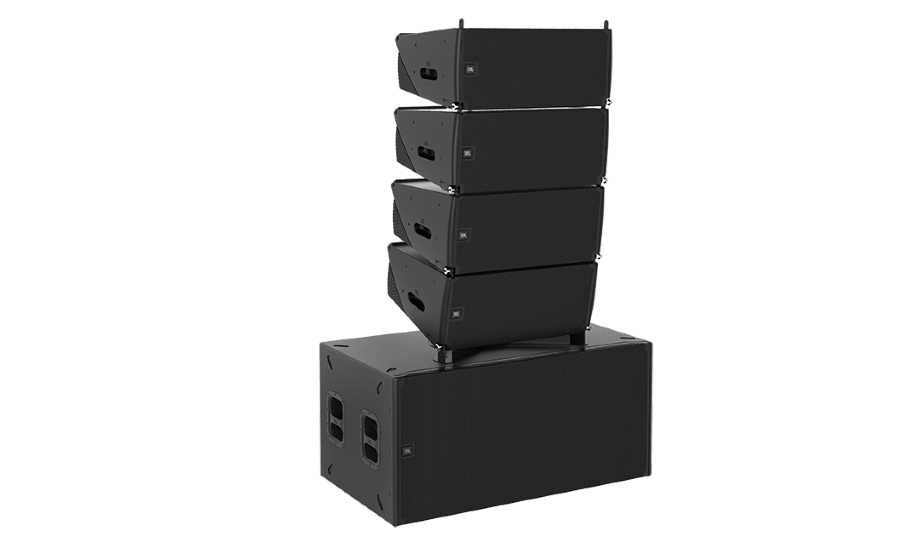

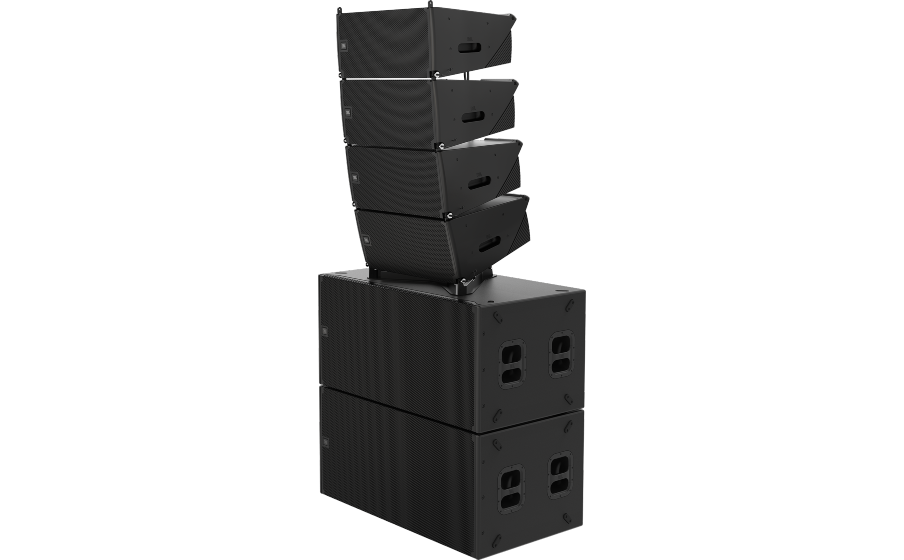

Enables Ground Stacking SRX910LA Arrays
SRX910LA BP enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts

Universal M20 Threaded Pole Mount
Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX918S or the SRX928S

Rear Angle Selection Bar
Allows for angles ranging from -15 to +5 degrees
Features
High-grade Steel Construction
Supports up to 4 SRX910LA speakers
Three Included M10 Through-Holes
Can be used to permanently attach an SRX906LA array to other support structures
Can be Used with the Pole Mount (JBL-P3312MX) Adapter
To pole mount up to two SRX910LA cabinets
Specs & Downloads
Item# JBL-P3238MX-LS-Z
Description

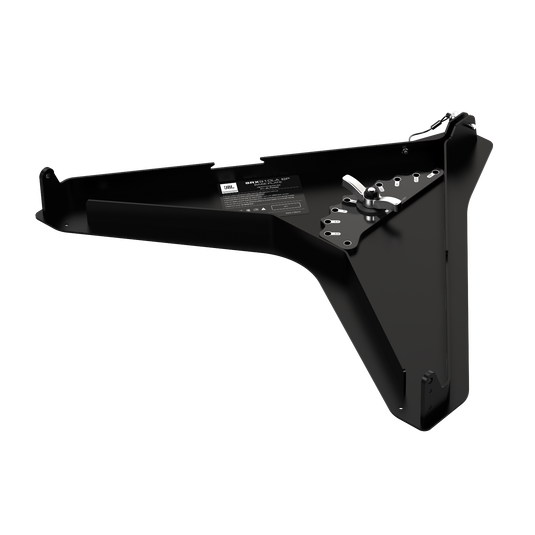

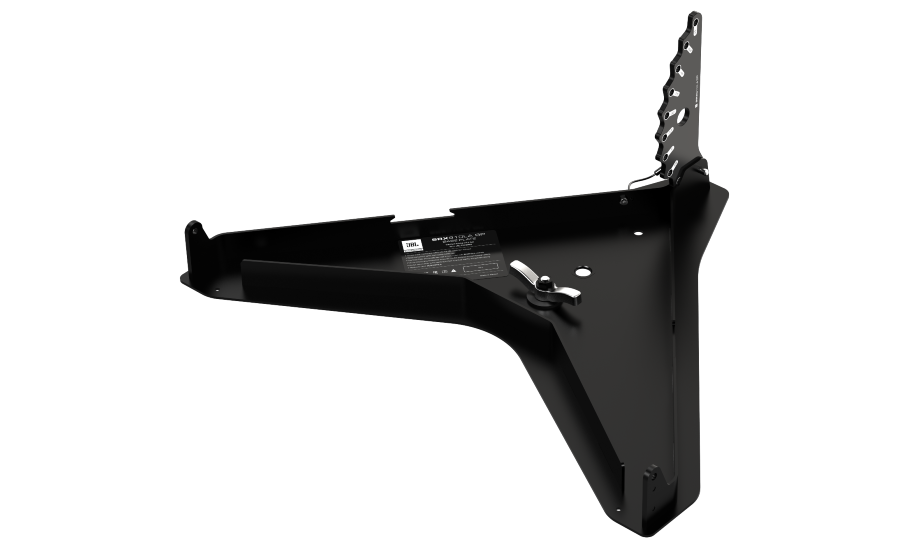

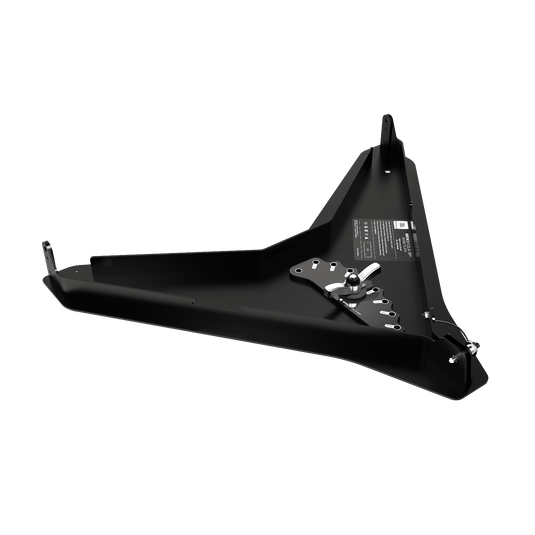

Base Plate for SRX910LA Arrays
The SRX910LA Base Plate is a universal adapter frame that enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX928S. The rear angle selection bar allows for angles ranging from -15 to +5 degrees. The three included M10 through-holes can be used to permanently attach an SRX910LA array to other support structures. Configurations and load conditions for using the SRX910LA BP can be obtained using JBL Line Array Calculator 3 software. For more information about the base plate and use cases refer to the SRX900 Series Rigging Manual.
General Specifications
- Construction
- High-grade steel with anti-corrosion coating
- Finish
- Black powder coat
- Mechanical Safe Limit
- (2) SRX910LA
- Mechanical Maximum Limit
- (4) SRX910LA
Dimensions
- Height
- 75 mm (2.9 in)
- Width
- 683 mm (26.9)
- Depth
- 540 mm (21.3 in)
- Net Weight
- 6.0 kg (13 lbs)
- Shipping Weight
- 8.5 kg (18.8 lbs)
What's in The Box?
- 1 x Base Plate
- 1 x M20 Thumb Screw
