- SOLD OUT

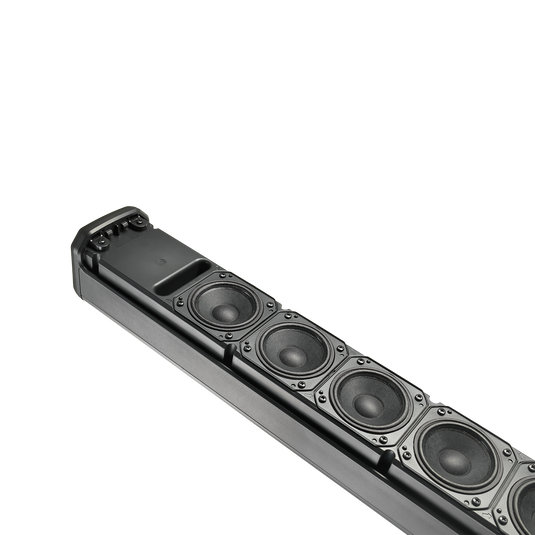

Vertical array of 12 2.5-inch drivers
Delivers consistent, even HF response from the front of the room to the back

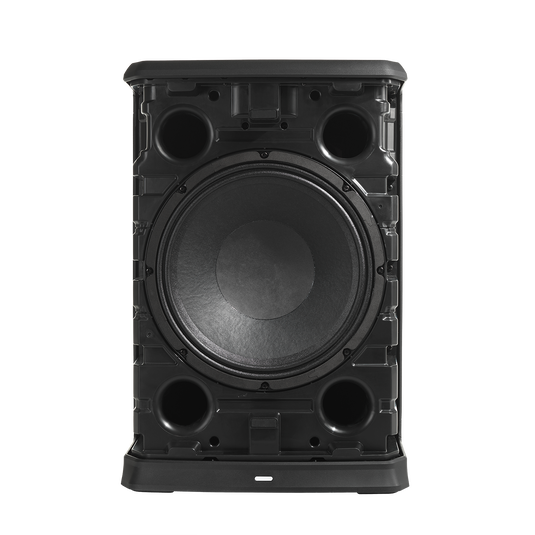

12-inch bass-reflex woofer
Extends low-end response to 35 Hz

Bluetooth 5.0 connectivity & full app control
Allows remote system control of up to 10 units using the JBL Pro Connect app
Features

Wide, 130° (H) x 30° (V) dispersion pattern
Delivers consistent coverage across the audience area

Sophisticated crossover management and HF/LF coupling
Allow for more natural low-end response and smooth, uniform response across the entire frequency range

JBL A.I.M. (Array Inumbration Mechanics)
Geometrically optimized array-shading technology ensures consistent front-to-back coverage

2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors
Provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes

Four high-efficiency, low-noise microphone preamps
Maintain constant bandwidth at any gain level

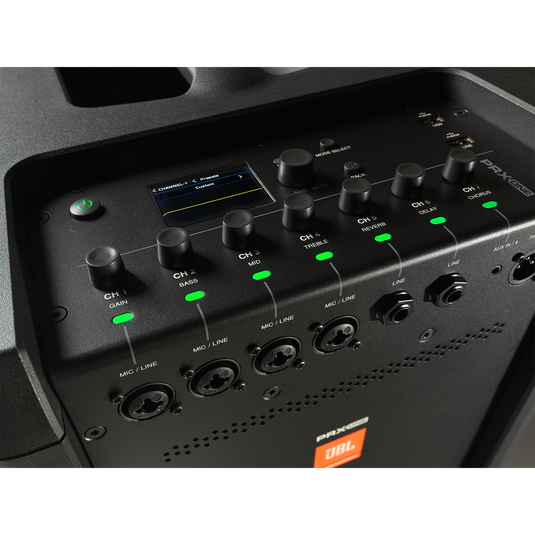

Integrated 7-channel digital mixer with dual-operating mode
Gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends

Powerful Lexicon effects engine
Delay, reverb chorus, echo and sub synth, with presets for easy setup

Triple Tier DSP control
Offers multi-level user experiences based on knowledge level

dbx DriveRack technology
Features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control

One-touch ducking by Soundcraft
Ensures speech is always heard

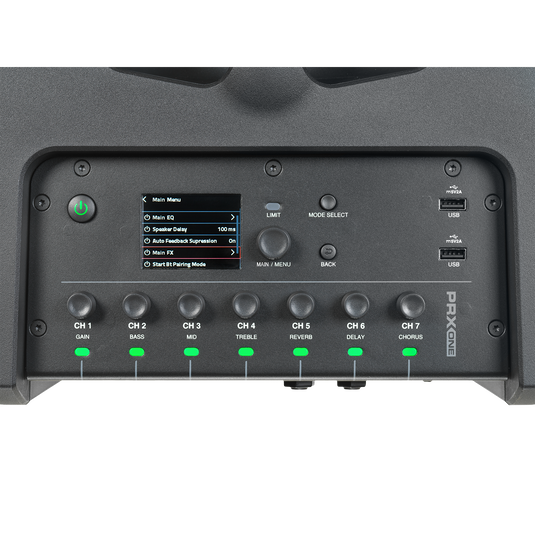

Simple, intuitive full-color LCD screen
Provides easy access to all PRX ONE functions

8 user presets
Instantly optimize system sound

Custom-designed high-frequency drivers
Feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
Frequently Bought Together
Specs & Downloads
Item# PRX ONE-NA-LS-Z
Description
Sound that Raises the Bar and the Roof

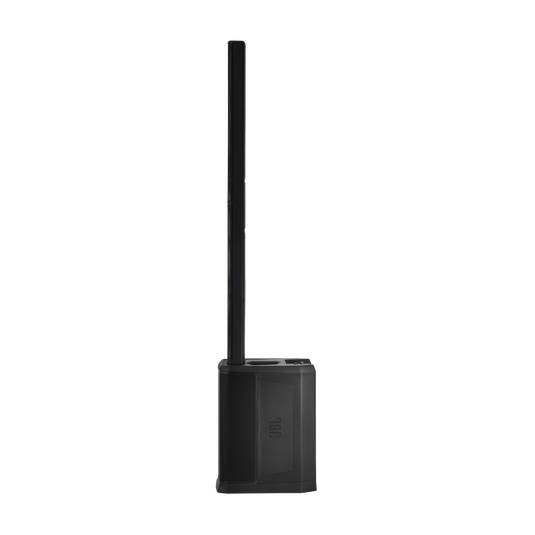

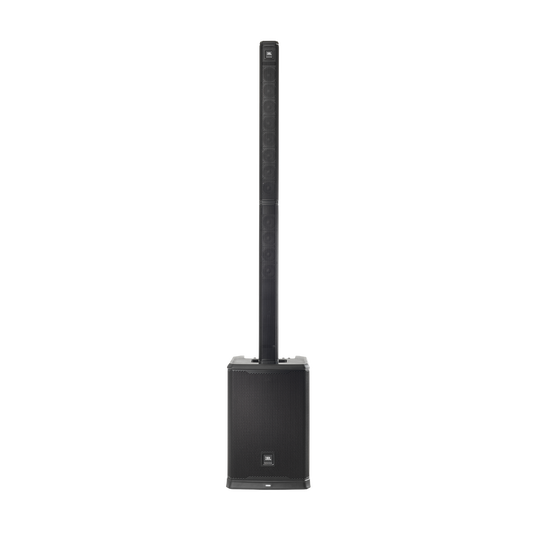

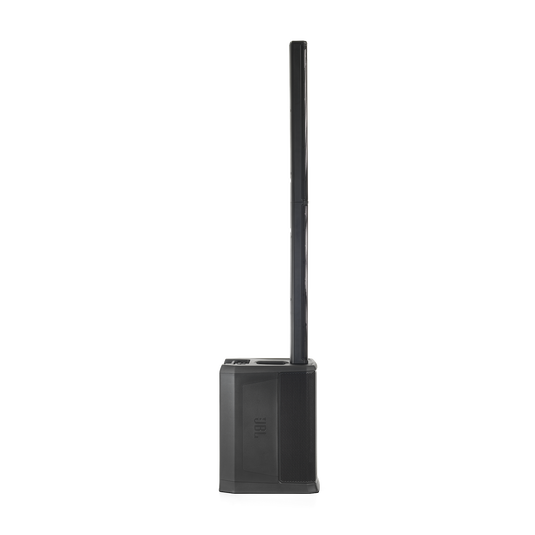

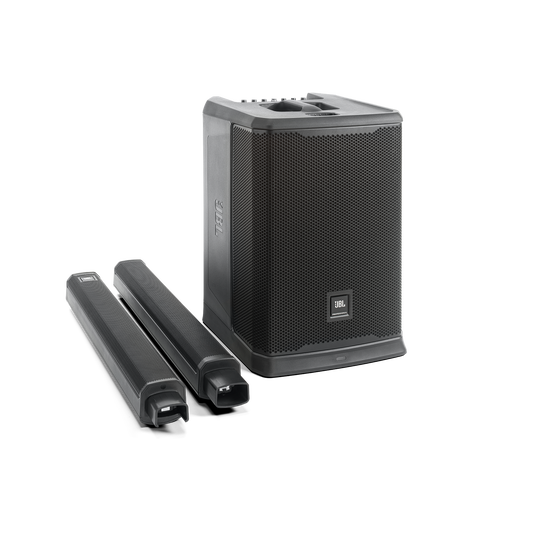

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control. Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier. Dial in great sound fast, with fewer pieces of gear, using PRX ONE’s full suite of professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression. Connect microphones, instruments, mobile devices and wireless rigs using PRX ONE’s versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors) and sophisticated Bluetooth 5.0 features. Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD. PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.
General Specifications
- Power Rating (W, Continuous)
- 1000
- Power Rating (W, Peak)
- 2000
- Frequency Response Hz (±3 dB)
- 40 - 20,000
- Maximum SPL (peak dB)
- 130
- Coverage Pattern (Nominal)
- 130° x 30°
Dimensions
- Width (in)
- 18.9
- Weight (lbs)
- 56.6
- Width (mm)
- 482
- Height (in)
- 33.4
- Height (mm)
- 850
- Weight (kg)
- 25.7
- Depth (in)
- 25.4
- Depth (mm)
- 647
Features
- Mobile app available for iOS and Android
- Yes
- JBL professional tunings and presents available
- Yes
- Feedback suppression
- Yes
- Music Ducking
- Yes
- Bluetooth
- Yes
