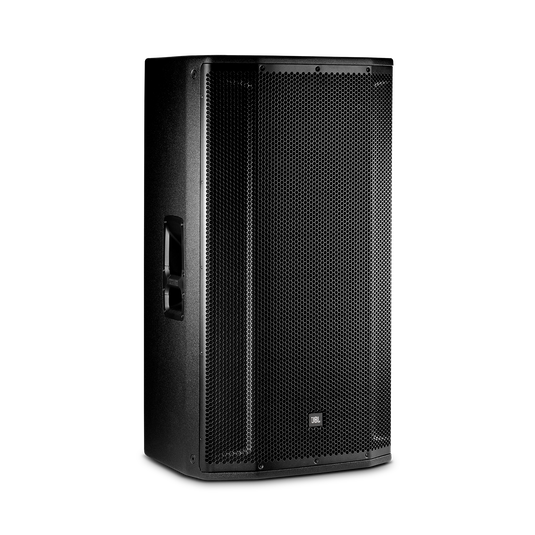

JBL SRX835P
$1,979.00
3.3 (0)
Write a review
JBL SRX835P Purposeful design - Image

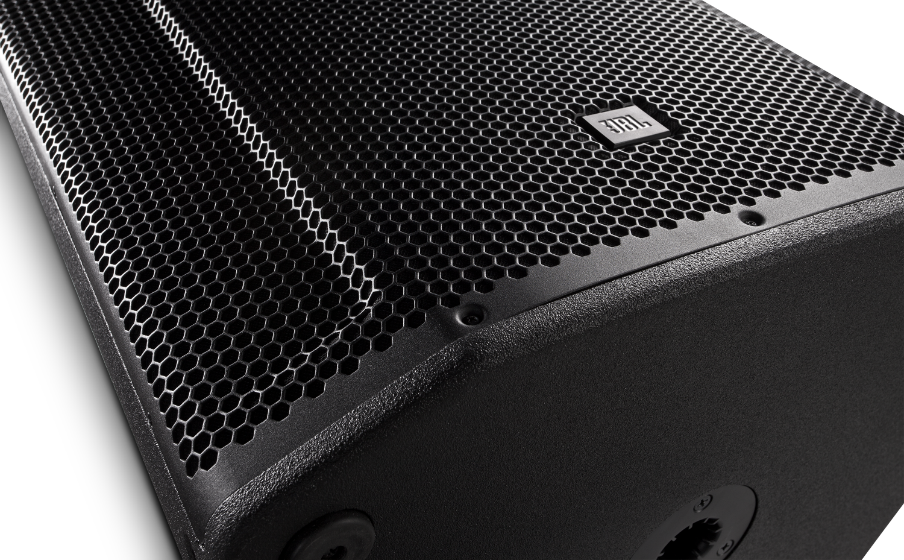

Purposeful design

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

JBL SRX835P Transducer technology - Image

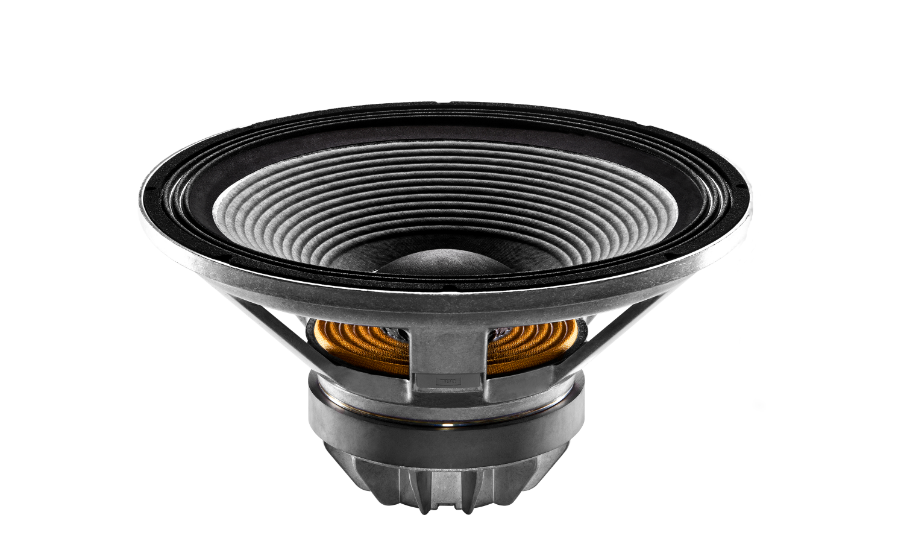

Transducer technology

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

JBL SRX835P Drivecore by Crown - Image

Drivecore by Crown

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

Features

JBL SRX835P HiQnet network control - Image

HiQnet network control

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

JBL SRX835P Unprecedented control - Image

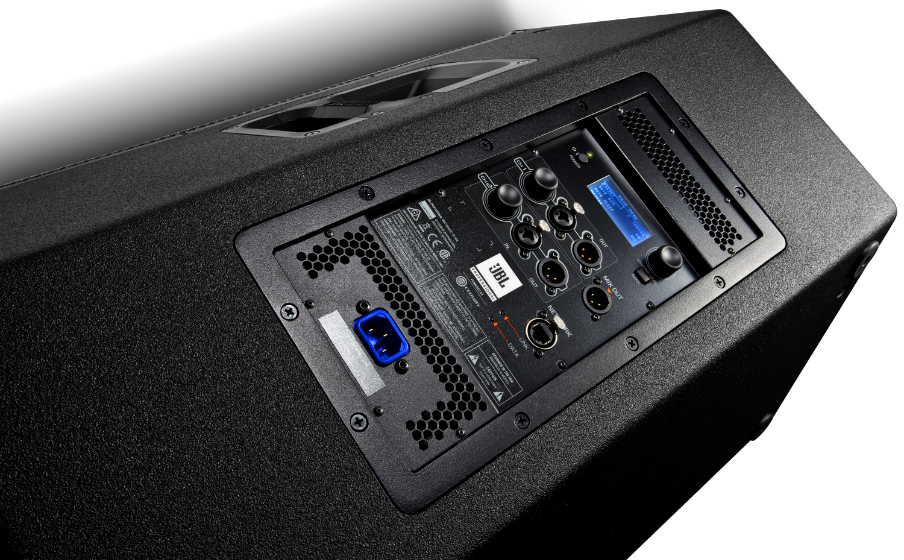

Unprecedented control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Frequently Bought Together

Specs & Downloads

Item# SRX835P

Description

Ultimate performance without compromise

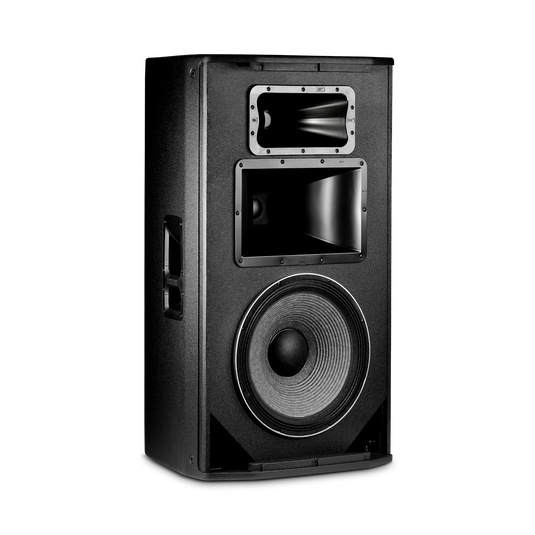

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" three-way, SRX835P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

General Specifications

Power Rating (W, Continuous)
1500
Power Rating (W, Peak)
2000
Frequency Response Hz (±3 dB)
41 - 20,000
Maximum SPL (peak dB)
137
Coverage Pattern (Nominal)
60° x 40°

Dimensions

Height (in)
38.7
Depth (in)
18.7
Width (in)
21.4
Weight (lbs)
85.0
Height (mm)
984.0
Width (mm)
544.0
Depth (mm)
476.0
Weight (kg)
38.6

Features

Single-angle pole-mount socket
Yes
M10 suspension points
Yes
JBL professional tunings and presents available
Yes
Mobile app available for iOS and Android
Yes
Transducer Differential Drive JBL
Yes
HiQnet network control
Yes

Documents & Downloads

Reviews and Q&A

Customer Reviews

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 4ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

Product Q&A

Can these speakers be flown?

Asked by: RichardS
For inquiries regarding this professional product, you may call Harman Pro at 844-776-489 or send an email to HProTechSupportUSA@harman.com. Monday to Friday, 9 am to 6 pm (EST)
Answered by: Jem at Customer Support
Date published: 2022-09-10

Why are the Owners Manuals for the SRX800 series speakers so poorly written ? There is virtually NO useful information contained in the document No details, Just a brief overview. Paid a lot of money for the speakers.should get detailed instructions.

Asked by: WesM
We would like to get more information to help you out, please contact us so we can assist you: https://bit.ly/36q7t27
Answered by: Mario at Customer service
Date published: 2021-07-03

When do you think this SRX835P will be in stock again??

Asked by: JHYoung24
We have no news to share if JBL SRX835P will be back in stock. You may check for availability from third party sellers or distributors.
Answered by: Rhae
Date published: 2022-01-02

looking at buying the srx 835p and wanted to no when they would be available and if they are going to be available for a few more years to add to the system. Or should someone wait a few months for something new to be out.

Asked by: dj m
For assistance, you may contact our JBL Support Team using this link - https://support.jbl.com/us/en/
Answered by: Katrina A
Date published: 2022-01-02

Hi JBL, With today's technological advancement in batteries making possible the electric Semis and airplanes. I was wondering if JBL will ever make a battery powered speaker for DJ's that is powerful enough to rock the dance floor and battery powered.

Asked by: DJ A
We appreciate the feedback. We're always looking for ways to improve. We'll make sure your feedback gets to the right team. Let us know if you have other questions in the future.
Answered by: Homer DLR
Date published: 2022-09-10
