Purposeful design
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

Transducer technology
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Drivecore by Crown
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.
Features

HiQnet network control
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

Unprecedented control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Specs & Downloads
Item# SRX828SP
Description
Ultimate performance without compromise

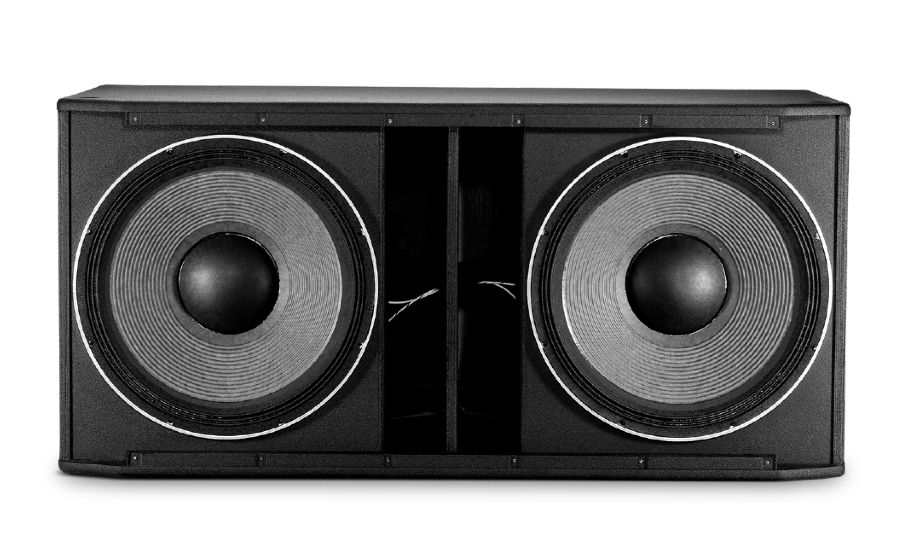

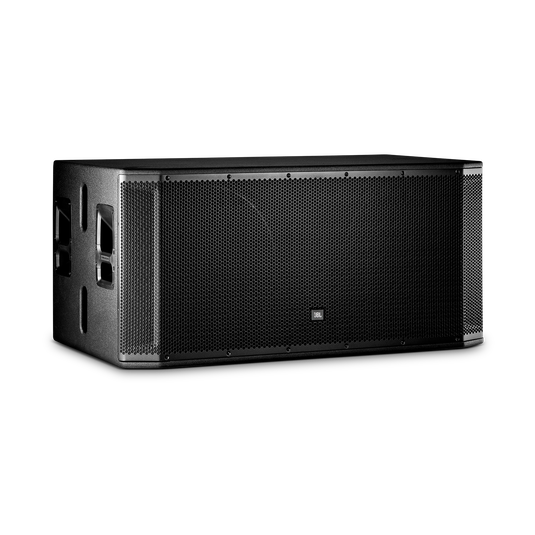

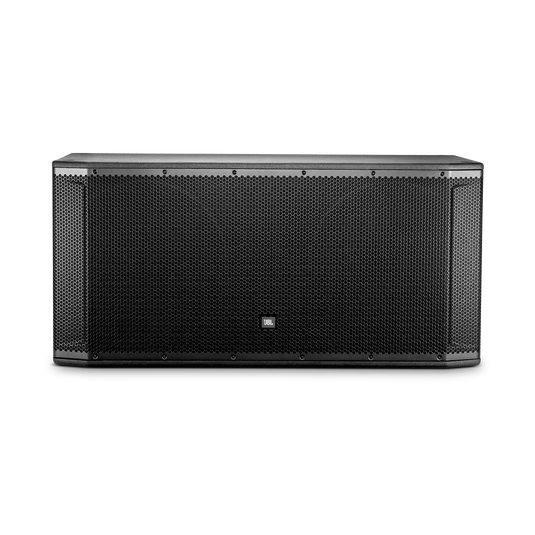

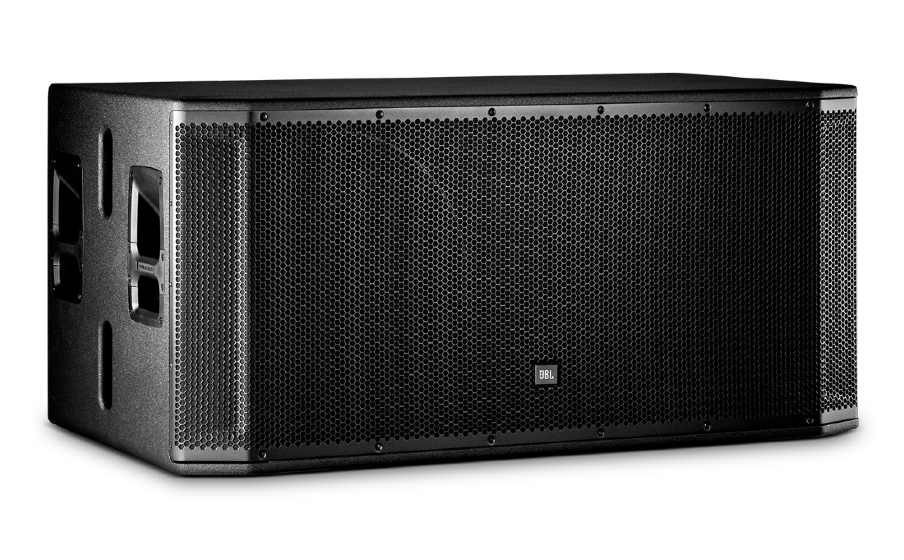

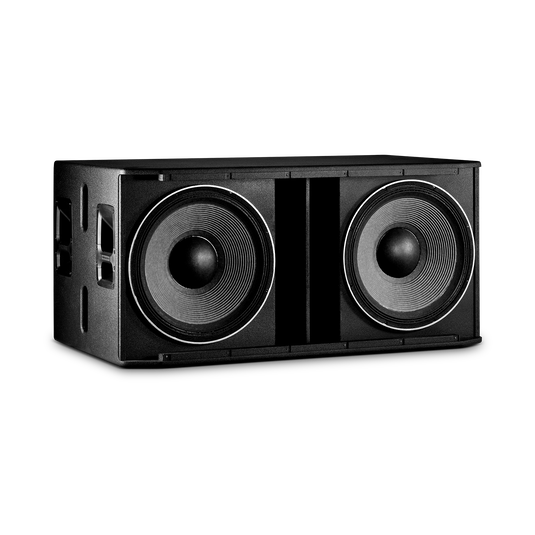

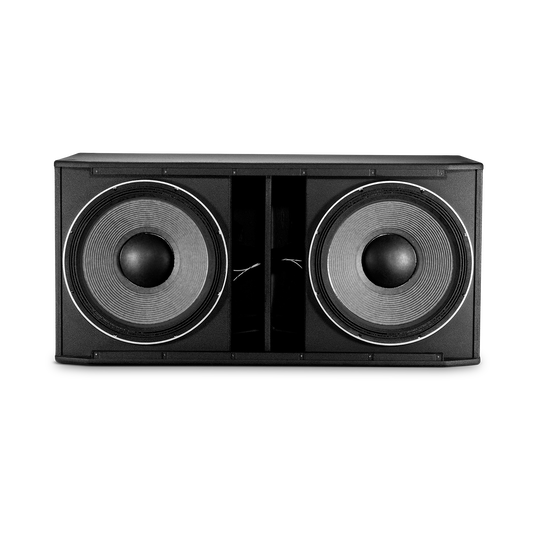

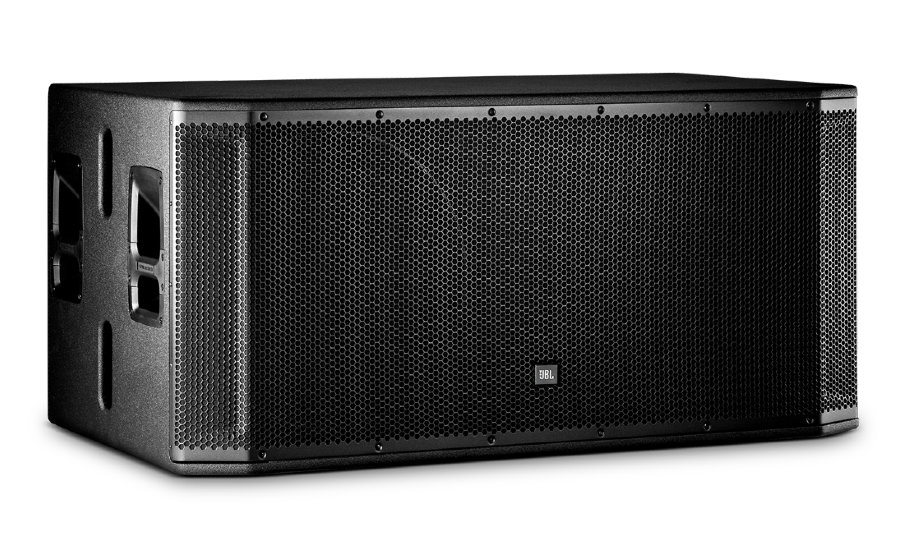

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The dual 18”, SRX828SP subwoofer features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via Mac, PC, iOS, and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s fl agship touring systems.
General Specifications
- Power Rating (W, Continuous)
- 1500
- Power Rating (W, Peak)
- 2000
- Frequency Response Hz (±3 dB)
- 35 - 120
- Maximum SPL (peak dB)
- 141
Dimensions
- Height (in)
- 22.6
- Depth (in)
- 26.8
- Width (in)
- 47.4
- Weight (lbs)
- 145.0
- Height (mm)
- 574.0
- Width (mm)
- 1205.0
- Depth (mm)
- 681.0
- Weight (kg)
- 65.9
Features
- JBL professional tunings and presents available
- Yes
- Mobile app available for iOS and Android
- Yes
- Transducer Differential Drive JBL
- Yes
- HiQnet network control
- Yes
What's in The Box?
- 1 x SRX828SP Subwoofer
- 1 x 10' (3m) IEC Power Cable
- 1 x Quick Start Guide
Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
On the ends are handles. And, between the handles are cut-outs. What is the function of the cut outs? Does JBL offer wheels to attach at the ends?
Is getting a pole mount on the SRX 828SP an option or do you have to use a separate stand? If you put one in yourself does it void the warranty?
can you put casters on them
