JBL SRX812P
$1,669.00 each
JBL SRX812P Purposeful design - Image

Purposeful design

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

JBL SRX812P Transducer technology - Image

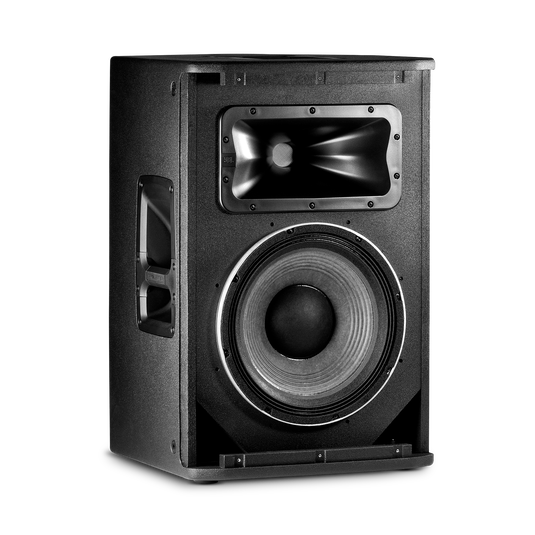

Transducer technology

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

JBL SRX812P Drivecore by Crown - Image

Drivecore by Crown

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

Features

JBL SRX812P HiQnet network control - Image

HiQnet network control

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

JBL SRX812P Unprecedented control - Image

Unprecedented control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Frequently Bought Together

Specs & Downloads

Item# SRX812P

Description

Ultimate performance without compromise

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

General Specifications

Power Rating (W, Continuous)
1500
Power Rating (W, Peak)
2000
Frequency Response Hz (±3 dB)
48 - 20,000
Maximum SPL (peak dB)
136
Coverage Pattern (Nominal)
90° x 50°

Dimensions

Width (in)
16.3
Weight (lbs)
58.0
Width (mm)
415.0
Height (in)
25.1
Height (mm)
638.0
Weight (kg)
26.4
Depth (in)
16.9
Depth (mm)
429.0

Features

Mobile app available for iOS and Android
Yes
Dual-angle pole-mount socket
Yes
M10 suspension points
Yes
JBL professional tunings and presents available
Yes
Transducer Differential Drive JBL
Yes
HiQnet network control
Yes

What's in The Box?

  • 1 x SRX812P Speaker
  • 1 x 10' (3m) IEC Power Cable
  • 1 x Quick Start Guide
