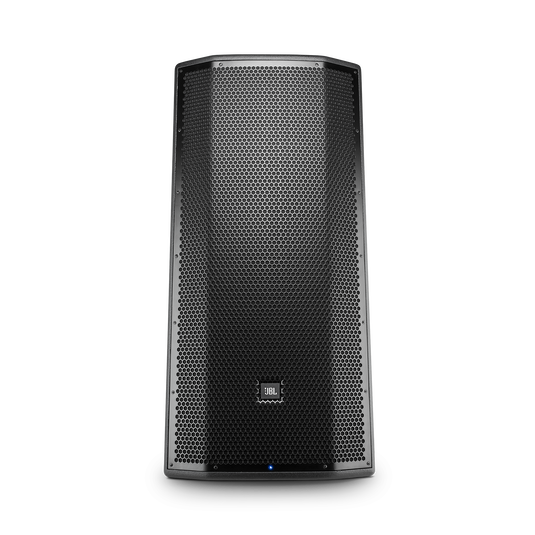

JBL PRX835
$1,599.00
JBL PRX835 Built-in Wi-Fi - Image

Built-in Wi-Fi

For wireless control of your system from anywhere in the venue

JBL PRX835 Free PRX Connect mobile app for iOS and Android - Image

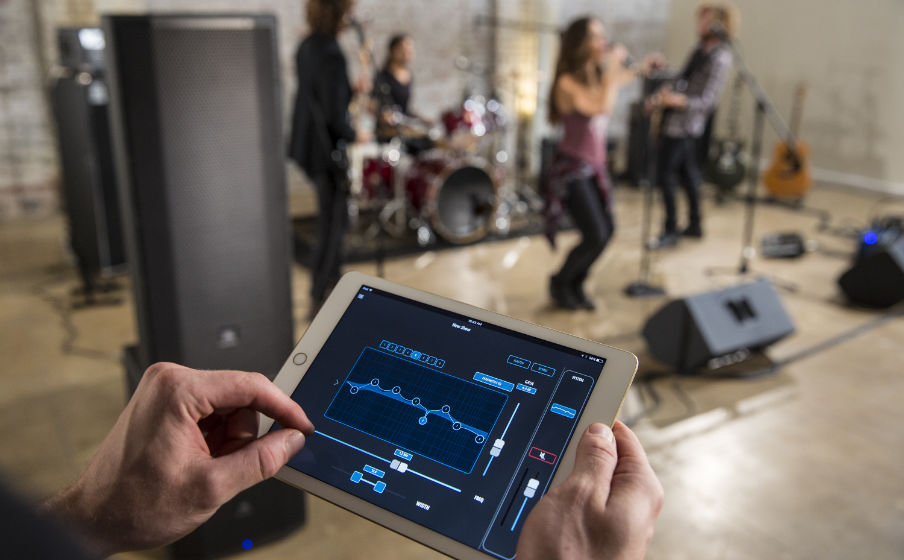

Free PRX Connect mobile app for iOS and Android

Provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

JBL PRX835 Class-leading 1500-watt amplifier - Image

Class-leading 1500-watt amplifier

Delivers ample power to fill your venue

Features

JBL PRX835 JBL Differential Drive® transducers - Image

JBL Differential Drive® transducers

For higher SPL in a lightweight design

JBL PRX835 Crown-designed input panel - Image

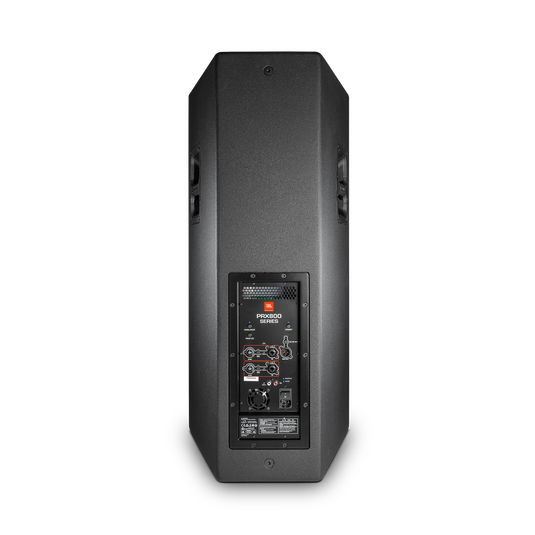

Crown-designed input panel

With XLR, 1/4”, and RCA inputs, plus XLR loop-through

JBL PRX835 Durable construction - Image

Durable construction

Wooden cabinets, tour-proven DuraFlex™ finish, and dent-resistant cloth-backed 16-gauge grilles

JBL PRX835 Universal power supply - Image

Universal power supply

For worldwide compatibility

JBL PRX835 Demanding 100-hour test regimen - Image

Demanding 100-hour test regimen

Ensures reliable performance

JBL PRX835 Intelligent variable-speed fan - Image

Intelligent variable-speed fan

Activates only when needed to reduce noise

JBL PRX835 Scalable system - Image

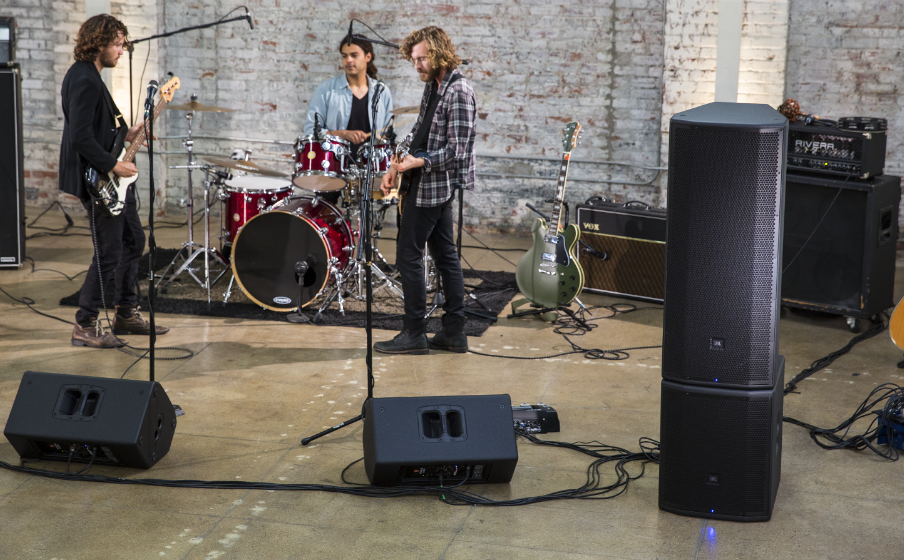

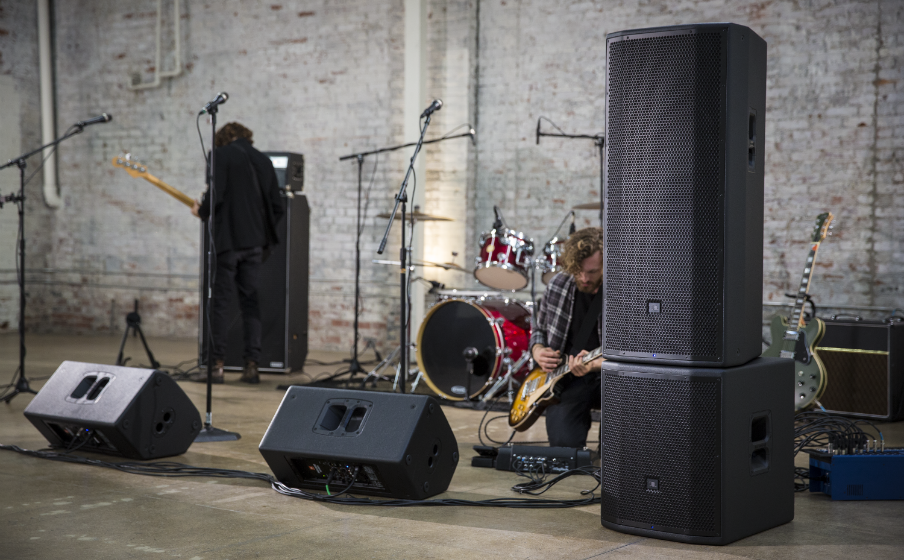

Scalable system

Integrates with other JBL portable powered PA's

Specs & Downloads

Item# PRX835W

Description

Loudest-in-class Sound Reinforcement System with easy Wi-Fi Control

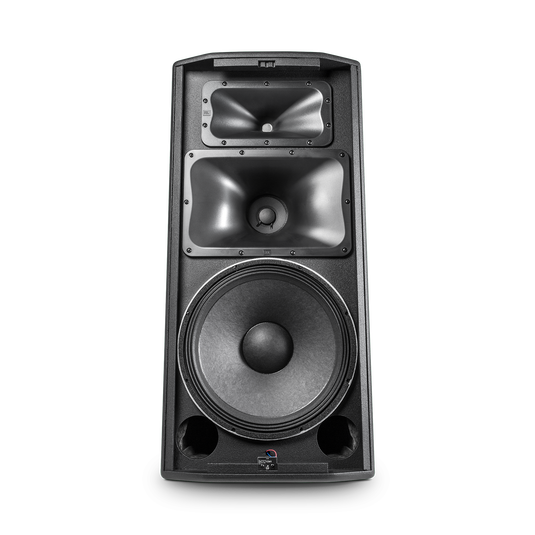

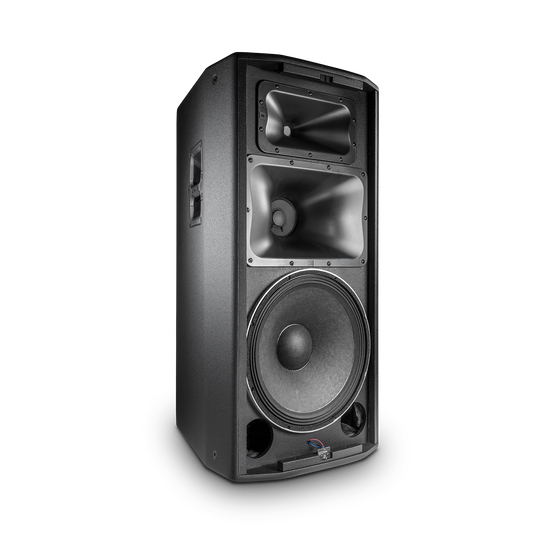

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

General Specifications

Power Rating (W, Continuous)
750
Power Rating (W, Peak)
1500
Frequency Response Hz (±3 dB)
39 - 20,000
Maximum SPL (peak dB)
138
Coverage Pattern (Nominal)
90° x 50°

Dimensions

Height (in)
36.9
Depth (in)
21.2
Width (in)
17.5
Weight (lbs)
77.0
Height (mm)
938.0
Width (mm)
446.0
Depth (mm)
539.0
Weight (kg)
34.9

Design

Finish
Obsidian DuraFlex™ finish

Features

M10 suspension points
Yes
Built-in Wi-Fi
Yes
Mobile app available for iOS and Android
Yes
Transducer Differential Drive JBL
Yes

What's in The Box?

  • 1 x PRX835
  • 1 x IEC Cable
  • 1 x User's Guide

Documents & Downloads

Reviews and Q&A

Customer Reviews

Product Q&A

Whats the difference between the SRX800 series and PRX800 series? Which one is newer? And what about sound quality?

Asked by: Nicholas Santos
SRX is 2000w Prx is 1500w
Answered by: Dr Boom master 1
Date published: 2021-06-06

Do I have to have a wireless router? The Behringer X series mixers have a built in router. Was hoping to connect directly from my android phone to a pair of PRX835s.

Asked by: BBob
Even with the behringer X series mixer, you would still need cables that deliver audio signal to the powered speakers. The wireless capability of the mixer is meant to control the software within the Xair app.
Answered by: DJ OB1
Date published: 2021-06-06
