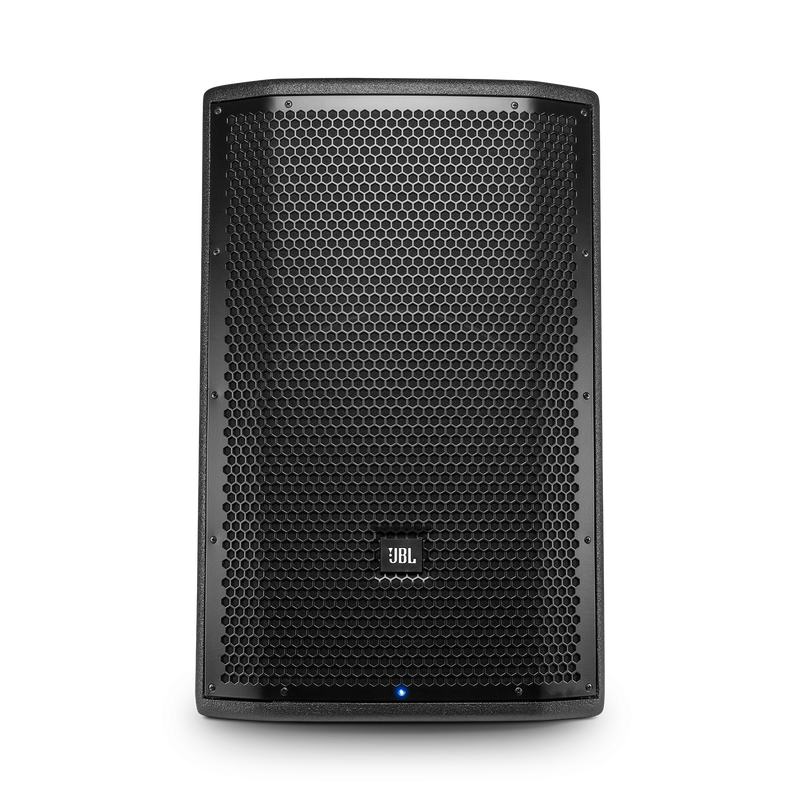

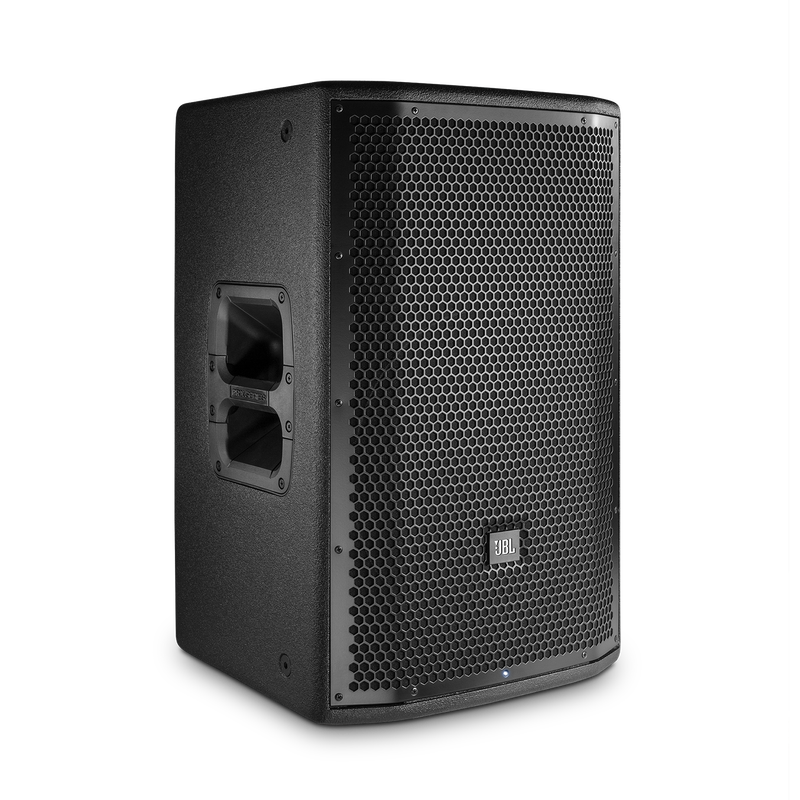

JBL PRX812
$885.00

Built-in Wi-Fi

For wireless control of your system from anywhere in the venue

Free PRX Connect mobile app for iOS and Android

Provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

Class-leading 1500-watt amplifier

Delivers ample power to fill your venue

Features

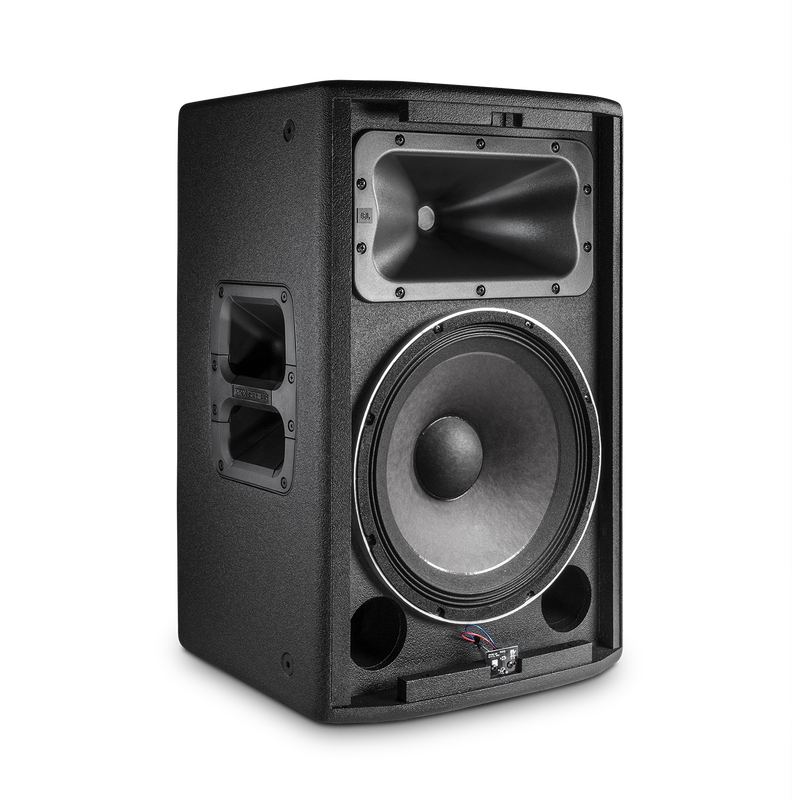

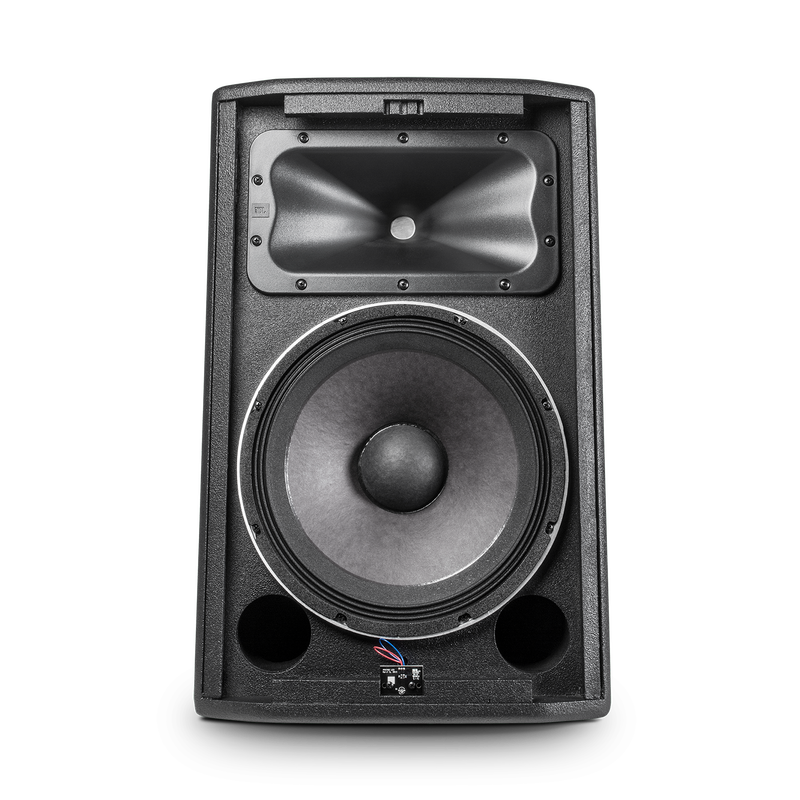

JBL PRX812 JBL Differential Drive® transducers - Image

JBL Differential Drive® transducers

For higher SPL in a lightweight design

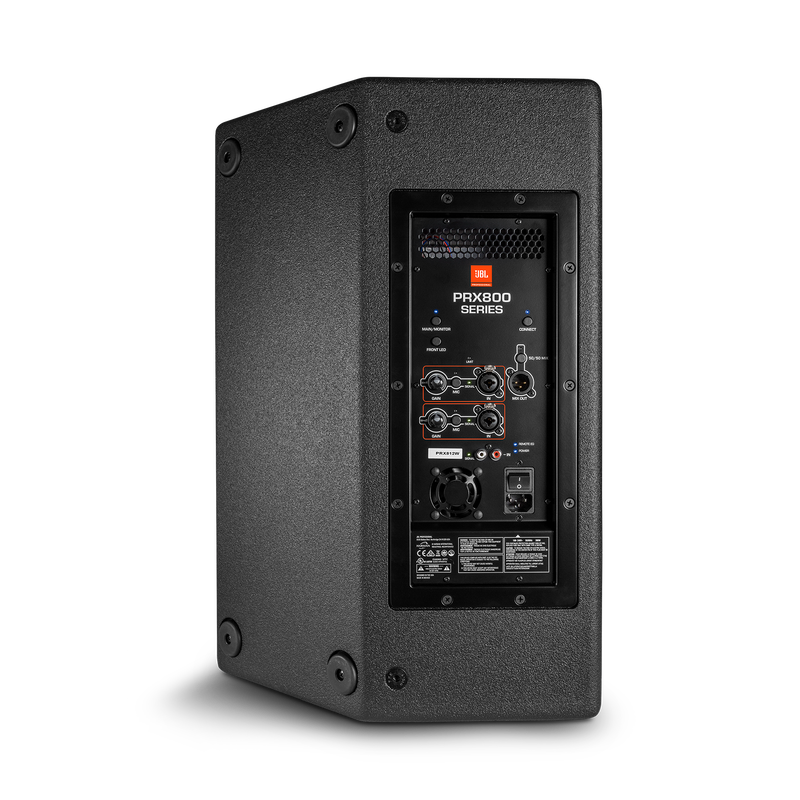

JBL PRX812 Crown-designed input panel - Image

Crown-designed input panel

With XLR, 1/4”, and RCA inputs, plus XLR loop-through

JBL PRX812 Durable construction - Image

Durable construction

Wooden cabinets, tour-proven DuraFlex™ finish, and dent-resistant cloth-backed 16-gauge grilles

JBL PRX812 Universal power supply - Image

Universal power supply

For worldwide compatibility

JBL PRX812 Demanding 100-hour test regimen - Image

Demanding 100-hour test regimen

Ensures reliable performance

JBL PRX812 Intelligent variable-speed fan - Image

Intelligent variable-speed fan

Activates only when needed to reduce noise

JBL PRX812 Scalable system - Image

Scalable system

Integrates with other JBL portable powered PA's

Specs & Downloads

Item# PRX812W

Description

Loudest-in-class Sound Reinforcement System with easy Wi-Fi Control

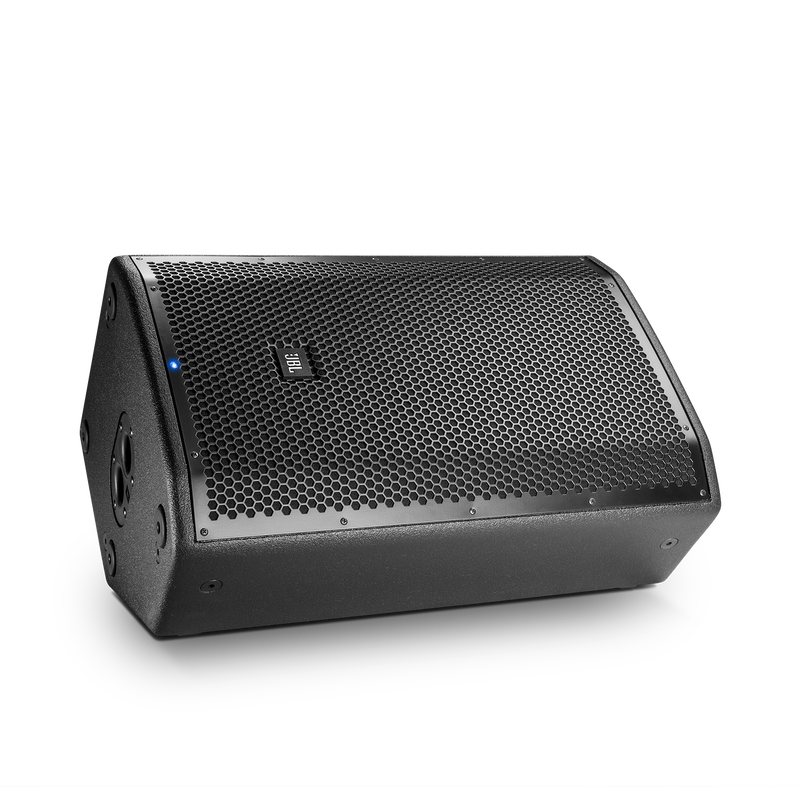

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

General Specifications

Power Rating (W, Continuous)
750
Power Rating (W, Peak)
1500
Frequency Response Hz (±3 dB)
56 - 20,000
Maximum SPL (peak dB)
135
Coverage Pattern (Nominal)
90° x 50°

Dimensions

Height (in)
23.6
Depth (in)
13.4
Width (in)
15.1
Weight (lbs)
40.0
Height (mm)
599.0
Width (mm)
385.0
Depth (mm)
341.0
Weight (kg)
18.1

Design

Finish
Obsidian DuraFlex™ finish

Features

Dual-angle pole-mount socket
Yes
M10 suspension points
Yes
Built-in Wi-Fi
Yes
Mobile app available for iOS and Android
Yes
Transducer Differential Drive JBL
Yes
