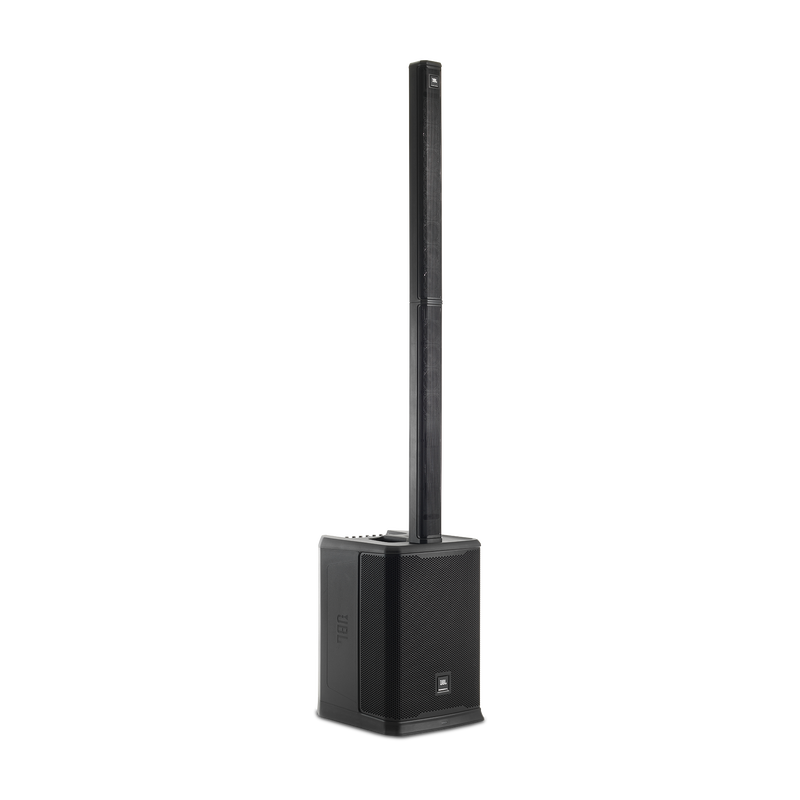

JBL PRX ONE
$1,759.00 each

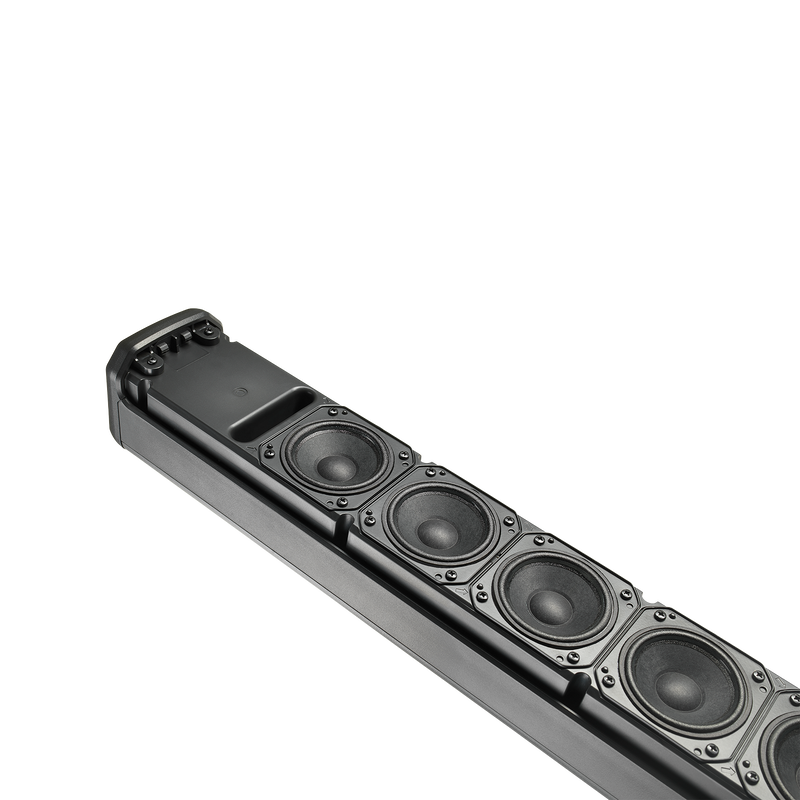

JBL PRX ONE Vertical array of 12 2.5-inch drivers - Image

Vertical array of 12 2.5-inch drivers

Delivers consistent, even HF response from the front of the room to the back

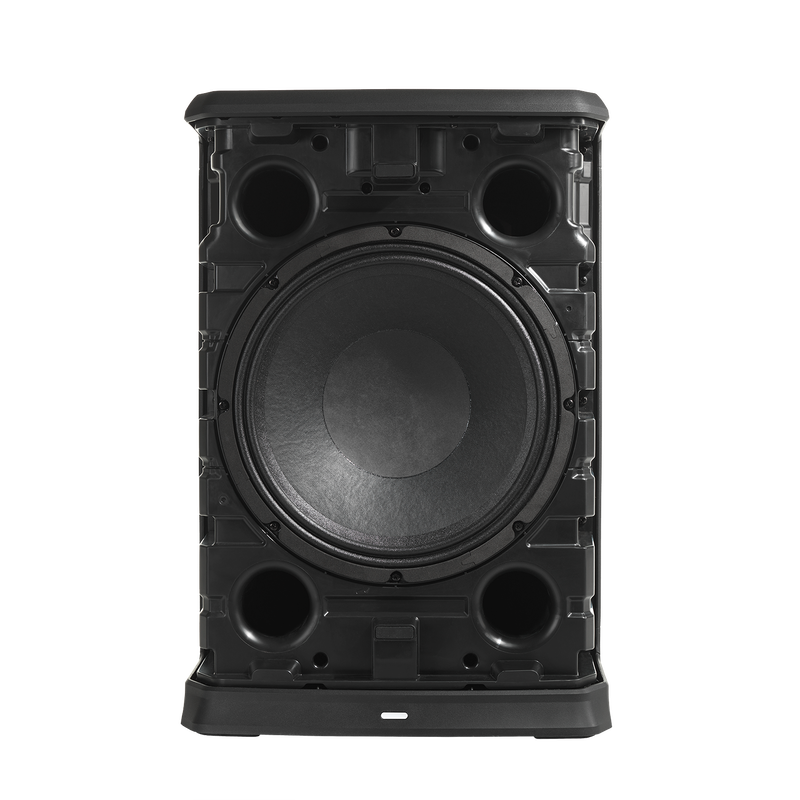

JBL PRX ONE 12-inch bass-reflex woofer - Image

12-inch bass-reflex woofer

Extends low-end response to 35 Hz

JBL PRX ONE Bluetooth 5.0 connectivity & full app control - Image

Bluetooth 5.0 connectivity & full app control

Allows remote system control of up to 10 units using the JBL Pro Connect app

Features

JBL PRX ONE Wide, 130° (H) x 30° (V) dispersion pattern - Image

Wide, 130° (H) x 30° (V) dispersion pattern

Delivers consistent coverage across the audience area

JBL PRX ONE Sophisticated crossover management and HF/LF coupling - Image

Sophisticated crossover management and HF/LF coupling

Allow for more natural low-end response and smooth, uniform response across the entire frequency range

JBL PRX ONE JBL A.I.M. (Array Inumbration Mechanics) - Image

JBL A.I.M. (Array Inumbration Mechanics)

Geometrically optimized array-shading technology ensures consistent front-to-back coverage

JBL PRX ONE 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors - Image

2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors

Provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes

JBL PRX ONE Four high-efficiency, low-noise microphone preamps - Image

Four high-efficiency, low-noise microphone preamps

Maintain constant bandwidth at any gain level

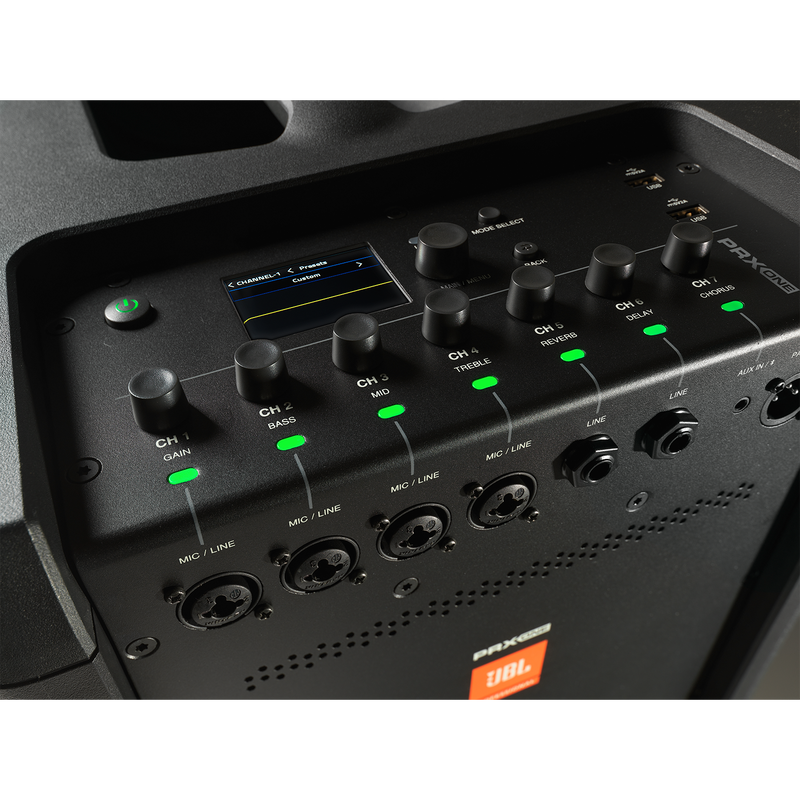

JBL PRX ONE Integrated 7-channel digital mixer with dual-operating mode - Image

Integrated 7-channel digital mixer with dual-operating mode

Gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends

JBL PRX ONE Powerful Lexicon effects engine - Image

Powerful Lexicon effects engine

Delay, reverb chorus, echo and sub synth, with presets for easy setup

JBL PRX ONE Triple Tier DSP control - Image

Triple Tier DSP control

Offers multi-level user experiences based on knowledge level

JBL PRX ONE dbx DriveRack technology - Image

dbx DriveRack technology

Features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control

JBL PRX ONE One-touch ducking by Soundcraft - Image

One-touch ducking by Soundcraft

Ensures speech is always heard

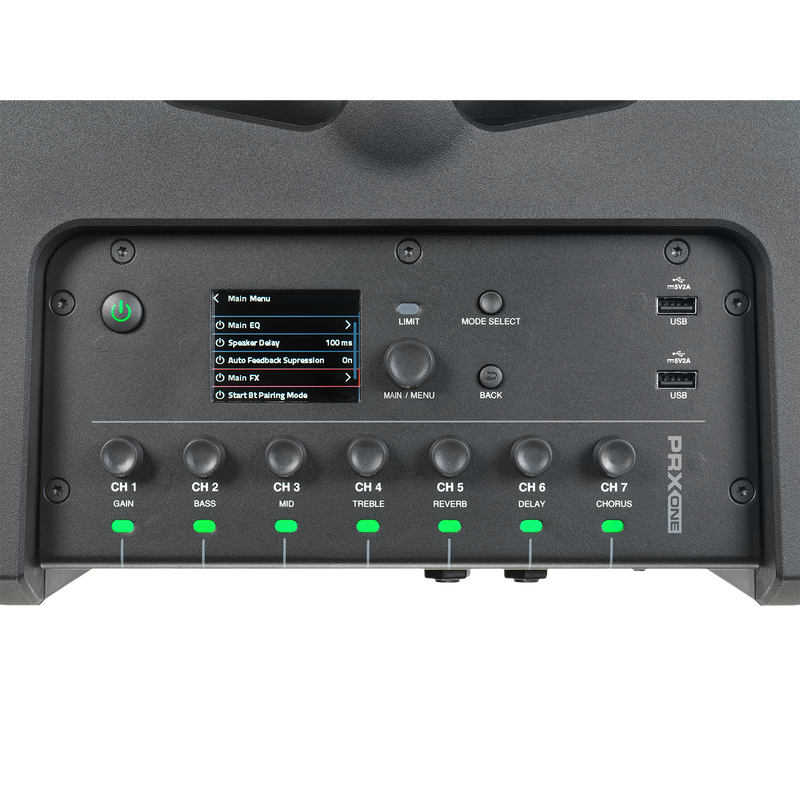

JBL PRX ONE Simple, intuitive full-color LCD screen - Image

Simple, intuitive full-color LCD screen

Provides easy access to all PRX ONE functions

JBL PRX ONE 8 user presets - Image

8 user presets

Instantly optimize system sound

JBL PRX ONE Custom-designed high-frequency drivers - Image

Custom-designed high-frequency drivers

Feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response

Frequently Bought Together

Specs & Downloads

Item# JBL-PRX ONE-NA-LS

Description

Sound that Raises the Bar and the Roof

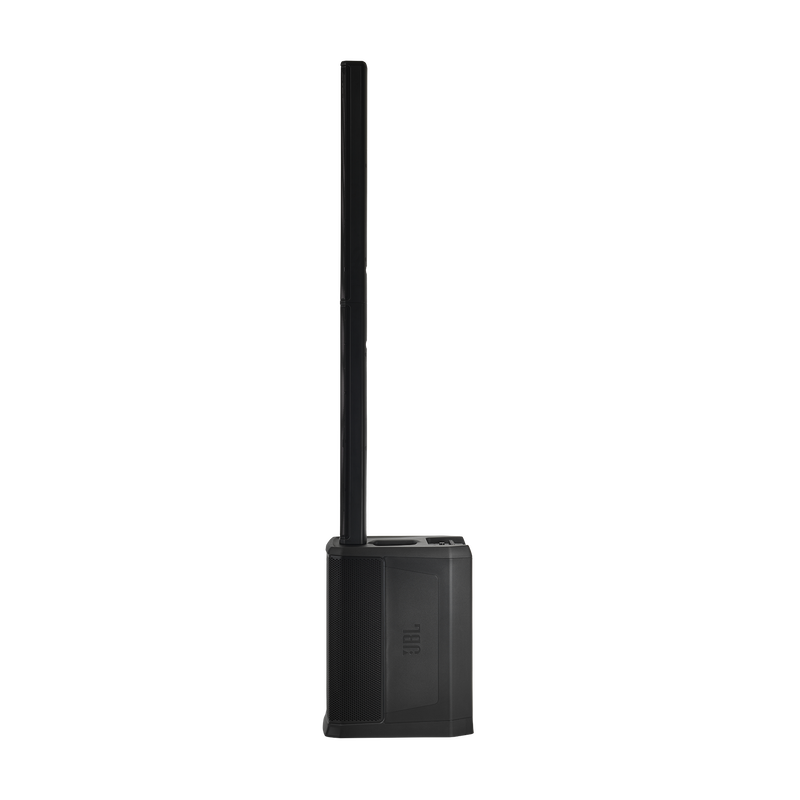

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control. Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier. Dial in great sound fast, with fewer pieces of gear, using PRX ONE’s full suite of professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression. Connect microphones, instruments, mobile devices and wireless rigs using PRX ONE’s versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors) and sophisticated Bluetooth 5.0 features. Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD. PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.

General Specifications

Coverage Pattern (Nominal)
130° x 30°
Frequency Response Hz (±3 dB)
40 - 20,000
Maximum SPL (peak dB)
130
Power Rating (W, Continuous)
1000
Power Rating (W, Peak)
2000

Dimensions

Depth (in)
25.4
Depth (mm)
647
Height (in)
33.4
Height (mm)
850
Weight (kg)
25.7
Weight (lbs)
56.6
Width (in)
18.9
Width (mm)
482

Features

Bluetooth
Yes
Feedback suppression
Yes
JBL professional tunings and presents available
Yes
Mobile app available for iOS and Android
Yes
Music Ducking
Yes

What's in The Box?

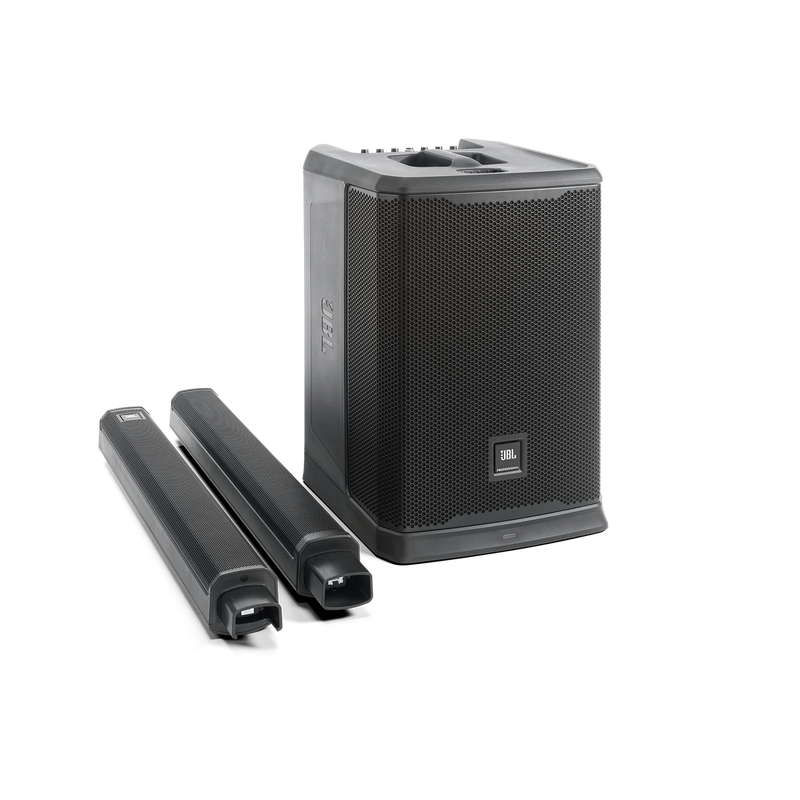

  • 1 x PRX ONE Woofer Cabinet
  • 2 x PRX ONE Linear Arrays
  • 1 x PRX ONE Linear Array Padded Carrying Bag
  • 1 x 10’ (3m) AC Power Cable
  • 1 x Quick Start Guide
