JBL VRX915M
$2,100.00 each

Features

JBL VRX915M Compact and low-profile - Image

Compact and low-profile

For minimal obstruction of audience sightlines

JBL VRX915M 50° x 90° nominal coverage - Image

50° x 90° nominal coverage

For smooth and clear high frequency reproduction, critical for high performance monitoring

JBL VRX915M Bi-amp or full-range passive operation - Image

Bi-amp or full-range passive operation

Selectable via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage.

JBL VRX915M Differential Drive® woofer with neodymium magnet - Image

Differential Drive® woofer with neodymium magnet

For high power capacity and very light weight

JBL VRX915M Durable construction - Image

Durable construction

VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.

Specs & Downloads

Item# VRX915M

Description

15" Two-Way Stage Monitor

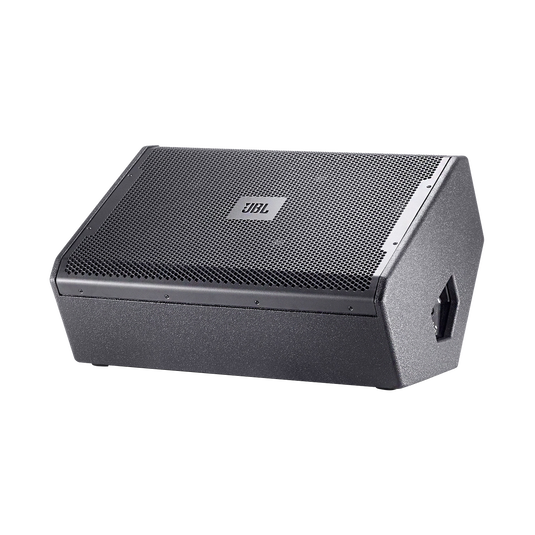

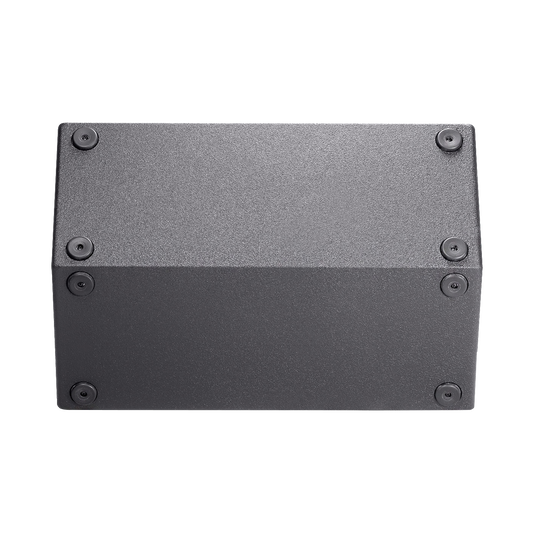

The VRX915M is a dedicated, compact and lightweight, 15", two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers. A 380 mm (15 in) 2265H patented Differential Drive® woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in) voice-coil compression driver is coupled to a 50° x 90° aluminum horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring. Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage. The enclosure is constructed of top quality Baltic birch plywood and is coated in JBL’s rugged DuraFlex™ finish. It is a symmetrical 30° wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16 gauge CNC-machined steel grille, which is internally lined with acoustically transparent foam to provide additional transducer protection.

General Specifications

Coverage Pattern (Nominal)
50° x 90°
Frequency Range Hz (-10 dB)
60 - 20,000
Frequency Response Hz (±3 dB)
70 - 20,000
Maximum SPL (peak dB)
133
Nominal Impedance (ohms)
8
Power Rating (W, Continuous)
800
Power Rating (W, Peak)
3200
Sensitivity (dB SPL 1w/1m)
98

Dimensions

Depth (in)
12.75
Depth (mm)
324
Height (in)
24.75
Height (mm)
629
Weight (kg)
21
Weight (lbs)
46
Width (in)
17
Width (mm)
432

Design

Enclosure
Symmetrical stage monitor, 15/18 mm, plywood
Finish
Black DuraFlex™ finish
Grille
Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

Features

JBL professional tunings and presents available
Yes
