JBL SRX828S
$2,129.00 each

Features

JBL SRX828S Purposeful design - Image

Purposeful design

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

JBL SRX828S Transducer technology - Image

Transducer technology

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

JBL SRX828S JBL professional tunings available - Image

JBL professional tunings available

For Crown XTI 2, Crown Itech HD, and dbx DriveRack 360

JBL SRX828S Built to last - Image

Built to last

With best in class 18mm wooden enclosures , 14 gauge steel grilles, and JBL’s Patented DuraFlex finish, SRX800 speakers are built to last and withstand a lifetime of hard tour use.

Specs & Downloads

Item# SRX828S

Description

Ultimate performance without compromise

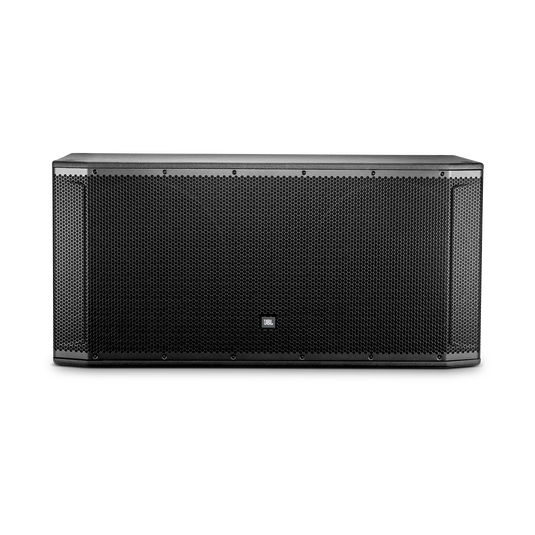

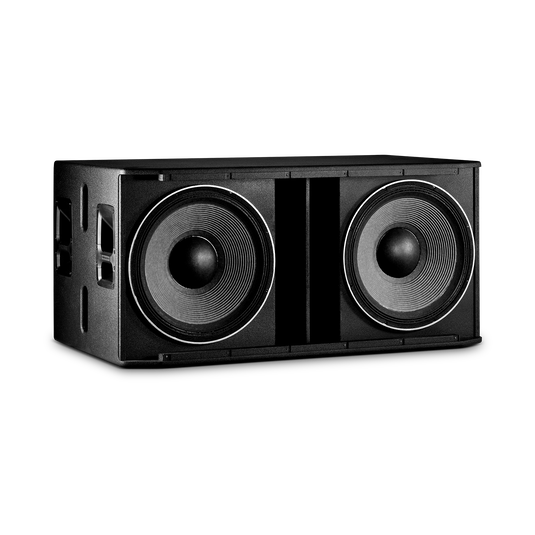

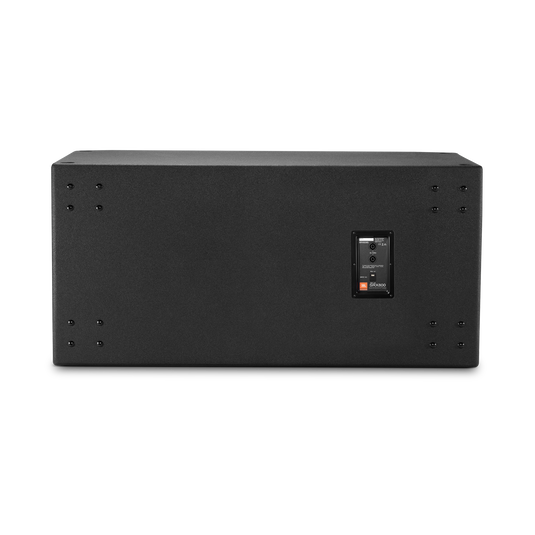

SRX828S is a dual 18” subwoofer for concert, touring, or installed use. Featuring a wide stance for splaying top boxes, indexing feet for stacking in both the standard and cardioid position, and a 141dB max SPL, the SRX828S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

General Specifications

Power Rating (W, Continuous)
1200
Power Rating (W, Peak)
4800
Frequency Range Hz (-10 dB)
30 - 150
Frequency Response Hz (±3 dB)
47 - 150
Sensitivity (dB SPL 1w/1m)
96
Nominal Impedance (ohms)
4
Maximum SPL (peak dB)
141

Dimensions

Width (in)
47.4
Weight (lbs)
137.0
Width (mm)
1205.0
Height (in)
22.6
Height (mm)
574.0
Weight (kg)
62.1
Depth (in)
26.8
Depth (mm)
681.0

Design

Finish
Obsidian DuraFlex™ finish

Features

JBL professional tunings and presents available
Yes

What's in The Box?

  • 1 x SRX828S
