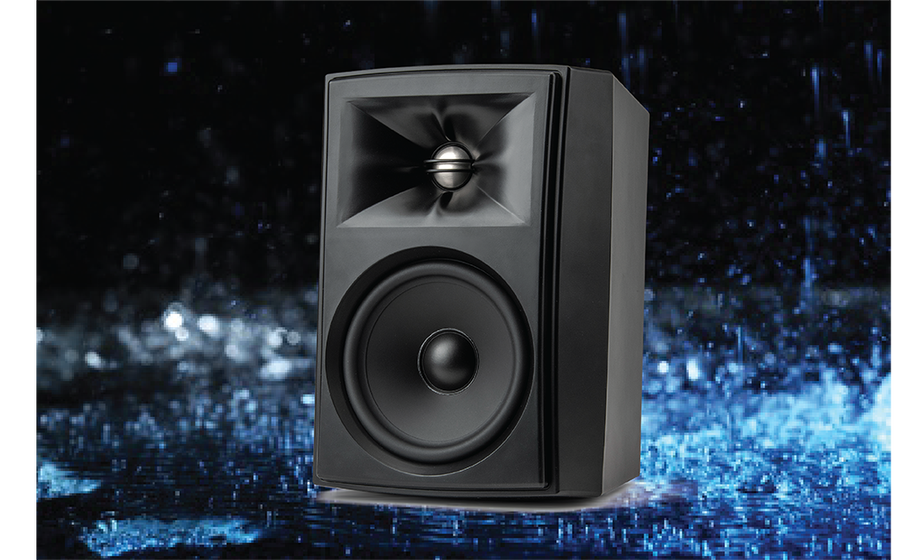

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

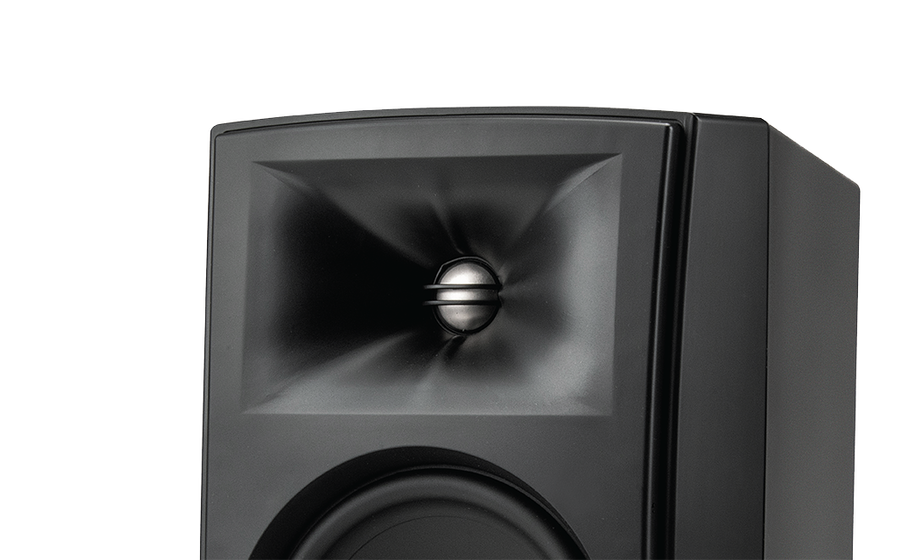

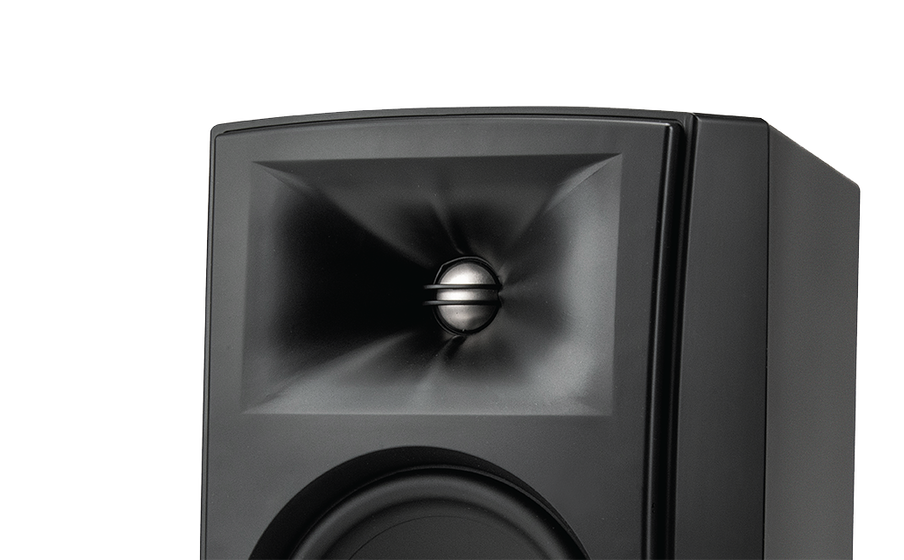

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

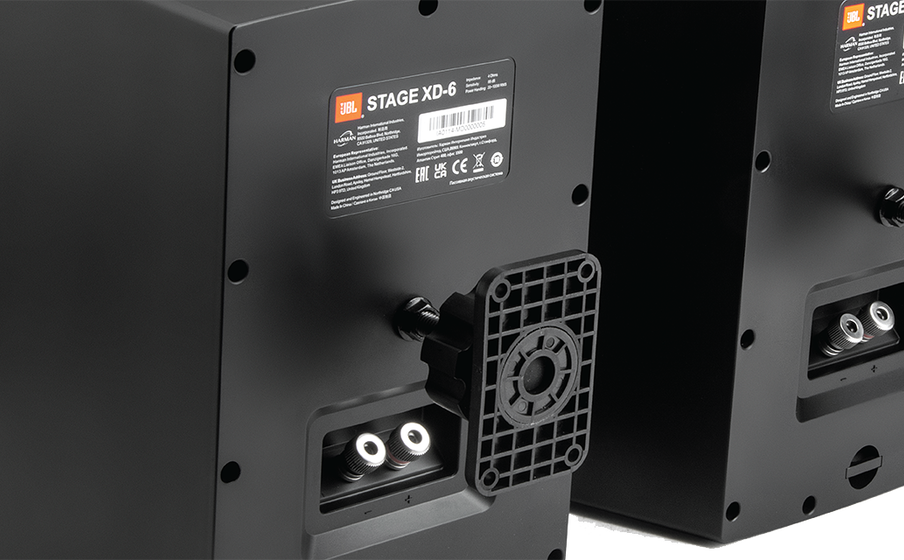

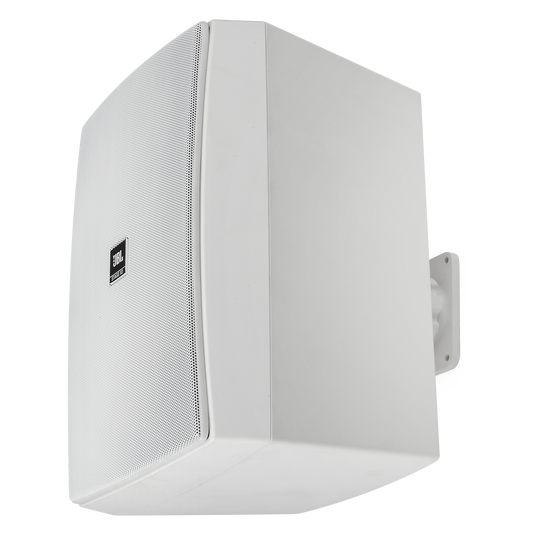

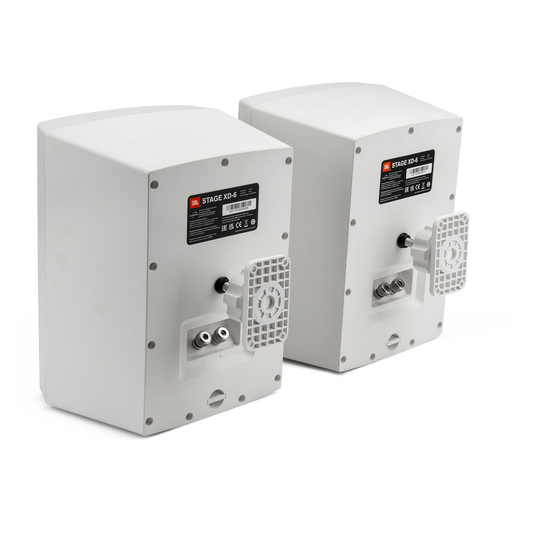

Included wall-mount bracket allows for easy installation and angle adjustment
Features

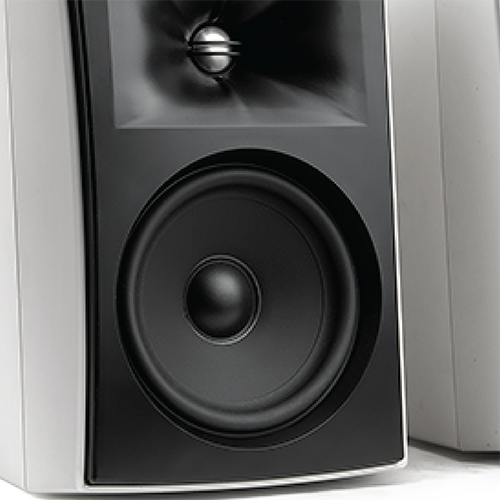

Polypropylene Graphite Filled Cone Woofer

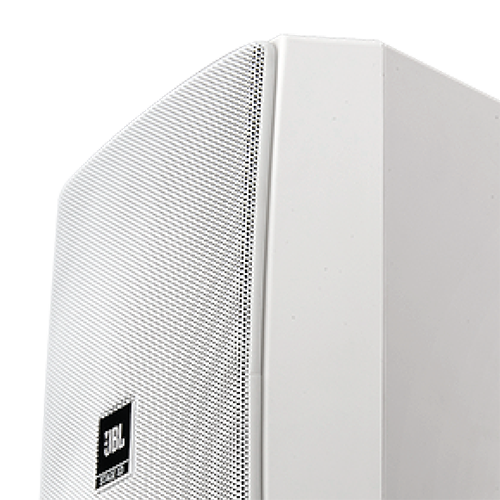

Zero bezel magnetically attached grilles

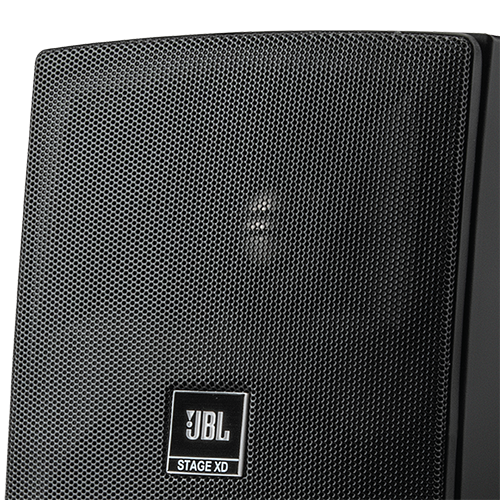

Rotatable logo for horizontal and vertical applications
Specs & Downloads
Item# JBLXD6WHT
Description

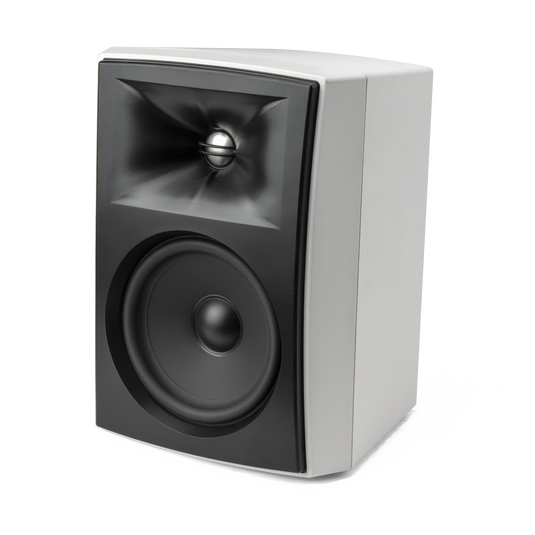

Featuring a 6.5" (165mm) Polypropylene Graphite Filled Cone Wooferand a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
- Product Type
- 2-way 6.5" (165mm) Indoor/Outdoor All Weather Loudspeaker
- Weatherproof Rating
- IP67
- High Frequency Transducer
- 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
- Low Frequency Transducer
- 6.5" (165mm) Polypropylene Cone Woofer
- Nominal Impedance
- 6 ohms
- Sensitivity (2.83V@1m)
- 88dB
- Recommended Amplifier Power
- 20-100W RMS
- Frequency Response (-6dB On-Axis)
- 55Hz-25kHz
- Crossover Frequency
- 2500K
- Operating Temperature
- -31° F (-35° C) to 167° F (75° C)
- Product Dimensions (HxWxD)
- 11.8in (299mm) x 8.7in (221.8mm) X 7.7in (194mm)
- Product Weight
- 2.9lbs (6.5kg)
- Wall Mount Extension
- 2.8in (71mm)
- Beauty Carton Dimensions (HxWxD)
- 14.7in (373mm) x 19.6in (496mm) X 10.9in (276mm)
- Beauty Carton Weight
- 15.5lbs (7kg)
- Beauty Carton Quantity
- 1pr
- Master Carton Dimensions (HxWxD)
- 15.5in (393mm) x 33.4in (848mm) X 20.1in (510mm)
- Master Carton Weight
- 48.5lbs (22kg)
- Master Carton Quantity
- 3pr
