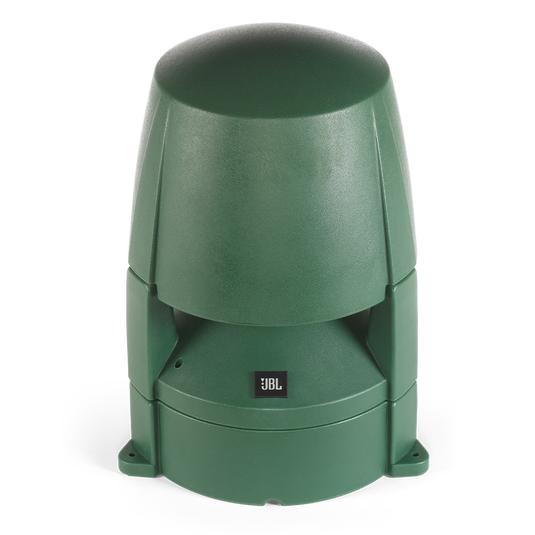

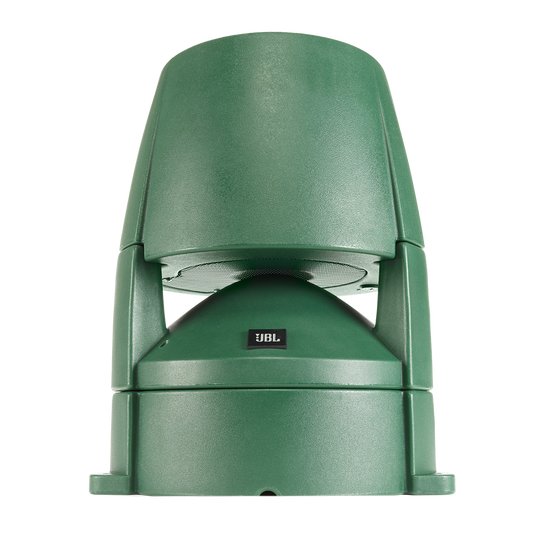

JBL CONTROL 89MS
0.0 (0)
Write a review
JBL CONTROL 89MS Down-firing, long-throw 8-inch driver - Image

Down-firing, long-throw 8-inch driver

Delivers 115 dB (peak) of clean, powerful bass down to 40 Hz

JBL CONTROL 89MS Built-in low-pass crossover w/dual-slope filter - Image

Built-in low-pass crossover w/dual-slope filter

Creates a balanced subwoofer transition regardless of whether the speaker is driven from a full-range or a dedicated subwoofer amplifier channel

JBL CONTROL 89MS Dedicated-subwoofer-band multi-tap transformer - Image

Dedicated-subwoofer-band multi-tap transformer

Allows the Control 89MS to be used in 70V and 100V distributed systems or driven directly at low impedance, for maximum versatility

Features

JBL CONTROL 89MS IP56-rated - Image

IP56-rated

Withstands the elements

JBL CONTROL 89MS Tough polyethylene enclosure - Image

Tough polyethylene enclosure

Resists abuse from lawn care equipment and the elements, maintaining color even when scraped or scratched

JBL CONTROL 89MS Stainless steel hardware and grill - Image

Stainless steel hardware and grill

Resists rusting

Specs & Downloads

Item# JBL-Control89MS

Description

Above-Ground Landscape Subwoofer

The JBL Control 89MS Above-Ground Landscape Subwoofer augments the low-frequency performance of the JBL Control 80 Series landscape speaker line (and other outdoor systems) to provide rich bass in lawn, garden, and entrance areas of hotels, restaurants and other hospitality and retail complexes, as well as theme parks, sports venues, resorts, entranceways, and anywhere a highly weather-resistant speaker is required. This sleek, attractive, compact subwoofer features a down-firing, long-throw 200 mm (8-inch) driver which delivers 115 dB (peak) of clean, powerful bass down to 40 Hz. The built-in low-pass crossover features a dual-slope filter which begins with a gentle slope at the crossover frequency and transitions to a steeper slope at higher frequencies), creating a balanced subwoofer transition regardless of whether the speaker is driven from a full-range or a dedicated subwoofer amplifier channel. The premium-grade dedicated-subwoofer-band multi-tap transformer (and tap selector with 8Ω bypass) allows the Control 89MS to be used in 70V and 100V distributed systems or driven directly at low impedance, for maximum versatility. The Control 89MS is IP56-rated to withstand the elements, with a tough polyethylene enclosure and a fully-sealed center wiring chamber. The enclosure color extends throughout the cabinet, maintaining color even when scraped or scratched. All external hardware is stainless steel, and the powder-coated stainless steel grille resists rusting.

General Specifications

Frequency Range (-10dB)
40 Hz – 150 Hz
Frequency Response (+/-3 dB)
53 Hz – 110 Hz
Power Rating
300 W - Continuous Program (2 hrs) ; 150 W - (600 W Peak), Continuous Pink Noise (2 hrs) ; 100 W - (400 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity
87 dB (ave. 60 Hz – 105 Hz)
Maximum SPL
115 dB peak (109 dB continuous, 2 hr) @ 1m
Nominal Coverage
360° horizontal, 160° vertical (primary listening 10° to 50° up from ground)
Directivity Factor (Q)
2.0 (with half-space, 2π, on-ground loading)
Directivity Index (DI)
3.0
Nominal Impedance
8 Ω (at 8Ω tap)
Transformer Taps
70V = 80 W, 40 W, 20 W, 10 W ; 100V = 80 W, 40 W, 20 W

Dimensions

Height
524 mm (20.7 in)
Width
355 mm (14.0 in)
Depth
355 mm (14.0 in)
Net Weight
10.9 kg (24.0 lbs)
Shipping Weight
13.6 kg (30.0 lbs)
