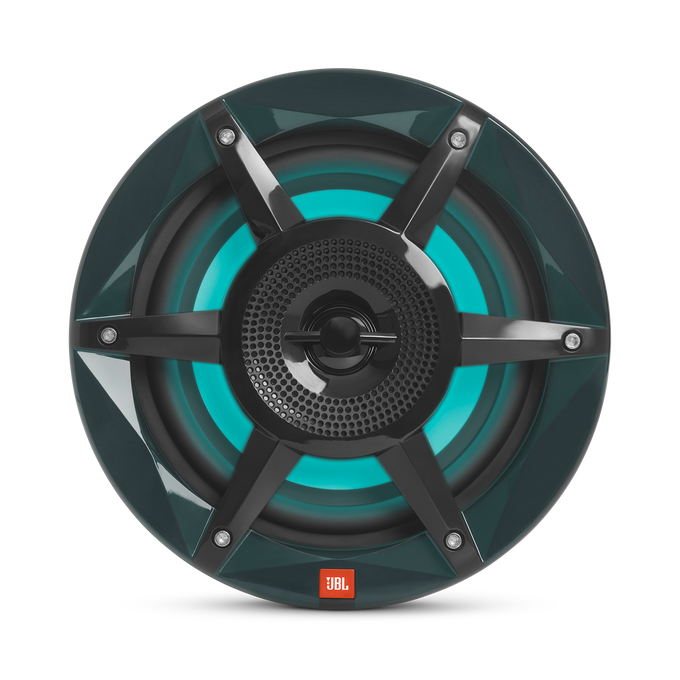

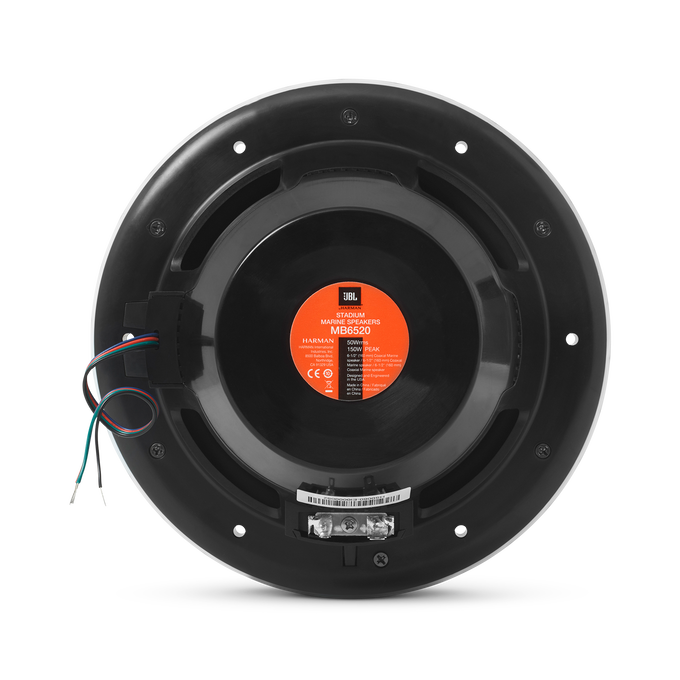

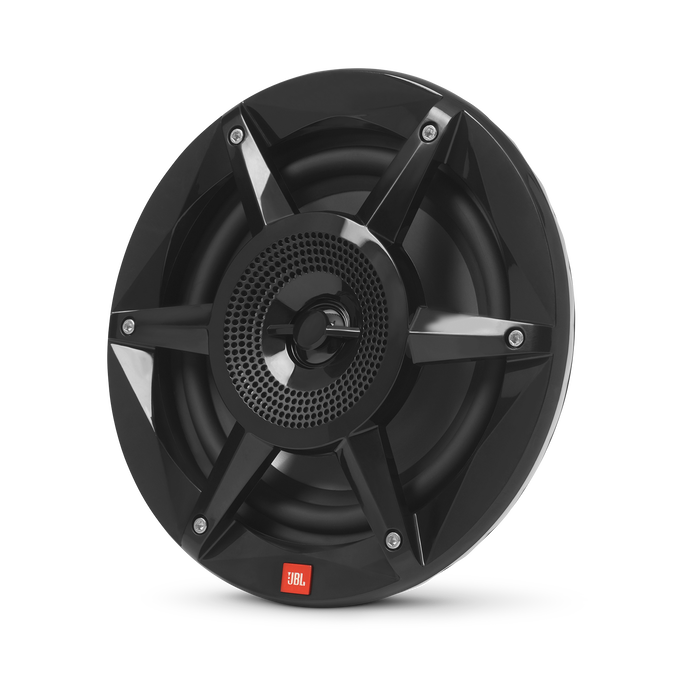

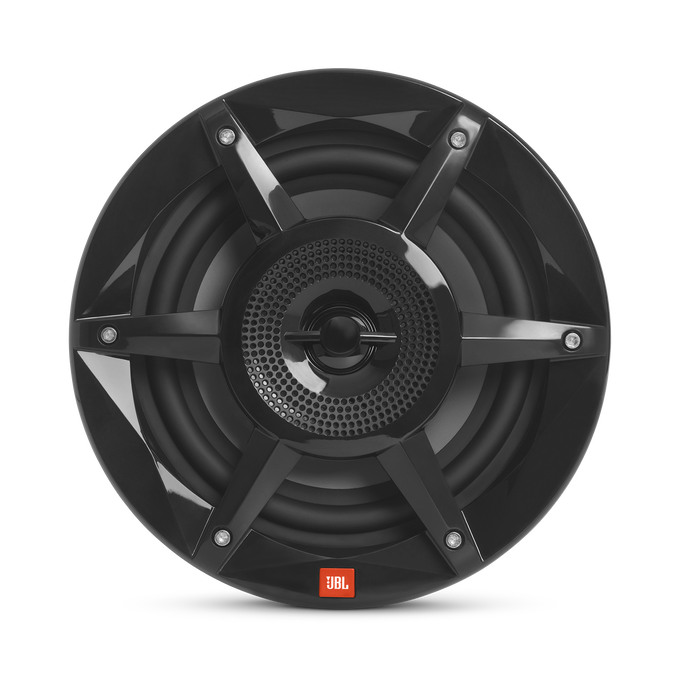

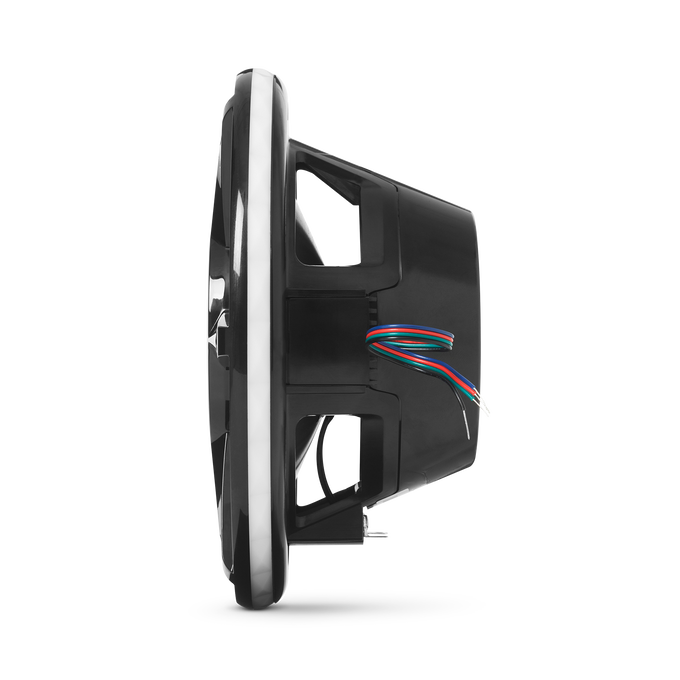

JBL Stadium Marine M6520
$349.95

Plus One™ Woofer Cones

Plus One cones provide more overall speaker-cone area than other cones in its class giving them higher sensitivity, increased low-frequency output and more distinguished musical character.

Convertible Design

To increase loudspeaker acoustics and installation versatility, the 8" (200mm) Marine Three-Way Convertible can be coaxially mounted or separated and installed as a component system. This is handy for working around placement option restrictions.

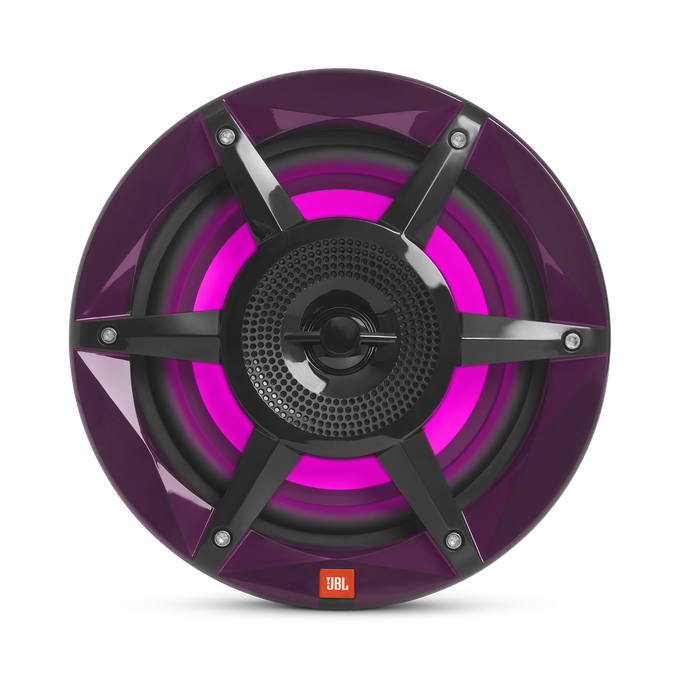

Perimeter Illumination

Unique and eye-catching RGB illumination can display seven colors out of the box—or an almost unlimited number of colors when connected to an external lighting controller.

Features

JBL Stadium Marine M6520 SSI (Switch-Selectable Impedance) - Image

SSI (Switch-Selectable Impedance)

New 10" (250mm) woofer features an exclusive dual impedance switch that lets you choose either 2- or 4-ohm load impedance option. SSI lets you reconfigure your system with the flip of a switch. (Not available from any other manufacturer.)

JBL Stadium Marine M6520 Mylar Tweeters with Integrated Grilles - Image

Mylar Tweeters with Integrated Grilles

Weather resistant tweeters deliver smooth highs and increased power handling for more natural sound from vocals, cymbals, horns and pianos. (Grill mounted tweeters allow the front of the woofer cones to be sealed.)

JBL Stadium Marine M6520 One-piece Polymer basket - Image

One-piece Polymer basket

The polymer basket is durable over time even after prolonged exposure to sun, salt and moisture. Rubber surrounds are more reliable than foam and offer better edge protection.

JBL Stadium Marine M6520 High Sensitivity - Image

High Sensitivity

A high sensitivity rating combined with above-average continuous power handling makes it one of the loudest boat speakers available without sacrificing clarity, fullness and musical character.

JBL Stadium Marine M6520 Voicing of Speakers - Image

Voicing of Speakers

Speakers are individually voiced to ensure they deliver JBL's true sonic signature. This means that specifications as well as speaker characteristics are considered when tuning and authenticating the signature JBL sound. This is part of the development process spearheaded by the leading transducer engineers in the world to provide the best listening experience at any price point.

JBL Stadium Marine M6520 Harman Standard Reliability Testing - Image

Harman Standard Reliability Testing

JBL speakers undergo a testing process that would destroy lesser speakers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.

JBL Stadium Marine M6520 JBL at an Affordable Price - Image

JBL at an Affordable Price

This is JBL—one of the most innovative and legendary companies in audio. JBL is one of the top-selling car speaker brands in the world—obviously, this is no coincidence. If you know audio, you know JBL in your car, your home—why not in your boat?

Specs & Downloads

Item# STADIUMMB6520AM

Description

Stay Clear, Get Loud, Go Deep.

JBL's Stadium Marine loudspeakers leverage JBL’s world class audio engineering and music reproduction with purpose-built marine loudspeakers that will survive the rigors of the harsh marine environment. Choose from the most popular sizes for boats and watercraft. The 6-1/2" coaxial, 8" three-way convertible speaker system and 10" woofer have Plus One™ polypropylene woofer and midrange cones, Mylar tweeter domes (Except Subwoofer), one piece cast polymer baskets, sealed magnets, and rubber woofer surrounds for high SPL performance. Wind, water or engine noise will not drown them out. Speakers are UV resistant in a marine grade IPX3 (IPX5 from front) weather resistant and include RGB perimeter illumination and go through 300 hours of salt spray testing. And they're ready to make amazing music on the water. Whether it's a daily scrub down, a picnic in a quiet cove or an all-out race across high swells, JBL has the right configuration for your craft.

General Specifications

Power Handling
100 watts RMS, 300 watts peak power
Sensitivity
92dB at 2.83 volts
Frequency Response
40 - 25kHz
Voice Coil Diameter
1 in. (25.5mm)
Impedance
3 ohm impedance

What's in The Box?

  • 2 x 6" (160mm) woofers, pr.
  • 12 x Screw
  • 12 x Speed clip
  • 1 x Spanner
  • 2 x Closed cell foam gasket
  • 2 x LED cable
  • 2 x JBL logo badge (Black)
  • 2 x JBL logo badge (Orange)
  • 1 x Owner's manual
  • 1 x RoHS sheet
What's in The Box?
