6 x 3-inch (76mm) Polycellulose Low-Frequency Woofer

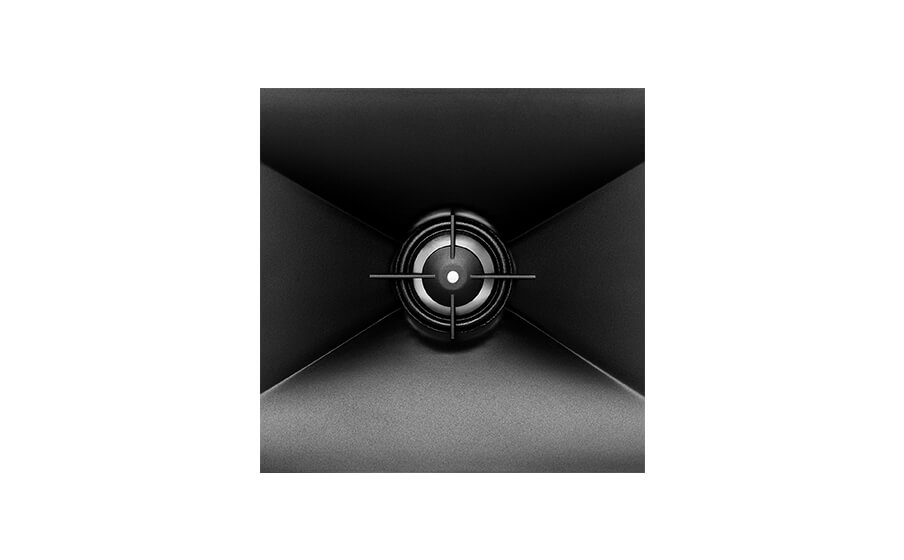

New High Definition Imaging (HDI) Waveguide

1-inch (25mm) Aluminum Dome Tweeter
Features

Two-tone Unique Design for wood
Frequently Bought Together
Specs & Downloads
Item# JBLA135CBLKAM
Description
JBL A135C
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A135C is the 6 x 3-inch 2-way center channel loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 6 x 3-inch (76mm) Polycellulose cone woofers for signature JBL bass.
General Specifications
- Recommended Amplifier Power
- 20 – 150W
- Frequency Response
- 75Hz – 40kHz
- Sensitivity
- 90dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 2.5kHz
- Enclosure Type
- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 745 x 166 x 104mm
- Weight
- 16.42 lbs (7.45kg)
2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeaker
6 x 3" (76mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1” (25mm) Aluminum Dome Tweeter
Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
I have some older JBL's-northridge e-100,nd310,rm10, s-center2,s120p2,stageA120p and I use a Marantz sr6014. Would any of your current center speakers be a noticeable improvement over my current center speaker.
Does this use the optical-audio port for connection, or perhaps HDMI?
How well would the A135C work as a center channel, with the SP8II as the front and the SP8CII as the rear channels in a 5.1 set up?
Can this be used as a center speaker for TV audio in a 7.1 JBL surround system?
Will this pair well with my 306P MKII's?
how will this pair with the SP8II?
Will this work well as a center if the mains are Studio 280's ? or what would be the best center to match with then that's still available ? thanks
Will this center serve as a good replacement on my older HK system? HKTS-18: 200W amplifier power (RMS) 10" woofer, bass-reflex enclosure 8 ohm nominal impedence 3/4" dome, video-shielded tweeter Dual 3" drivers, video-shielded
