4.5-inch (114mm) Polycellulose Low-Frequency Woofer

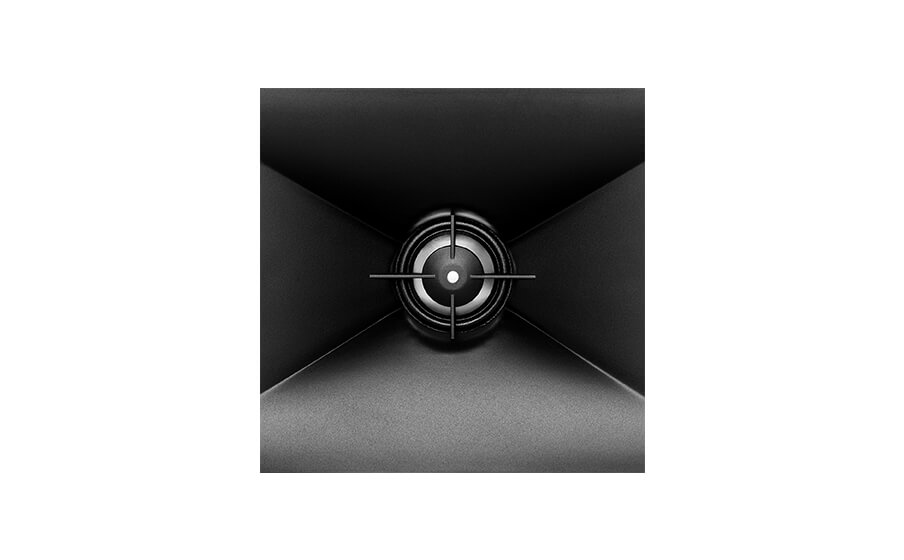

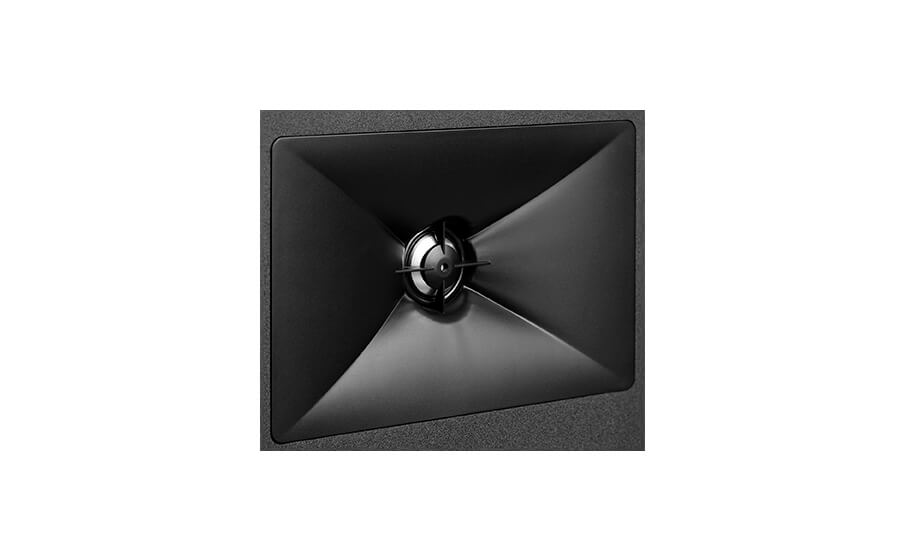

New High Definition Imaging (HDI) Waveguide

1-inch (25mm) Aluminum Dome Tweeter
Features

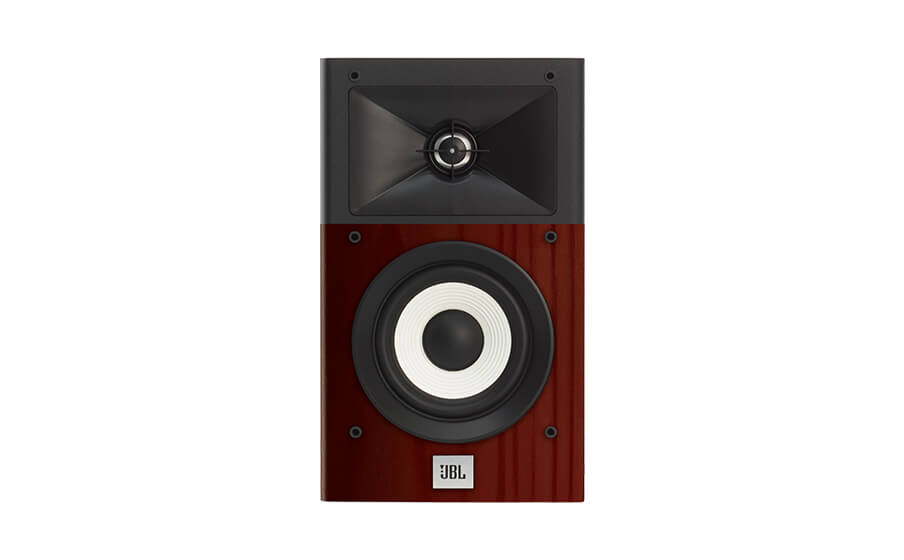

Two-tone Unique Design for wood
Specs & Downloads
Item# JBLA120BLKAM
Description

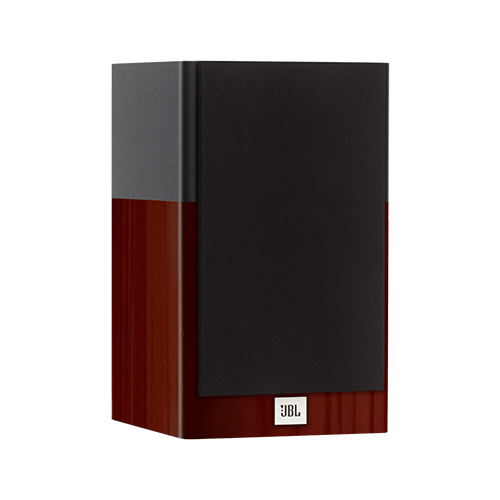

JBL A120

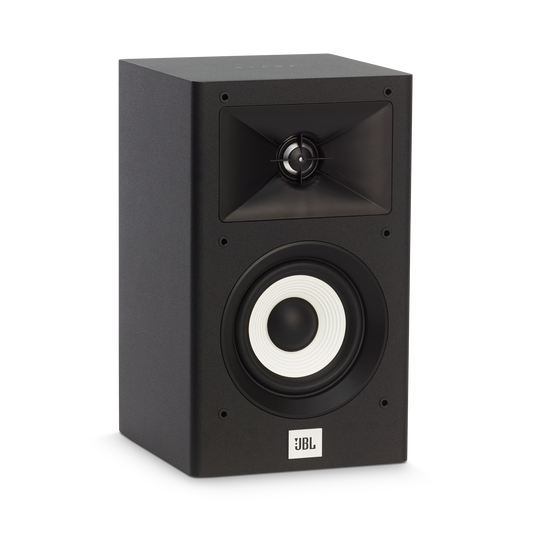

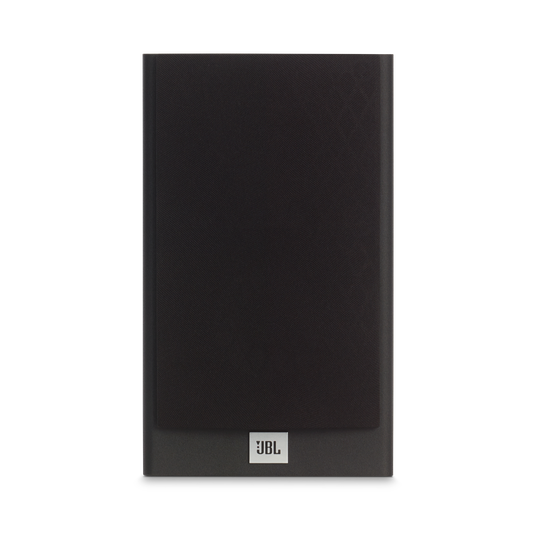

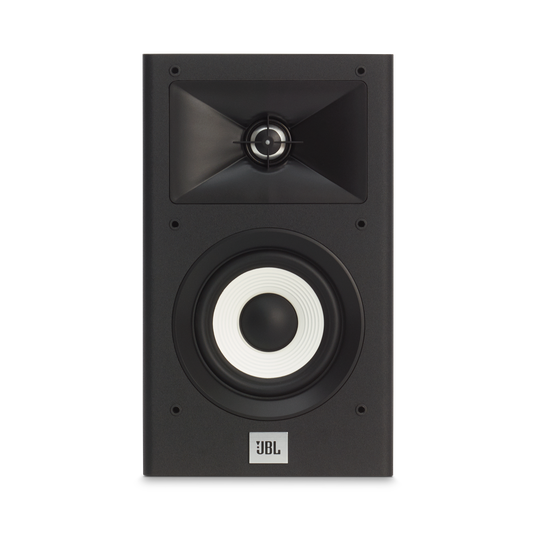

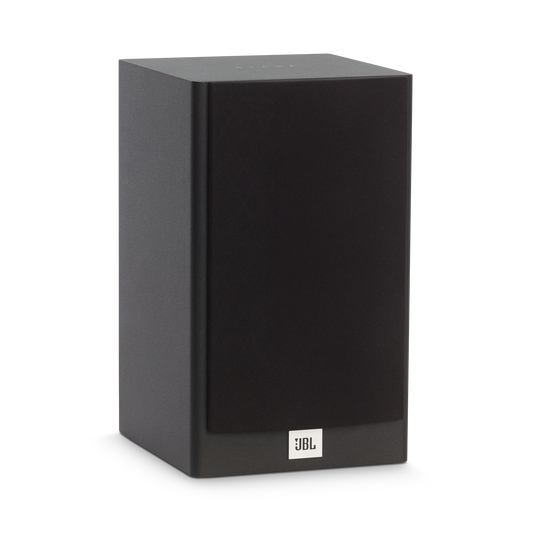

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120 is the 4.5-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 4.5-inch (114mm) Polycellulose cone woofers for signature JBL bass.
General Specifications
- Recommended Amplifier Power
- 20 – 125W
- Frequency Response
- 60Hz – 40kHz
- Sensitivity
- 86dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 3.2kHz
- Enclosure Type

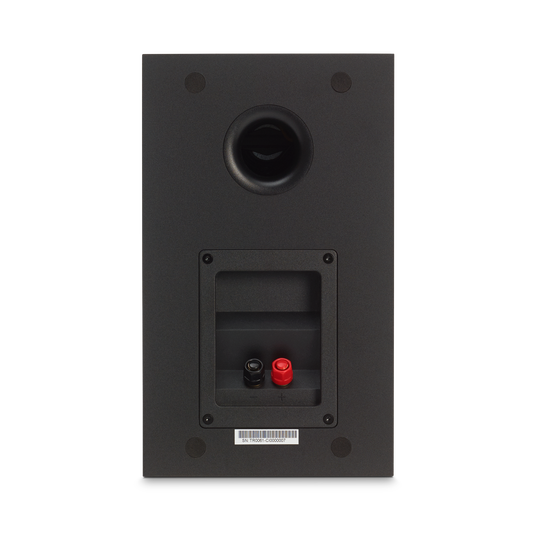

- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 170 x 170 x 285mm
- Weight (each)
- 8.40 lbs (3.81kg)
2 way, 4.5" woofer, 1" aluminum tweeter bookshelf/surround loudspeakers
4.5" (114mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1” (25mm) Aluminum Dome Tweeter
Documents & Downloads
Reviews and Q&A
Customer Reviews
Product Q&A
Can I pair these with one of JBL's subwoofers? If so how would I do it and would I need to buy an amplifier or are they powered? Thank you
Is this speaker wall mountable?
Size in USA measures
Does the stage 120 bookshelf have keyholes for wall mounting. If not which bookshelf speakers do.
Is it ok if I use a receiver with a 140w rms with these speakers?
What would happen if I use a receiver that is 10 watts more than the recommended amount for the speaker? Would it harm the speaker?
I see they are running at 6 OHMs. Will a receiver running at 4 OHMs be okay for these? Tks
Are these much louder than the JBL Bar All-In-One?
