Conceal C86
0.0 (0)
Write a review

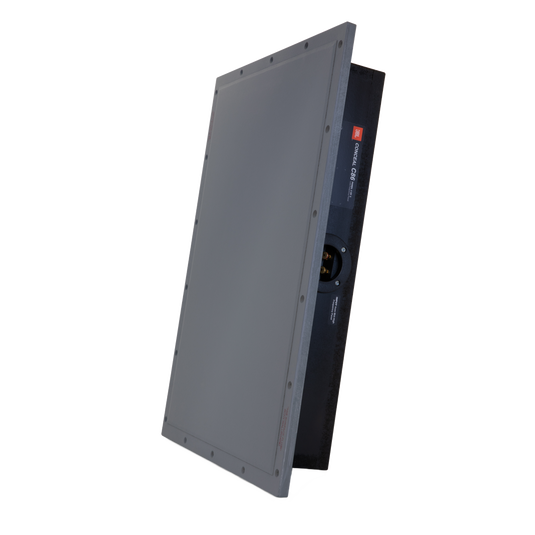

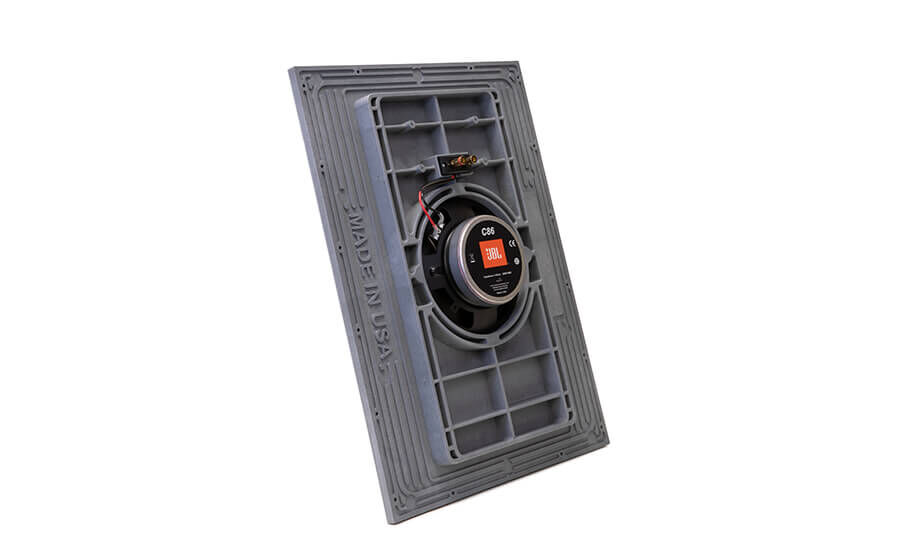

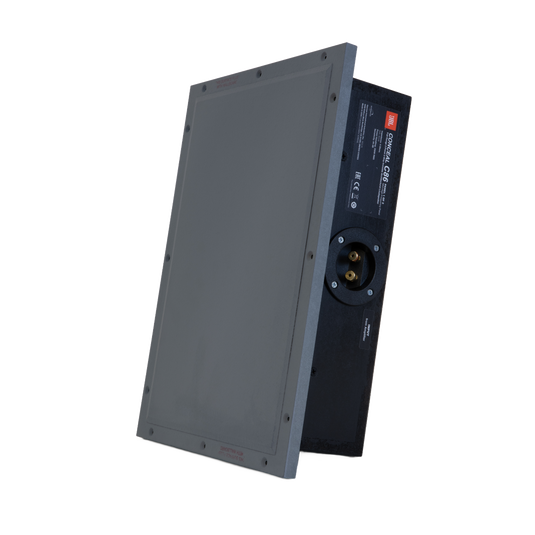

Conceal C86 Two-piece design with 8-inch (200mm) LF panel and separate five-element MF/HF panel - Image

Two-piece design with 8-inch (200mm) LF panel and separate five-element MF/HF panel

Conceal C86 Proprietary FidelityGlass™ acoustic panel and compression molded baffle. - Image

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

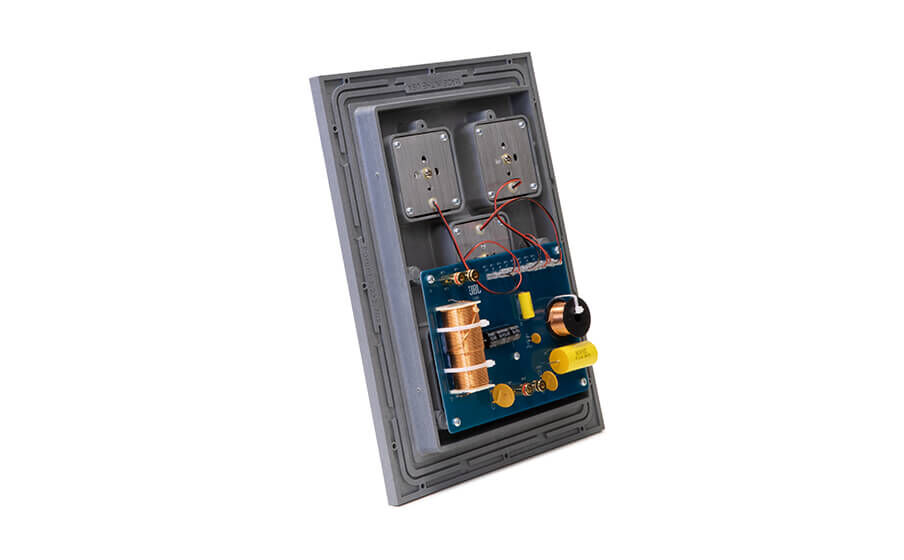

Conceal C86 Custom designed transducers with JBL premium acoustic crossover network. - Image

Custom designed transducers with JBL premium acoustic crossover network.

Features

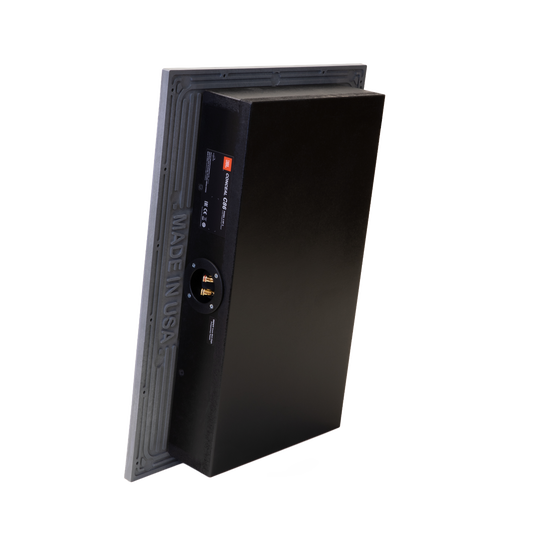

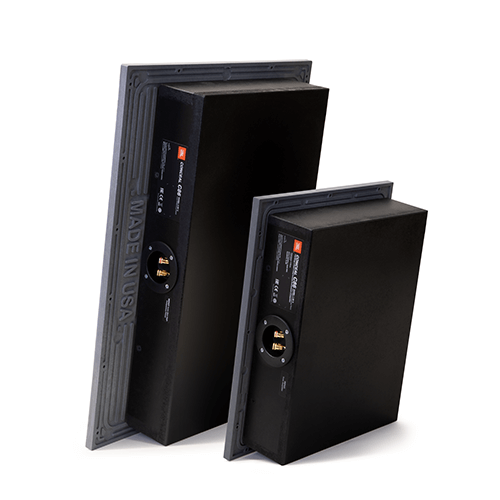

Conceal C86 Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces. - Image

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Conceal C86 Loudspeaker system installs like a standard drywall patch. - Image

Loudspeaker system installs like a standard drywall patch.

Conceal C86 Paintable surface can be custom finished for complete invisibility. - Image

Paintable surface can be custom finished for complete invisibility.

Conceal C86 C12PCB (for MF/HF panel) for C22PCB (for LF panel) Pre-Construction Boards (sold seperately). - Image

C12PCB (for MF/HF panel) for C22PCB (for LF panel) Pre-Construction Boards (sold seperately).

Specs & Downloads

Item# JBLC86

Description

Conceal C86

The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.

General Specifications

Type
3-way In-Wall/In-Ceiling loudspeaker
Low Frequency Driver
8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
Mid Frequency Driver
Four 1.18-inch (30mm) voice coil transducers with neodymium magnets
High Frequency Driver
1-inch (25mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power
50 - 200 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
84 dB/1W/1m measured in-room
Frequency Response
45 Hz - 20 kHz (-6 dB) measured in-room
Crossover Frequencies
600 Hz; 10 kHz
Enclosure Type
Sealed, with wooden back-box
Protection
Three independent self-resetting devices (LF, MF and HF)
Input Type
Dual gold-plated spring-loaded binding posts
Warranty
5 Years

Dimensions

Mid-High Frequency Panel Dimensions
11-7/8" H x 15 -7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
MF/HF Panel Cut-out Dimensions
12” H x 16” W (305mm H x 406mm W)
MF/HF Panel Mounting Depth
3-3/8-inches (86mm)
Low Frequency Panel Dimensions
22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
LF Panel Cut-out Dimensions
22-1/8” H x 16” W (562mm H x 406mm W)
LF Panel Mounting Depth
3-3/8-inches (86mm)
Product Weight (MF/HF Panel)
12.9 lbs (5.9kg)
Product Weight (LF Panel)
20.0 lbs (9.1kg)
Shipping Weight
41.5 lbs (18.8kg)
