Conceal C62
0.0 (0)
Write a review

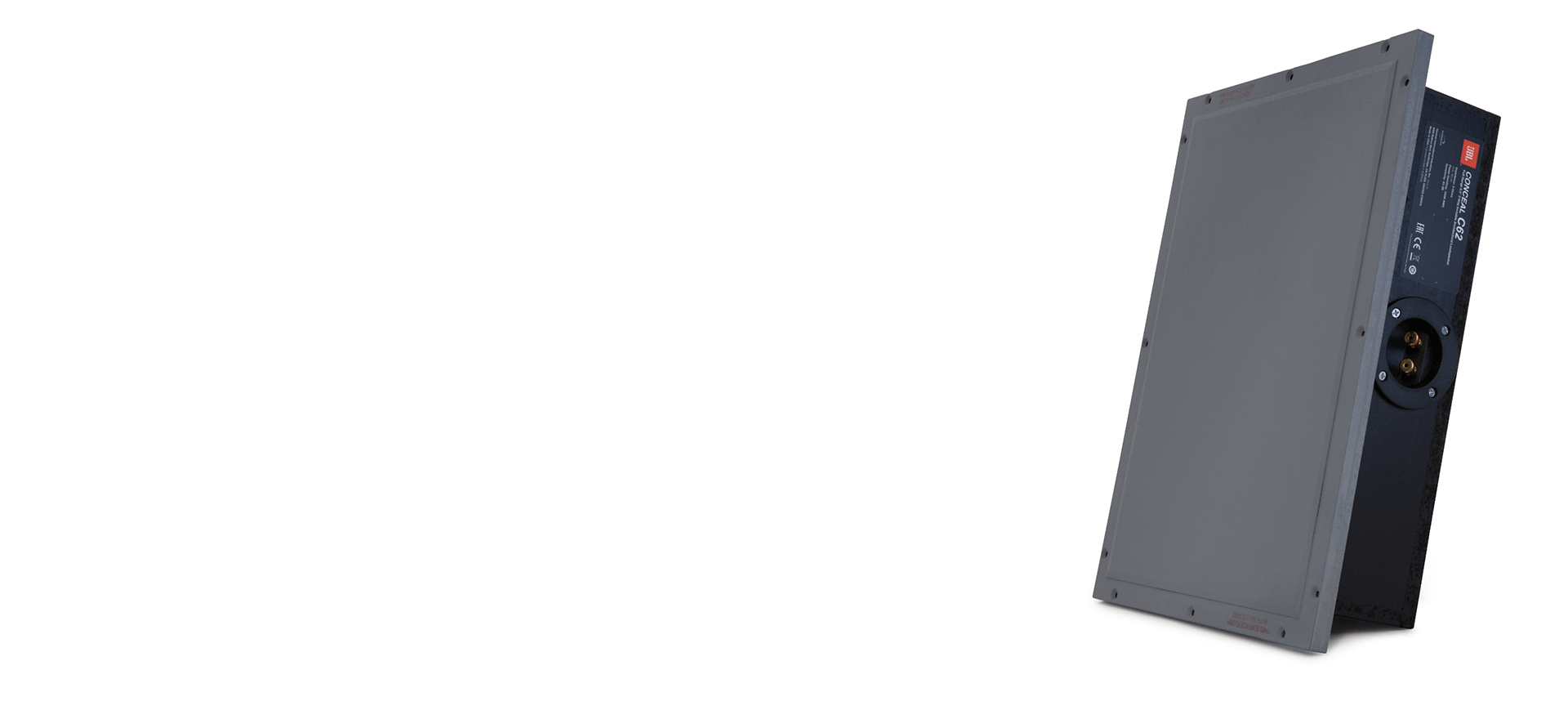

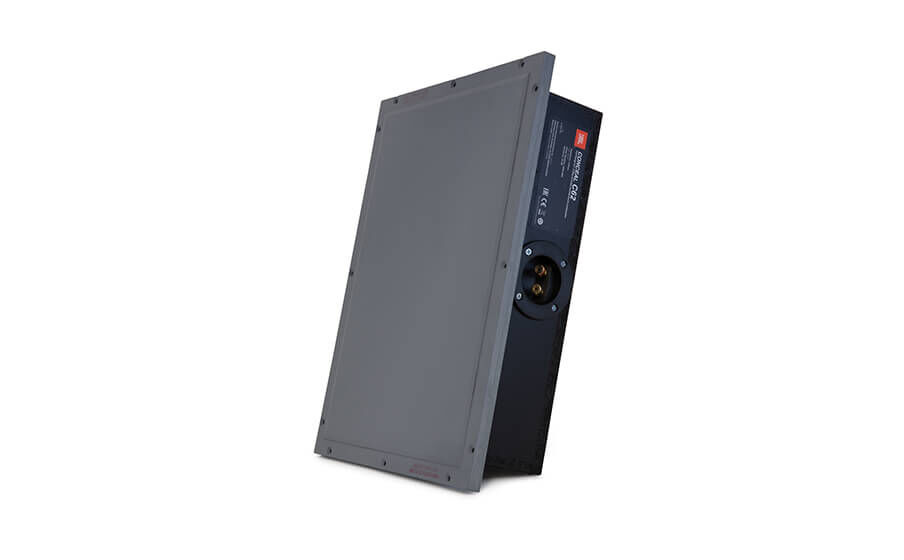

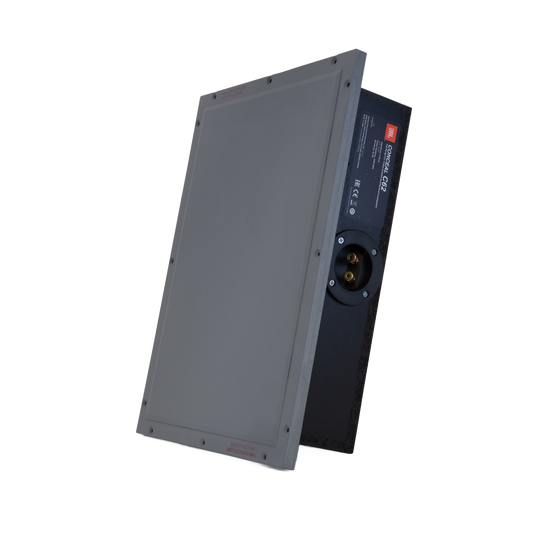

Conceal C62 One-piece design with 6.5-inch (165mm) LF driver and single-element MF/HF driver. - Image

One-piece design with 6.5-inch (165mm) LF driver and single-element MF/HF driver.

Conceal C62 Proprietary FidelityGlass™ acoustic panel and compression molded baffle. - Image

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

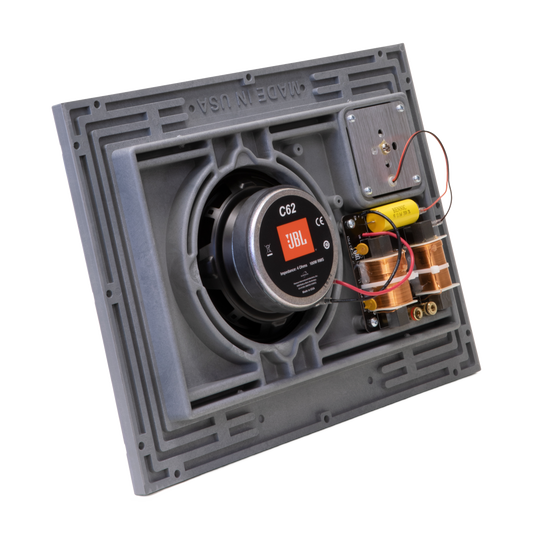

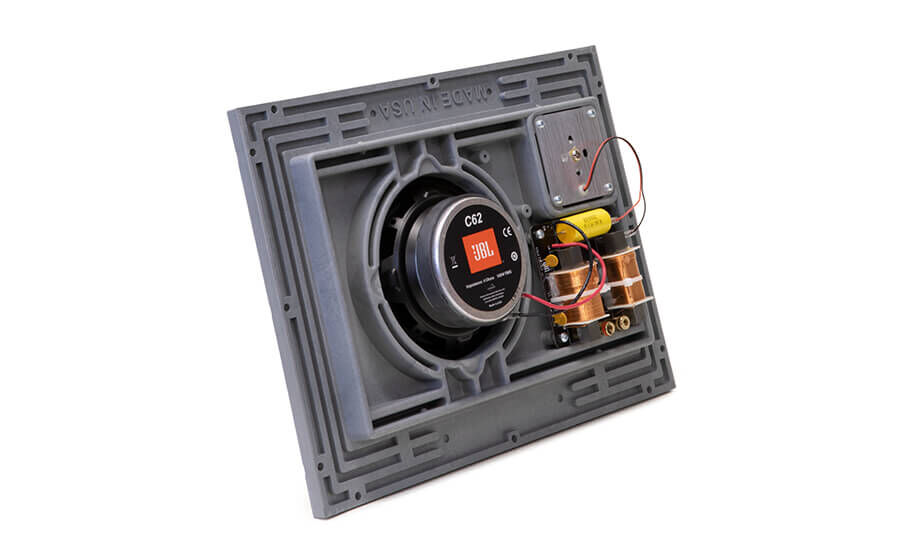

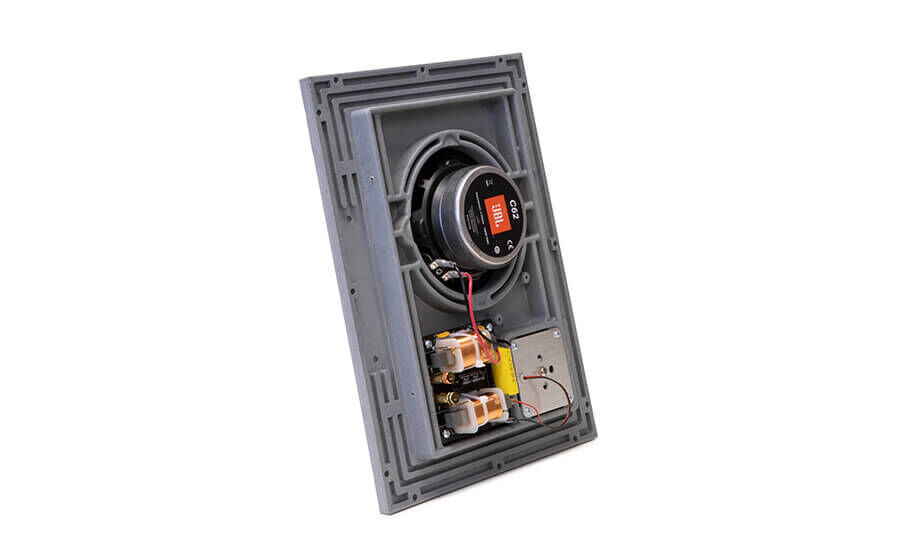

Conceal C62 Custom designed transducers with JBL premium acoustic crossover network. - Image

Custom designed transducers with JBL premium acoustic crossover network.

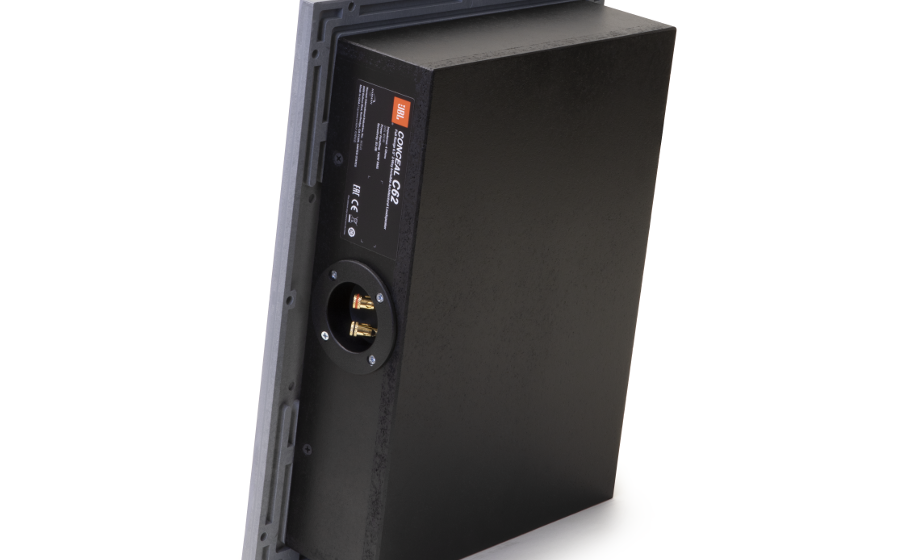

Conceal C62 Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces. - Image

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Conceal C62 Loudspeaker system installs like a standard drywall patch. - Image

Loudspeaker system installs like a standard drywall patch.

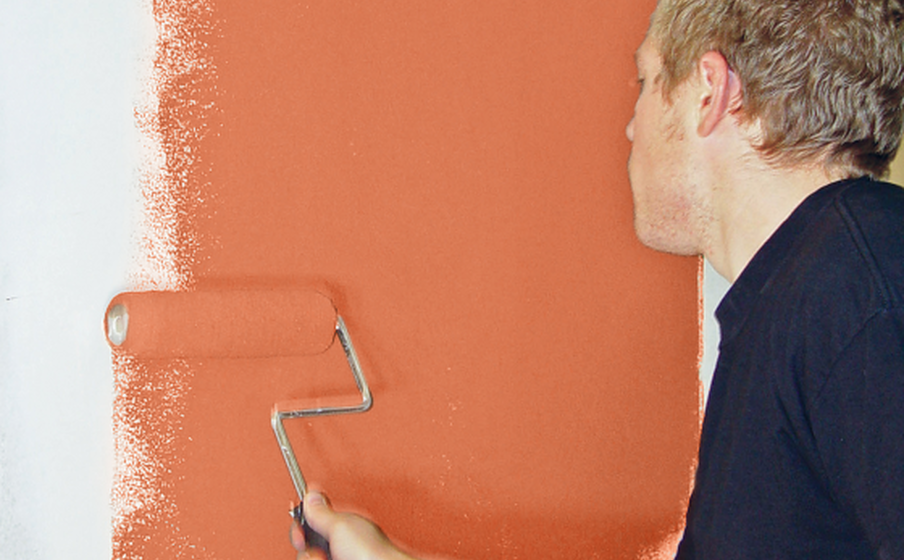

Conceal C62 Paintable surface can be custom finished for complete invisibility. - Image

Paintable surface can be custom finished for complete invisibility.

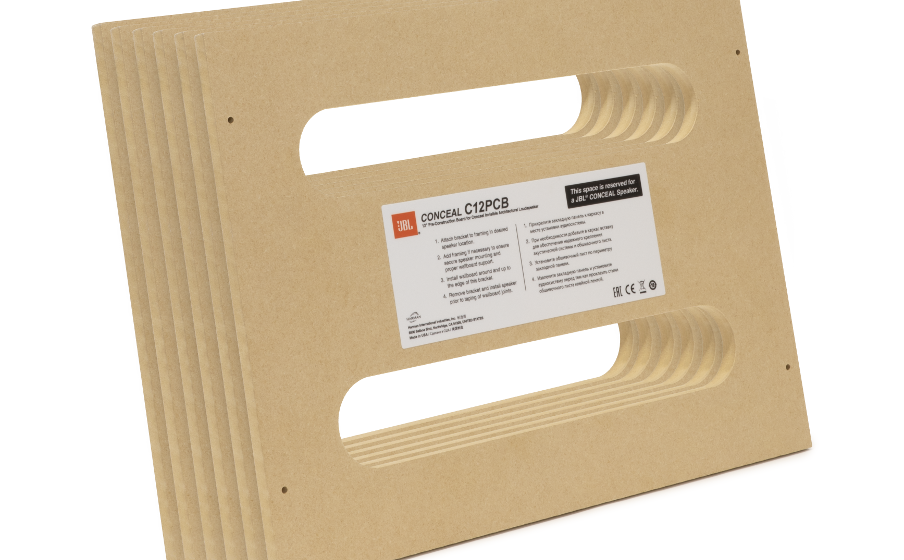

Conceal C62 C12PCB Pre-Construction Boards (sold seperately). - Image

C12PCB Pre-Construction Boards (sold seperately).

Features

Specs & Downloads

Item# JBLC62

Description

Conceal C62

The JBL Conceal C62 Invisible Loudspeaker is a compact 2-way design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

General Specifications

Type
2-way In-Wall/In-Ceiling loudspeaker
Low Frequency Driver
6.5-inch (165mm) woofer with 1-inch (25mm) voice coil
High Frequency Driver
1.18-inch (30mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power
50 - 100 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
83 dB/1W/1m measured in-room
Frequency Response
45 Hz - 20 kHz (-6 dB) measured in-room
Crossover Frequency
600 Hz
Enclosure Type
Sealed, with wooden back-box
Protection
Two independent self-resetting devices (LF and HF)
Input Type
Five-way gold-plated spring-loaded binding posts
Warranty
5 Years

Dimensions

Panel Dimensions
11-7/8" H x 15-7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
Cut-out Dimensions
12” H x 16” W (305mm H x 406 W)
Mounting Depth
3-3/8-inches (86mm)
Product Weight
13.0 lbs (5.9kg)
Shipping Weight
15.6 lbs (7.1kg)
