Down-firing, long-throw 8-inch driver
Delivers 115 dB (peak) of clean, powerful bass down to 40 Hz

Built-in low-pass crossover w/dual-slope filter
Creates a balanced subwoofer transition regardless of whether the speaker is driven from a full-range or a dedicated subwoofer amplifier channel

Dedicated-subwoofer-band multi-tap transformer
Allows the Control 89MS to be used in 70V and 100V distributed systems or driven directly at low impedance, for maximum versatility
Features
IP56-rated
Withstands the elements
Tough polyethylene enclosure
Resists abuse from lawn care equipment and the elements, maintaining color even when scraped or scratched
Stainless steel hardware and grill
Resists rusting
Specs & Downloads
Item# JBL-CONTROL89MS
Description

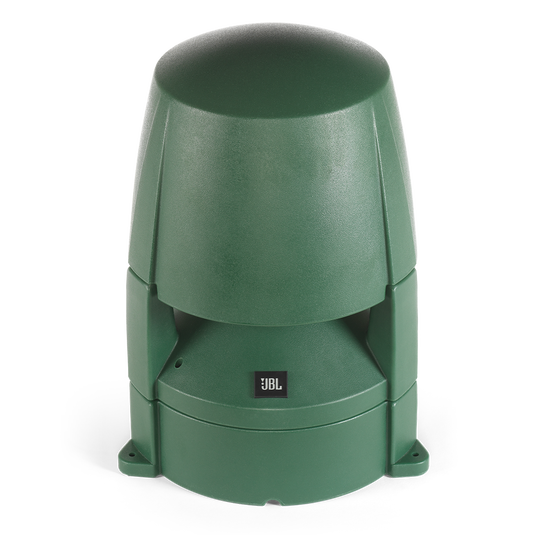

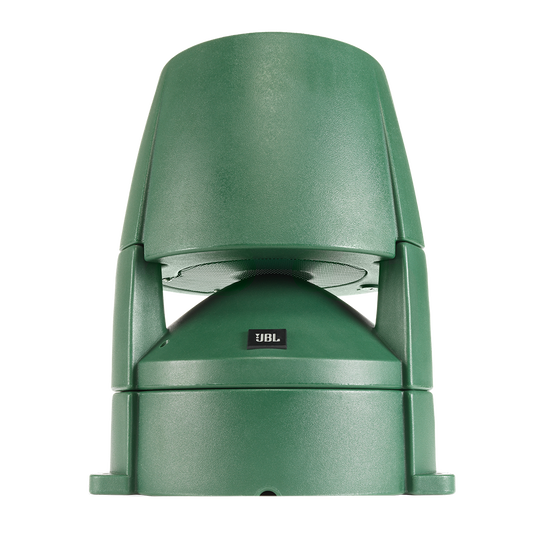

Above-Ground Landscape Subwoofer
The JBL Control 89MS Above-Ground Landscape Subwoofer augments the low-frequency performance of the JBL Control 80 Series landscape speaker line (and other outdoor systems) to provide rich bass in lawn, garden, and entrance areas of hotels, restaurants and other hospitality and retail complexes, as well as theme parks, sports venues, resorts, entranceways, and anywhere a highly weather-resistant speaker is required. This sleek, attractive, compact subwoofer features a down-firing, long-throw 200 mm (8-inch) driver which delivers 115 dB (peak) of clean, powerful bass down to 40 Hz. The built-in low-pass crossover features a dual-slope filter which begins with a gentle slope at the crossover frequency and transitions to a steeper slope at higher frequencies), creating a balanced subwoofer transition regardless of whether the speaker is driven from a full-range or a dedicated subwoofer amplifier channel. The premium-grade dedicated-subwoofer-band multi-tap transformer (and tap selector with 8Ω bypass) allows the Control 89MS to be used in 70V and 100V distributed systems or driven directly at low impedance, for maximum versatility. The Control 89MS is IP56-rated to withstand the elements, with a tough polyethylene enclosure and a fully-sealed center wiring chamber. The enclosure color extends throughout the cabinet, maintaining color even when scraped or scratched. All external hardware is stainless steel, and the powder-coated stainless steel grille resists rusting.
General Specifications
- Frequency Range (-10dB)
- 40 Hz – 150 Hz
- Frequency Response (+/-3 dB)
- 53 Hz – 110 Hz
- Power Rating
- 300 W - Continuous Program (2 hrs) ; 150 W - (600 W Peak), Continuous Pink Noise (2 hrs) ; 100 W - (400 W Peak), Continuous Pink Noise (100 hrs)
- Sensitivity
- 87 dB (ave. 60 Hz – 105 Hz)
- Maximum SPL
- 115 dB peak (109 dB continuous, 2 hr) @ 1m
- Nominal Coverage
- 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground)
- Directivity Factor (Q)
- 2.0 (with half-space, 2π, on-ground loading)
- Directivity Index (DI)
- 3.0
- Nominal Impedance
- 8 Ω (at 8Ω tap)
- Transformer Taps
- 70V = 80 W, 40 W, 20 W, 10 W ; 100V = 80 W, 40 W, 20 W
Dimensions
- Height
- 524 mm (20.7 in)
- Width
- 355 mm (14.0 in)
- Depth
- 355 mm (14.0 in)
- Net Weight
- 10.9 kg (24.0 lbs)
- Shipping Weight
- 13.6 kg (30.0 lbs)
