JBL Control 47LP


JBL Control 47LP Proprietary Conical RBI® Technology - Image

Proprietary Conical RBI® Technology

Provides 120° Wide, Extremely Consistent Coverage

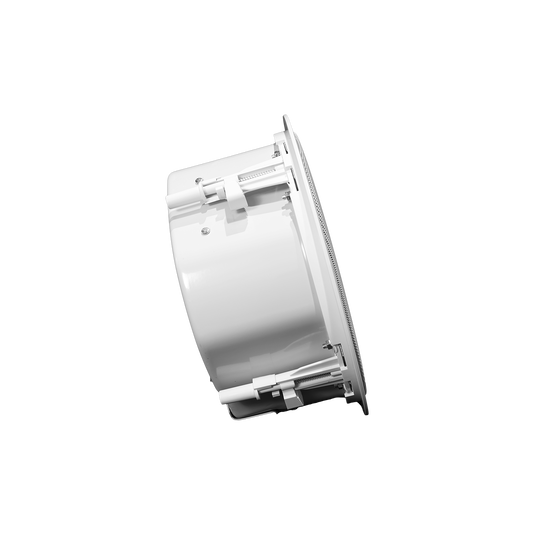

JBL Control 47LP Slim Design - Image

Slim Design

For use in spaces with restricted / shallow mounting depths

JBL Control 47LP Integrated Backcan - Image

Integrated Backcan

For easy “blind-mount” install

Specs & Downloads



The Control 47LP is a premium in-ceiling professional loudspeaker designed for applications that require extremely wide bandwidth along with very consistent coverage. Featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially-designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The wide coverage allows for the use of fewer loudspeakers compared to speakers with less consistent coverage control, while at the same time providing better coverage of the area. The shallow backcan on the Control 47LP enable the system to be installed into areas with shallow or restricted mounting depths. The Control 47LP’s 165 mm (6.5 in) woofer features a polypropylene cone and pure butyl-rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former provides low distortion and high sensitivity. The coaxially mounted 25 mm (1 in) soft dome features internal damping for smooth extended response and ferrofluid cooling for enhanced power handling and reduced power compression. The result is crisp, clear highs. Ideal for small and large projects alike, the Control 47LP is switchable for use as either an 8-ohm low-impedance speaker, or as part of a 70V/100V distributed loudspeaker system.

General Specifications

Frequency Range
68 Hz - 20 kHz
Power Rating
IEC System Long-Term Ratings (low-Z direct) - 150 Watts Continuous Program Power ; 75 Watts Continuous Pink Noise (300W peak), hrs
91 dB (1kHz - 16 kHz)
Transformer Taps
60W, 30W, 15W (7.5W at 70V only), plus transformer bypass
Coverage Angle
120° conical, constant directivity
8 ohms (in bypass mode)
LF Driver
165 mm (6.5 in)
HF Driver
25 mm (1 in)
Input Connectors
Two removeable locking 2-pin connectors with screwdown terminals
Included Accessories
C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs
Three, on top panel
Maximum SPL (1m)
110 dB (low-impedance, 116 dB peak) ; 109 dB (top 70V/100V tap)
Safety Agency
Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Formed steel (included "blind-mount")
ABS baffle with UL94-V0 flame class fire rating
Ceiling Cutout Size
282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories
MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage
Yes, backcan included


Dimensions (Diameter x Depth)
305mm Diameter x 142mm Depth (12.0 in x 5.6 in)

What's in The Box?

  • 1 x Control 47LP
  • 1 x C-ring support backing plate
  • 2 x Tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
  • 1 x Knockout strain relief
  • 1 x Cutout template
  • 1 x Paint shield
  • 2 x Removable locking multi-pin connectors
  • 1 x Grille
