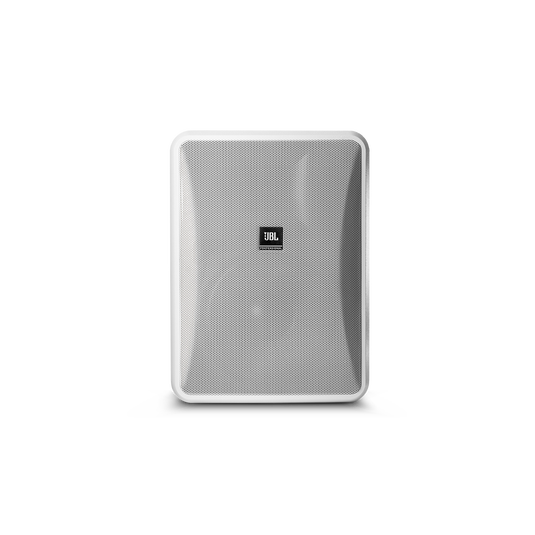

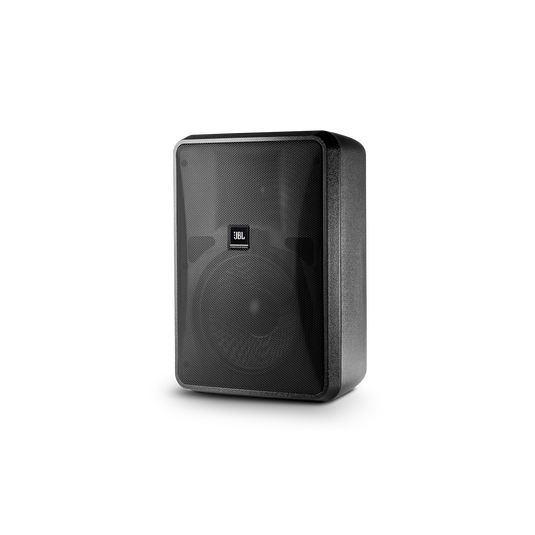

JBL Control 28-1
$305.00
0.0 (0)
Write a review

Features

JBL Control 28-1 Built-in InvisiBall® mounting hardware - Image

Built-in InvisiBall® mounting hardware

Provides a high degree of both vertical and horizontal rotation, and a high degree of theft deterrence

JBL Control 28-1 Weather resistant enclosure and transducers - Image

Weather resistant enclosure and transducers

In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Grilles are heavily zinc-plated and finished in a tough, high-grade powder coating for rust resistance.

JBL Control 28-1 Contemporary high-design look - Image

Contemporary high-design look

Fits into a wide range of decors

JBL Control 28-1 Rich sonic character - Image

Rich sonic character

High fidelity sound character with broad frequency response of 45 Hz – 20 kHz

JBL Control 28-1 Wide 100° x 100° coverage - Image

Wide 100° x 100° coverage

Allows for fewer speakers to be used, making for a simpler and less expensive installation

Specs & Downloads

Item# CONTROL 28-1

Description

High Output Indoor/Outdoor Background/Foreground Speaker

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary highdesign look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required. The unique InvisiBall mounting hardware is included in with each system, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation, and because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility. The LF driver’s woven fiberglass cone provides durability and weather capable performance. The light weight high temperature fiberglass voice coil former and high temperature voice coil wire ensures stable performance under longterm high-power working conditions while also providing high sensitivity and high power capability. The pure butyl rubber surround delivers clean sound and ruggedness, while terminating its circumference in JBL’s WeatherEdge™, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. Cone geometry is optimized for smooth frequency response and good off-axis performance, while an FEAoptimized motor construction and linear suspension spider helps to lower harmonic distortion. The HF driver’s low viscosity ferro-magnetic fluid increases voice coil cooling for higher long-term power handling. The PEI diaphragm delivers a smooth high frequency sound quality. A light weight Kapton™ voice coil former increases durability while providing better high frequency response extension. All these factors also contribute toward making the driver especially rugged for outdoor and other stressful applications. In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Grilles are heavily zinc-plated and finished in a tough, highgrade powder coating for rust resistance, and optional MTC-28WMG-1 WeatherMax™ grilles are available for especially difficult environments and to break up driving rain. Connection is made via weather-capable screw-down terminals, and the optional MTC-PC2 and MTC-PC3 panel covers are available to protect the terminal compartment, providing a water-tight sealed gland-nut entrance (when used with round-jacketed cable within the specified diameter range). The frequency response is extremely smooth, resulting in a very natural sound character, and the response extends down to 45 Hz, providing strong bass capability. The system is capable of handling 120 Watts continuous pink noise (240 Watts program) at its 8 ohm setting and is also equipped with a built-in 60 Watt 70V/100V multi-tap transformer for operation on distributed speaker lines. The combination of high sensitivity and power handling provides high Max SPL of 112 dB. The Control 28-1 readily accepts a variety of paints and finishes to match any décor.

General Specifications

Frequency Range (-10 dB)
45 Hz to 20 kHz
Frequency Response (+/-3 dB)
62Hz - 16 kHz
Power Rating
240 W Continuous Program (2 hrs) ; 120 W (480W peak), Continuous Pink Noise (2 hrs) ; 90 W (360W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage
27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL
112 dB ave. Continuous Pink Noise (118 dB peak)
Sensitivity
91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle
100° x 100°
Directivity Factor (Q)
7.3 (averaged 1kHz – 16kHz)
Directivity Index (DI)
8.3dB (averaged 1kHz – 16kHz)
Nominal Impedance
8 ohms (THRU setting)
Crossover Type
2nd order low-pass, 1st order high-pass, plus conjugate shaping
Transformer Taps
70V = 60W, 30W, 15W, 7.5W ; 100V = 60W, 30W, 15W ; Insertion Loss = <0.94 dB at any tap setting ; Thru Setting = 8Ω nominal
Recommended Protective High-Pass
45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
Low Frequency Transducer
200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Transducer
25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former
Included Accessories
InvisiBall™ wall-mounting system), 6 mm x 180 mm hex key
Optional Accessories
MTC-28UB-1 – Yolk-type U-bracket (&-WH) ; MTC-28WMG-1 – WeatherMax grille with backing (&-WH) ; MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)

Dimensions

Dimensions (H x W x D)
386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight
6.8 kg (15.0 lbs)
Shipping Weight
15.4 kg (34 lbs) pair-packed (for 2 speakers)

Design

Enclosure Material
High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille
Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Environmental
IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments

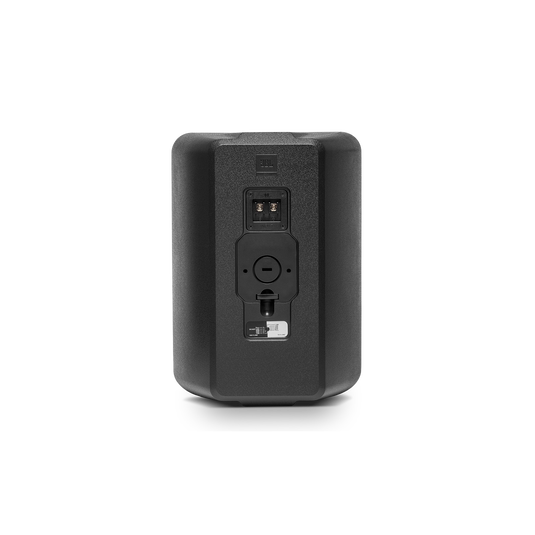

Termination
Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating
ROHS-compliant; Transformer UL Recognized per UL1876
