JBL CBT 1000E Built-in purpose-designed crossover network - Image

Built-in purpose-designed crossover network

For combining with CBT 1000

JBL CBT 1000E Doubles power handling and extends pattern control - Image

Doubles power handling and extends pattern control

When combined with CBT 1000

JBL CBT 1000E Extends pattern control - Image

Extends pattern control

To 300 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation (when combined with CBT 1000)

JBL CBT 1000E Extends bass response - Image

Extends bass response

To 38 Hz when combined with CBT 1000

Frequently Bought Together

Specs & Downloads

Item# CBT 1000E

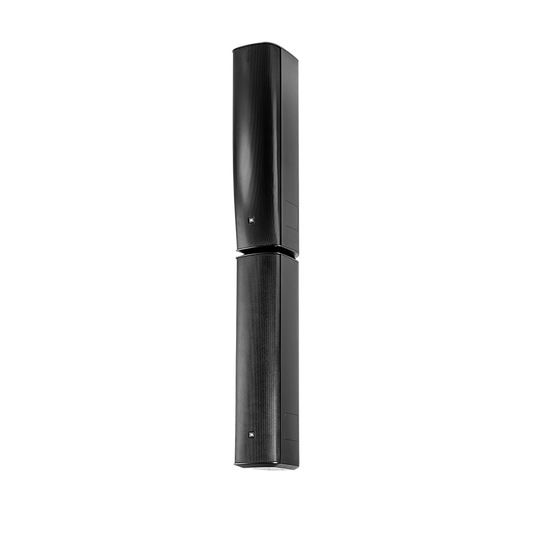

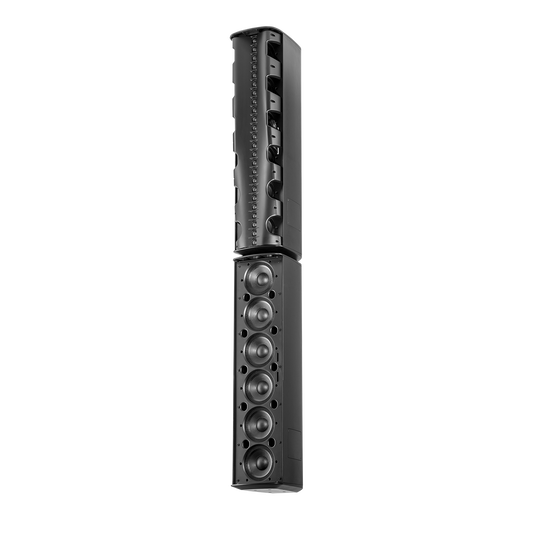

Extension for CBT 1000 Line Array Column Speaker

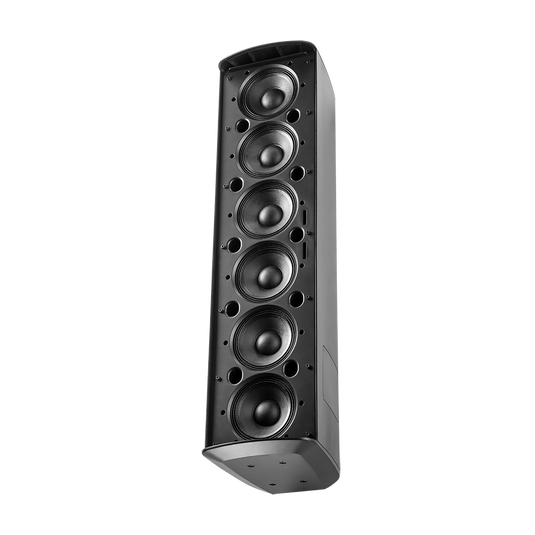

When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers. The CBT 1000E cabinet contains six low frequency drivers and a crossover network purposely designed for use in the CBT 1000 + 1000E system, in a tough fiberglass-reinforced ABS enclosure. The 1500W power handling and high sensitivity delivers powerful low frequency output. The drivers have neodymium magnet motors with 50 mm (2 in) diameter voice coils. The magnet system provides maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 16 mm (0.62 mm) long coil provides higher linear drive and high power handling in a compact driver. The drivers feature damped blended surrounds and coated sealed paper cones found in high performance large format drivers. Drivers feature coated diaphragm materials to provide moisture, UV and salt resistance for outdoor capability. The thick heavy-duty aluminum grille allows for rust-free installation outdoors.

General Specifications

Six (6) 165 mm (6.5 in) LF drivers
Frequency Range (-10 dB)
38 Hz – 650 Hz
Sensitivity (2.83V@ 1m)
92 dB full space, 98 dB half-space (65 Hz – 300 Hz)
Nominal Impedance
8 ohms
Power Capacity
1500 W (6000 W peak), 2 hrs ; 1000 W (4000 W peak), 100 hrs
Maximum Input Voltage
100 Volts RMS (2 hrs), 200 Volts Peak (when powered separately, not in parallel with CBT 1000)
124 dB full space, 130 dB half-space (65 Hz – 300 Hz)
Outdoor Capability
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs).


Net Weight
20 kg (44 lbs)
Shipping Weight
30 kg (66 lbs)

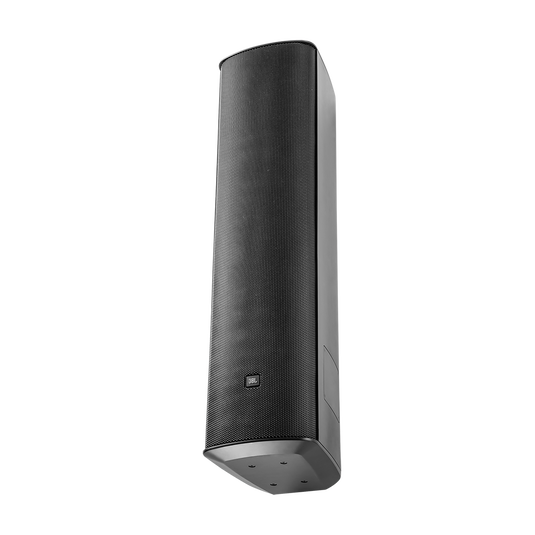

Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille

What's in The Box?

  • 1 x CBT 1000E
  • 1 x Two-piece swivel (pan) / tilt wall bracket
  • 1 x Coupler plate
