- SOLD OUT

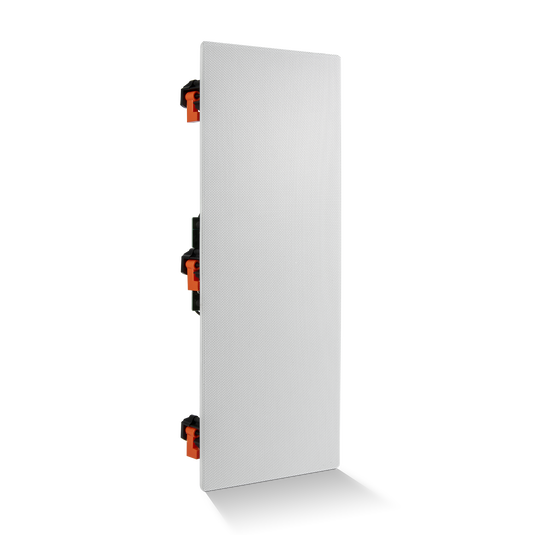

 Angled with Grille - 1605x1605.png?sw=535&sh=535)

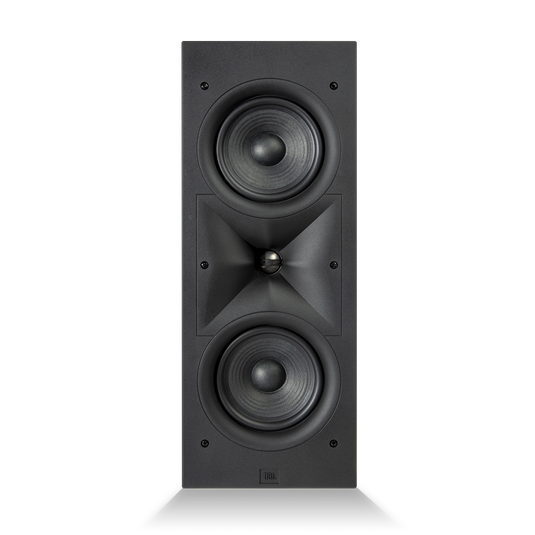

 Front No Grille - 1605x1605.png?sw=535&sh=535)

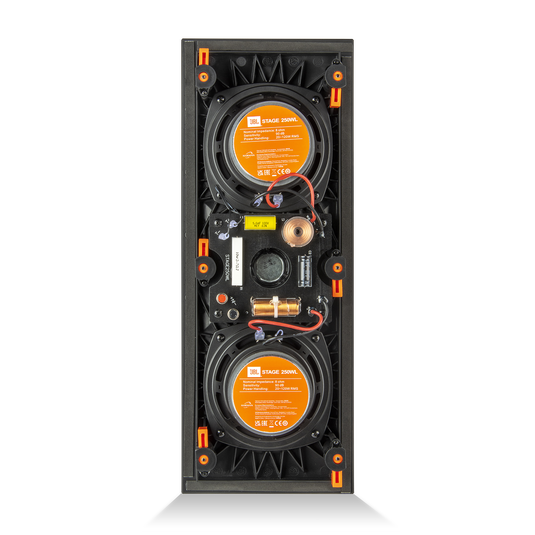

 Rear - 1605x1605.png?sw=535&sh=535)

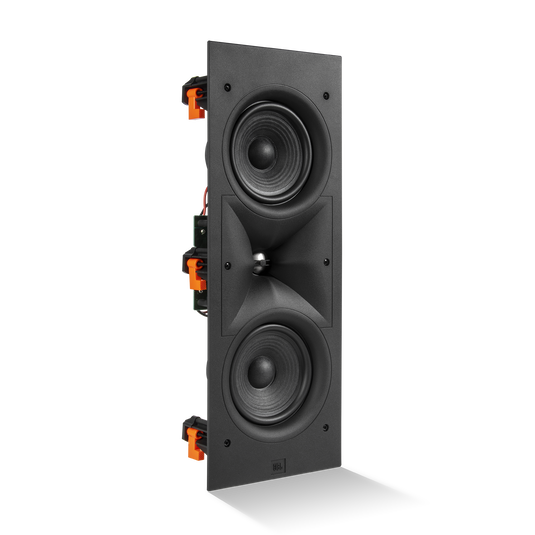

 Angled No Grille - 1605x1605.png?sw=535&sh=535)

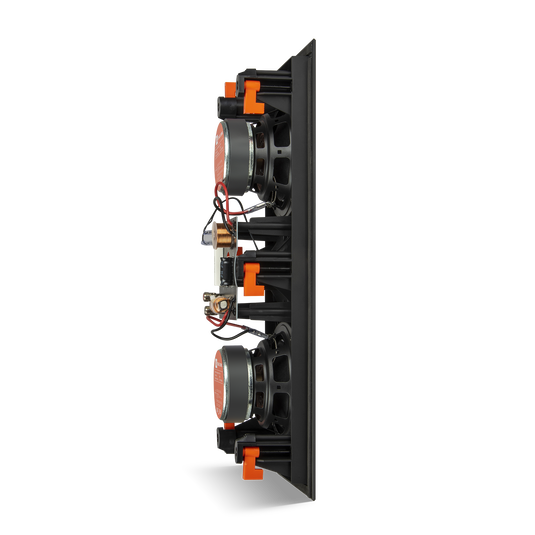

 Side - 1605x1605.png?sw=535&sh=535)

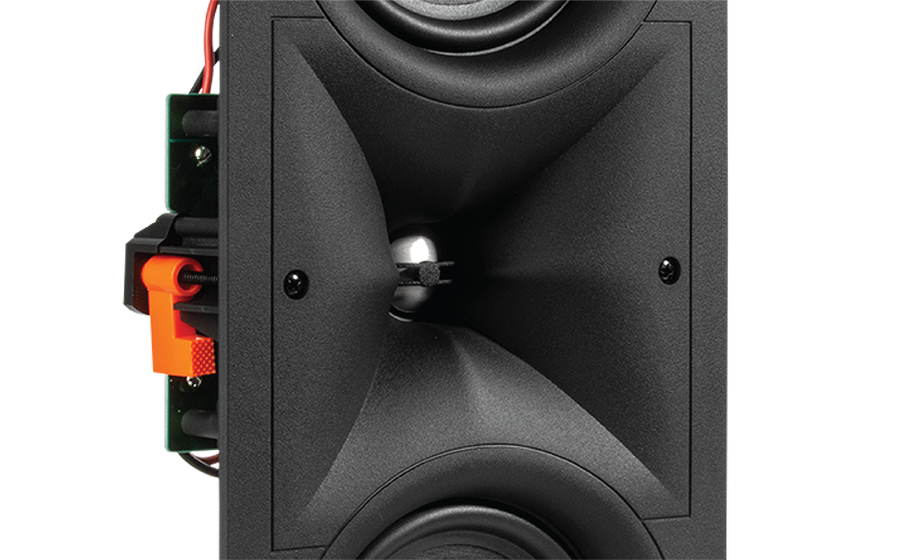

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

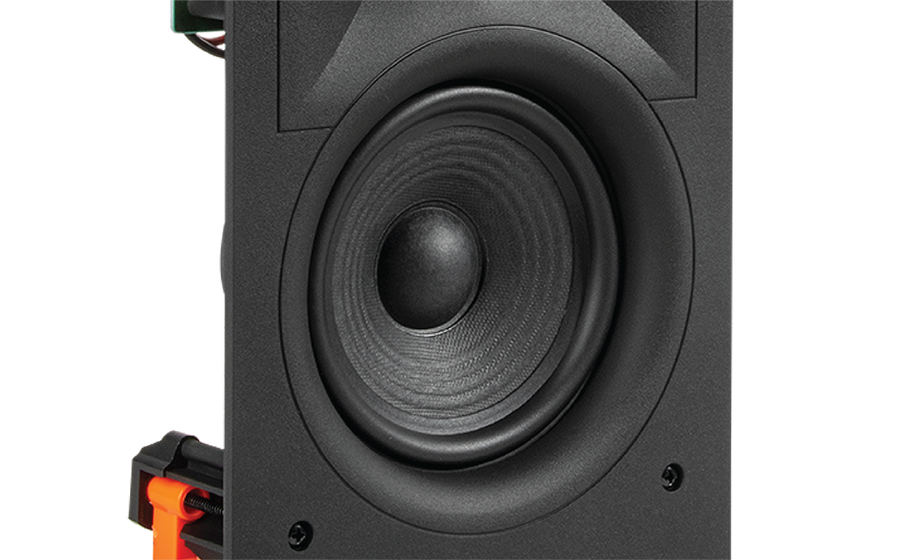

Dual 5.25" (130mm) Polycellulose cone woofers

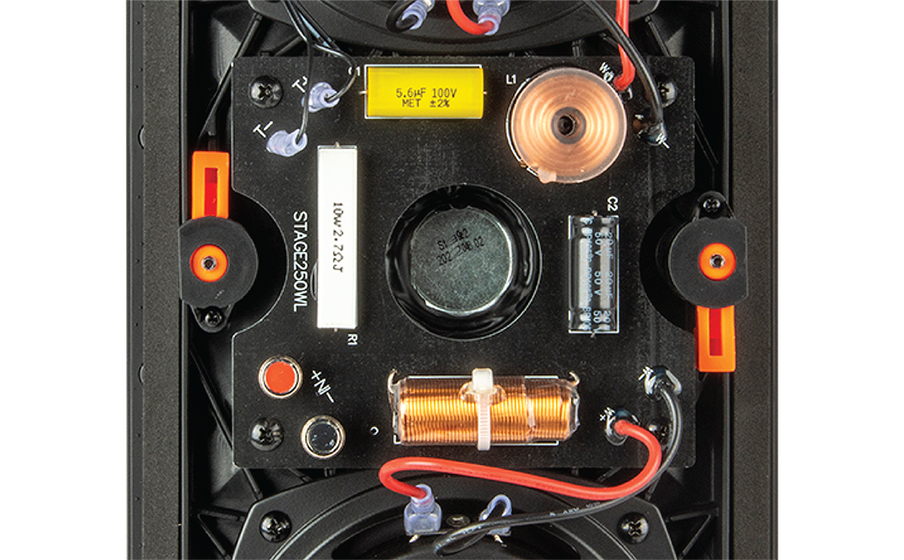

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
Features

Rigid Baffle design with acoustic smoothing for improved transducer integration

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
Item# JBL250WL
Description
Stage 250WL

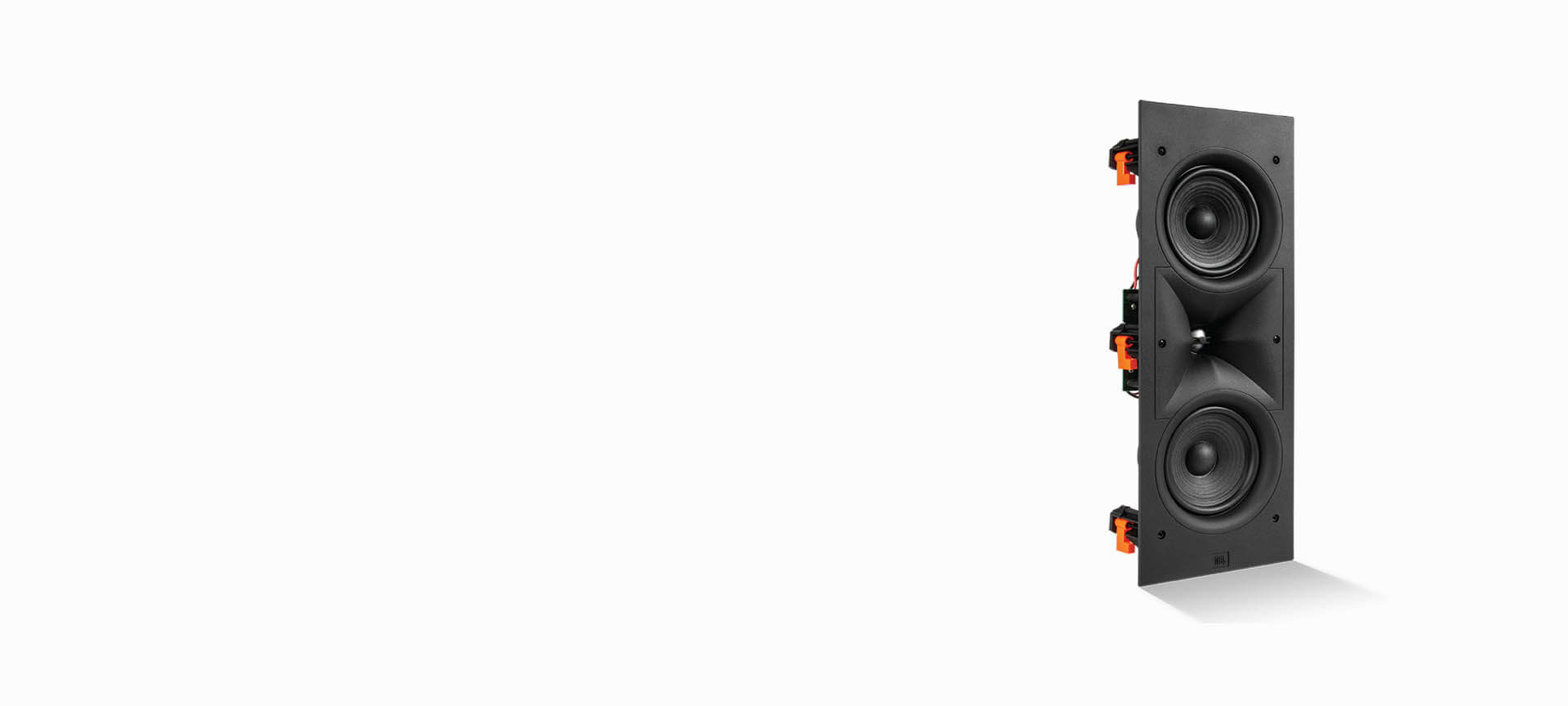

Featuring Dual 5.25" (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
- High Frequency Transducer
- 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
- Low Frequency Transducer
- Dual 5.25" (130mm) Polycellulose cone woofer
- Recommended Amplifier Power (Full Range)
- 20-120W RMS
- Frequency Response
- 52Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m)
- 90dB
- Nominal Impedance
- 8ohm
- Crossover Frequency
- 2100Hz
- Inputs
- Nickel-plated spring-loaded connectors
- Grille Dimensions
- H 19.5in (496mm) x W 7.6in (194mm)
- Cutout Dimensions
- H 18.1in (460mm) x W 6.4in (162mm)
- Mounting Depth
- 3.8in (96mm)
- Product Weight (Kg)
- 3.5Kg
- Shipping Carton Dimensions
- L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)
- Shipping Carton Weight
- 9.61lbs (4.36Kg)
