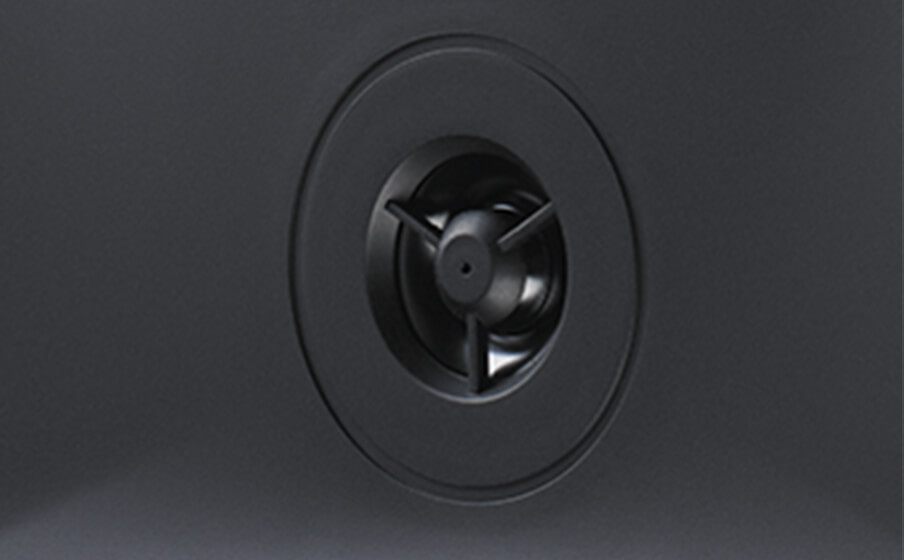

B-8IW 0.5-inch Polymer tweeter - Image

0.5-inch Polymer tweeter

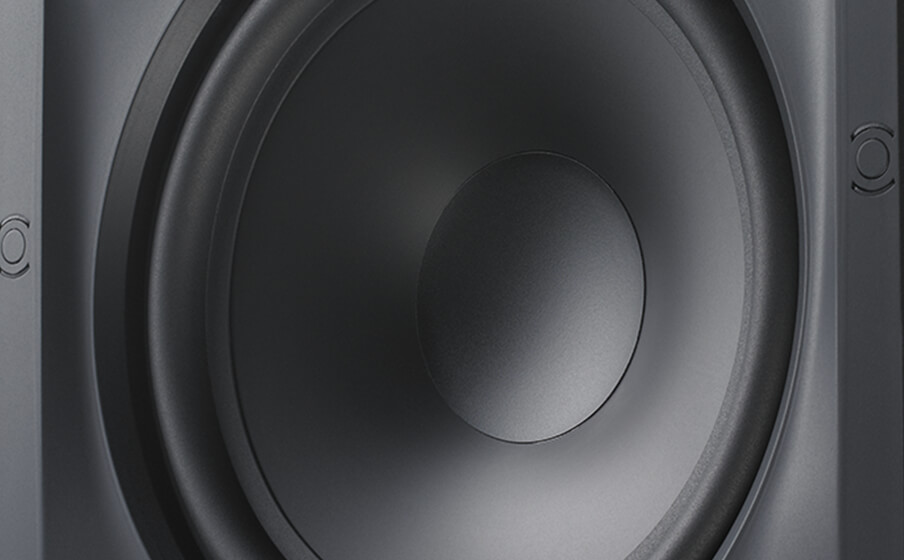

B-8IW 6.5-inch Poly cone woofer - Image

6.5-inch Poly cone woofer

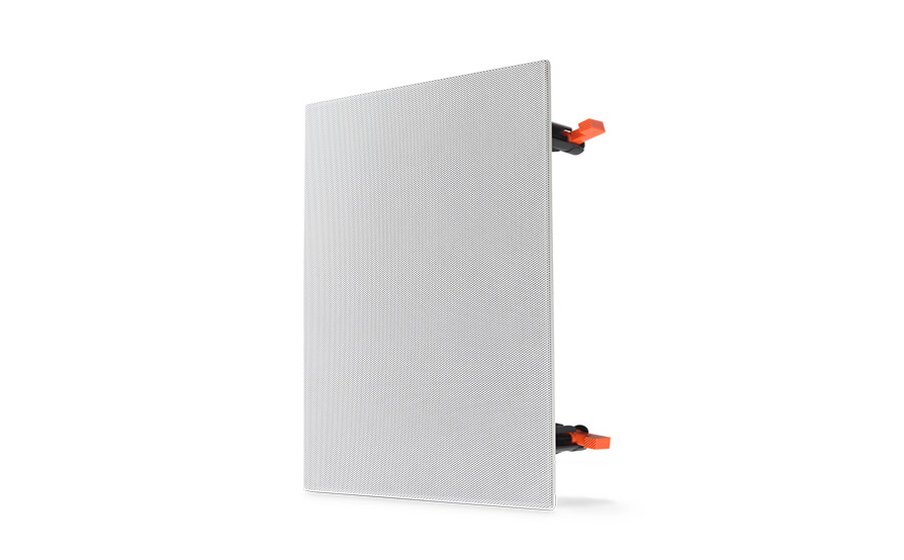

B-8IW Zero Bezel Grille - Image

Zero Bezel Grille

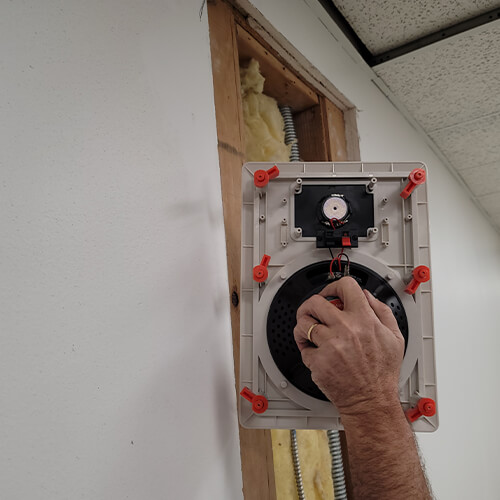

B-8IW Easy Installation - Image

Easy Installation

Specs & Downloads




Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.

General Specifications

Nominal Impedance
4 ohm
Power (RMS/Peak)
Frequency Response
45Hz – 20kHz
Loudspeaker Sensitivity
8" (203mm) Poly woofer
0.5" (13mm) Polymer Tweeter
Cutout Dimensions
11.7” x 8.8” (299mm x 223mm)
Grille Finished Dimensions
10” x 12.9” (255mm x 329mm)
Mounting Depth
3.7" (96mm)

Documents & Downloads

Reviews and Q&A

Customer Reviews

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

Product Q&A

What is the difference between this and the SP8II as to why can't the SP8II be mounted in the ceiling but this one can? Thanks.

Asked by: Bretly259
The JBL B-8IW and SP8II are both made for in-wall applications. Our speakers made for ceiling are the round ones that usually have IC on their names.
Answered by: Jem at Customer Support
Date published: 2021-06-06

I have two JBL Studio 2 8IWs and would like to buy two more. If that’s not possible, would these be a good match and what are the differences and which speakers are better?  Thank you in advance.

Asked by: LWG61
We would like to get more information to help you out, please contact us so we can assist you: https://bit.ly/39hPHyX
Answered by: Jem at Customer Support
Date published: 2021-06-06

Can this be connected with the 2.1 deep bass soundbar?

Asked by: Anonymous
Our JBL Bar 2.1 Deep Bass can't have any speakers add-ons. If you need more help, please contact us here. http://bit.ly/2WocMfi
Answered by: Ray at Customer Support
Date published: 2021-06-06

I have jbl 590 front speakers and planning to add jbl b-81w as rear and surround speakers. Are these speakers recommended to pair up with jbl 590?

Asked by: Bob0987
Our JBL B-9IW is best paired with our JBL B-Series speakers. Our JBL 590 is best paired with our JBL Studio 5 series speakers.
Answered by: Leon at Customer Service
Date published: 2021-07-20

Do you have a speaker that has a bluetooth driver/Amp where the speaker and the driver are waterproof? Need a speaker system for a sauna and looking at JBL

Asked by: mall1971
speaker models such as the JBL B-8IW is handled by our Professional Division. Please contact them for assistance for speakers that meets that requirements you are searching for: email: hprotechsupportusa@harman.com. You may also reach us at our website at https://pro.harman.com/service
Answered by: Customer Support
Date published: 2022-11-24

Hi, what is the difference between B-81w and SP8II? Whice speaker will be better for home audio? Movies and music? In addition can i add the ARENA 55IW as a center ?

Asked by: Yogi29
Hi there, thanks for posting a question. They have different impedance rating. JBL B-8IW has 4 ohms while SP8II has 8 ohms. Both are great with music and movies. You can also better pair the Arena 55IW with the SP series as they are also 8 ohm speakers with an almost similar tweeter. Furthermore, you can check other product information through the product specification sheet and owner's manual.
Answered by: Jem G
Date published: 2021-06-06
