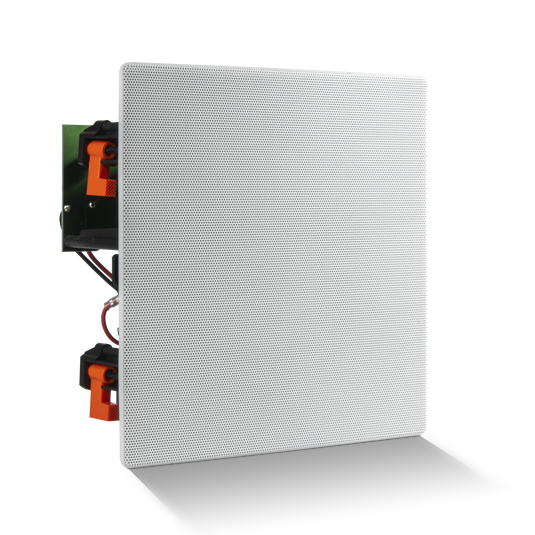

 Angled with Grille - 1605x1605.png?sw=535&sh=535)

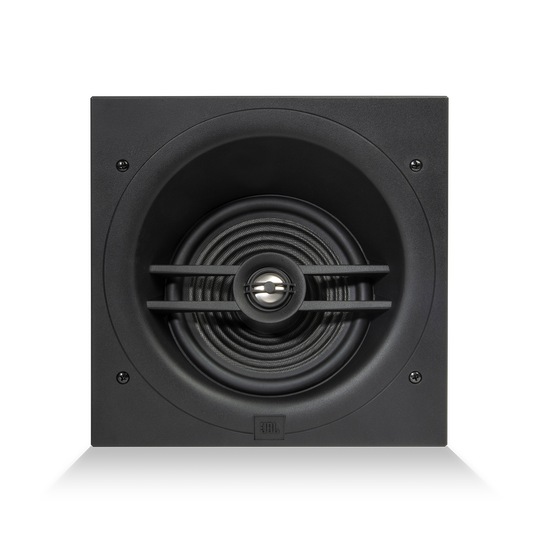

 Front No Grille - 1605x1605.png?sw=535&sh=535)

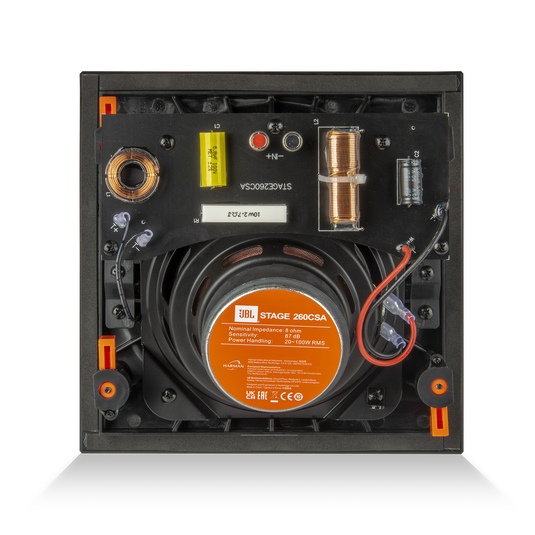

 Rear - 1605x1605.png?sw=535&sh=535)

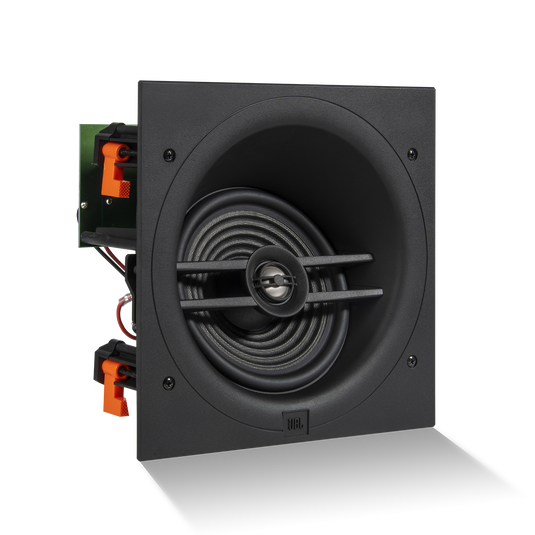

 Angled No Grille - 1605x1605.png?sw=535&sh=535)

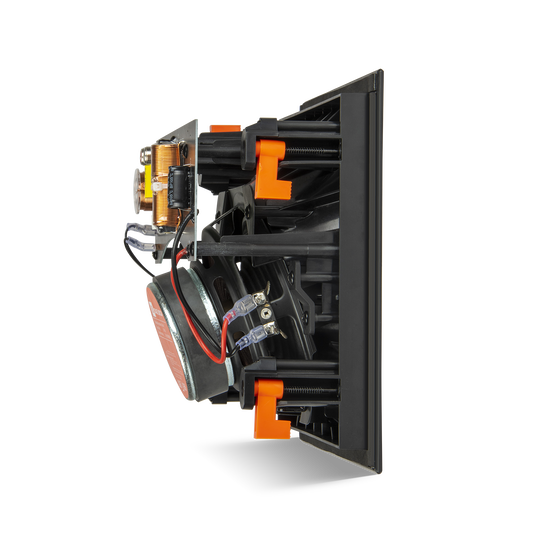

 Side - 1605x1605.png?sw=535&sh=535)

Angled Baffle allows for accurate aiming towards the listening area

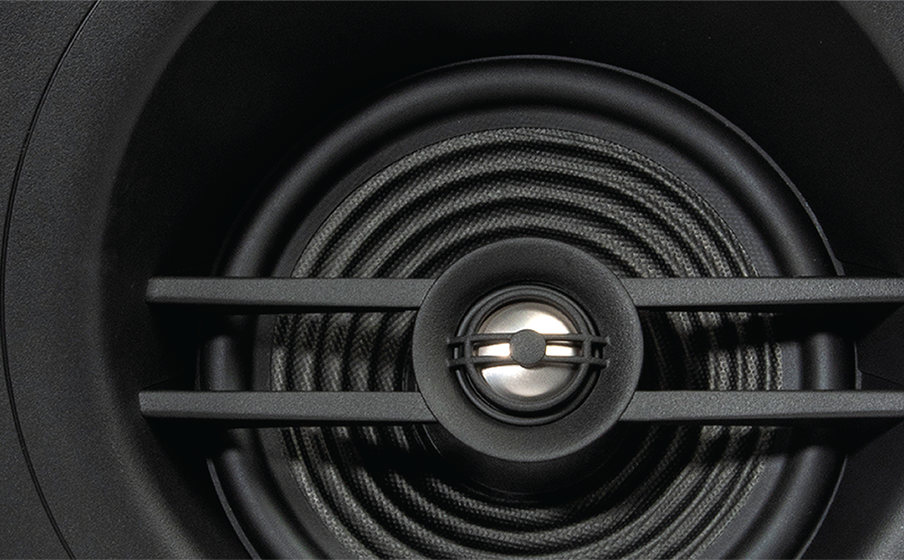

1" (25mm) Aluminum dome with acoustic lens waveguide

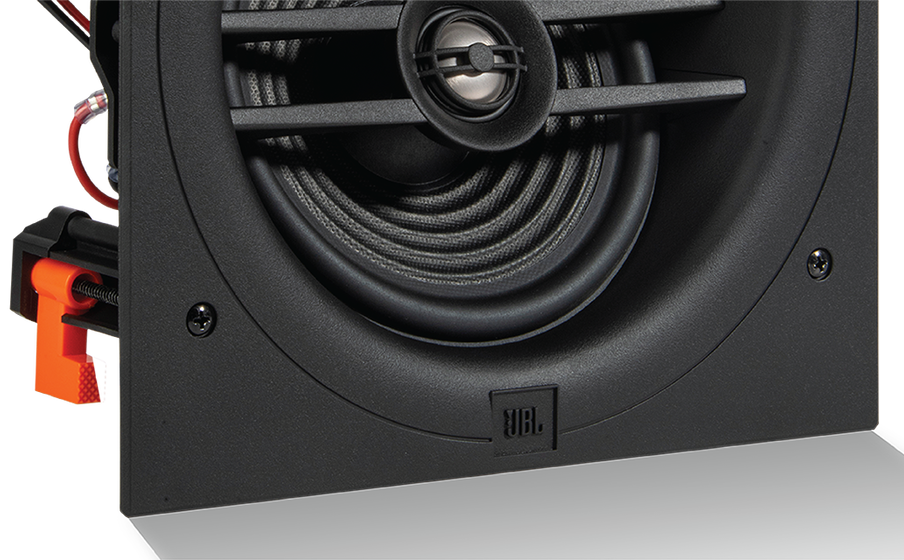

6.5" (165mm) Polycellulose cone woofer
Features

Rigid Baffle design with acoustic smoothing for improved transducer integration

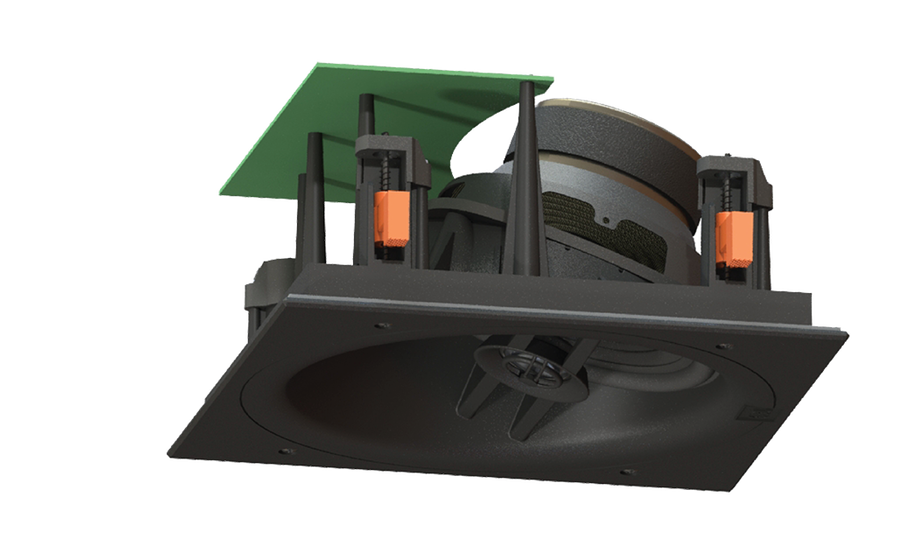

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
Item# JBL260CSA
Description
Stage 260CSA
The angled design of the Stage 260CSA allows for accurate aiming of the 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
- High Frequency Transducer
- 1" (25mm) Aluminum dome with Acoustic Lens
- Low Frequency Transducer
- 6.5" (165mm) Polycellulose cone woofer
- Recommended Amplifier Power (Full Range)
- 20-100W RMS
- Frequency Response
- 50Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m)
- 87dB
- Nominal Impedance
- 8ohm
- Crossover Frequency
- 2800Hz
- Inputs
- Nickel-plated spring-loaded connectors
- Grille Dimensions
- H 9.8in (248mm) x W 9.8in (248mm)
- Cutout Dimensions
- H 8.6in (219mm) x W 8.6in (219mm)
- Mounting Depth
- 5in (127mm)
- Product Weight (Kg)
- 2.2Kg
- Shipping Carton Dimensions
- L 12in (306mm) x W 12in (306mm) x H 6.2in (158mm)
- Shipping Carton Weight
- 6.66lbs (3.02Kg)
