HDI-4500
0.0 (0)
Write a review

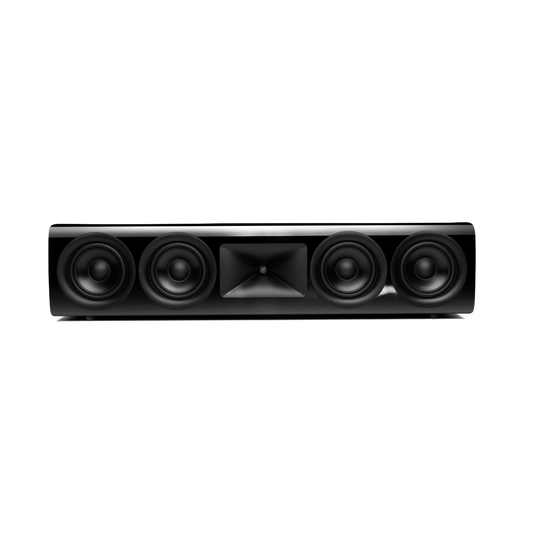

HDI-4500 Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn. - Image

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

HDI-4500 5.25" (130mm) Advanced Aluminum Matrix cast-frame woofers. - Image

5.25" (130mm) Advanced Aluminum Matrix cast-frame woofers.

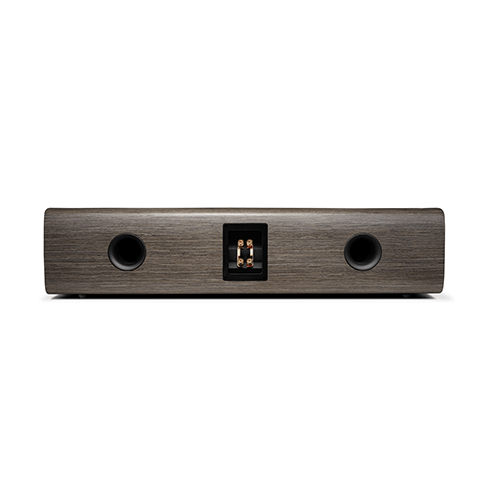

HDI-4500 Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. - Image

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Features

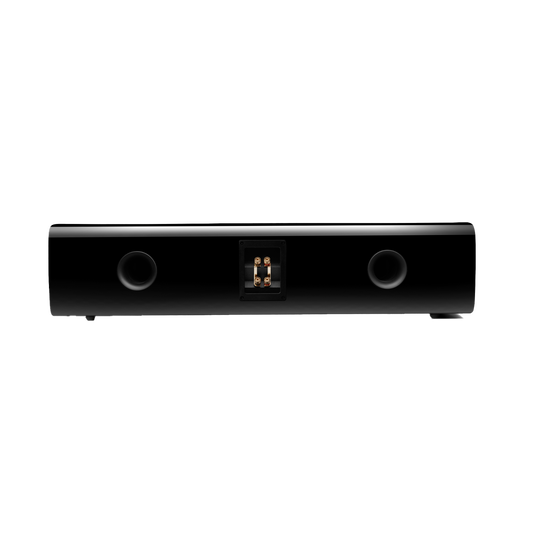

HDI-4500 Dual rear-firing, computer-optimized flared ports. - Image

Dual rear-firing, computer-optimized flared ports.

HDI-4500 Advanced crossover network - Image

Advanced crossover network

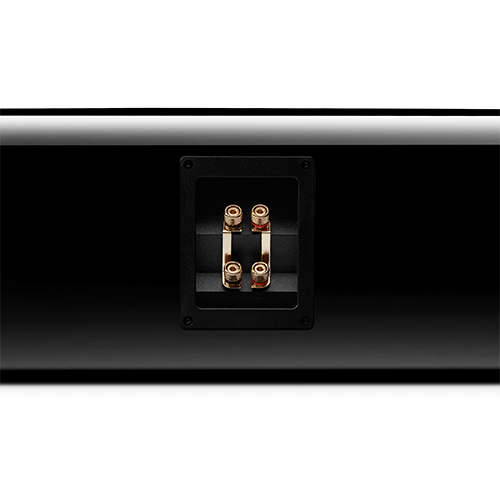

HDI-4500 Dual sets of gold-plated binding posts with shorting straps. - Image

Dual sets of gold-plated binding posts with shorting straps.

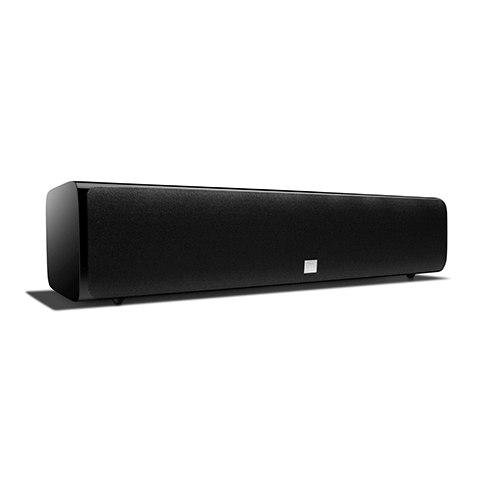

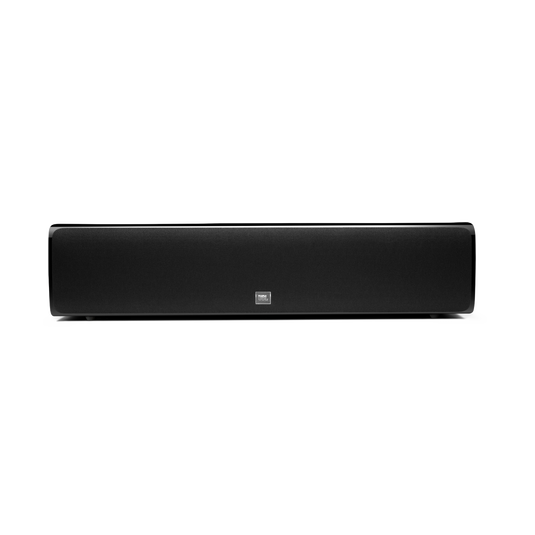

HDI-4500 Black cloth, magnetically attached grille. - Image

Black cloth, magnetically attached grille.

Specs & Downloads

Item# JBLHDI4500BLQAM

Description

HDI-4500

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-4500 is the anchor of a complete HDI Series surround system. This center channel loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and quadruple 5.25-inch (130mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

General Specifications

Enclosure Type
Bass-reflex design with rear-firing port
High Frequency Transducer
1-inch (25mm) Teonex compression driver
Low / Mid Frequency Transducers
Four 5.25-inch (130mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency
600Hz, 2200Hz
Sensitivity (2.83V @ 1M)
90dB
Nominal Impedance
4 Ohm
Recommended Amplifier Power
20W – 250W
Frequency Response
50Hz – 30kHz (-6dB)
Dimensions (H x W x D)
7.48 x 33.13 x 12.3” (190 x 841.4 x 312.5mm)
Net Weight
44.33 lbs (20.11kg)

Documents & Downloads
