HDI-3600
0.0 (0)
Write a review
HDI-3600 Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn. - Image

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

HDI-3600 8" (200mm) Advanced Aluminum Matrix cast-frame woofers. - Image

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

HDI-3600 Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. - Image

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Features

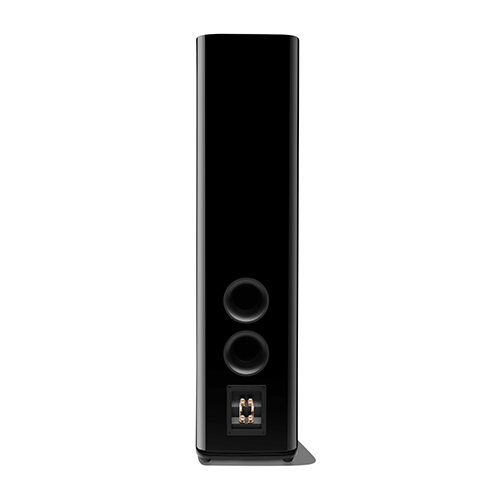

HDI-3600 Dual rear-firing, computer-optimized flared ports. - Image

Dual rear-firing, computer-optimized flared ports.

HDI-3600 Advanced crossover network - Image

Advanced crossover network

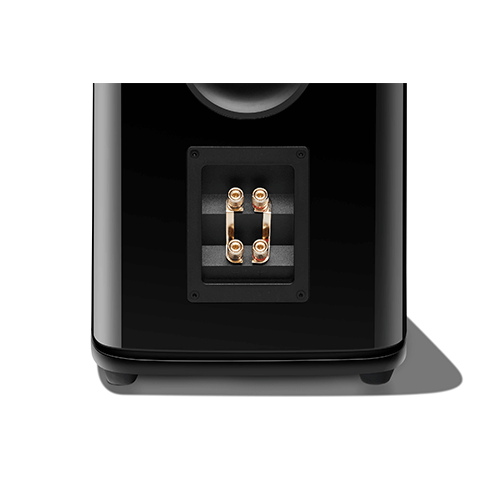

HDI-3600 Dual sets of gold-plated binding posts with shorting straps. - Image

Dual sets of gold-plated binding posts with shorting straps.

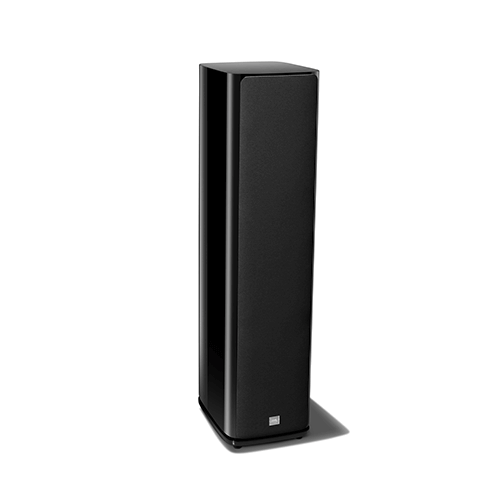

HDI-3600 Black cloth, magnetically attached grille. - Image

Black cloth, magnetically attached grille.

Specs & Downloads

Item# JBLHDI3600BLQAM

Description

HDI-3600

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance from a compact footprint. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 6.5-inch (165mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

General Specifications

Enclosure Type
Bass-reflex design with rear-firing port
High Frequency Transducer
1-inch (25mm) Teonex compression driver
Low / Mid Frequency Transducers
Three 6.5-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency
900Hz, 2000Hz
Sensitivity (2.83V @ 1M)
90dB
Nominal Impedance
4 Ohm
Recommended Amplifier Power
20W – 250W
Frequency Response
38Hz – 30kHz (-6dB)
Dimensions (H x W x D)
38.84 x 10.04 x 13.46” (986.5 x 255 x 341.9mm)
Net Weight
61.80 lbs (28.03kg)
