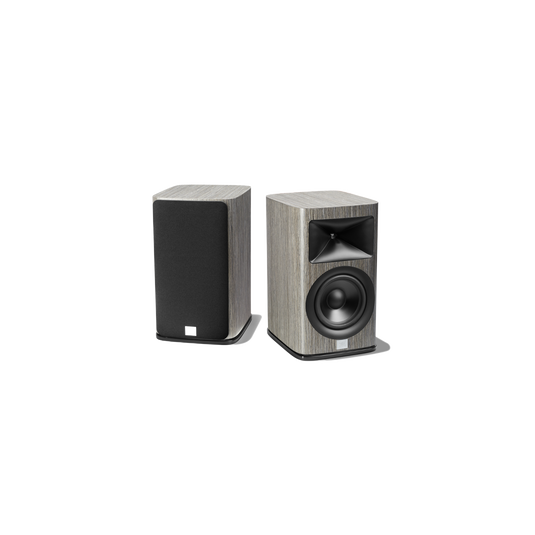

HDI-1600 Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn. - Image

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

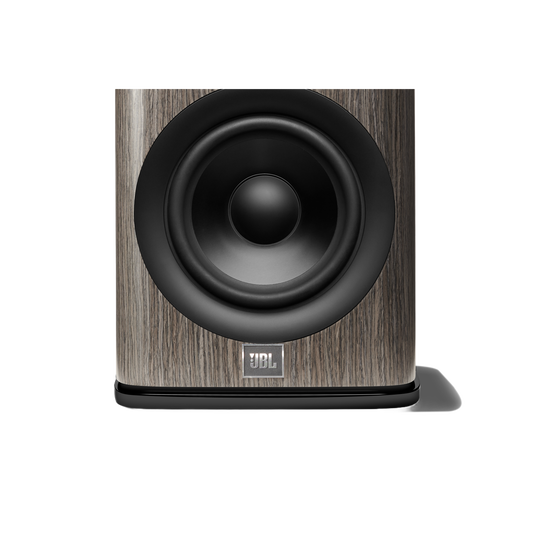

HDI-1600 6.5" (165mm) Advanced Aluminum Matrix cast-frame woofers. - Image

6.5" (165mm) Advanced Aluminum Matrix cast-frame woofers.

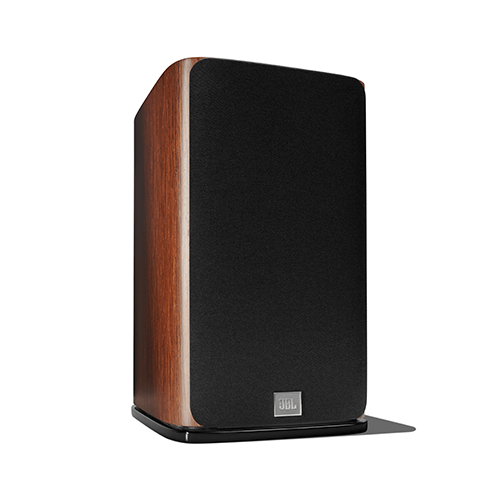

HDI-1600 Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. - Image

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Features

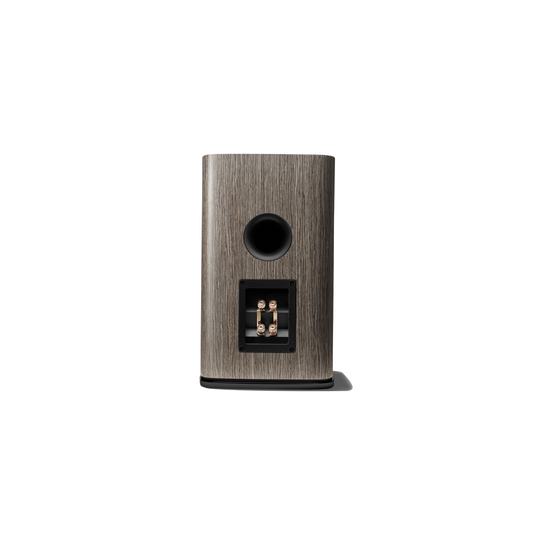

HDI-1600 Rear-firing, computer-optimized flared port. - Image

Rear-firing, computer-optimized flared port.

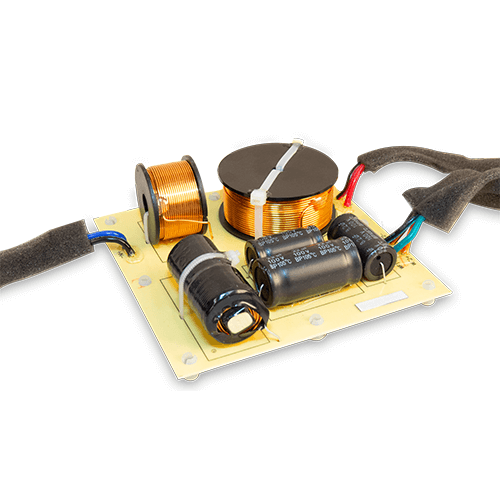

HDI-1600 Advanced crossover network - Image

Advanced crossover network

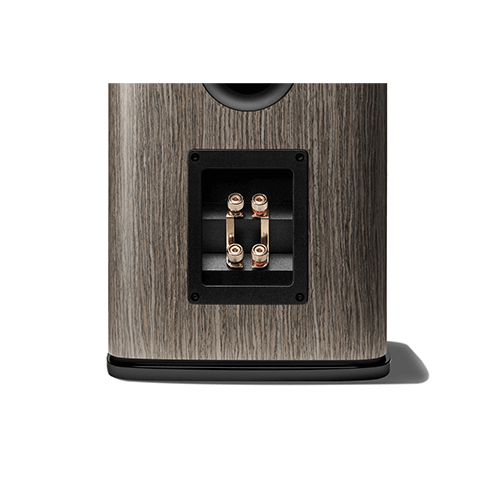

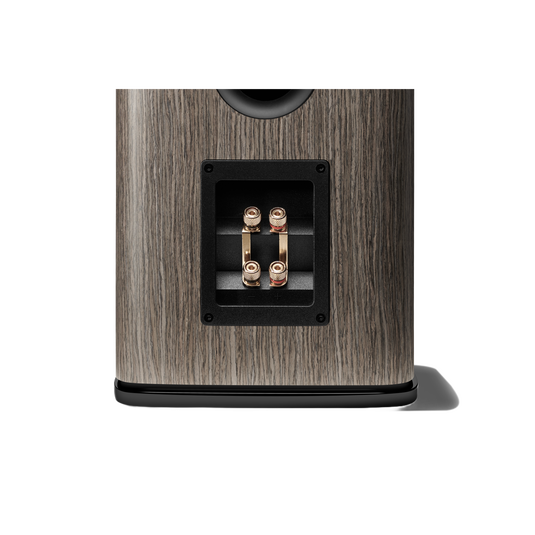

HDI-1600 Dual sets of gold-plated binding posts with shorting straps. - Image

Dual sets of gold-plated binding posts with shorting straps.

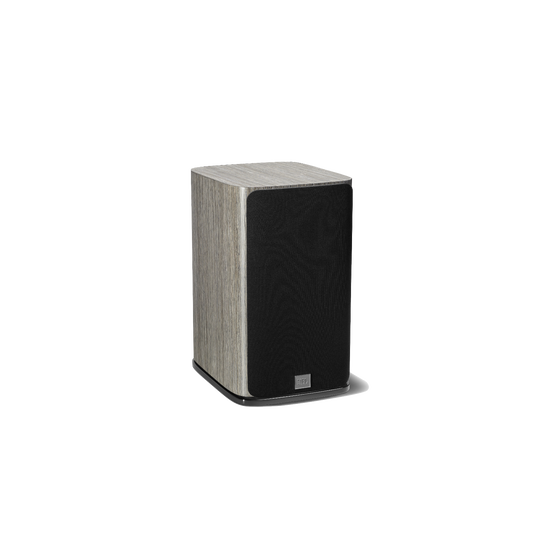

HDI-1600 Black cloth, magnetically attached grille. - Image

Black cloth, magnetically attached grille.

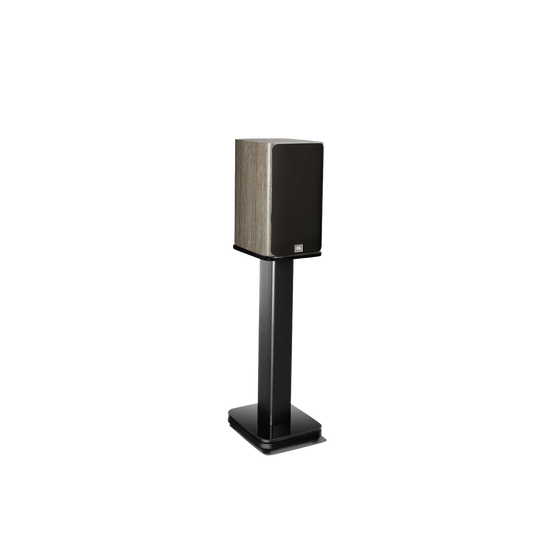

HDI-1600 Recommended HDI-FS speaker stands (sold separately). - Image

Recommended HDI-FS speaker stands (sold separately).

Specs & Downloads

Item# JBLHDI1600GROAM

Description

HDI-1600

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The accessory HDI-FS floor stands lift the speakers to their perfect height.

General Specifications

Enclosure Type
Bass-reflex design with rear-firing port
High Frequency Transducer
1-inch (25mm) Teonex compression driver
Low Frequency Transducer
6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofer
Crossover Frequency
1900Hz
Sensitivity (2.83V @ 1M)
85dB
Nominal Impedance
4 Ohm
Recommended Amplifier Power
15W – 200W
Frequency Response
40Hz – 30kHz (-6dB)
Dimensions (H x W x D)
14.57 x 9.06 x 11.375” (370.0 x 230 x 288.9mm)
Net Weight
21.96 lbs (9.96kg)
Matching Stand
HDI-FS
