HDI-3800

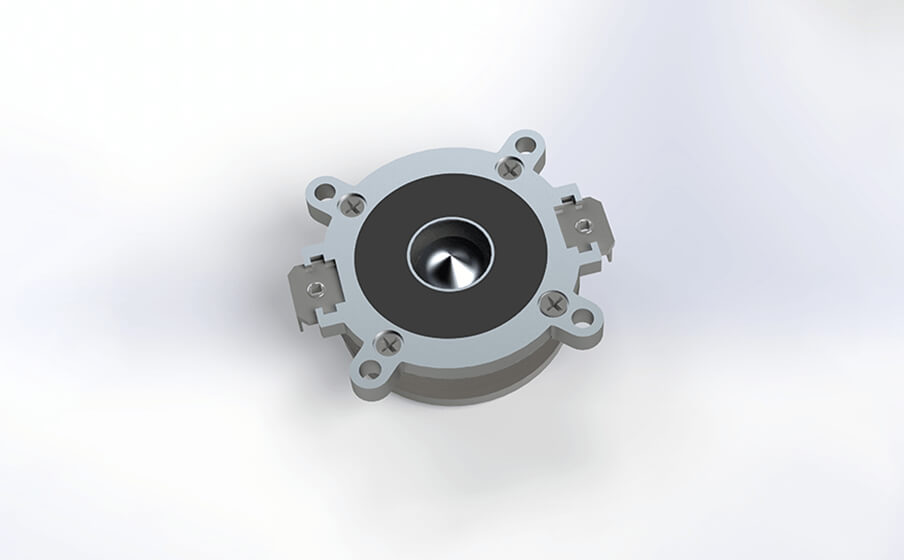

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

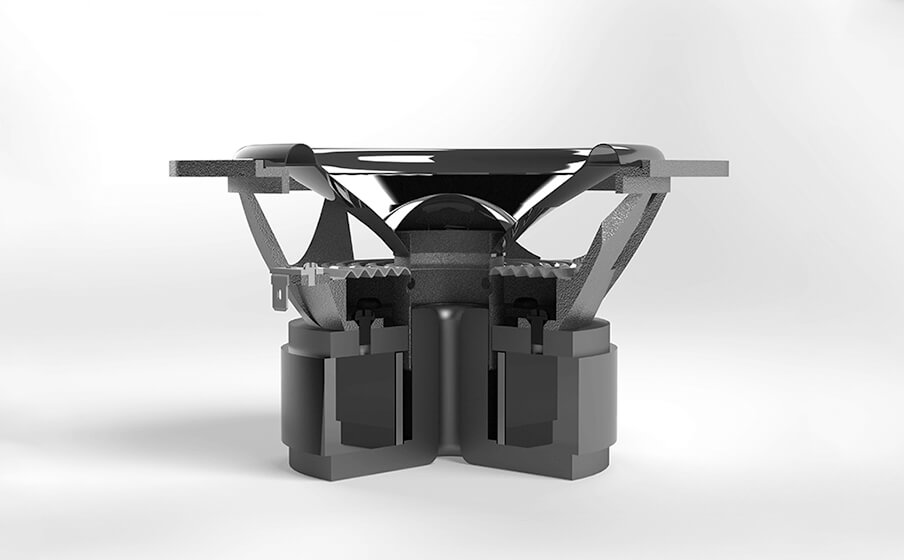

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

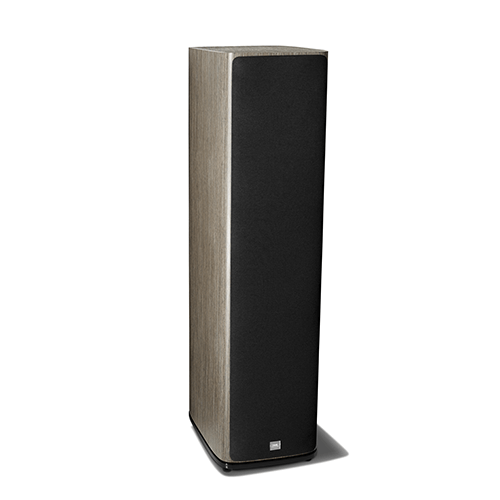

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Features

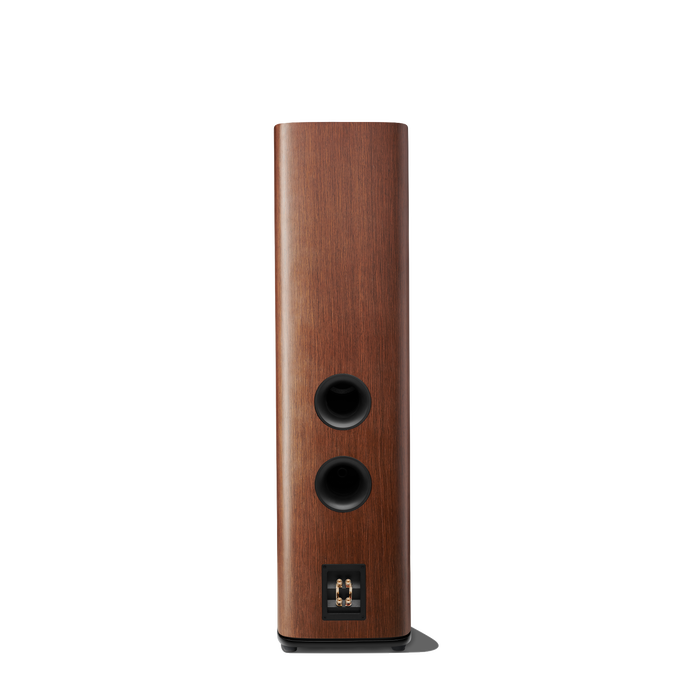

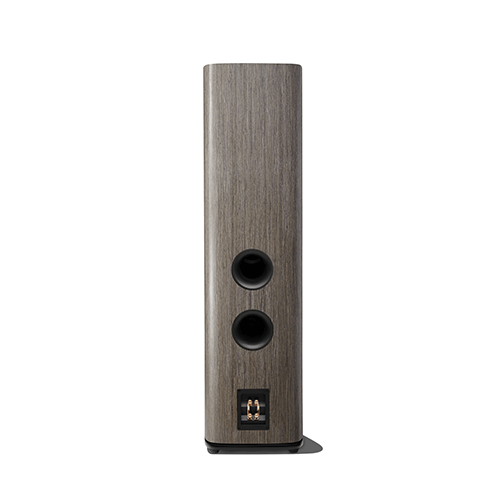

HDI-3800 Dual rear-firing, computer-optimized flared ports. - Image

Dual rear-firing, computer-optimized flared ports.

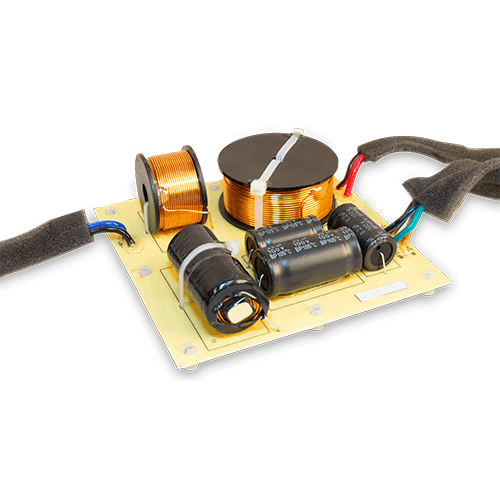

HDI-3800 Advanced crossover network - Image

Advanced crossover network

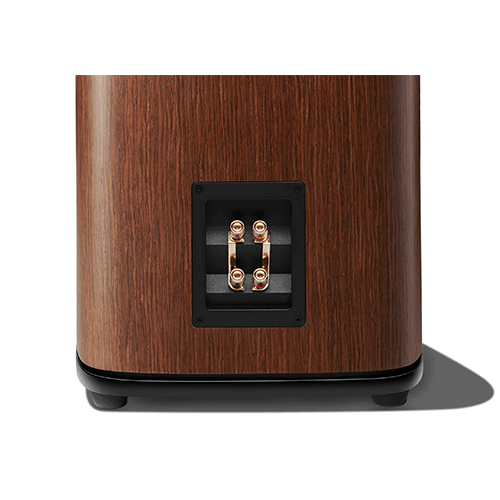

HDI-3800 Dual sets of gold-plated binding posts with shorting straps. - Image

Dual sets of gold-plated binding posts with shorting straps.

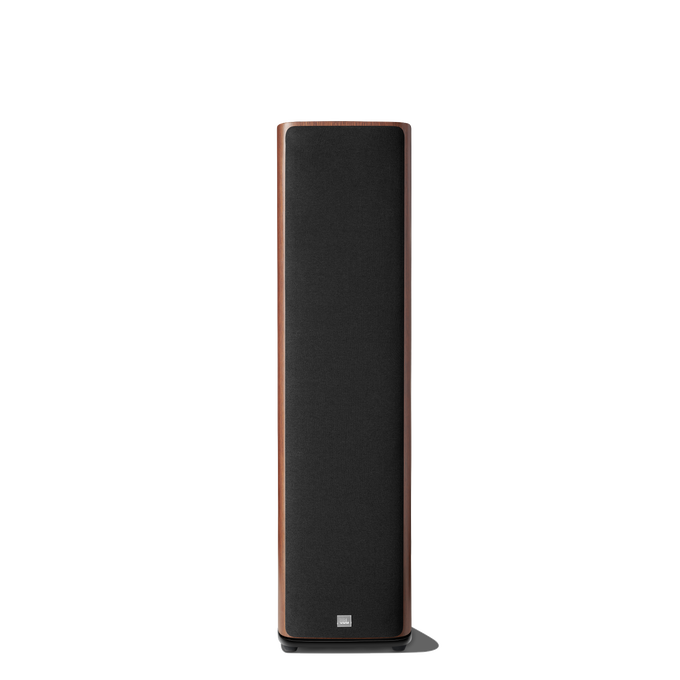

HDI-3800 Black cloth, magnetically attached grille. - Image

Black cloth, magnetically attached grille.

Specs & Downloads

Item# JBLHDI3800WALAM

Description

HDI-3800

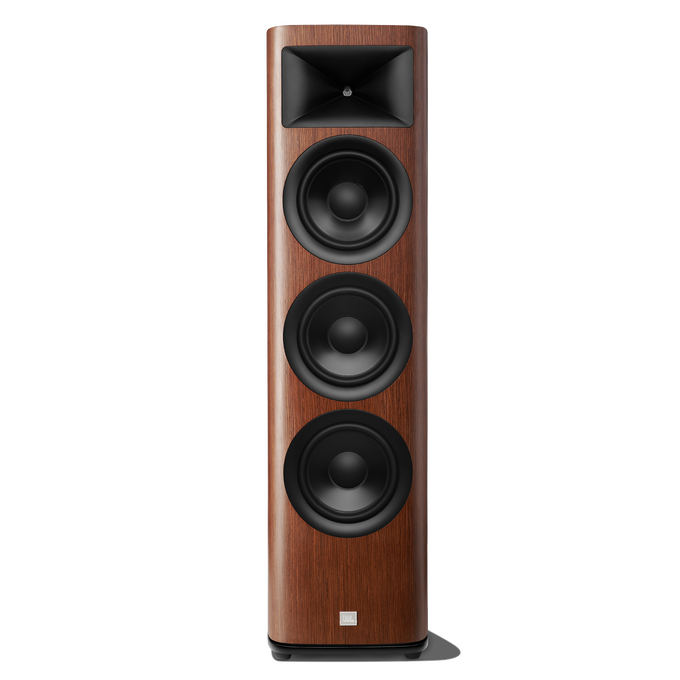

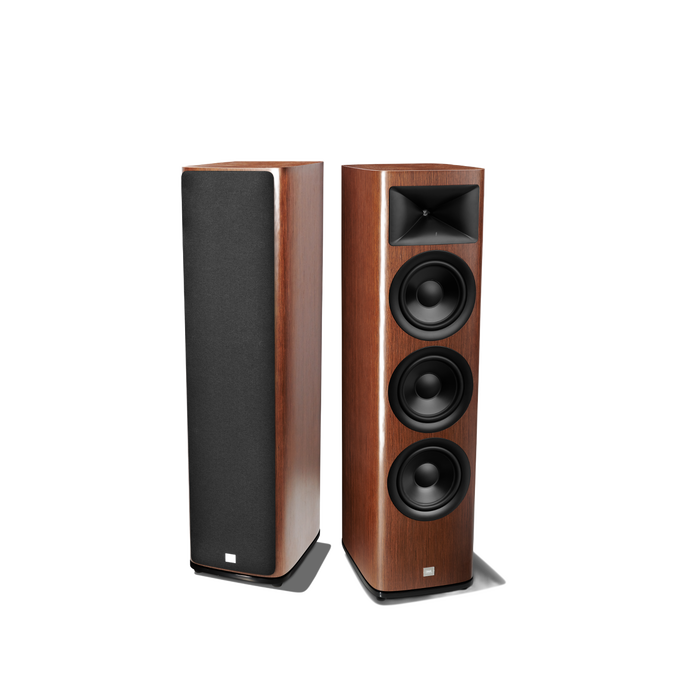

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

General Specifications

Enclosure Type
Bass-reflex design with rear-firing port
High Frequency Transducer
1-inch (25mm) Teonex compression driver
Low / Mid Frequency Transducers
Three 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency
800Hz, 1800Hz
Sensitivity (2.83V @ 1M)
92dB
Nominal Impedance
4 Ohm
Recommended Amplifier Power
25W – 300W
Frequency Response
37Hz – 30kHz (-6dB)
Dimensions (H x W x D)
43.33 x 11.81 x 16.45” (1100.5 x 300.0 x 417.8mm)
Net Weight
83.78 lbs (38.00kg)
